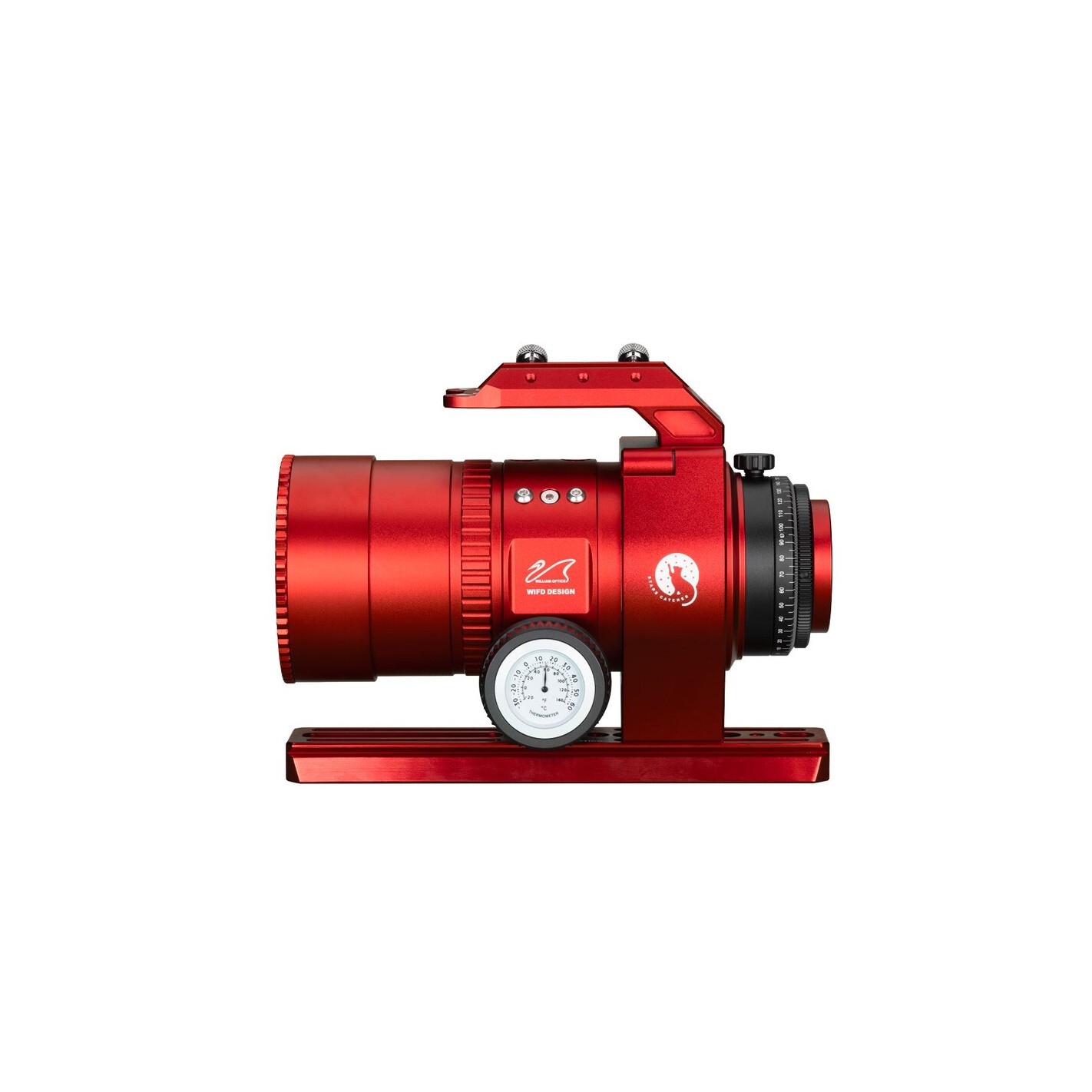

William Optics AP 51/178 MiniCat

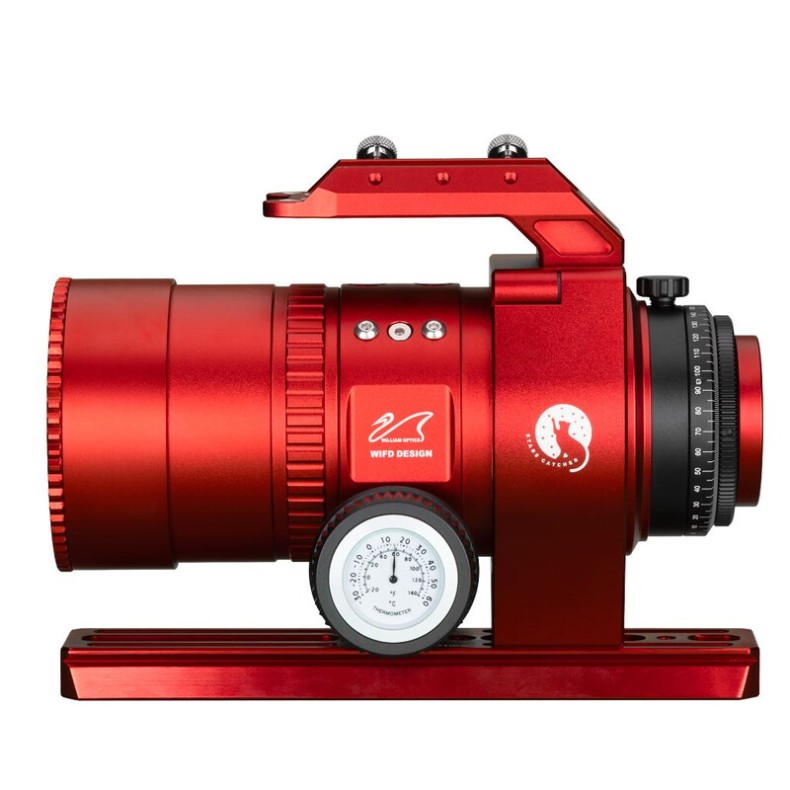

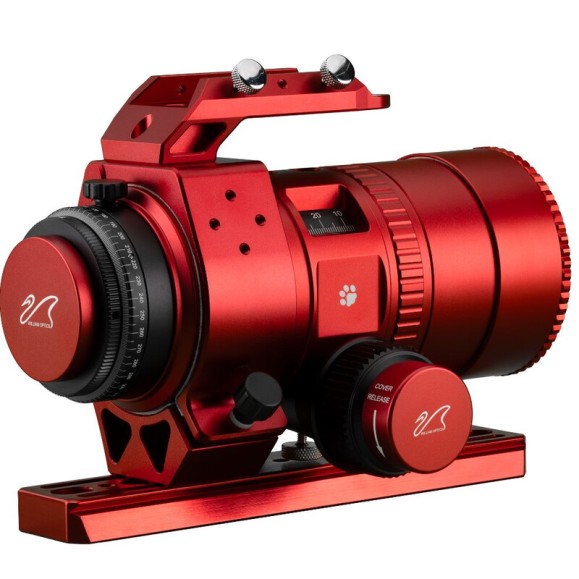

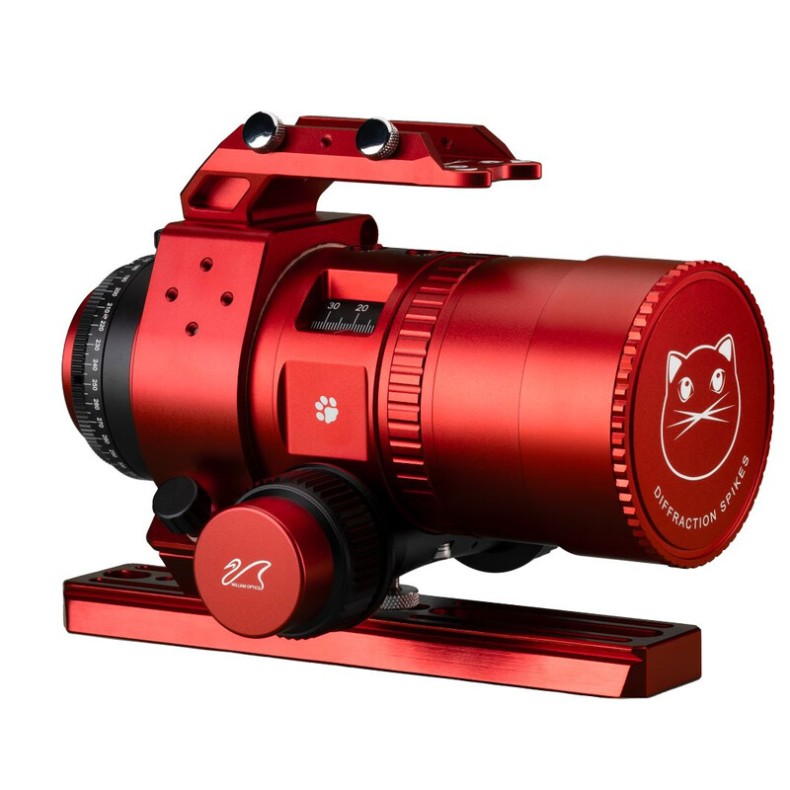

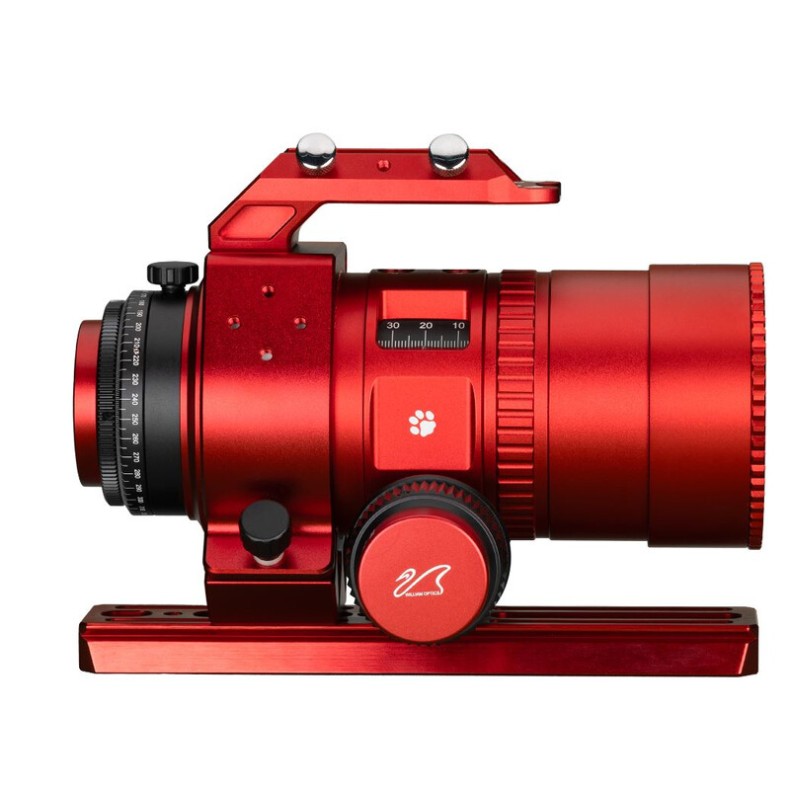

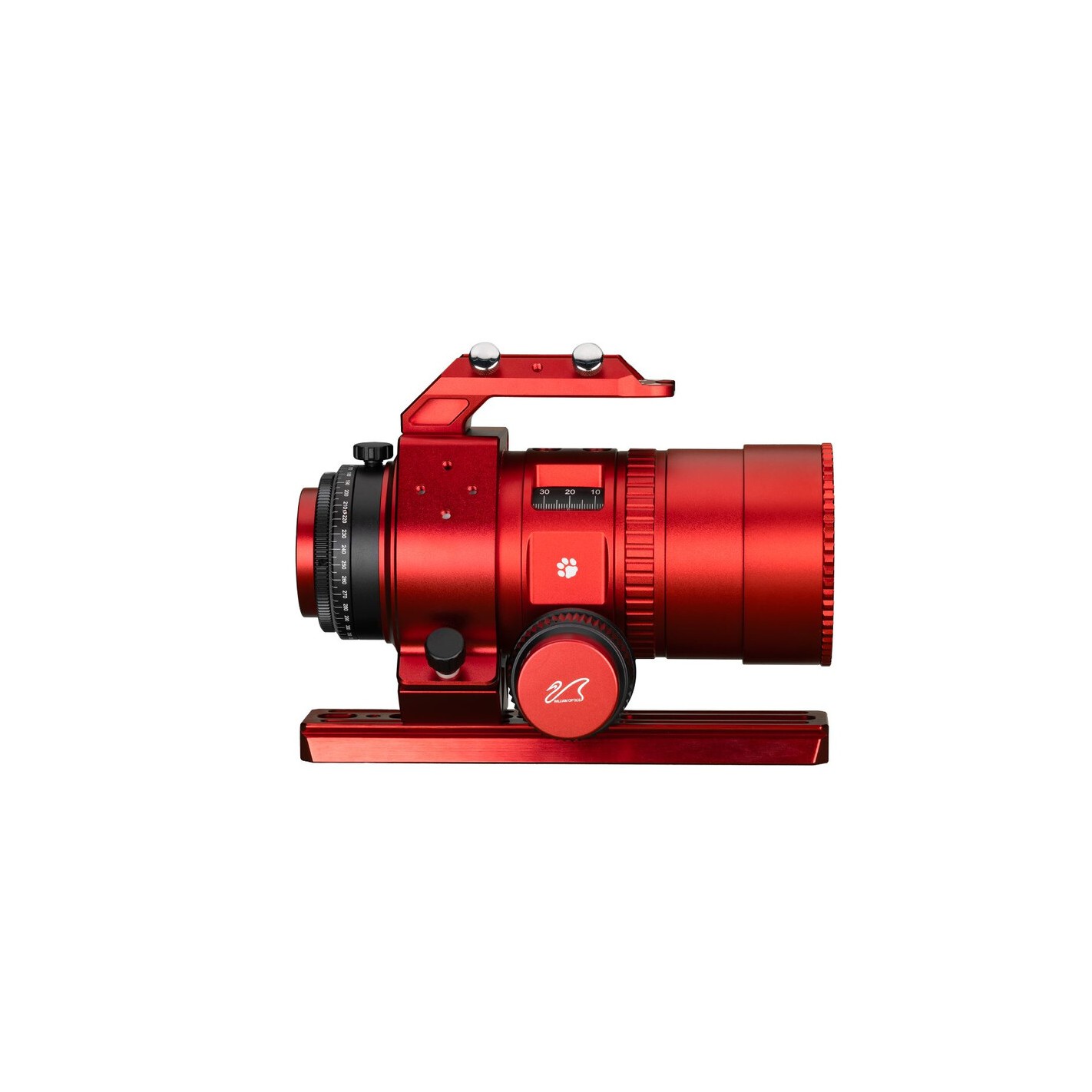

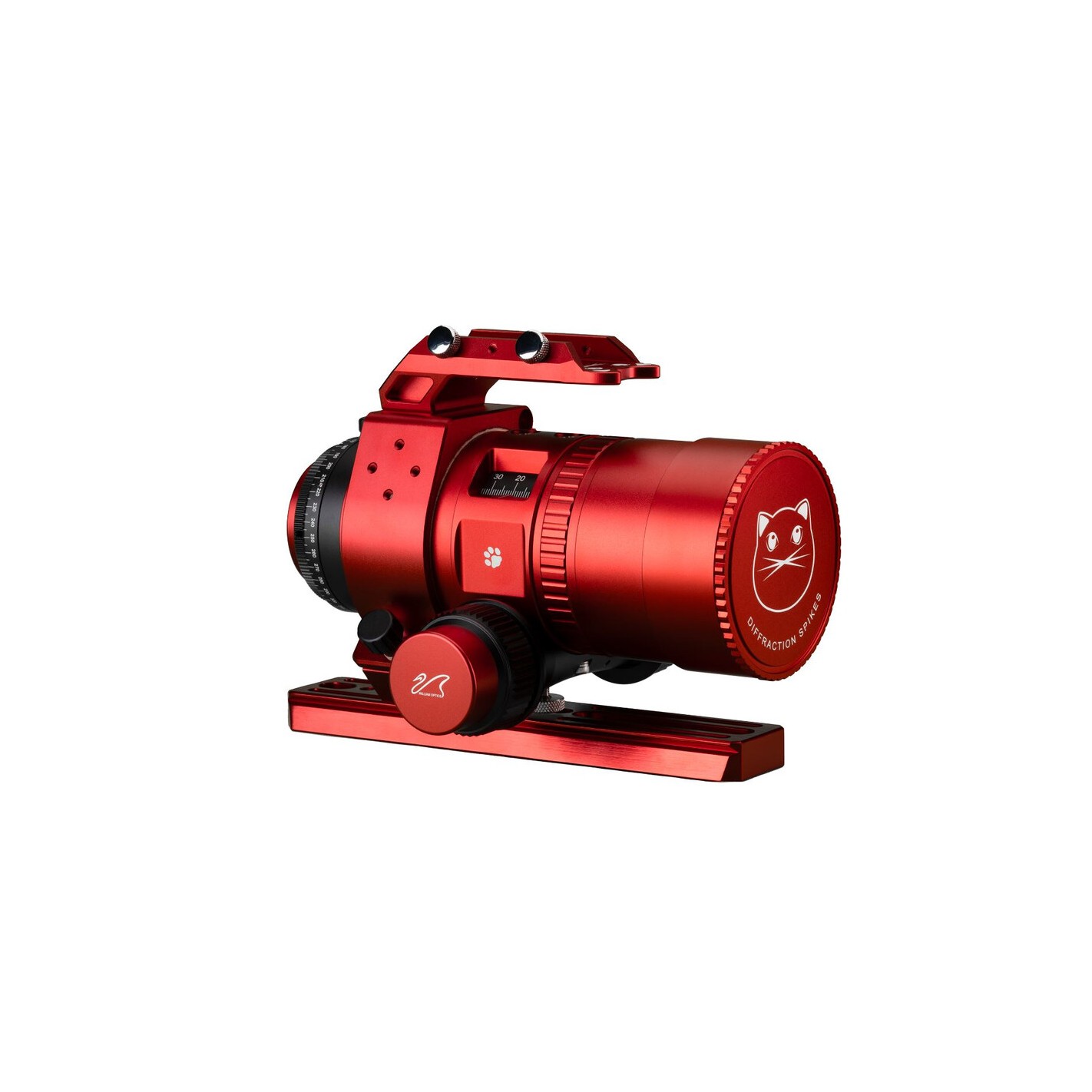

The new, ultra-compact Petzval MiniCat Astrograph from William Optics is a high quality photographic machine consisting of 6 lenses in 2 groups with integrated focuser (WIFD). The focal ratio of f/3.5 allows very short exposure times with maximum image quality and correction. The illuminated image field corresponds to that of full-frame cameras.

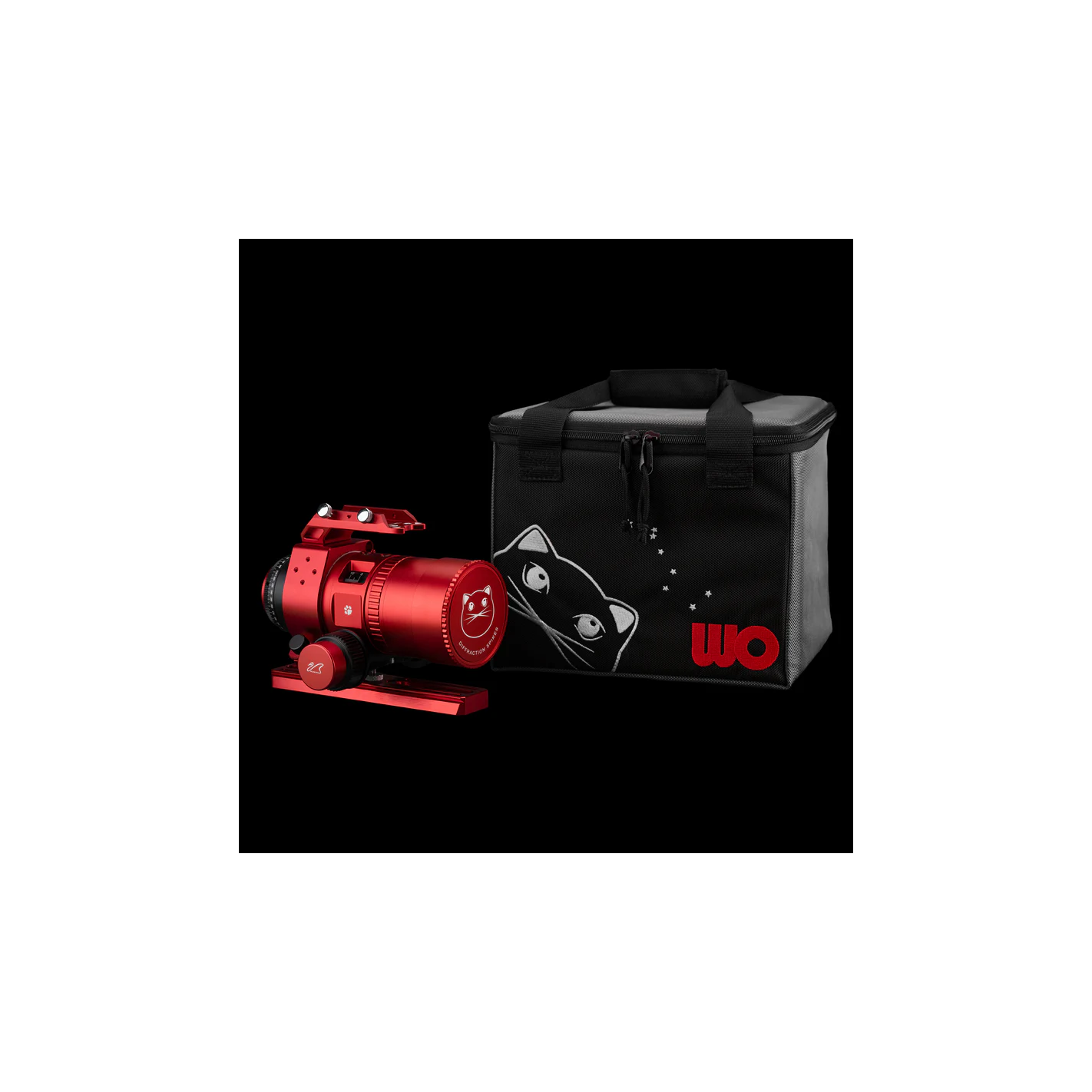

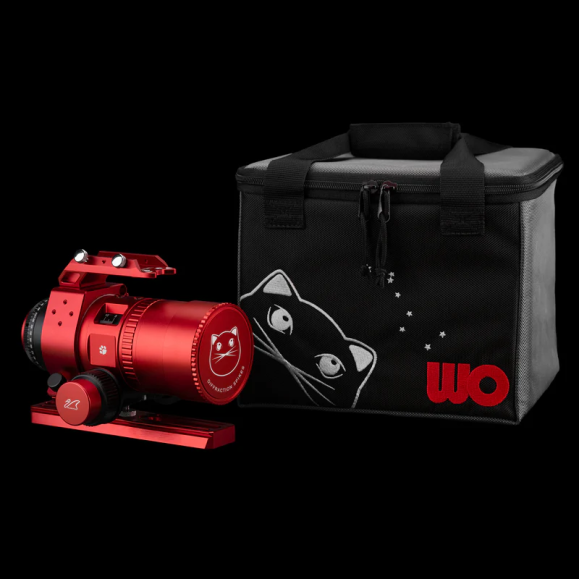

Thanks to the very short tube length and the low weight of only 1.67 kg, the MiniCat is a perfect apochromatic for travel and small camera mounts, such as the SkyGuider from iOptron. It has an M48 thread for attaching the camera. Suitable T2 adapters can be found under "Recommended accessories". The scope of delivery includes not only a protective nylon carrying case, but also a specially designed Bahtinov mask. This mask aids focusing and is integrated into the lens mount.

Optics like this MiniCat 51 are ideal for photographers specializing in night sky as well as wildlife photography. With the MiniCat 51, not only will you get impressive optical performance, but you can also enjoy the beautiful design and finish from William Optics!

Specifications

Optical System

• Type: Petzval Apochromatic Refractor
• Aperture (mm): 51
• Focal Length (mm): 178
• Aperture ratio (f/): 3.5
• Resolution capability: 2.71
• limiting value (mag): 12.3
• Maximum useful magnification: 102
• Tube weight (kg): 1.67
• Tube length (mm): 274
• Tube material: Aluminum
• Diameter of lens hood (mm): 80
• Optical Design: Petzval (6 elements, 2 ED and Lanthanum lenses)
• Glass material: OHARA FPL-53
• Fully corrected field (mm): 43,2
• Series: Cat
• Color: Red

Focuser

• Tilt adapter: no
• Type: Internal
• Connection thread (on camera): M48
• Backfocus (mm): 59
• Free aperture (mm): 48
• Rotator: yes

Included accessories

• Spray hood
• Carrying bag
• Bahtinov focusing mask
• Dovetail plate: Arca-Swiss & Vixen-Style
• Camera tripod thread
• Integrated corrector
