B-290 Series
This series incorporates all the experience accumulated by Optika Microscopes in the field of microscopy, specially adapted for the
routine laboratory brightfield applications.
Delivery Options
    | Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
|  | Home delivery - International | Home delivery - International | Thursday, 6 November - Thursday, 13 November | |

            Home delivery - International
Home delivery - International
Estimated delivery:

                                                            Thursday, 6 November - Thursday, 13 November

✖

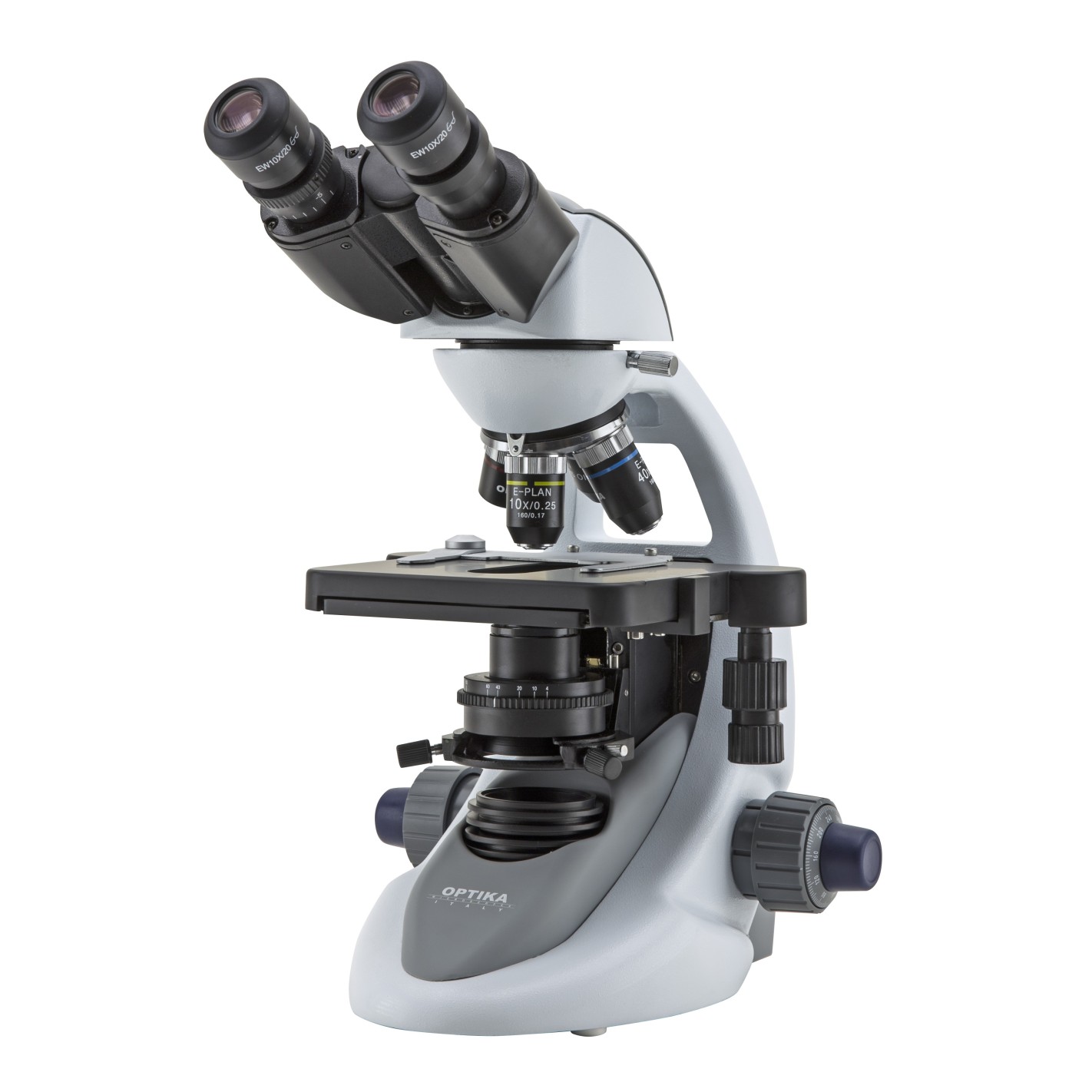

Optika B-292 Laboratory Microscope
Binocular microscope, 1000x, E-PLAN objectives, ribbon stage, X-LED illumination
TECHNICAL SPECIFICATIONS:
Model
TECHNICAL SPECIFICATIONS:
Model
B-292
Head
Binocular, 30° inclined, 360° rotatable.
Eyepieces
WF 10x/20mm
Revolver
Quadruple, inverted
Objectives
DIN E-PLAN Achromatics 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25
Stage
Mechanical, 150x139 mm with X-Y movement range 75x33mm.
Focusing
Coaxial macro and micrometer controls
Illuminator
X-LED3 system with intensity adjustment
Condenser
Abbe, A.N. 1.25 adjustable in height and iris diaphragm
Power supply
External power supply 100-240 Vac.
Output voltage 6Vdc 50-60 Hz.
