Focuser Crayford OMEGON Pro 2'' Dual Speed for Newton

Crayford OMEGON Pro 2'' Dual Speed Focuser for Newton

Crayford 2" from Omegon: this eyepiece holder is pure sharpness

is the focuser not working properly for astrophotography or high magnification observation? The Crayford eyepiece holder from Omegon gives you the precision you need for sharpness adjustment. With its smooth adjustment, ball bearing and reducer, you'll find the right focus effortlessly.

And all so that in the future you can concentrate on what really matters: observing pleasure.

Advantages at a glance:

• Crayford eyepiece holder with guide rail for maximum stability
• Smooth, accurate movement for precision focusing during observing or astrophotography sessions
• 1:10 reducer for finding focus with tenths of accuracy
• 2.5 kg carrying capacity for cameras with accessories or heavy 2" eyepieces
• High quality due to thick anodized aluminum housing
• Combination of Crayford and guide rail: double mechanics

The Crayford bearing combines two techniques to ensure that the holder operates with maximum precision: a large ball bearing and a stainless steel guide rail. The eyepiece holder adjusts very flexibly and smoothly and retains its position even under heavy load. This is a most robust astrophotography accessory.

1:10 mechanism for 10 times more accurate focusing

Adjust the sharpness for observing stars, planets and diffuse nebulae. What is simple in visual observation is a complicated task in astrophotography. But with this holder you can solve it without hassle. Use the 1:10 reducer together with the normal focusing wheel to adjust the tube 10 times more accurately than with a conventional holder.

2" or 1.25" attachments: everything you need

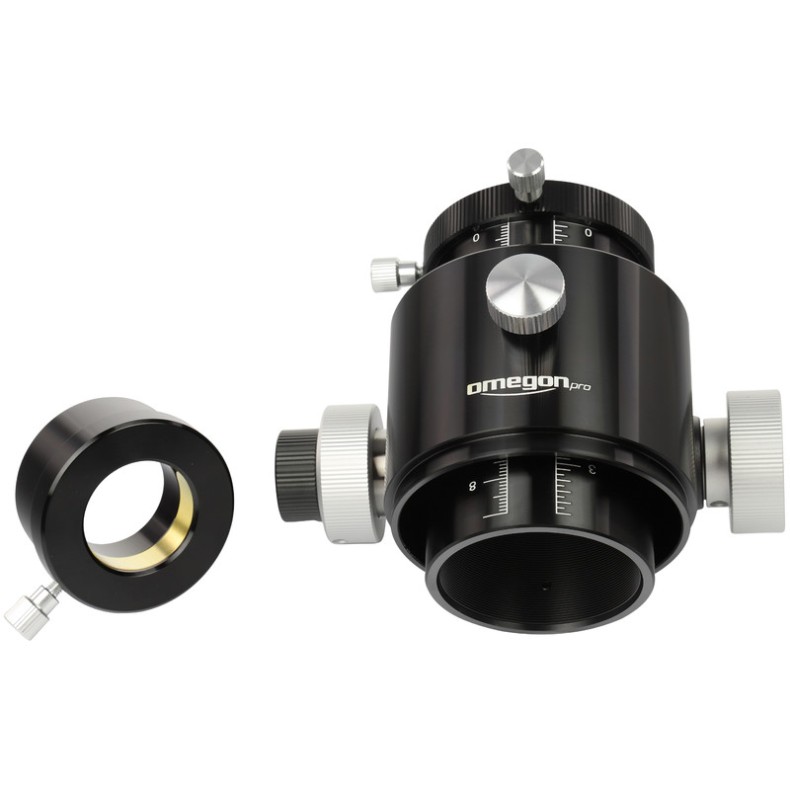

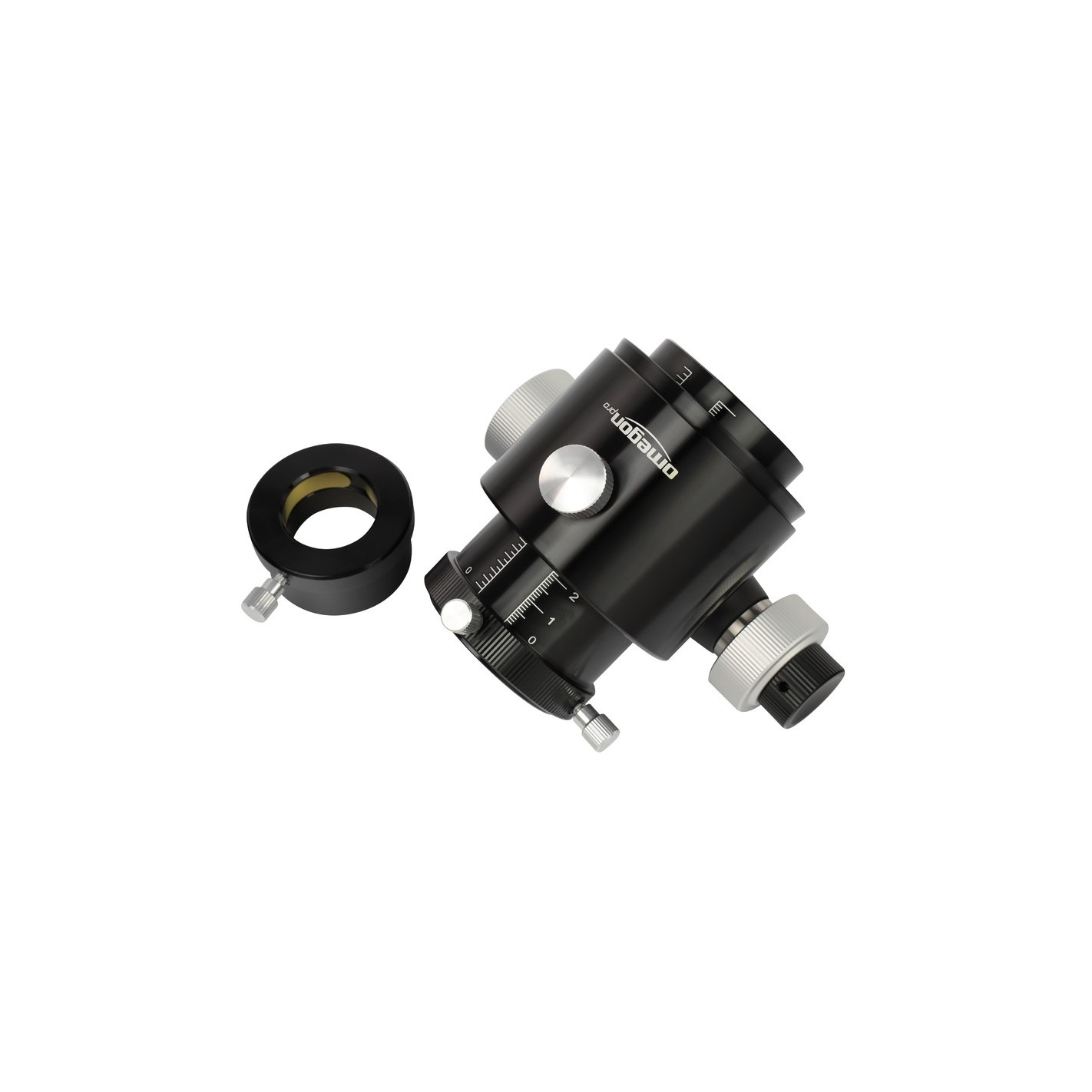

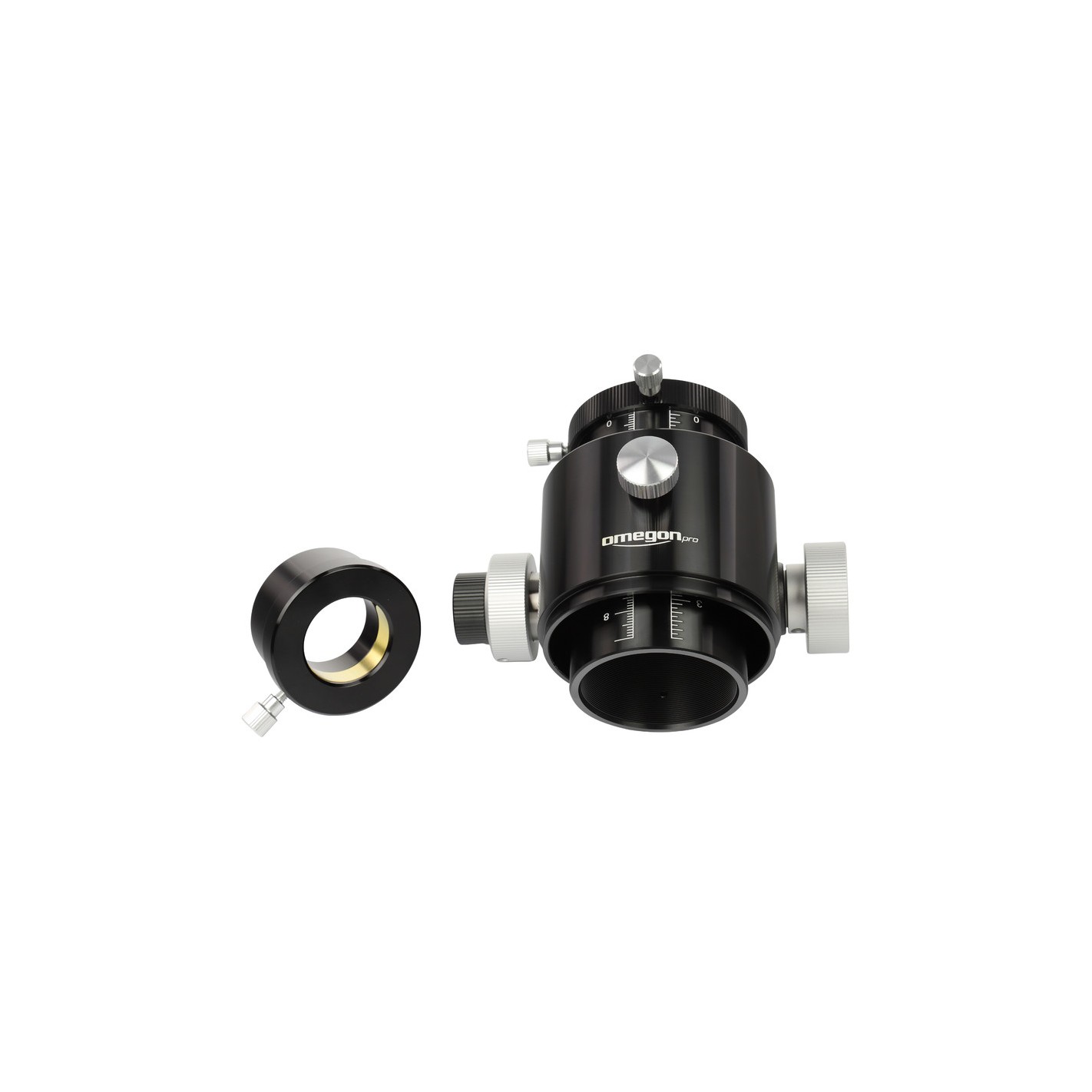

The Crayford 2" holder features a compression ring for attaching eyepieces or adapters. It ensures a strong grip without damaging the accessories. A 2" to 1.25" reducer allows you to install any 1.25" eyepiece to which you can also screw 2" filters.

Load capacity up to 2.5 kg

Mount your photographic equipment with confidence, even large full-format cameras, because it supports up to 2.5 kg without bending. This way you will be assured of exact focus centered with the optical axis.

THINGS TO NOTE:

The focuser is attached to the telescope with a dovetail ring connection. It has a diameter of 78 mm. The following adapters may help you:

Omegon 78/80 mm adapter for the V-Power if the telescope already has an 80 mm receptacle for the focusers.

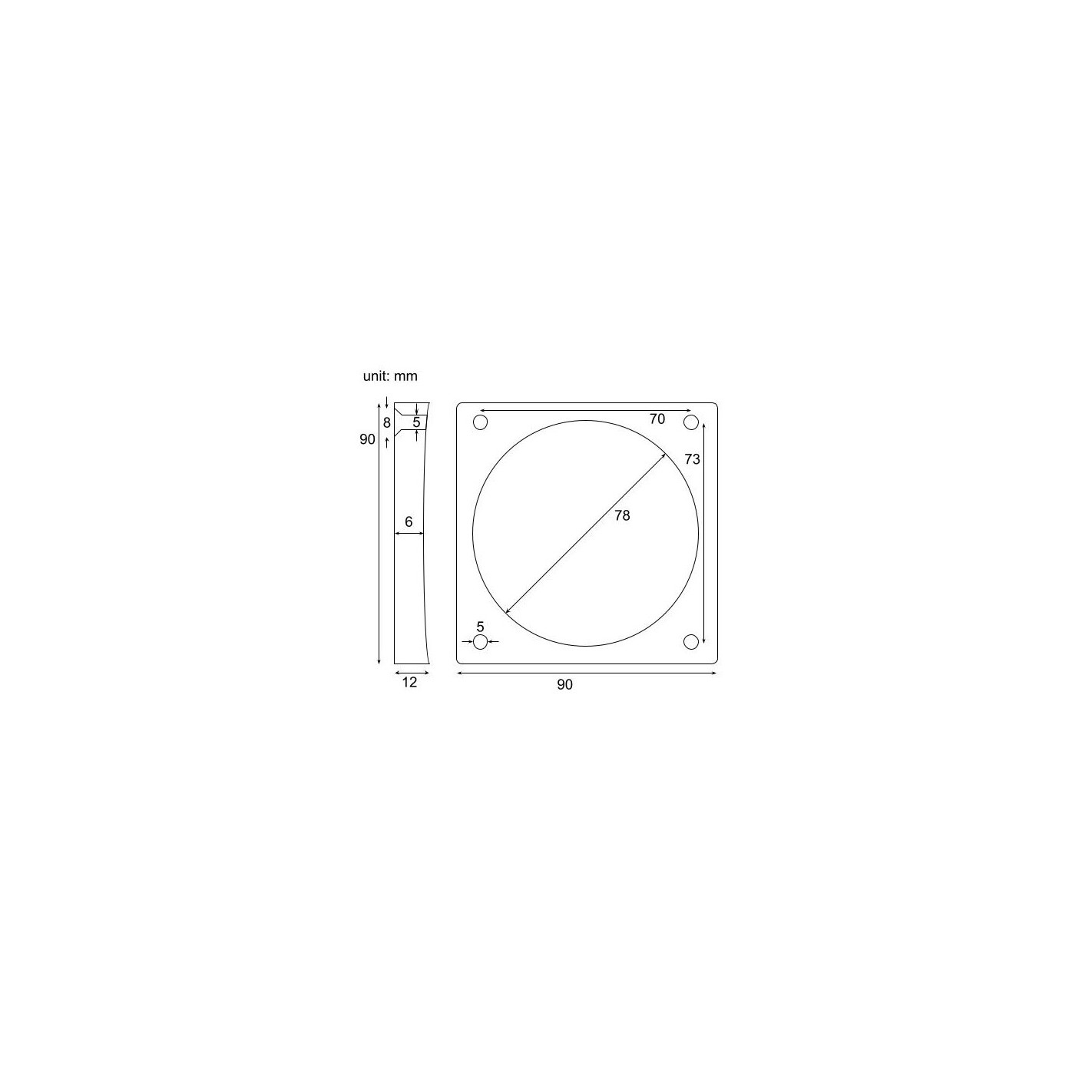

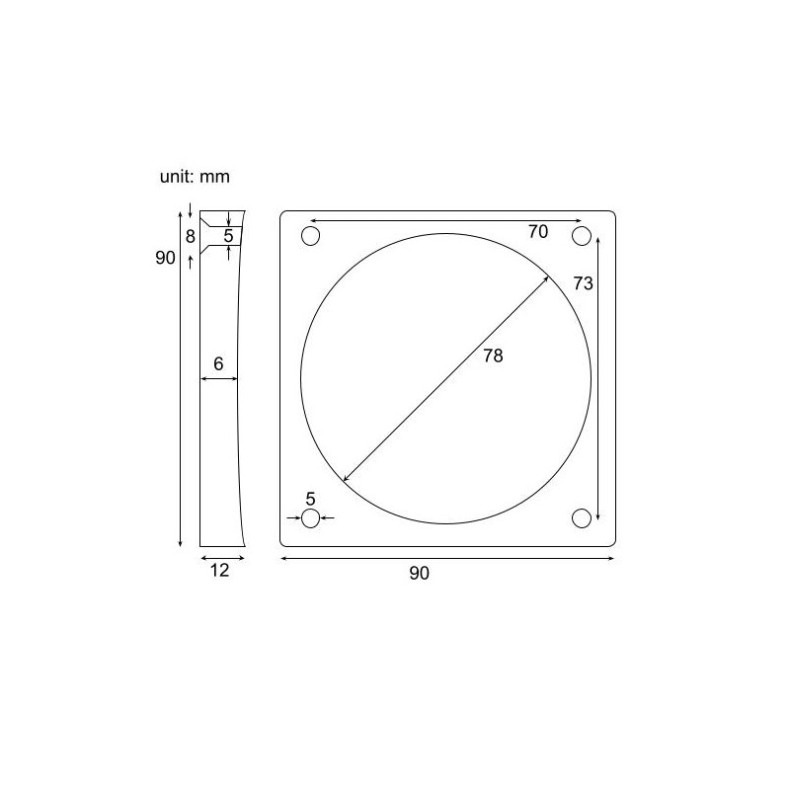

Omegon 80 to 78 mm adapter + adapter plate package for Newtonian telescopes: a set consisting of a base plate directly suitable for Skywatcher and the reducer adapter mentioned above. Check that the distances between the screw holes for connecting the base plate and the telescope tube are correct.

Omegon SCT adapter package with C11 to C8 adapter For connection to telescopes with SC thread (stands for Schmidt-Cassegrain, but is also available on many Maksutov). For larger telescopes (C11 and larger), Omegon SCT adapter may be sufficient.

Omegon 109 to 78 mm reduction ring with an existing 109 mm receptacle

The Astroprints EAF Motor Coupling Kit for Monorail N2 OAZ helps to connect the ZWO Electronic Automatic Focuser EAF Standard (5V).

Technical Specifications

• Suitable for...Newton Telescopes
• Connection: 1.25" - 2
• Reduction: 1:10
• Connection (telescope side): 78mm
• Focuser travel (mm): 50
• Load capacity (kg): 2,5
• Connection (eyepiece side): 2" / 1,25
• Optical length (mm): 78


• Height (mm): 88
• Weight (g): 802
• Color: black
• Series: Pro
• Type: Focuser
• Construction type: Crayford

Crayford OMEGON Pro 2'' Dual Speed focuser for Newton
