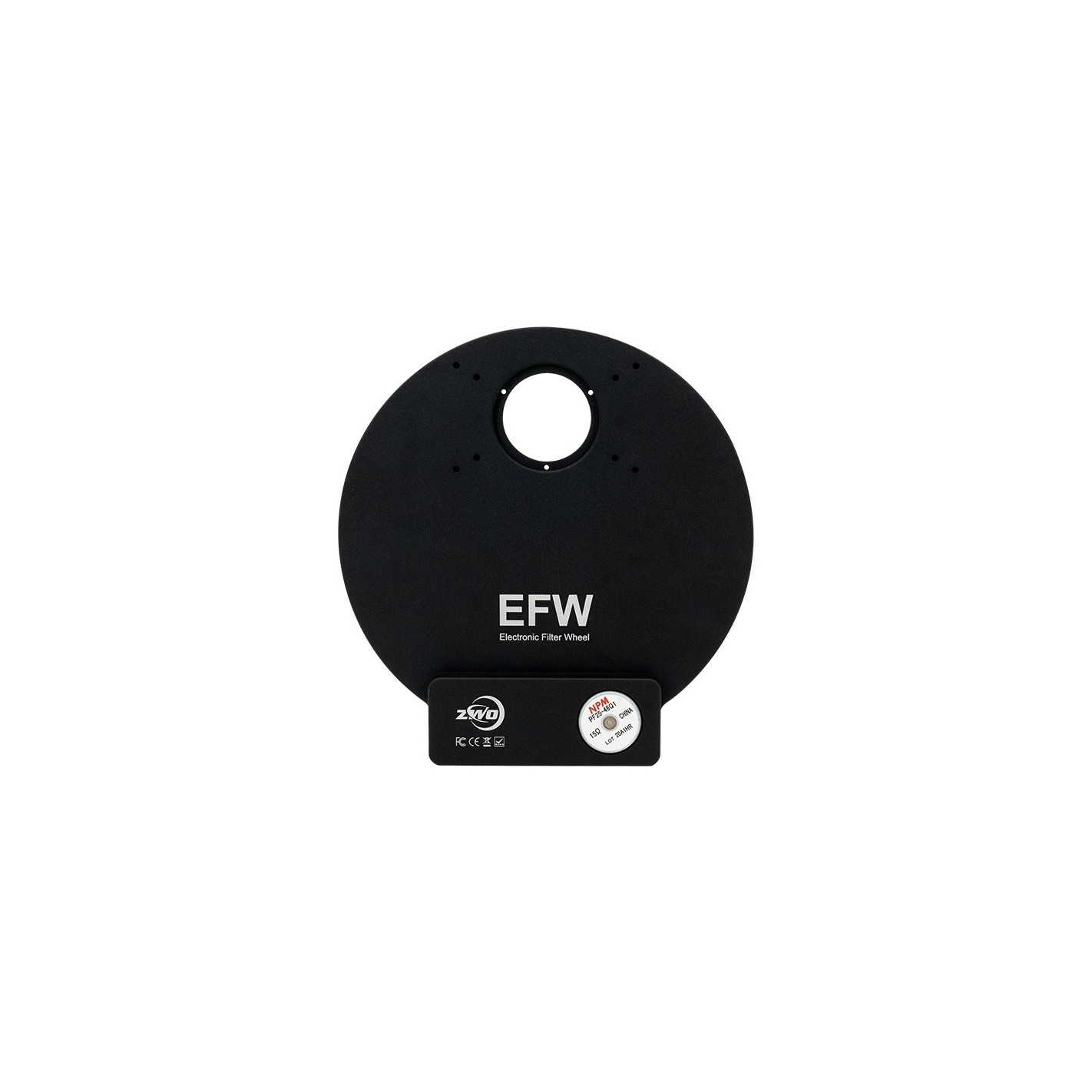

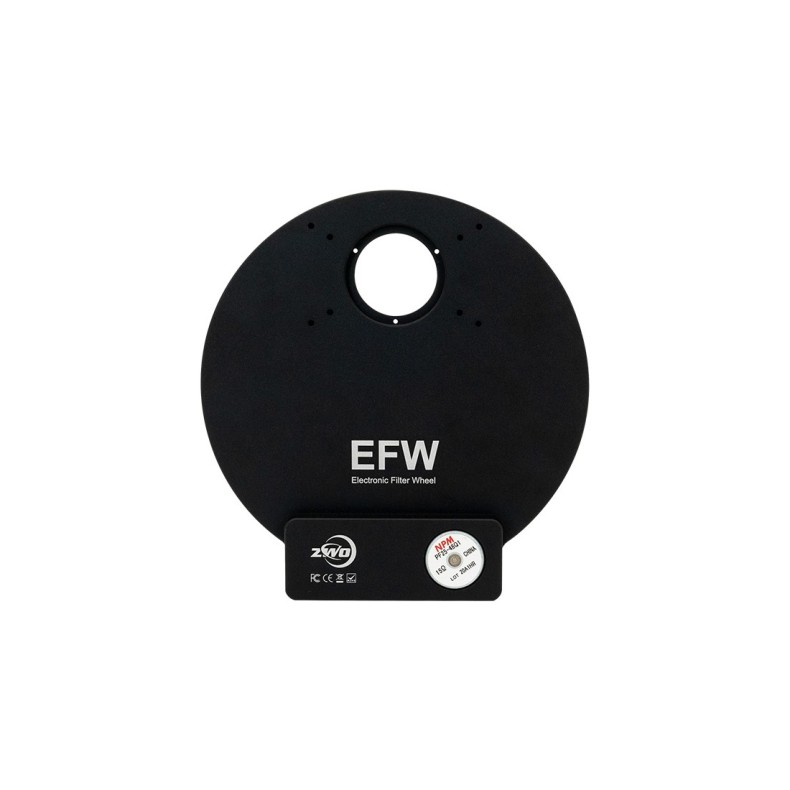

Filter wheel EFW 7x36mm Version II
ZWOZWEFW_7X36-II-25
Stock at Supplier
326.45
VAT excluded
Shipping 5/7d
- New version II
- A superb filter-holder wheel for astrophotography.
- Seven positions. Very low power consumption (5V). Weight only 400 grams.
- For 36 mm filters (unmounted). Prevents vignetting with ASI cameras.
- Includes multiple adapters for different configurations.
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Thursday, 8 January - Thursday, 15 January |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 8 January - Thursday, 15 January
✖
The low power consumption of this filter wheel and its reduced weight (400gr), make it ideal to combine with any equipment. Its aluminum housing shows the quality of this accessory. Its distance between sensor and filter is very low (10mm with an ASI1600 MM Pro), so filters will not show "vignetting".
A USB cable is enough to power this EFW, as its maximum consumption is around 120mA at 5V, so it can be connected directly to the USB 2.0 hub of cooled cameras.
The new 36mm electronic filter wheel (EFW) was independently developed by ZWO for astronomical monochrome cameras. With a larger body and new screw holes in the caps, it will offer a much easier and repairable way to attach to ASI cameras.
Automatic moving filter holder wheel. Seven positions for 36mm diameter filters (not mounted). Attachment to telescope via adapter with 1.25″ socket. Connection to the filter wheel eyepiece holder by means of 1.25″ socket thread with fixing screws. Includes wiring.
Find out how the filter holder wheels like this one from ZWO in our Tutorials section.
Accessories included:
Filter holder wheel ZWO with automatic movement and 7 positions. Includes adapters: T2-T2 adapter (female), T2 adapter with 1.25″ eyepiece holder, T2 to 1.25″ adapter, 1.25″ socket cap, filter washers, M2 screws, Phillips screwdriver and 2 meter USB 2.0 cable.
Movement: automatic.
Positions: 7.
Diameter of positions: compatible with 36mm unmounted filters.
Telescope connection: T2 thread (M42) or 1,25″ socket.
Weight: 400gr.
Power supply: 120mAh / 5V (via USB cable).
