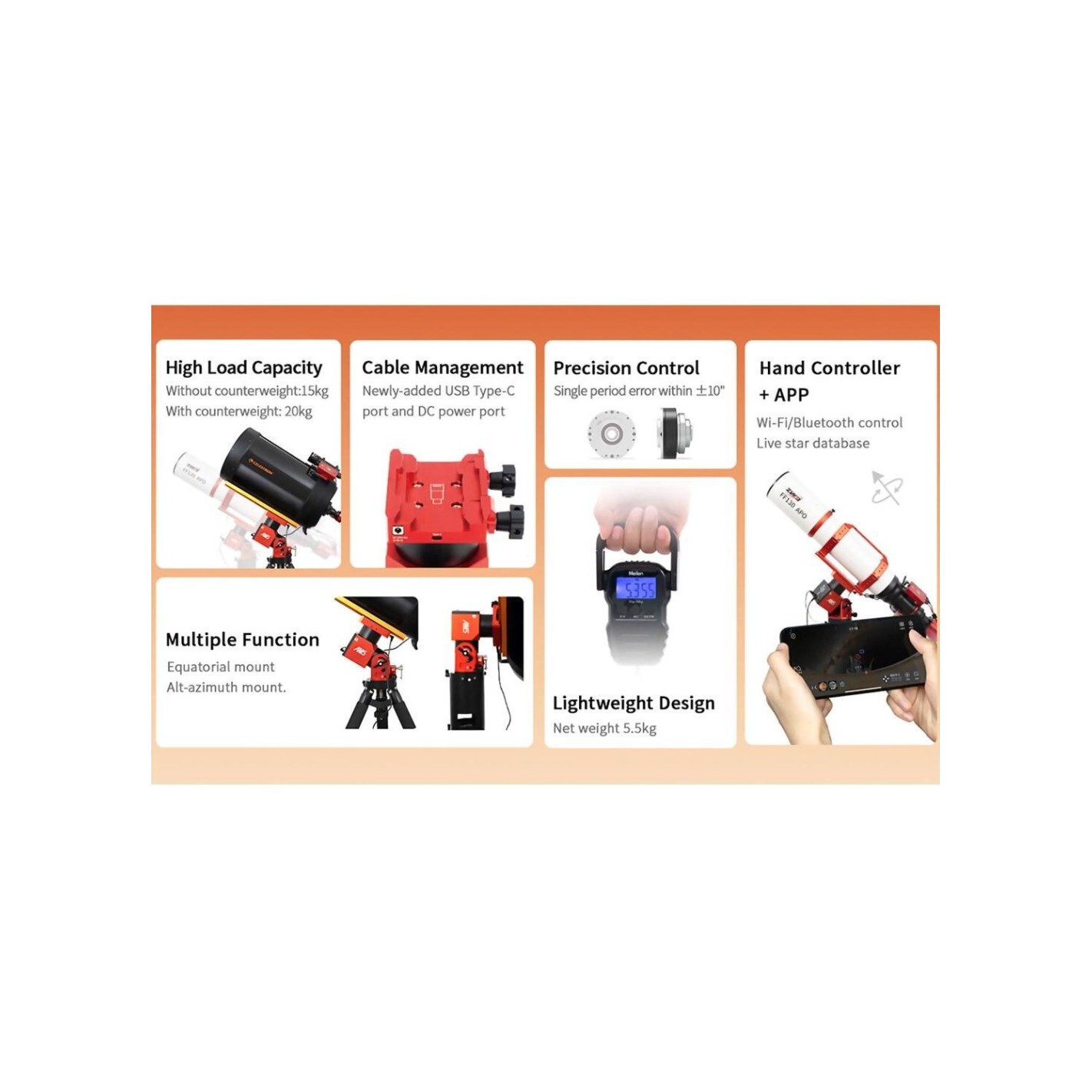

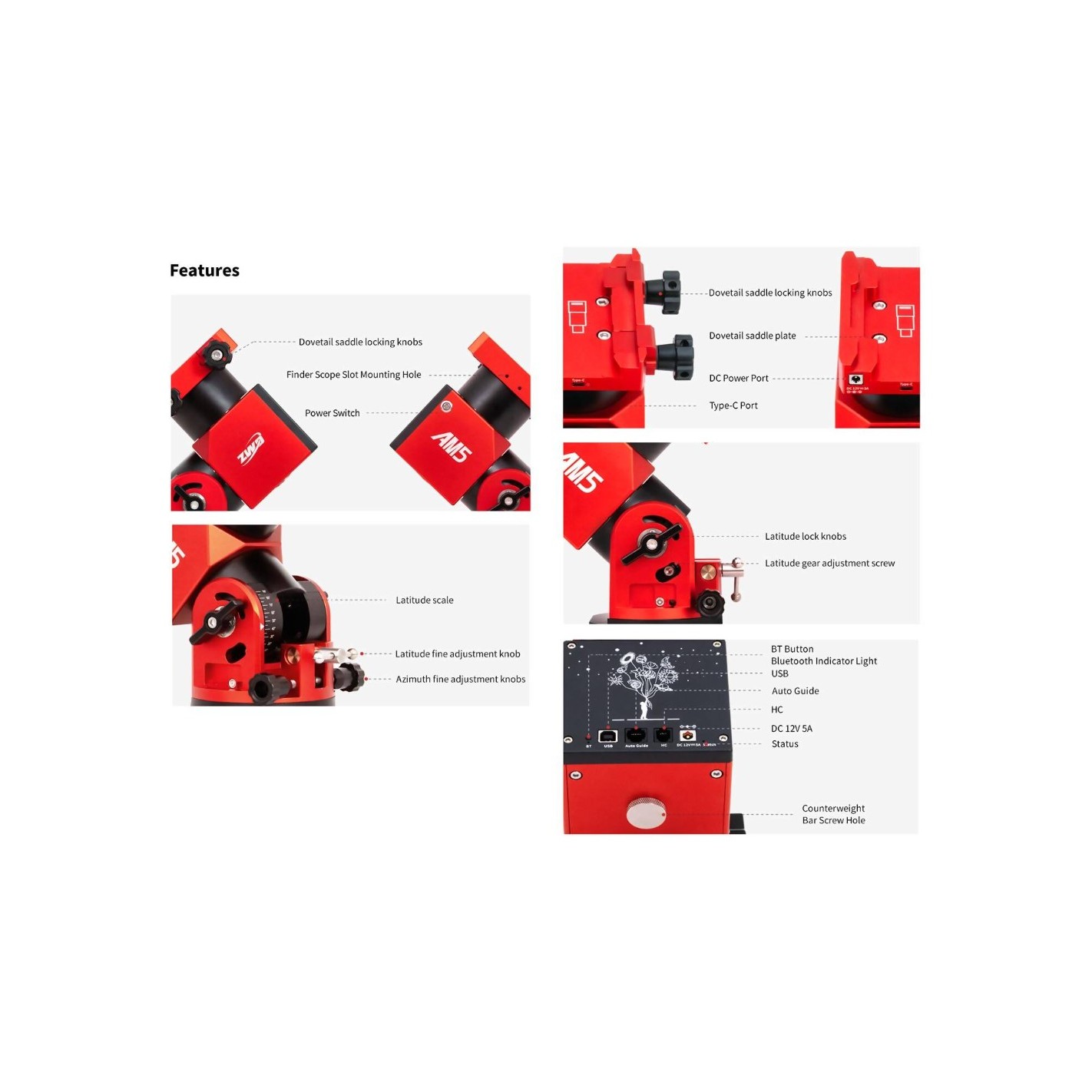

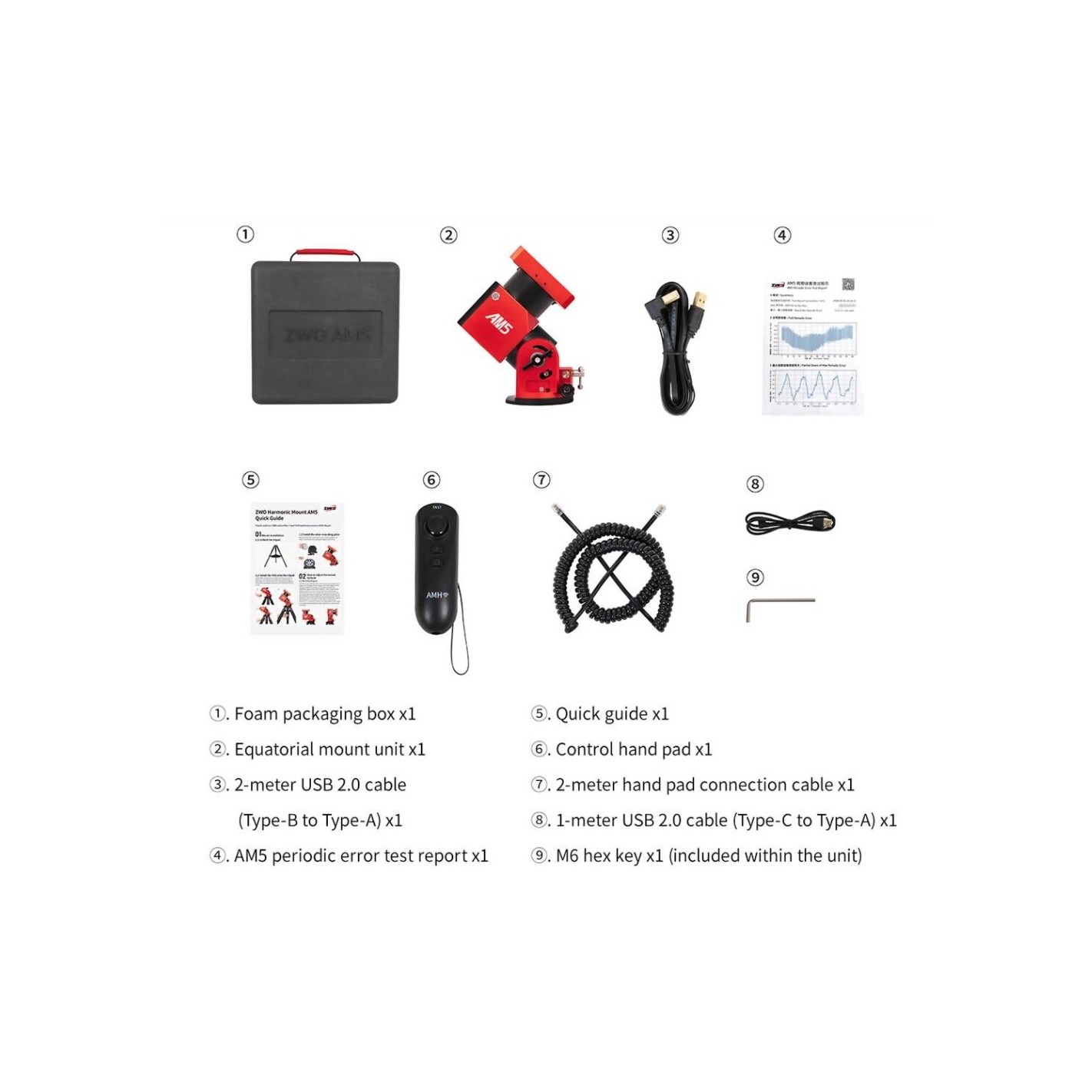

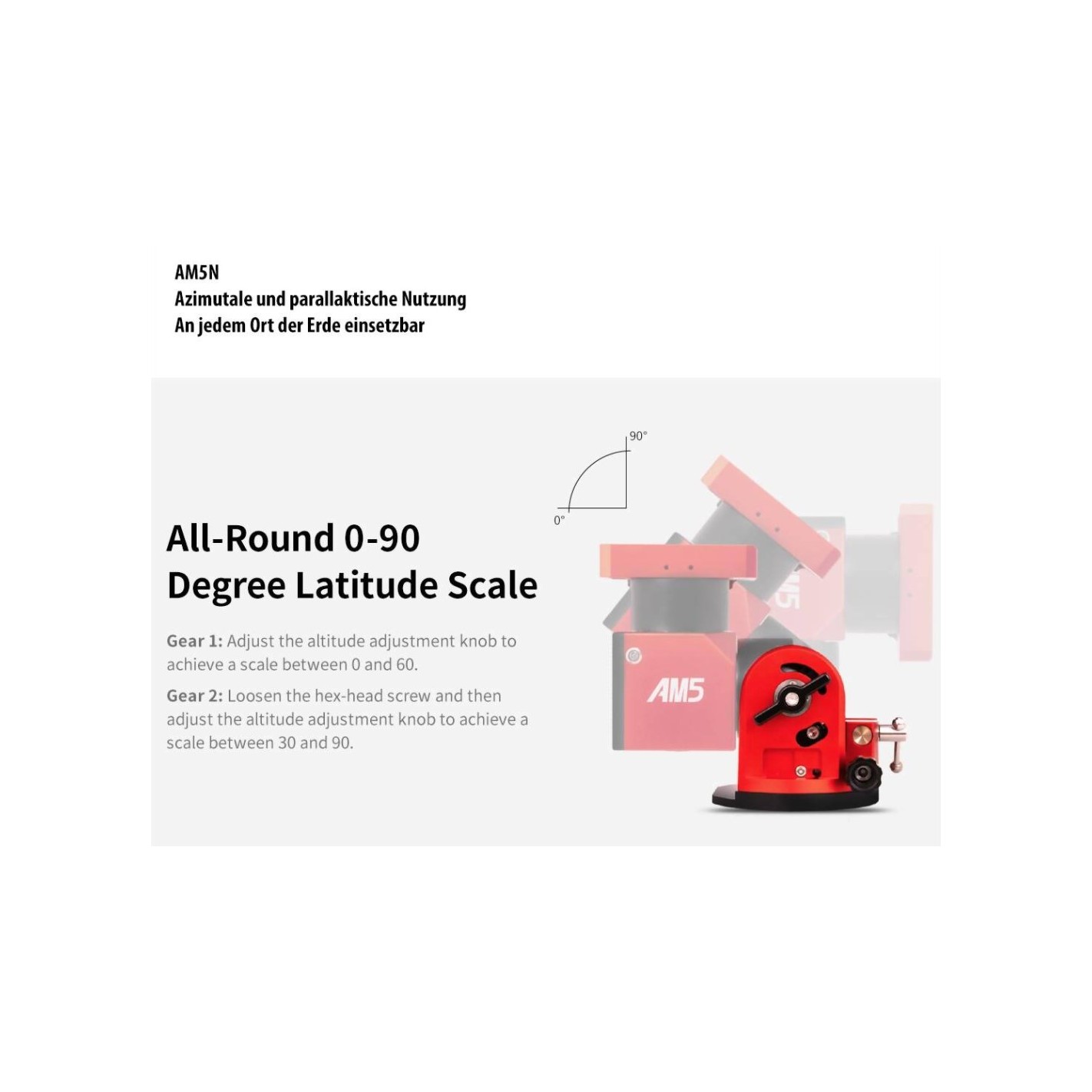

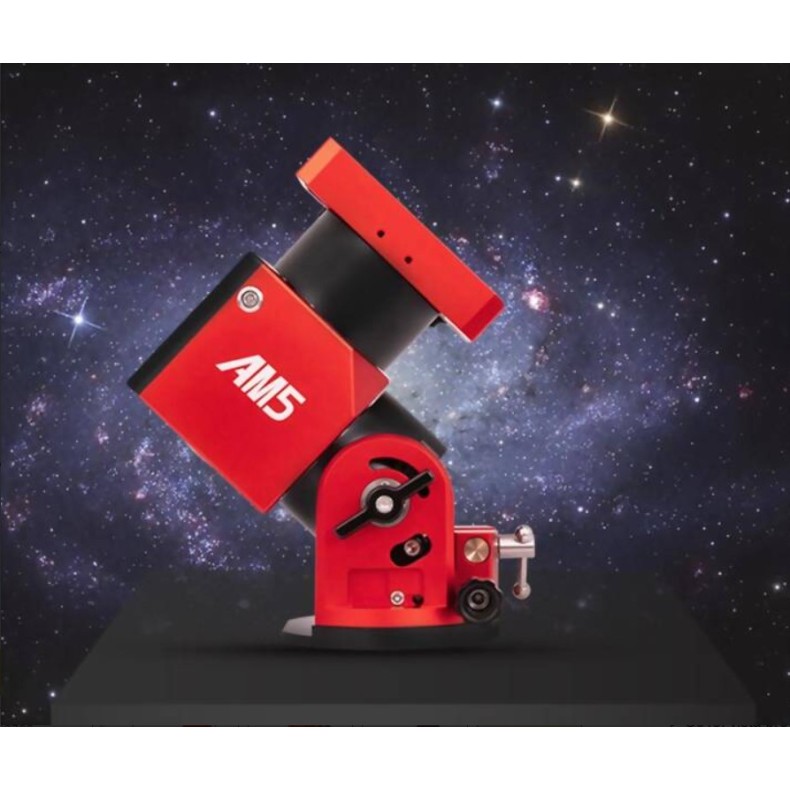

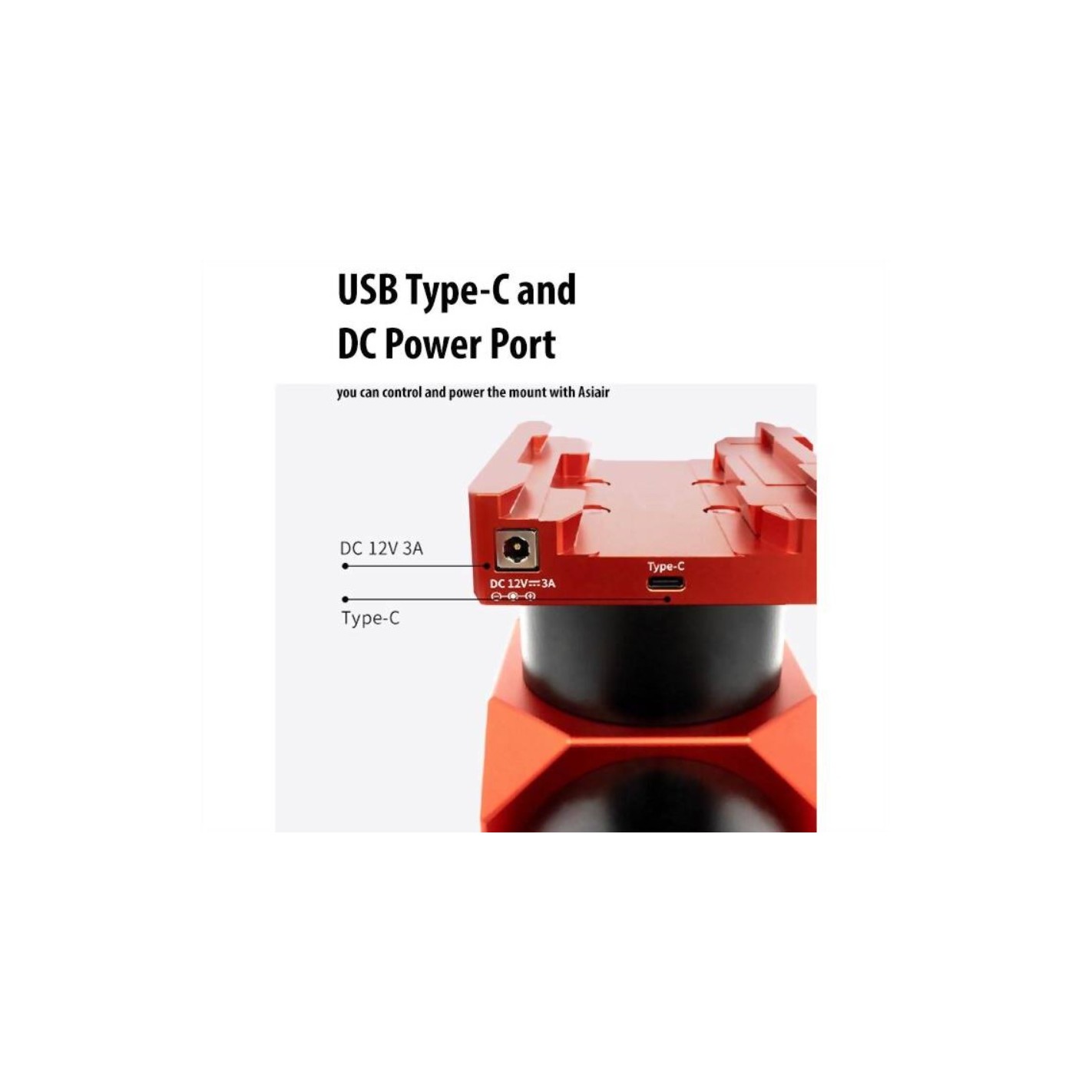

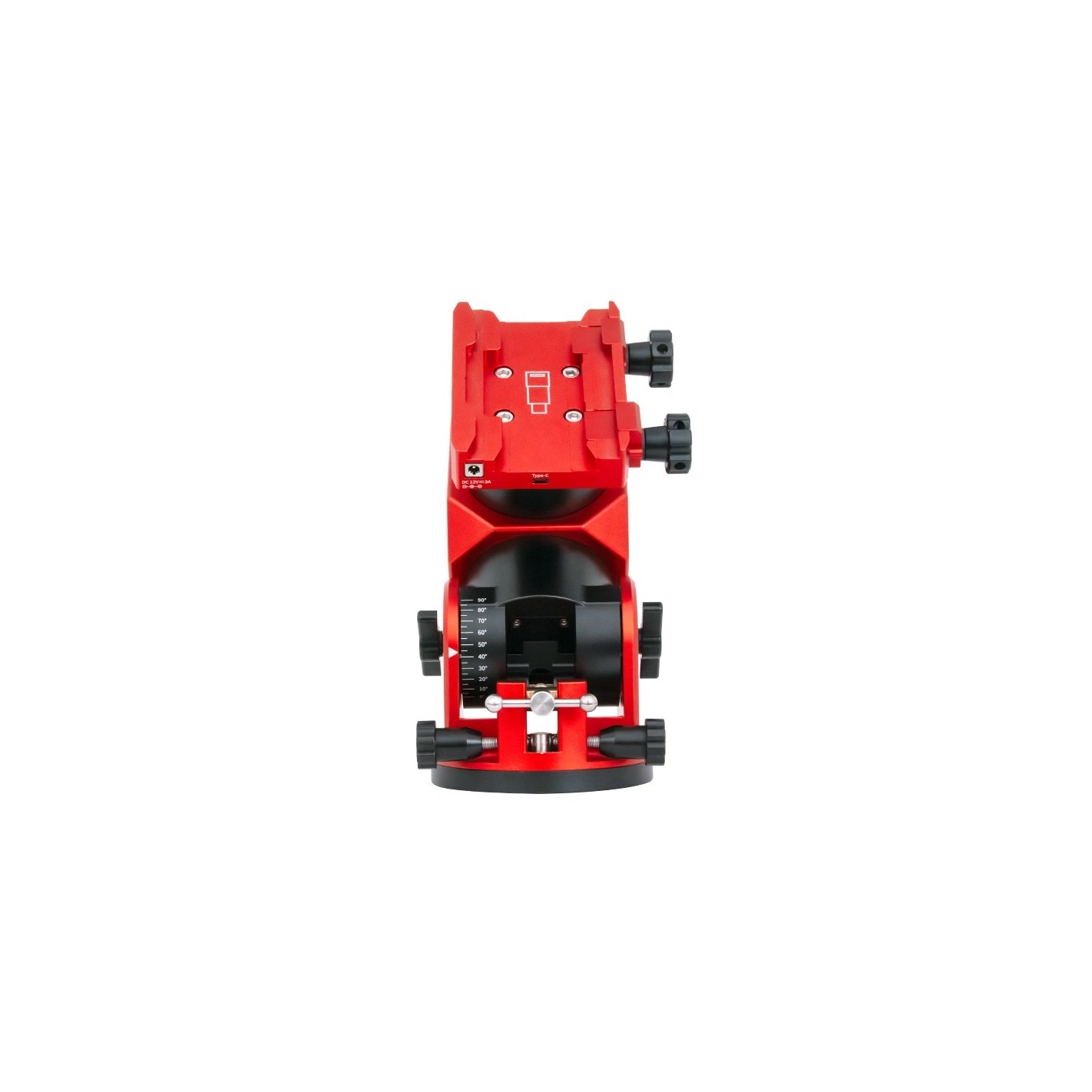

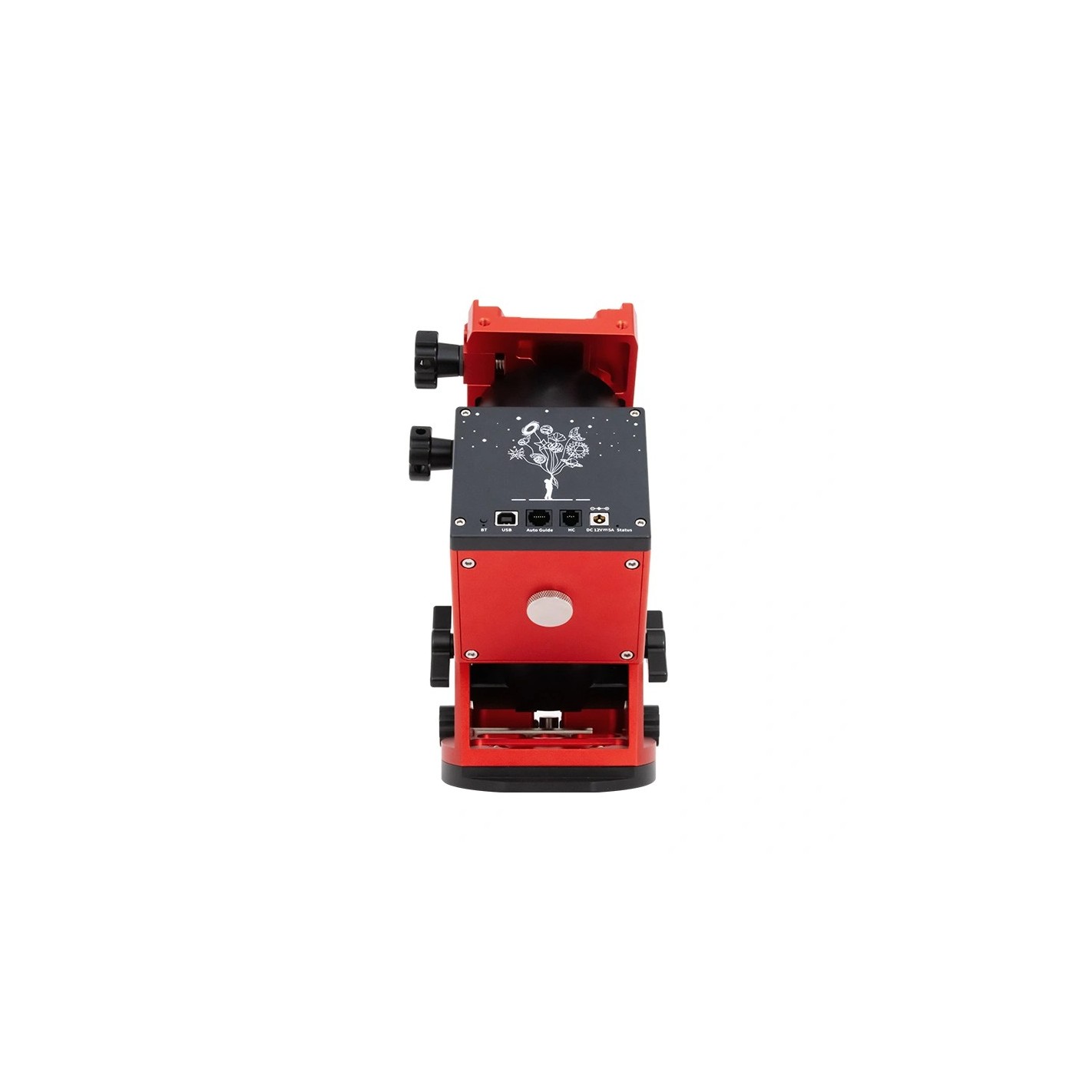

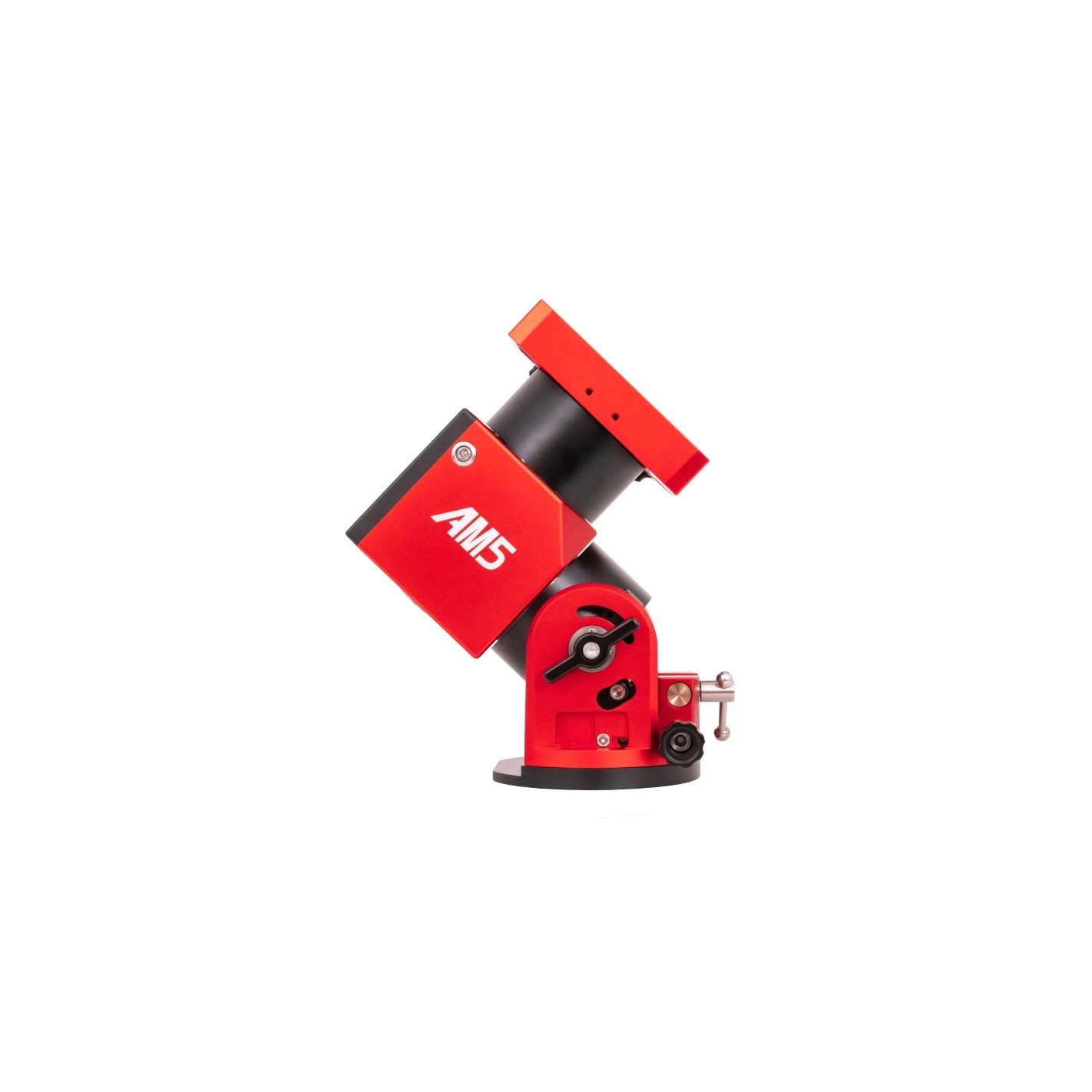

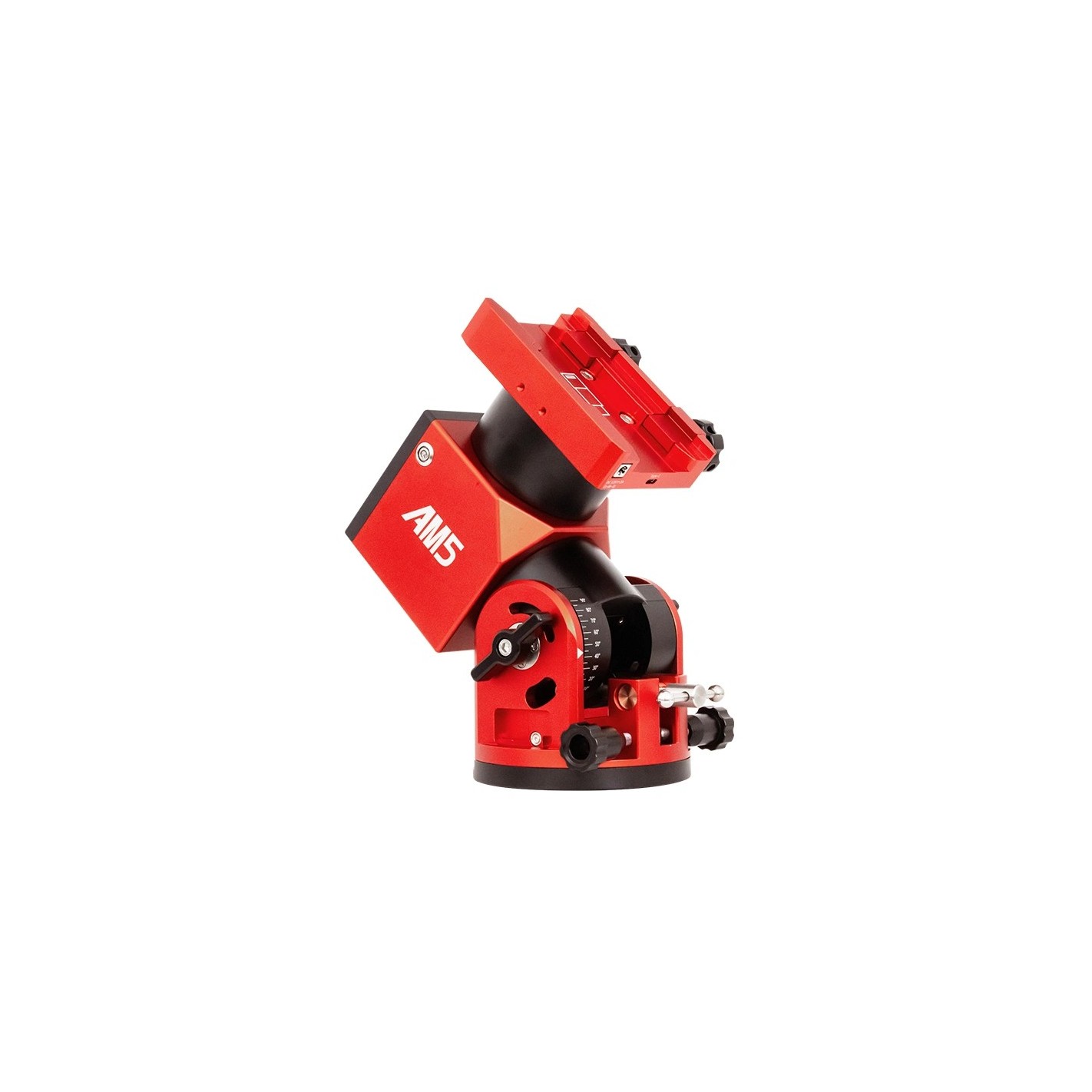

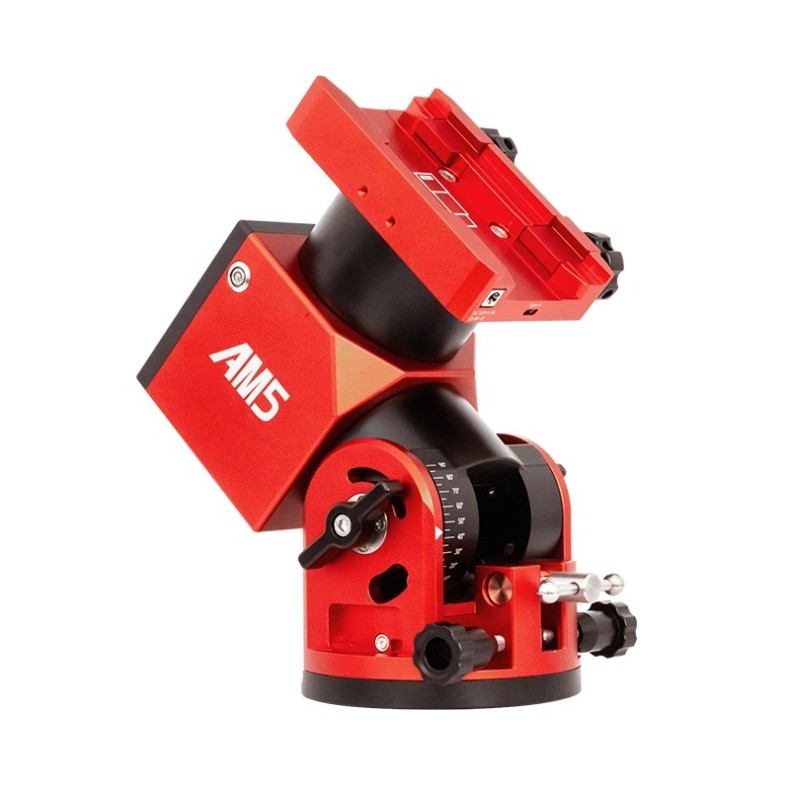

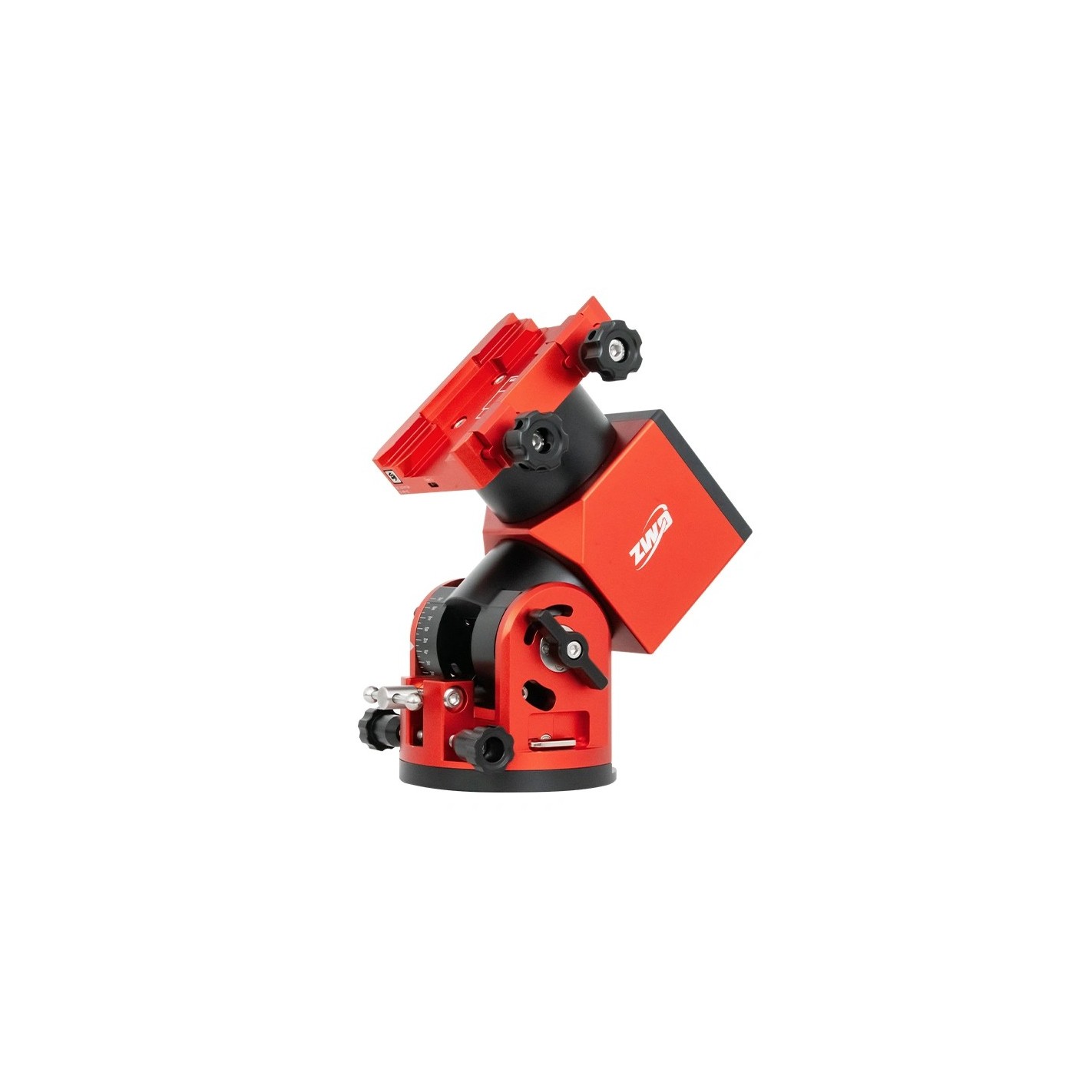

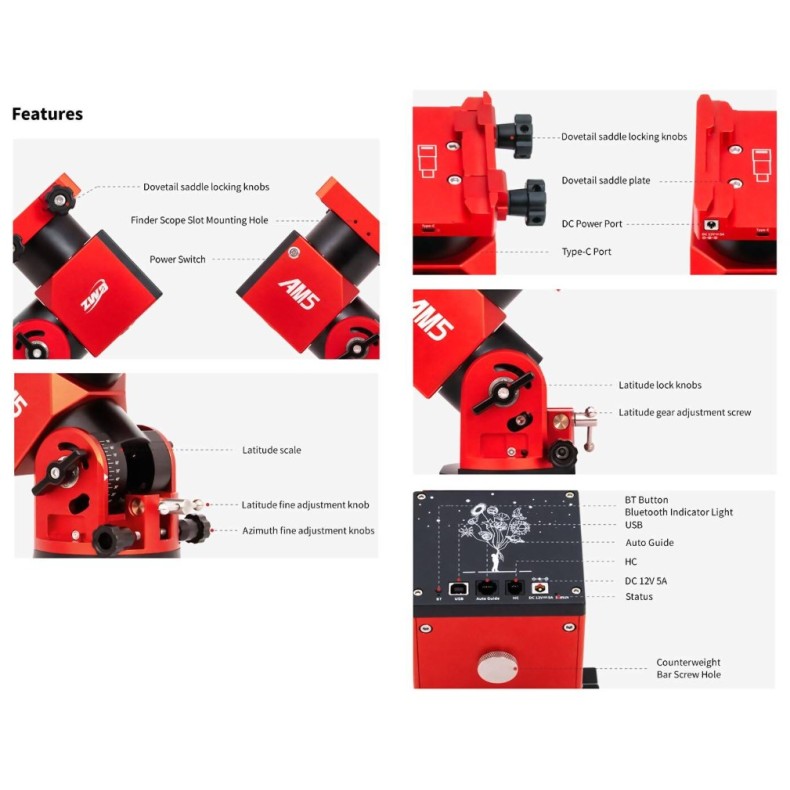

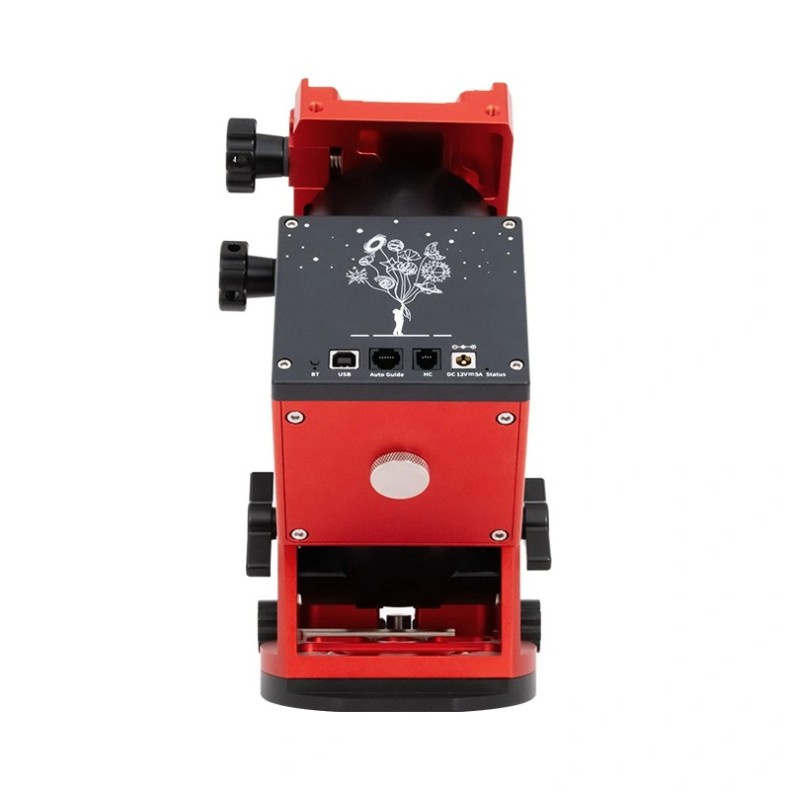

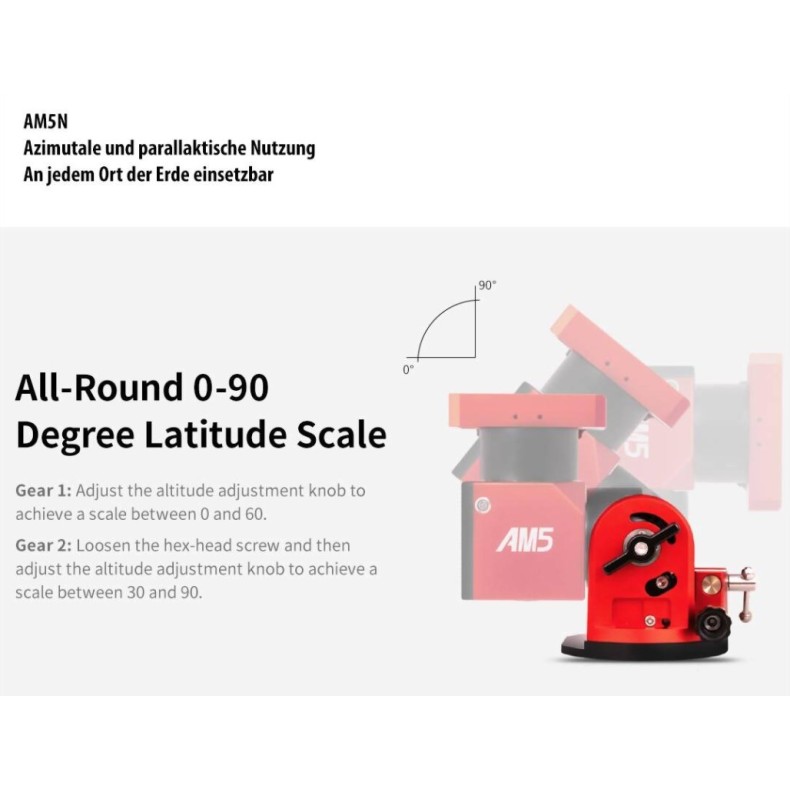

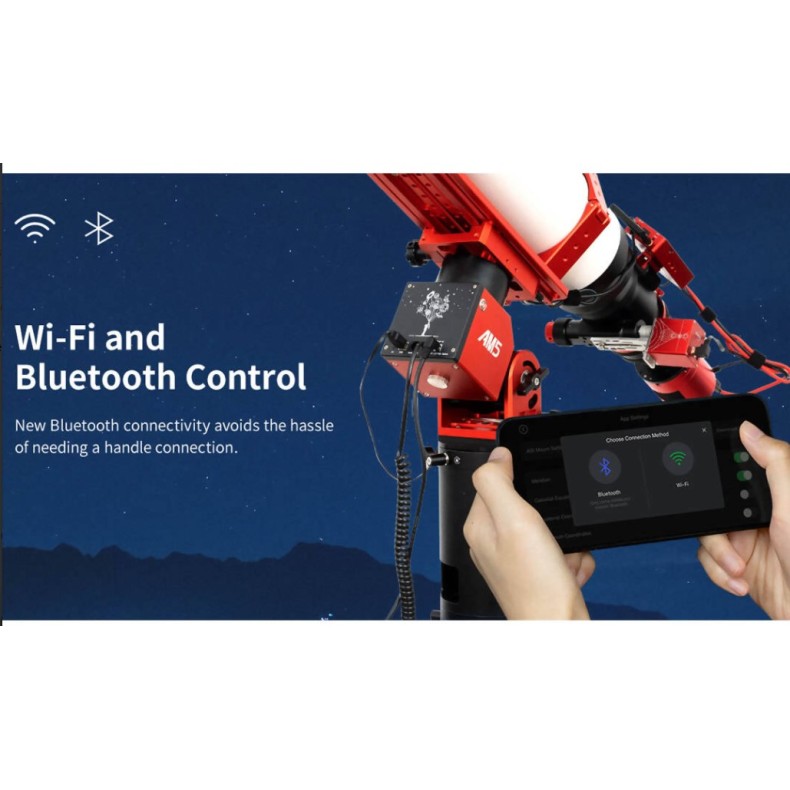

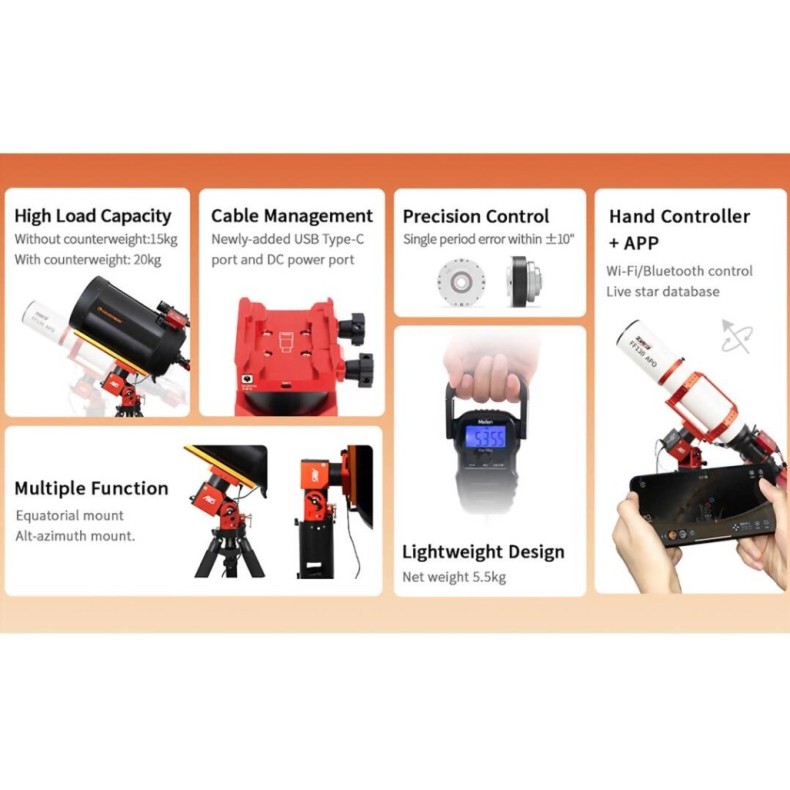

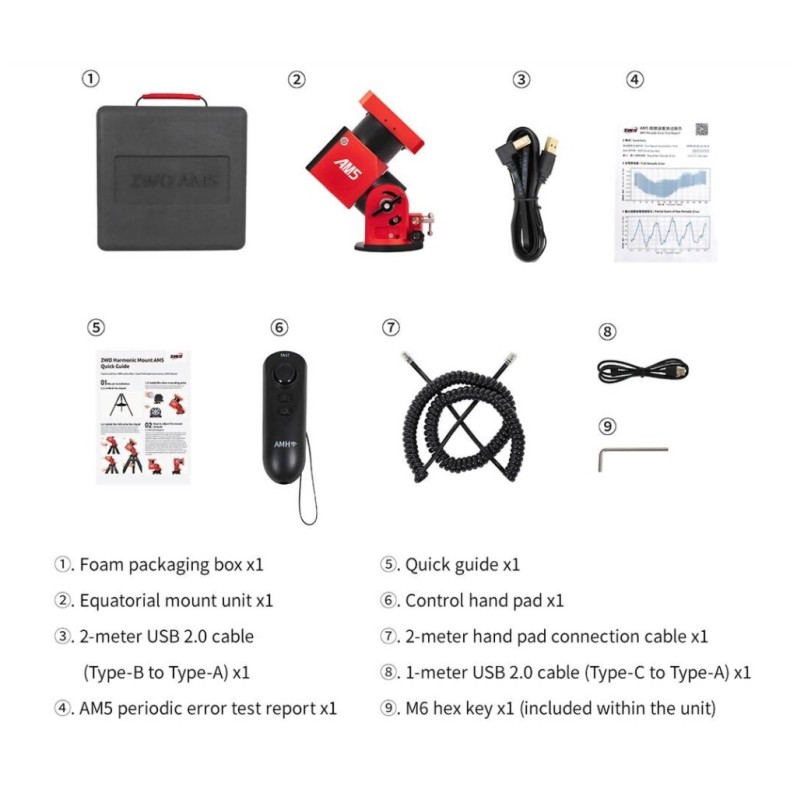

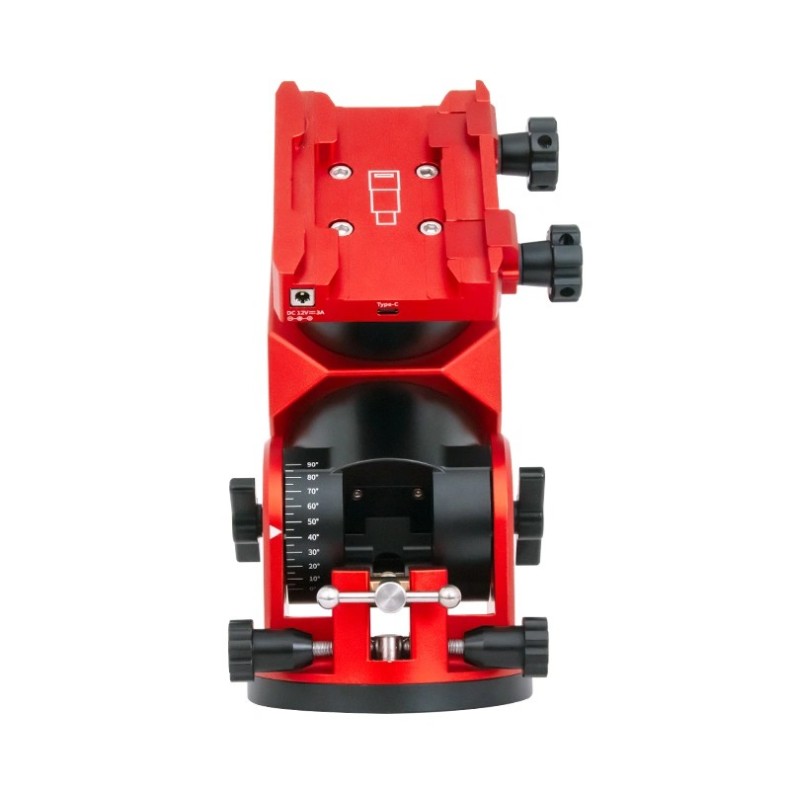

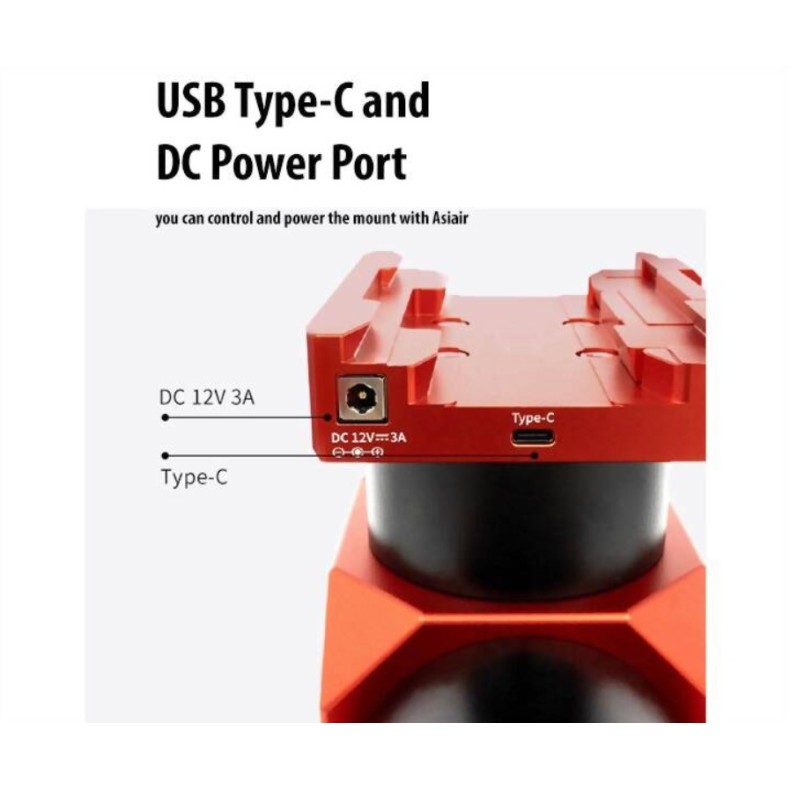

Accommodates telescopes up to 15 kg without counterweight and telescopes up to 20 kg with counterweight (counterweight and counterweight rod are optional). Head weight: only 5.5 kg Can be used in equatorial mode for astrophotography and in altazimuth mode for visual observation. Handheld controller and app for control included: no more cables needed thanks to WiFi New: the app now also supports Bluetooth. New: the mounting plate now also has a DC connection and a USB-C port. Cables no longer get tangled up so easily. Designed for astrophotography with very high tracking accuracy: each mount is accurately measured by ZWO before delivery. The AM5 has a 3/8" female thread on the flat bottom, so it can be attached directly to suitable photographic tripods. ST-4 autoguider interface for long exposures with guide The mount can be used at any point on Earth, from the equator to the poles: an ideal travel mount. GoTo, live preview and much more, easily controllable via smartphone: ideal also for ASIAIR Compatible with ASCOM (LX200 protocol) Compact handheld box for wireless control included in delivery Stable altitude adjustment with fine azimuth and elevation adjustment for precise polar alignment Suitable for stable photographic tripods or astronomical tripods (tripod not included)
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Monday, 22 September - Monday, 29 September |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Monday, 22 September - Monday, 29 September
*Note: The recommended operating voltage for the ZWO Harmonic Equatorial Mount is 12V. When the actual input voltage is below 10.8V, the mount will emit a beeping alarm to indicate under-voltage condition. To ensure proper functioning of the equipment, we recommend using the official ZWO power adapter and an appropriately sized power cable.
Important note: The recommended operating voltage for the ZWO harmonic equatorial mount is 12V. When the input voltage drops below 10.8V, the mount emits an audible alarm (beep) indicating a low voltage condition.
To ensure proper operation of the equipment and to avoid possible malfunctions during observation or astrophotography, it is recommended to always use the official power adapter from ZWO together with a power cord of the appropriate size.

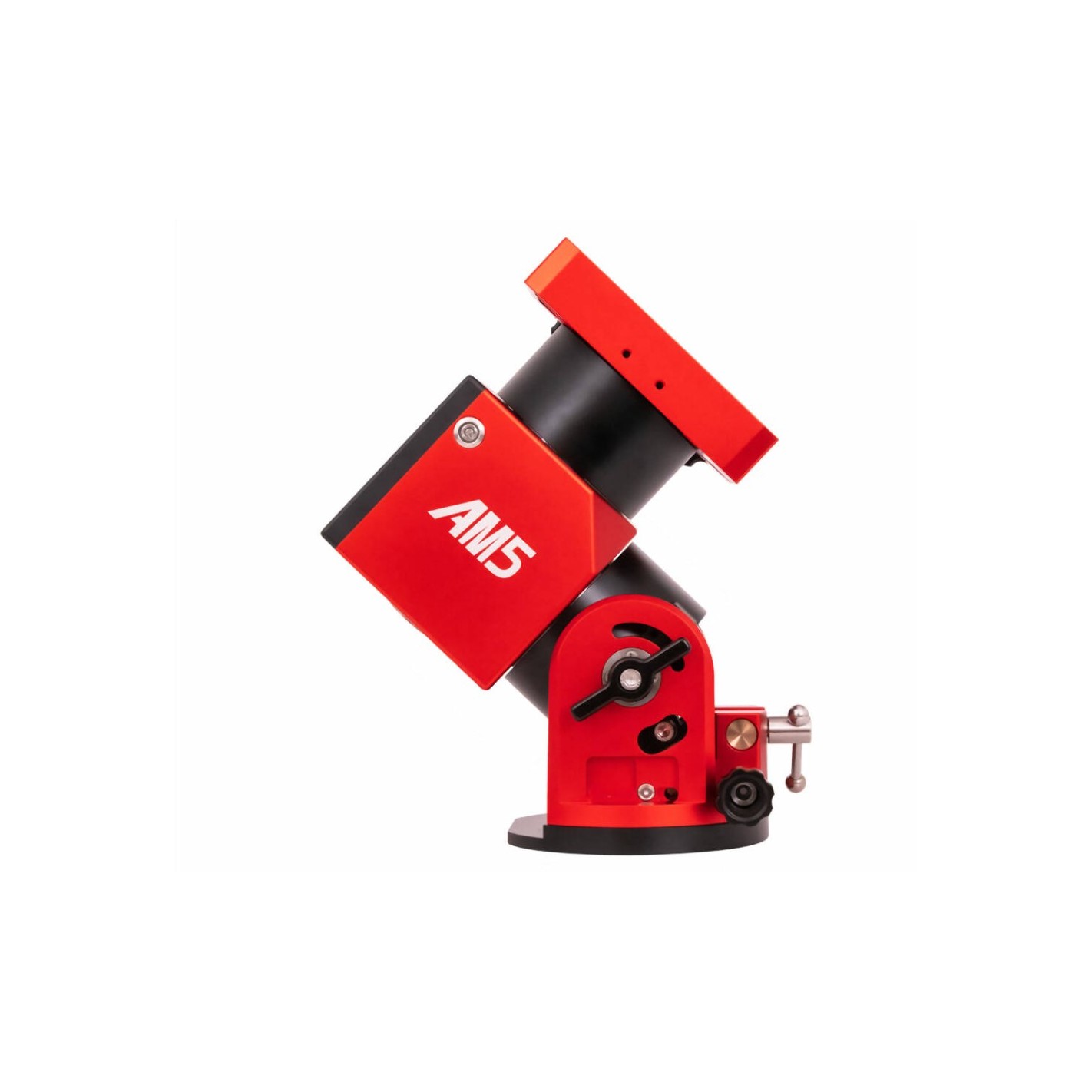

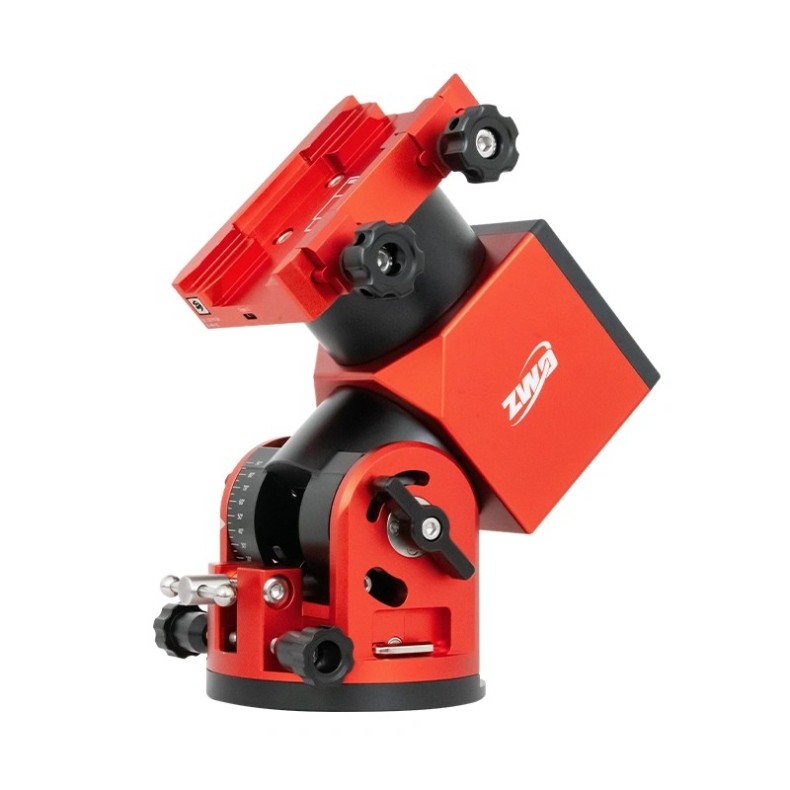

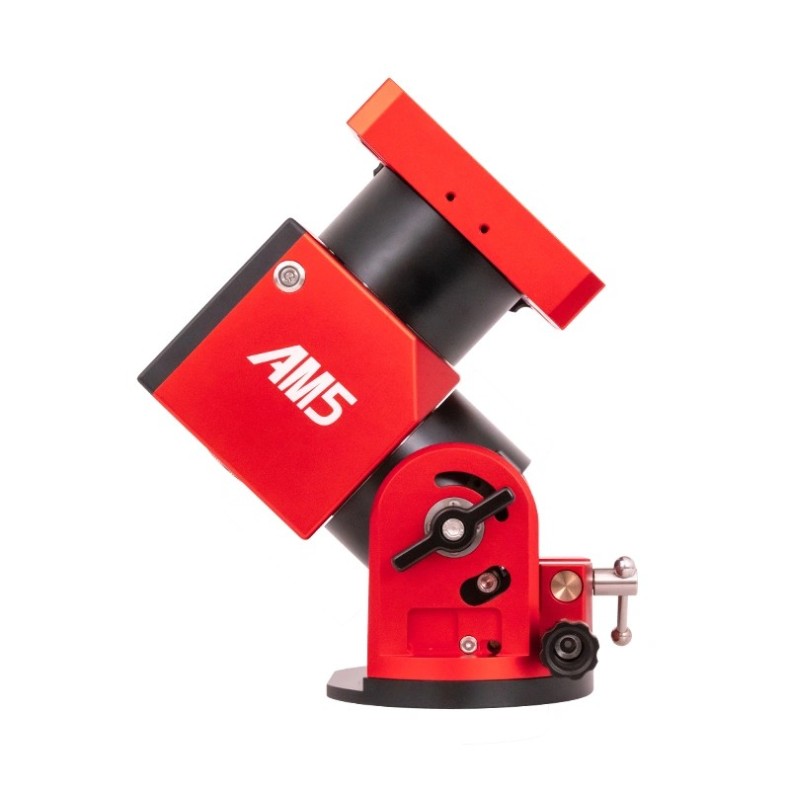

Equatorial Harmonic Mount ZWO AM5N Gen.2
