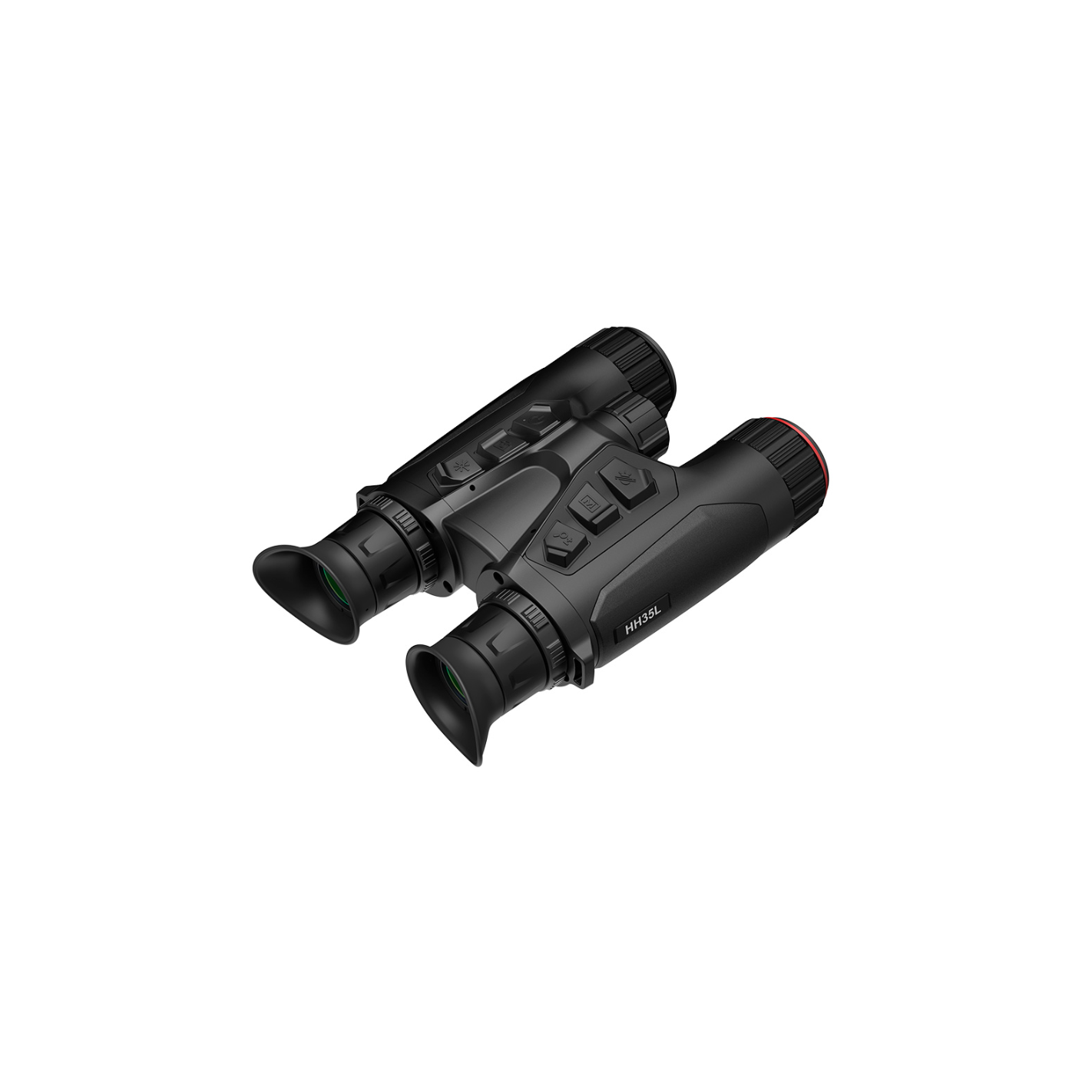

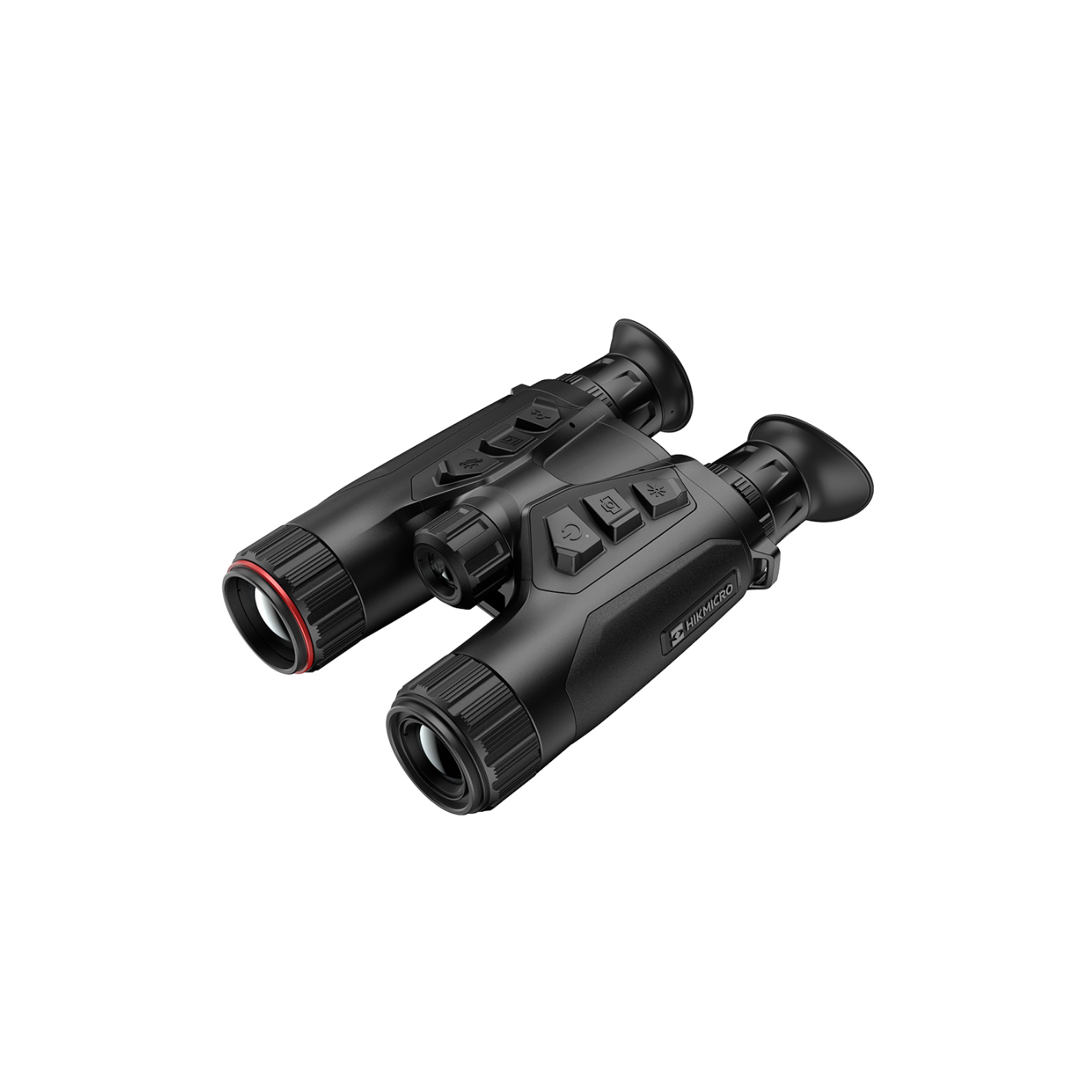

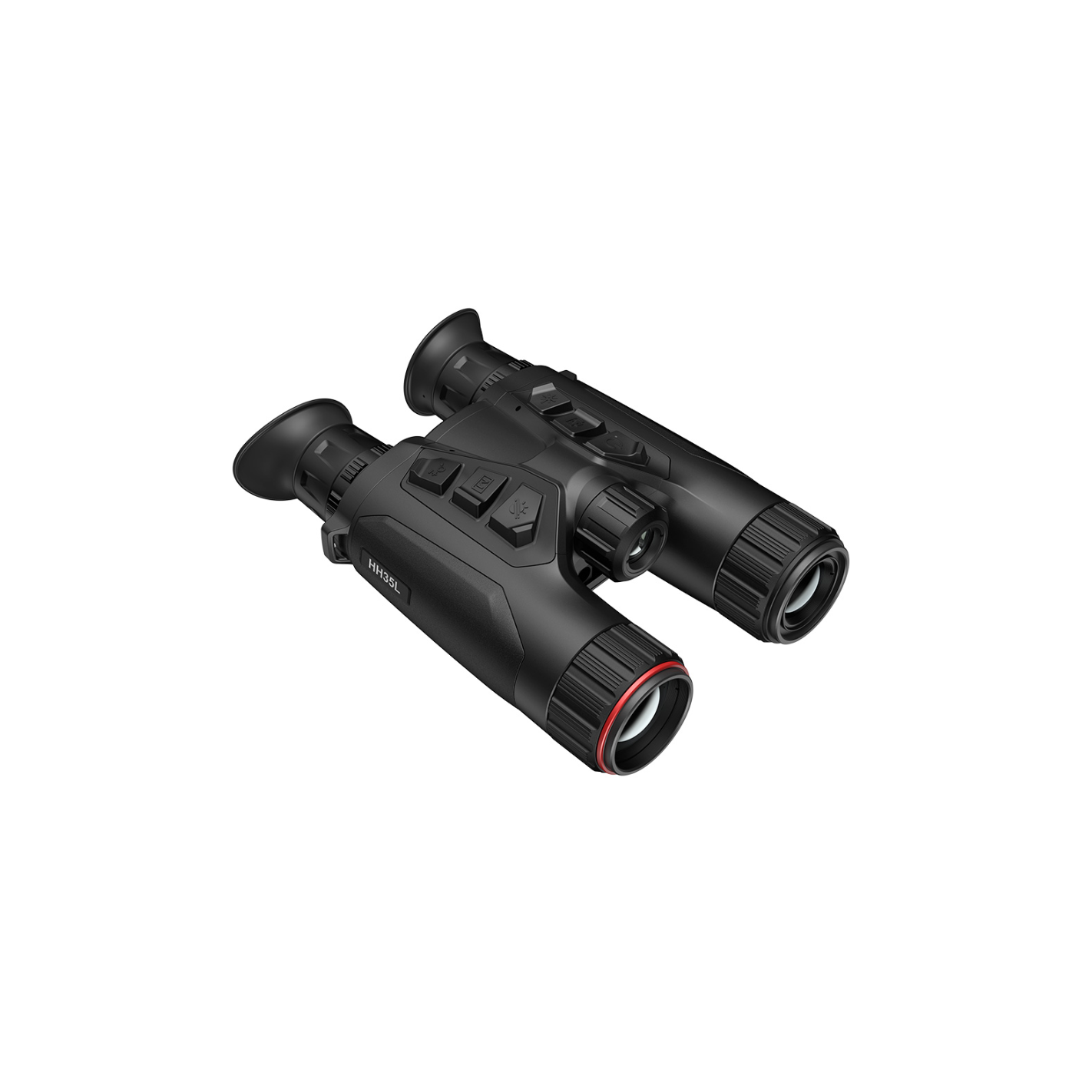

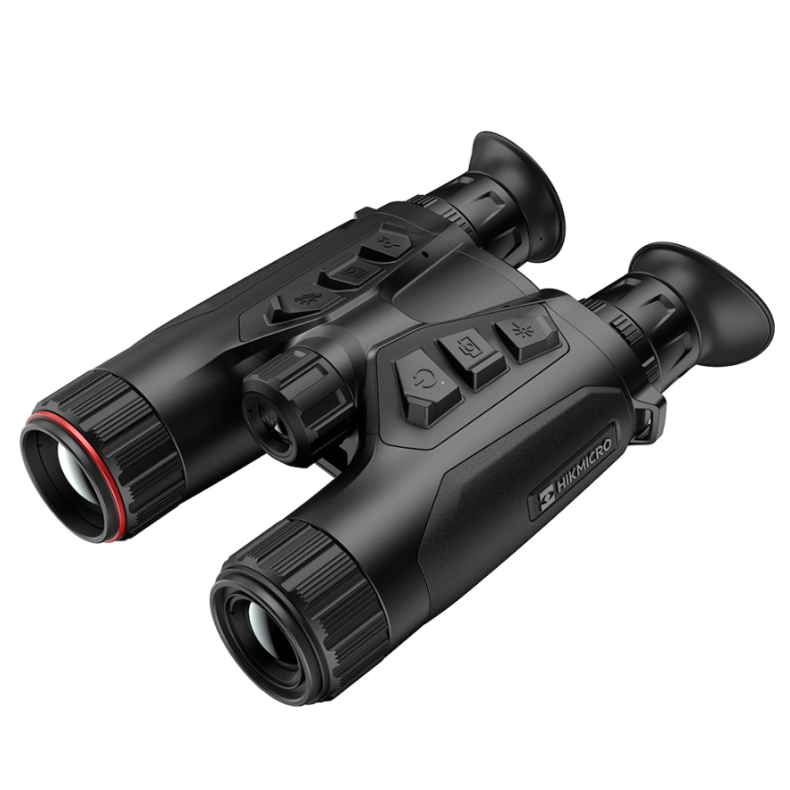

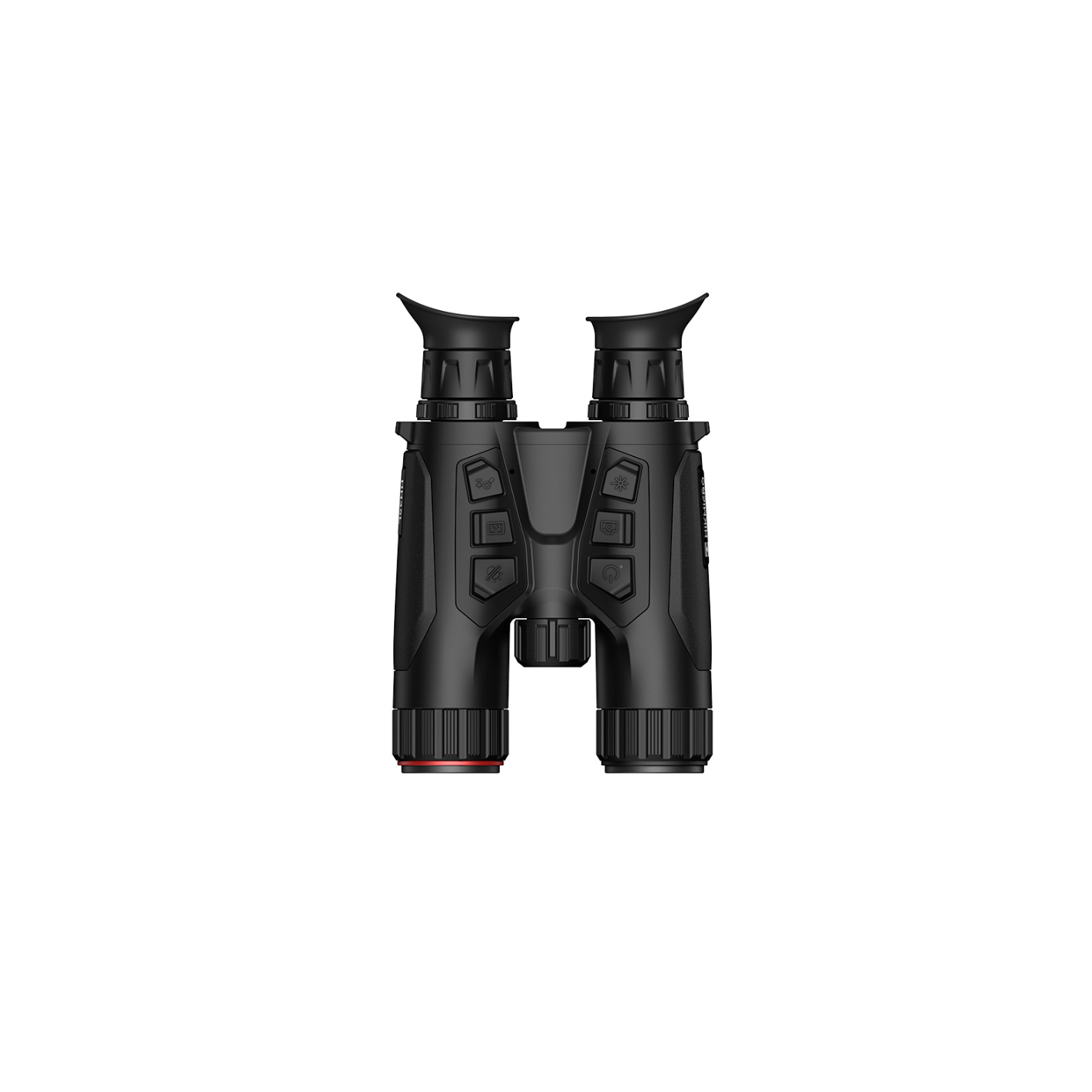

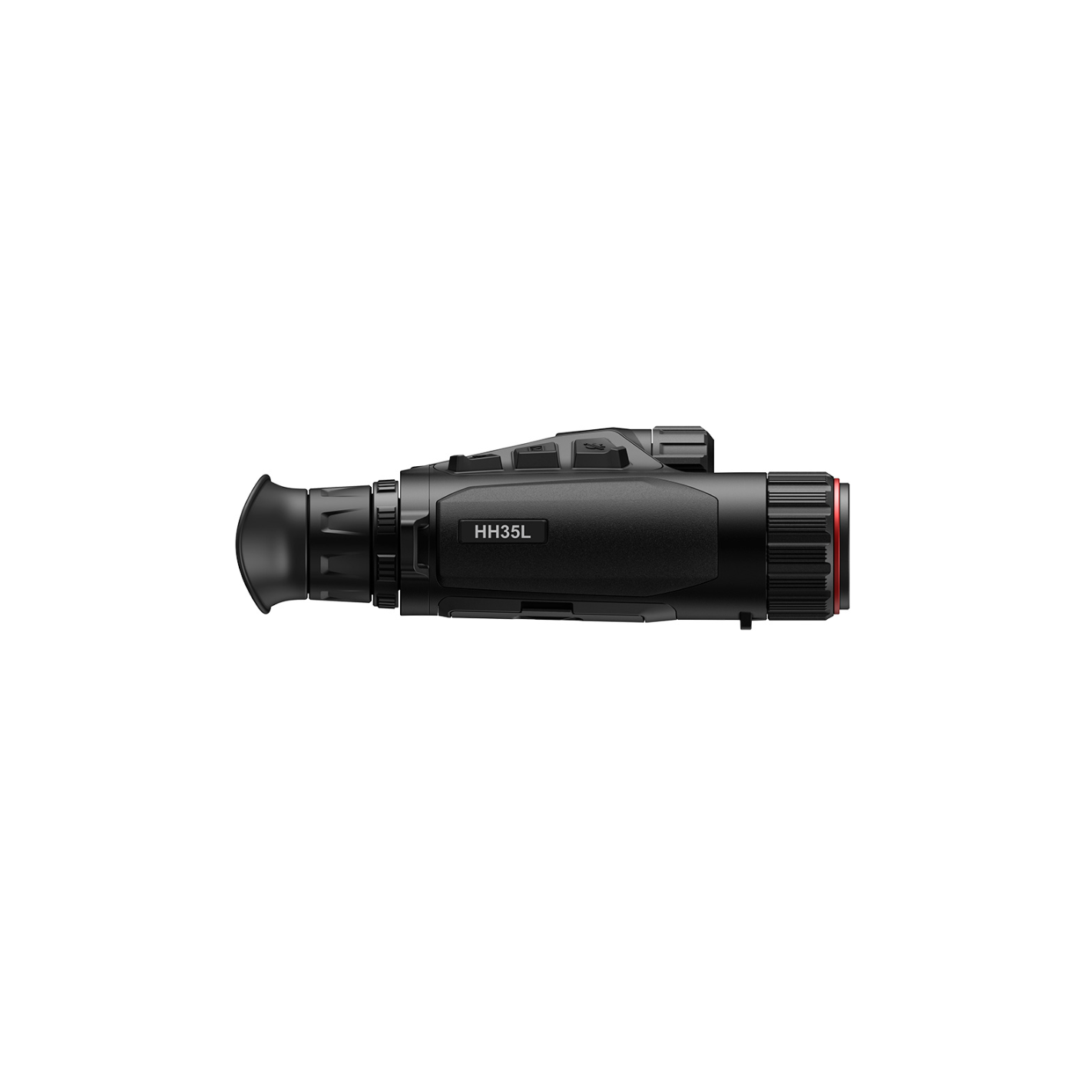

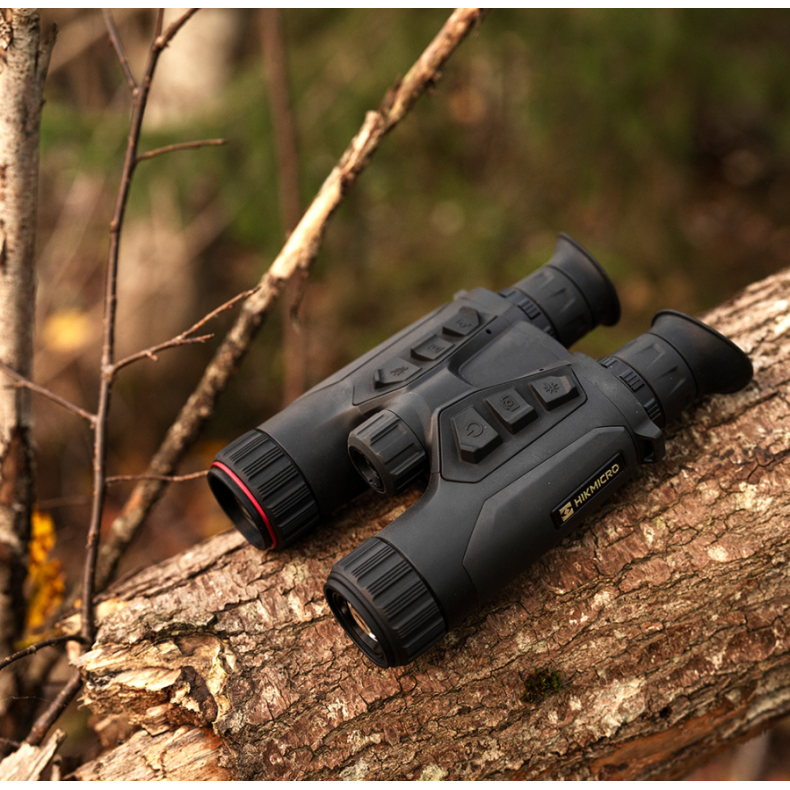

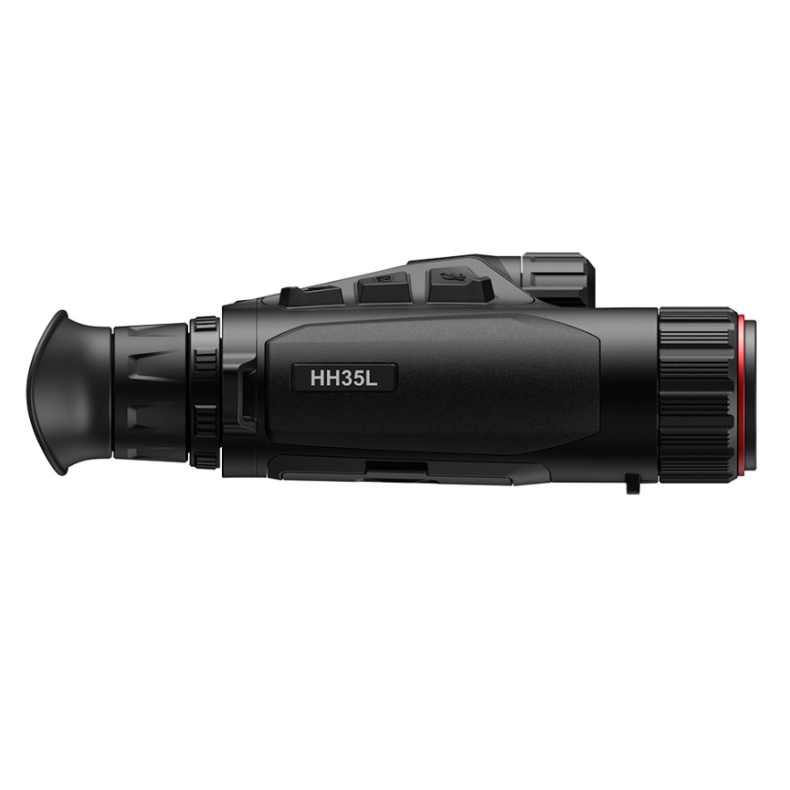

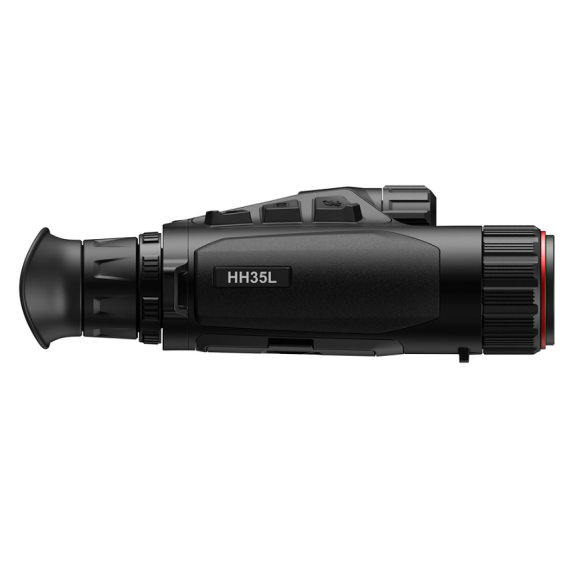

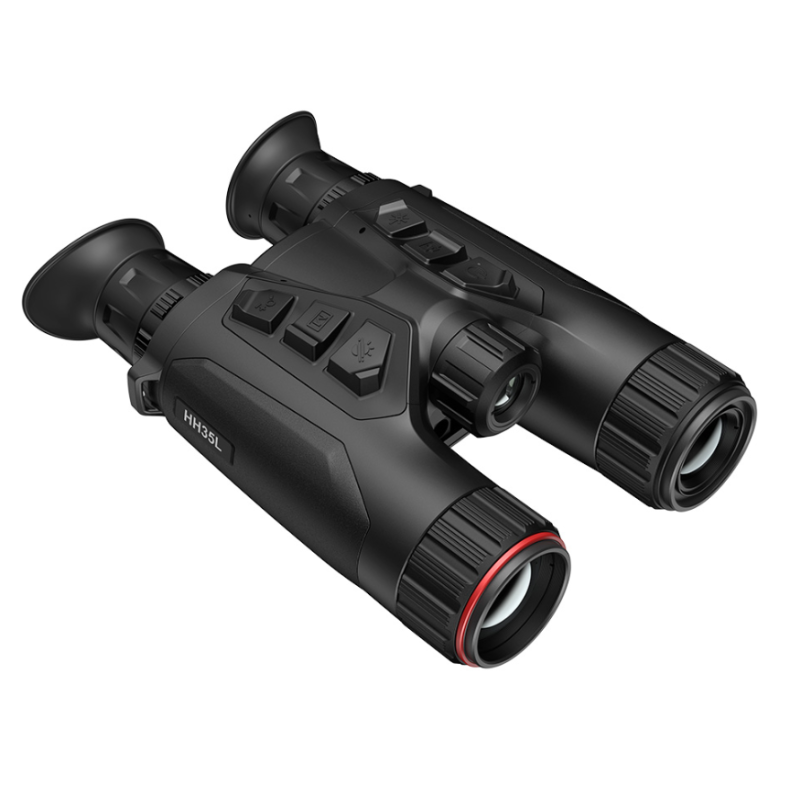

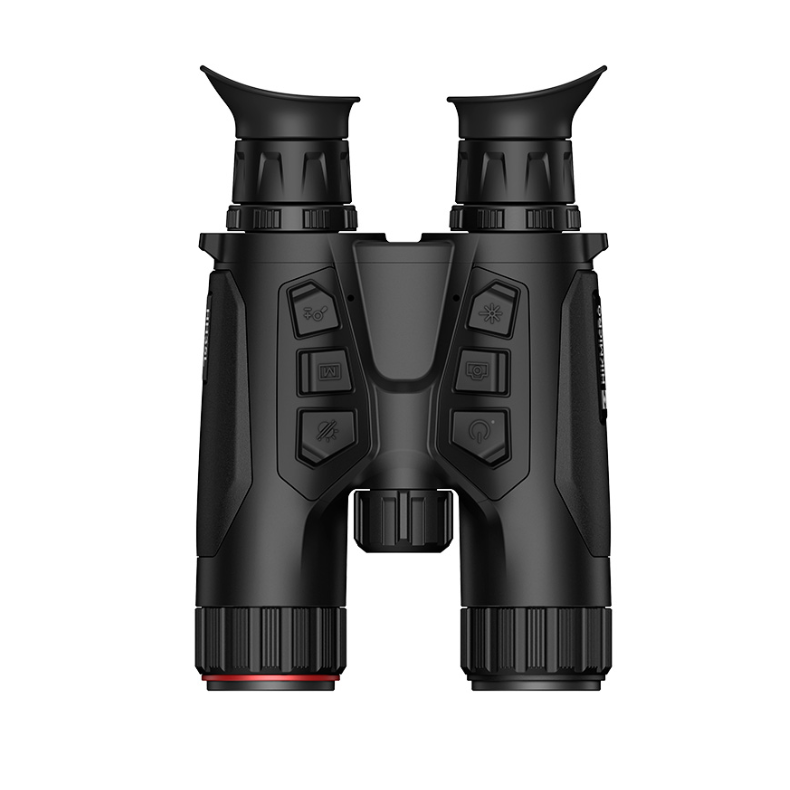

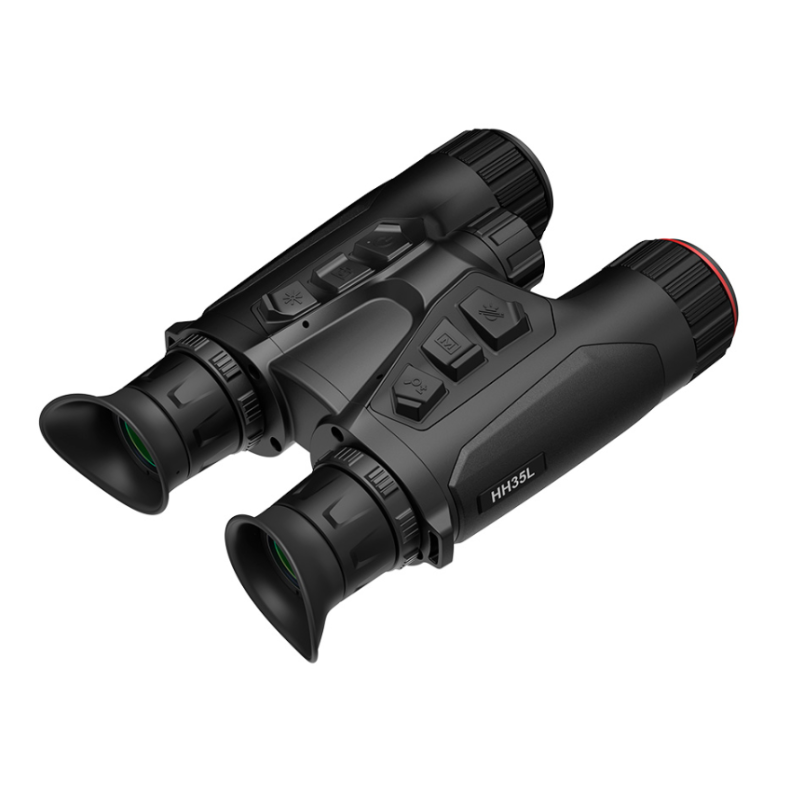

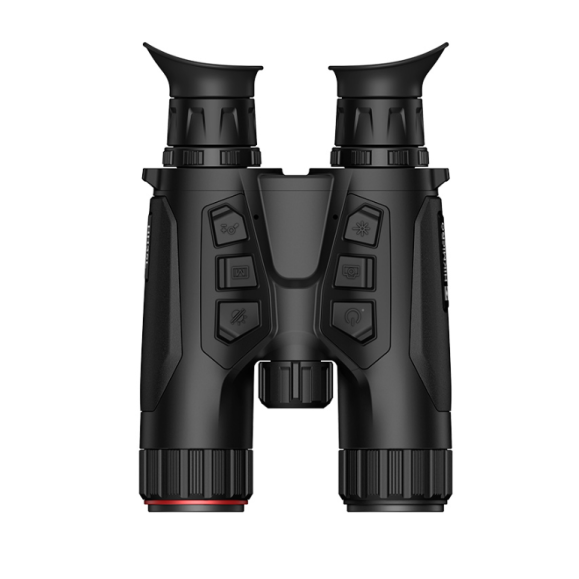

HABROK HH35L HIKMICRO Multispectrum Thermal Binoculars with 850nm IR Rangefinder HABROK HH35L HIKMICRO

The HIKMICRO HABROK HH35Lmultispectral binocular is equipped with a 384 × 288 @ 12um, NETD thermal sensor

Main features

• 384 × 288 @ 12 μm resolution thermal sensor
• NETD＜20 mK high sensitivity thermal module (@25°C, F# = 1.0)
• 35 mm F1.0 lens with detection range of up to 1,800 meters
• 2560 x 1440 high-resolution CMOS detector
• 0.49 inch OLED display with 1920 × 1080 resolution
• Built-in 850 nm IR emitter and laser range finder with 1,000 m measurement range
• Up to 5 hours of continuous operation
• 850 g weight with compact and ergonomic design

Technical Specifications

Thermal module

• Image sensor: Uncooled focal plane arrays VOx 384 × 288
• Pixel pitch: 12 μm
• Lens: 35 mm
• NETD: Less than 20 mK (@ 25 ° C), F# = 1.0
• Field of view: 7.5° × 5.7° (H × V)
• Magnification: 5.0x - 40x (8x)
• Detection range: 1,800 meters

Optical module

• Image sensor: 1.88″ progressive scan CMOS
• Resolution: 2560 x 1440
• Lens: 31 mm, F1.2
• Minimum illumination: 0.001 lux @ (F1.0, AGC on)
• Magnification: 2.9x - 23.2x (8x)
• Field of view: 13.9° x 7.8° (13.9° x 7.8°)
• IR emitter: 850nm
• Safety class: Class 1
• Night vision range: 400 meters

Image Display

• Monitor: OLED 1920 x 1080 px
• Frame Rate: 50 Hz
• Palettes: THERMAL (Vivid Black, Vivid White, Vivid Red and Fusion); OPTICAL (Day, Night and Auto)
• Image Enhancements: Image Pro and Zoom Pro

Distance Meter

• Laser range finder: Yes
• Maximum measuring range: 1,000 meters
• Minimum measuring range: 10 meters
• Rangefinder wavelength: 905 nm
• Measurement accuracy: ± 1 m

System

• Storage: Built-in memory module (64GB) Yes
• Video recording: Yes
• Snapshot capture: Yes
• Hot track: Yes
• Wifi: Yes
• Standby mode: Yes

General

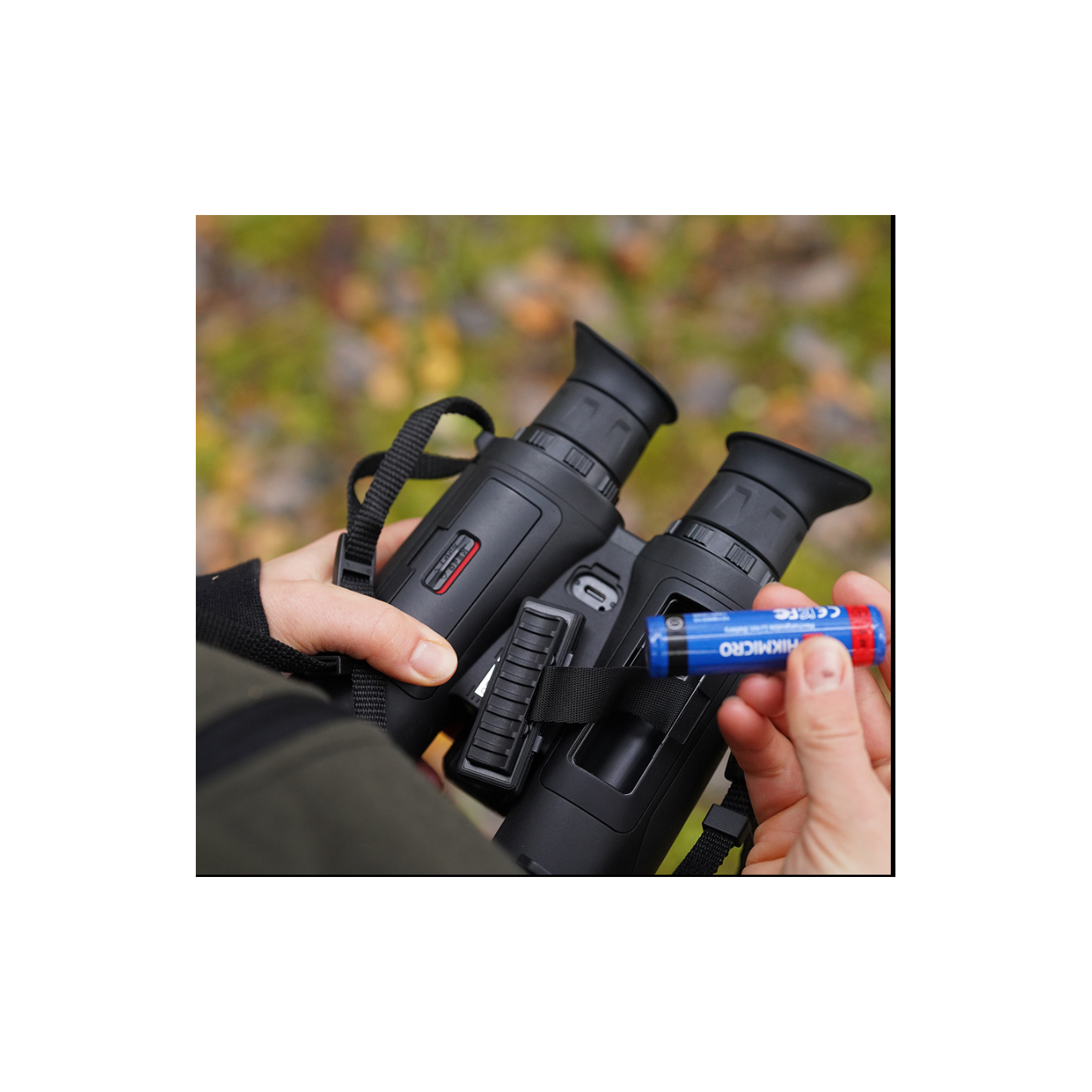

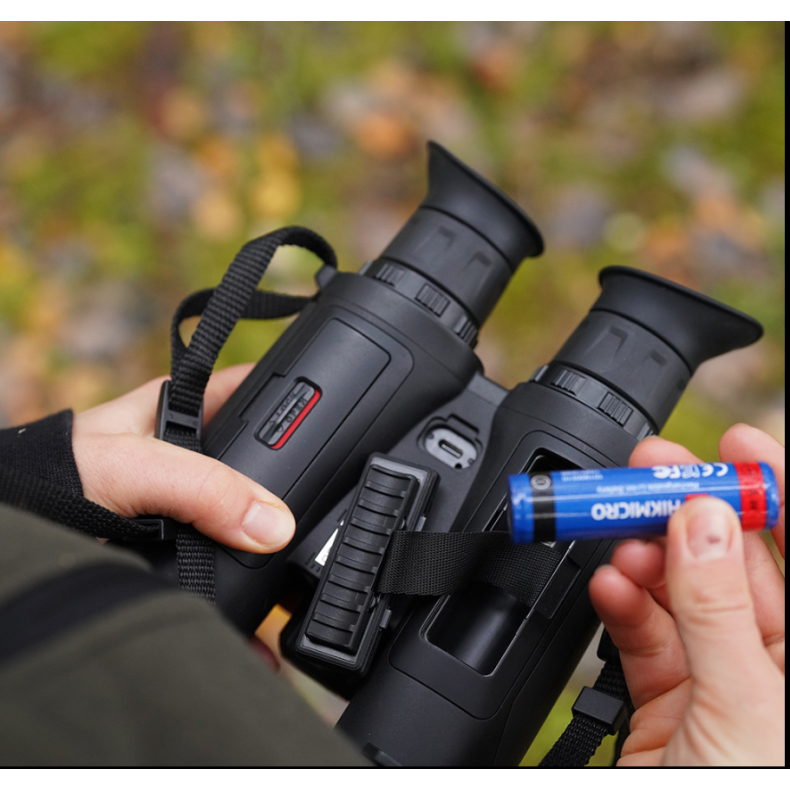

• Battery Type: Rechargeable lithium-ion (replaceable)
• Operating time: Up to 5 hours continuous operation.
• Protection: IP67
• Working Temperature: From -30 ° C to 55 ° C
• Dimensions: 217.5 mm × 155 mm × 87.5 mm
• Weight: 850 g (without batteries)
• Warranty: 36 months
• Sensor warranty: 10 years
