🔌 Switching power supply 220V/12V - 10A for astronomy
Product Description

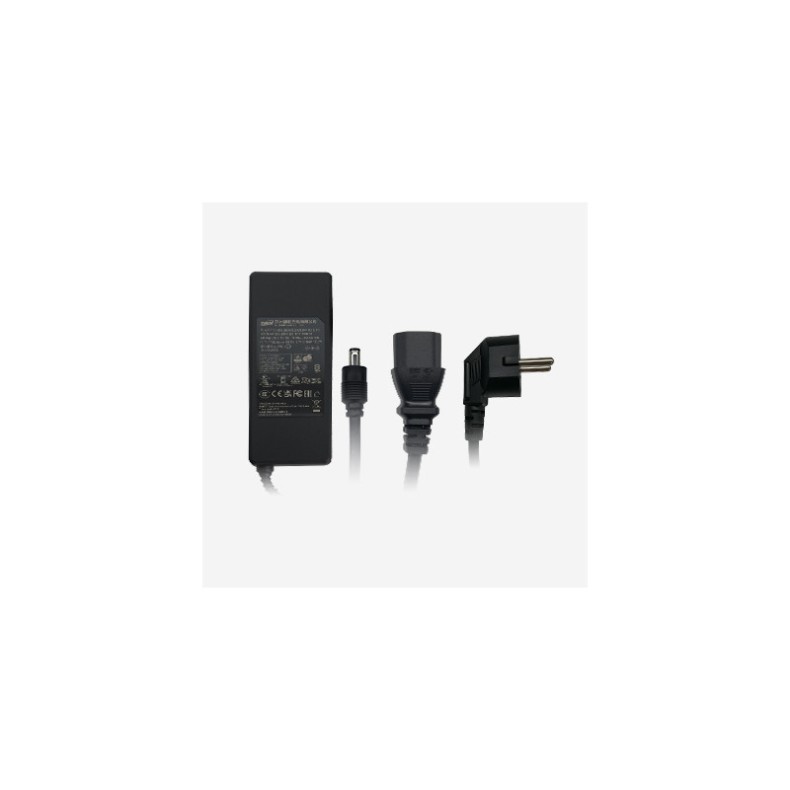

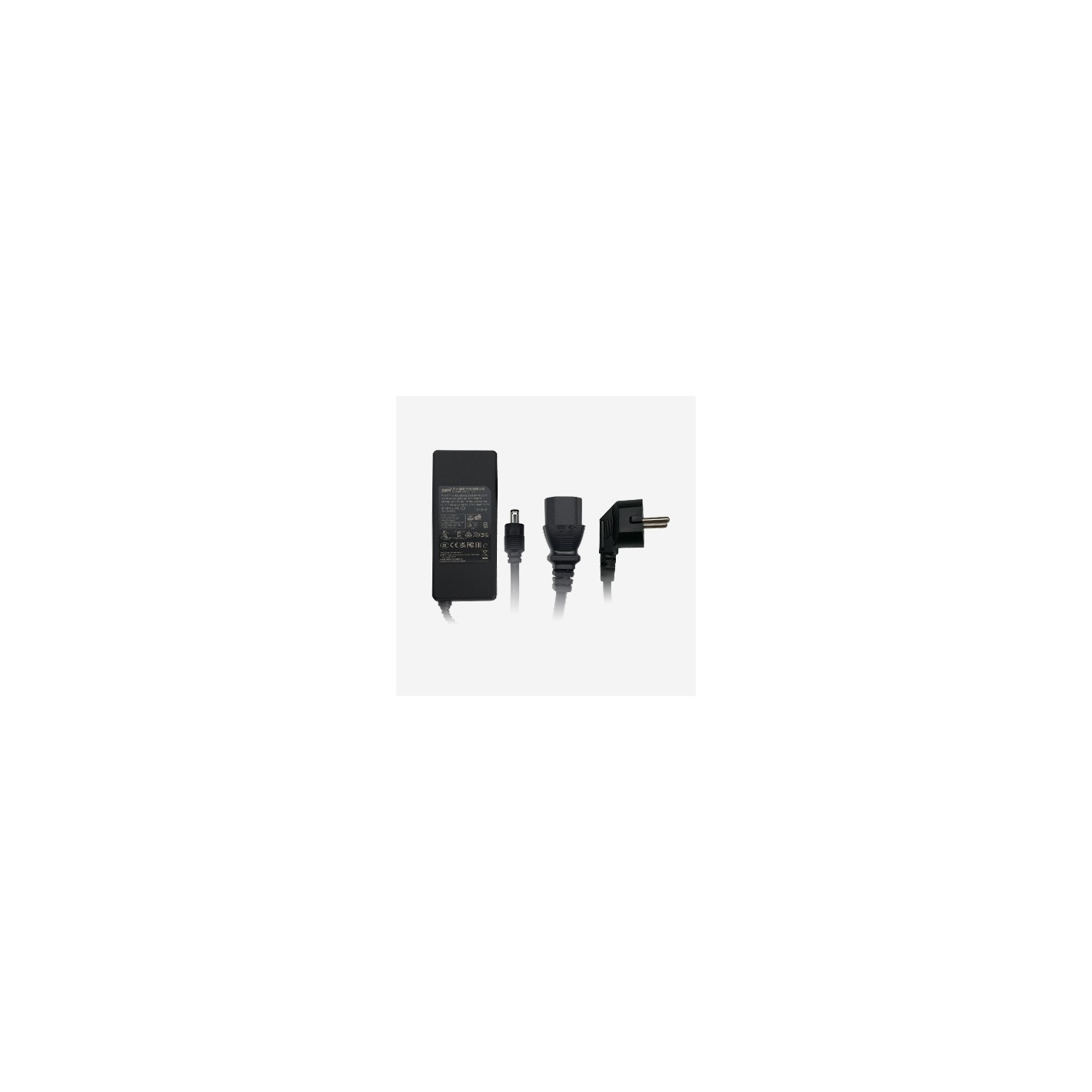

The 220V/12V - 10A switching power supply has been designed to provide a filtered, stabilized and safe power supply for high precision astronomical equipment. It offers a maximum output of 10,000 mA (10A), sufficient to simultaneously power equatorial mounts, cooled CCD/CMOS cameras and multiple accessories such as filter wheels, auto focusers or observatory controllers.
The power supply unit is ideal for use indoors or in environments protected from humidity, ensuring stable performance without electrical interference during long observing or astrophotography sessions.
Main features
-
Input: 220V AC
-
Output: 12V DC stabilized
-
Maximum current: 10A (10,000 mA)
-
Type: High efficiency switching power supply
-
Output connector: 5.5/2.1 mm with standard polarity (+ in the center)
-
Recommended use: Mounts, CCD/CMOS cameras, astronomical accessories (EAF, EFW, ASIAIR, etc.)
-
Robust, reliable and quiet construction
-
Use indoors or in locations protected from humidity
Confirmed compatibilities
✔ ZWO: AM5, AM3, refrigerated cameras ZWO, EAF, EFW, ASIAIR
✔ SkyWatcher: EQ6 Pro GoTo, HEQ5 Pro GoTo, EQ5 GoTo, EQ3-2 GoTo, EQM35 GoTo, EQ6-R
✔ iOptron: MiniTower, MiniTower Pro, iEQ45
✔ Orion: Atlas EQG GoTo/SynTrek, Sirius GoTo/SynTrek
✔ Celestron: NexStar, Advanced VX, CGE, CGE Pro
✔ ATIK: 3-series, 4-series, 4000 and 11000 series cameras
Advantages for the astronomer
-
Safe and stable power supply, no electrical noise.
-
Compatible with most astronomical mounts and cameras.
-
Allows the use of several accessories at the same time thanks to its 10A.
-
Reliable construction for long term use in astrophotography.
Technical specifications
-
Input: 100-240V AC - 50/60 Hz - 2A
-
Output: 12V DC - 10A - 120W
-
Output connector: 5.5 x 2.1 mm (polarity + to center)
-
Type: Switching power supply
-
Built-in protections: overload, overcurrent and short-circuit
-
Recommended use: Mounts, CCD/CMOS cameras, astronomical accessories
