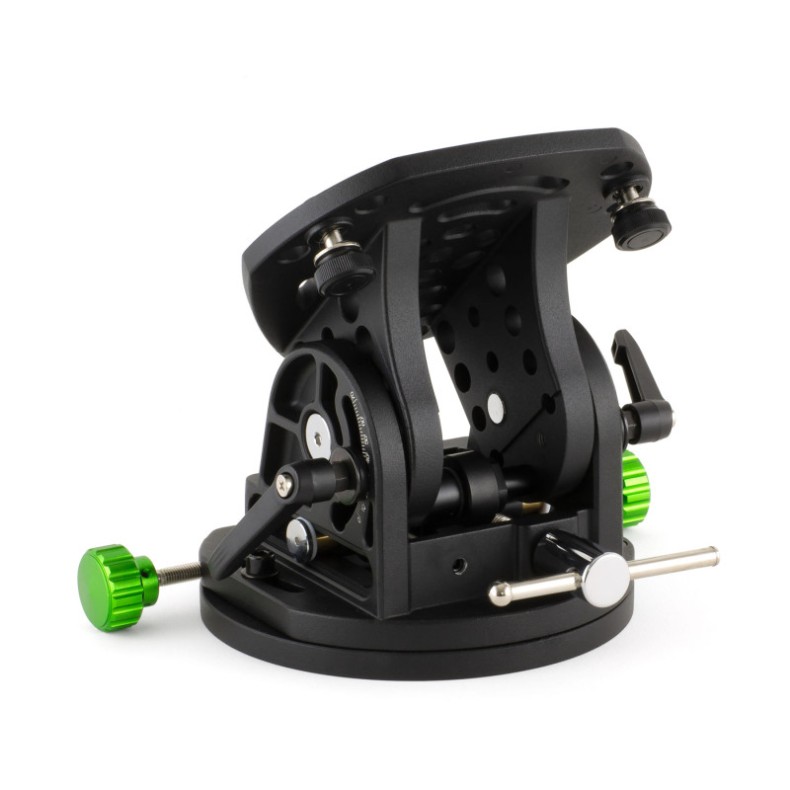

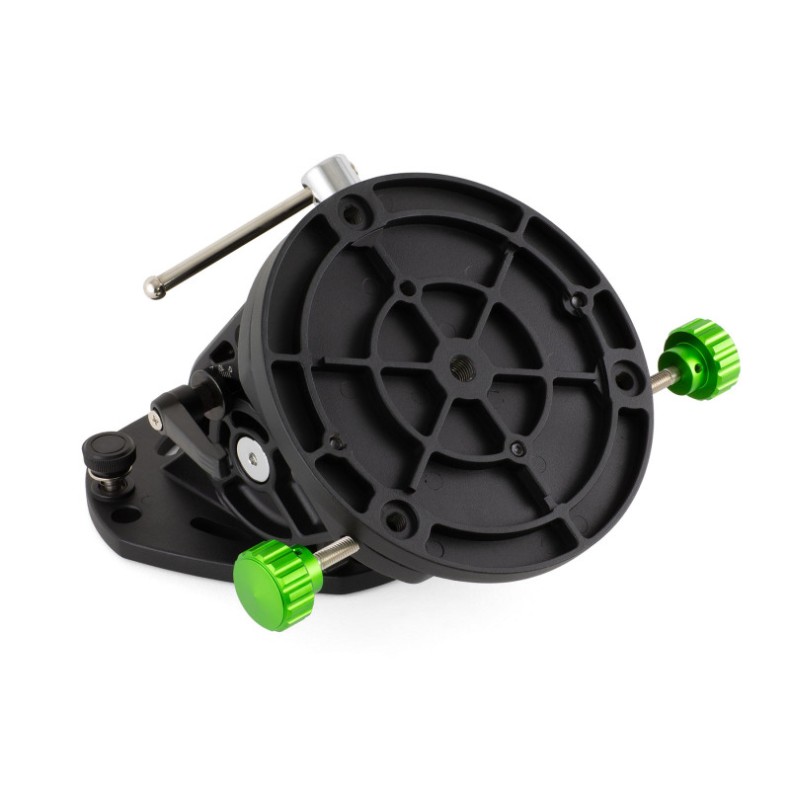

Equatorial wedge for Sky-Watcher Fusion 120i mount
All about the Sky-Watcher Equatorial Table for Fusion 120i Mount
Altazimuth mounts are primarily used for visual observation or planetary astrophotography with very short exposure times. However, when it comes to photographing deep sky objects - such as galaxies, star clusters or nebulae - long exposures of several tens of seconds are required. For these types of images, a altazimuth mount presents a problem: the field rotation of the stars. The ideal solution is an equatorial mount, but if you already have an azimuthal mount, such as the Sky-Watcher Fusion 120i, you can easily transform it with an equatorial table, thus expanding its possibilities for advanced astrophotography.

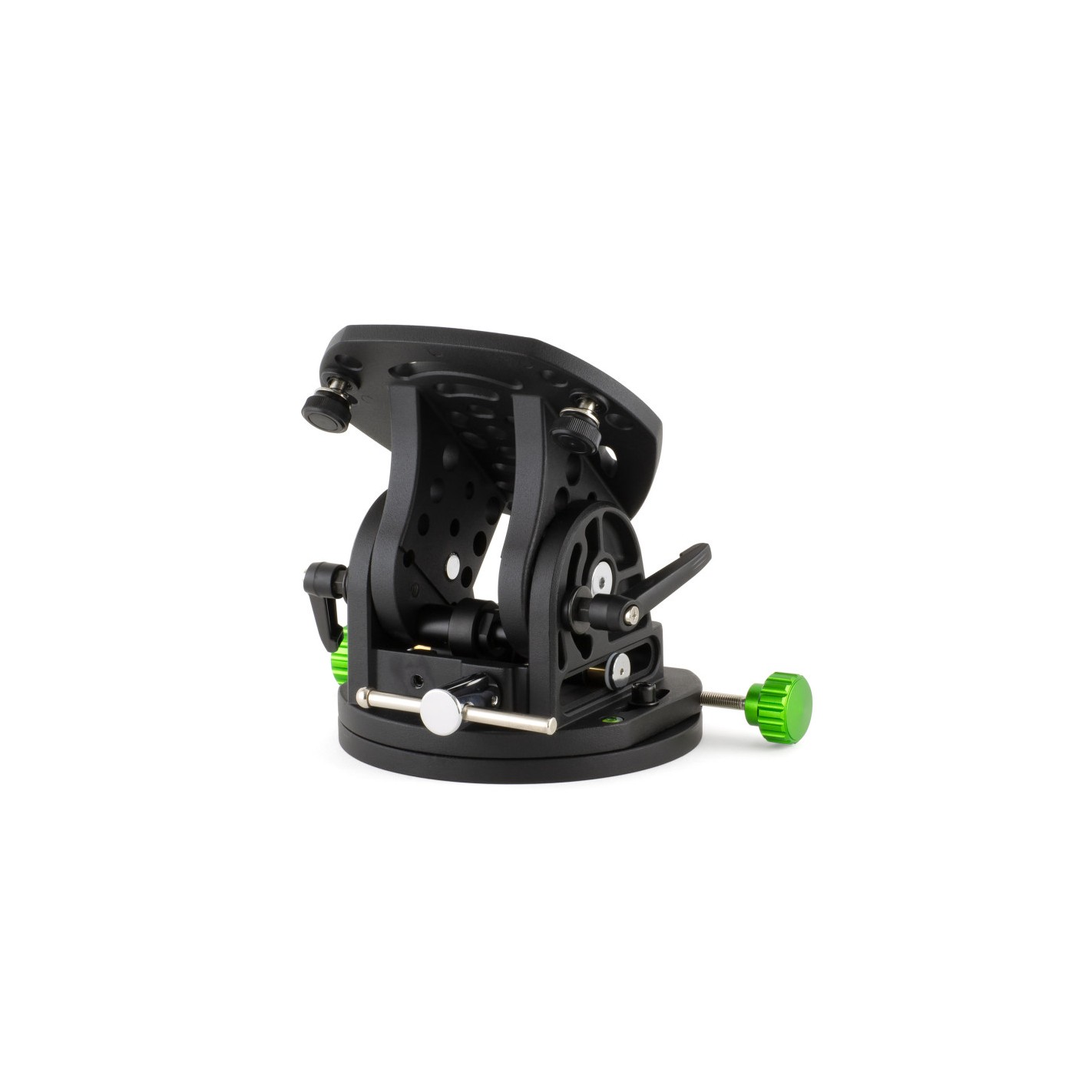

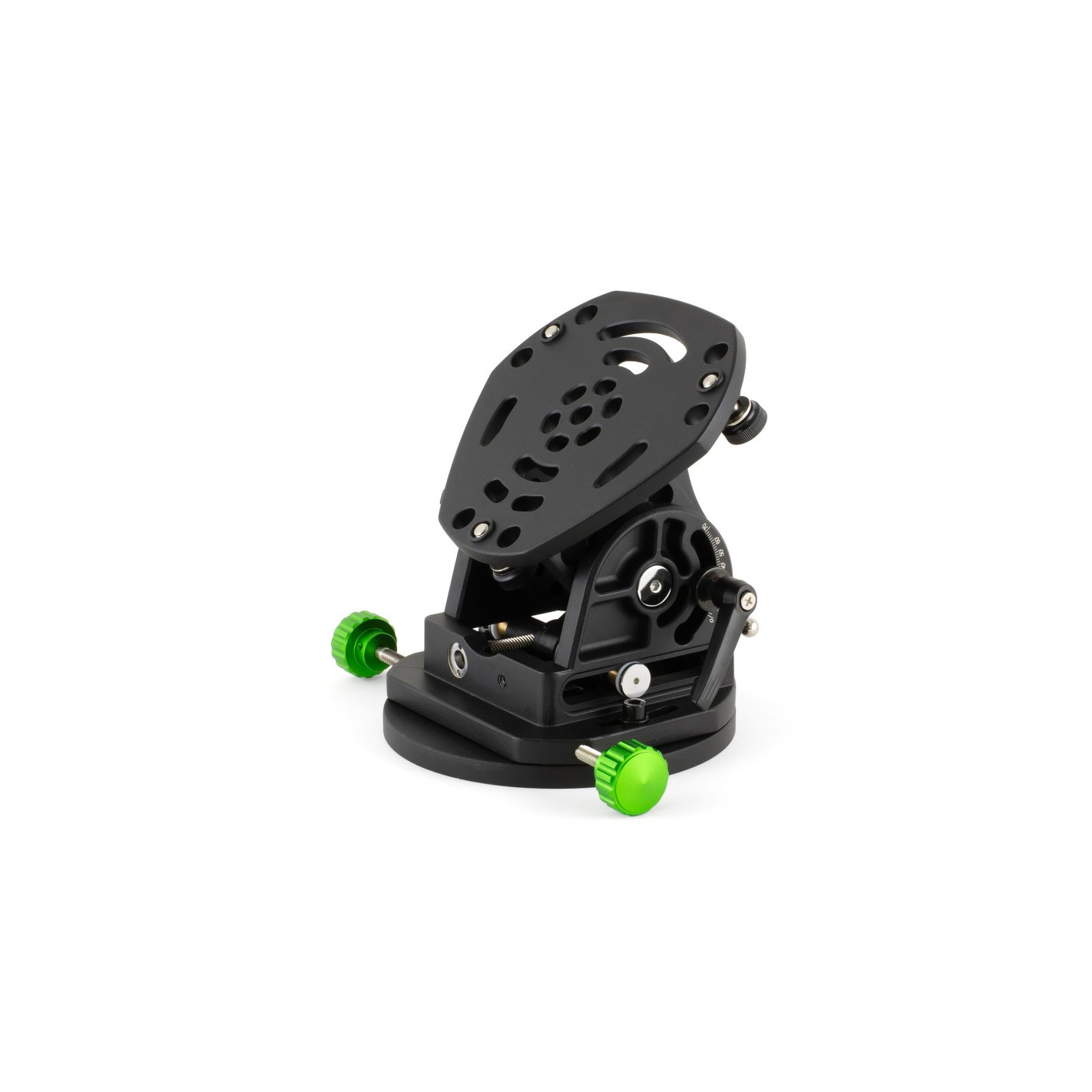

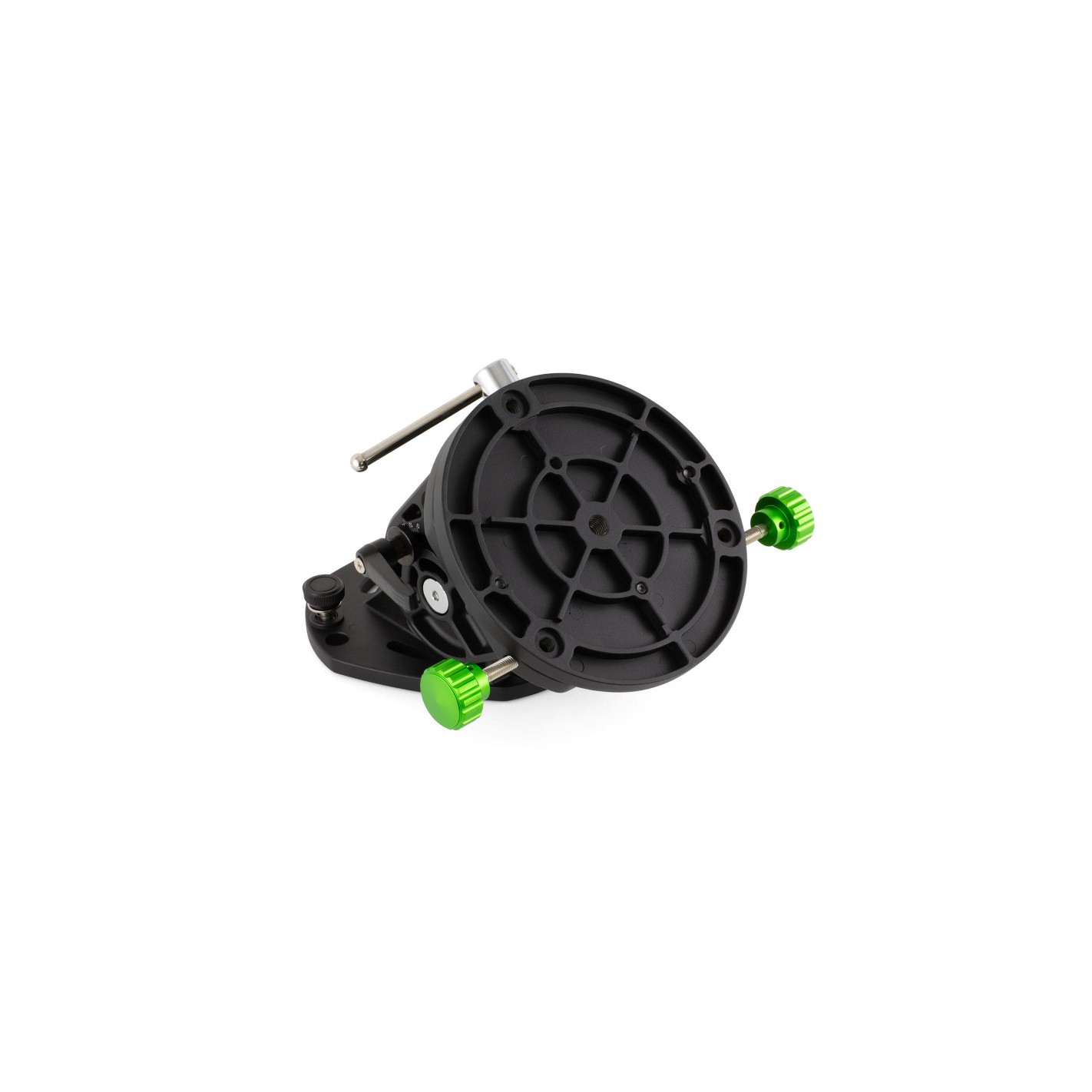

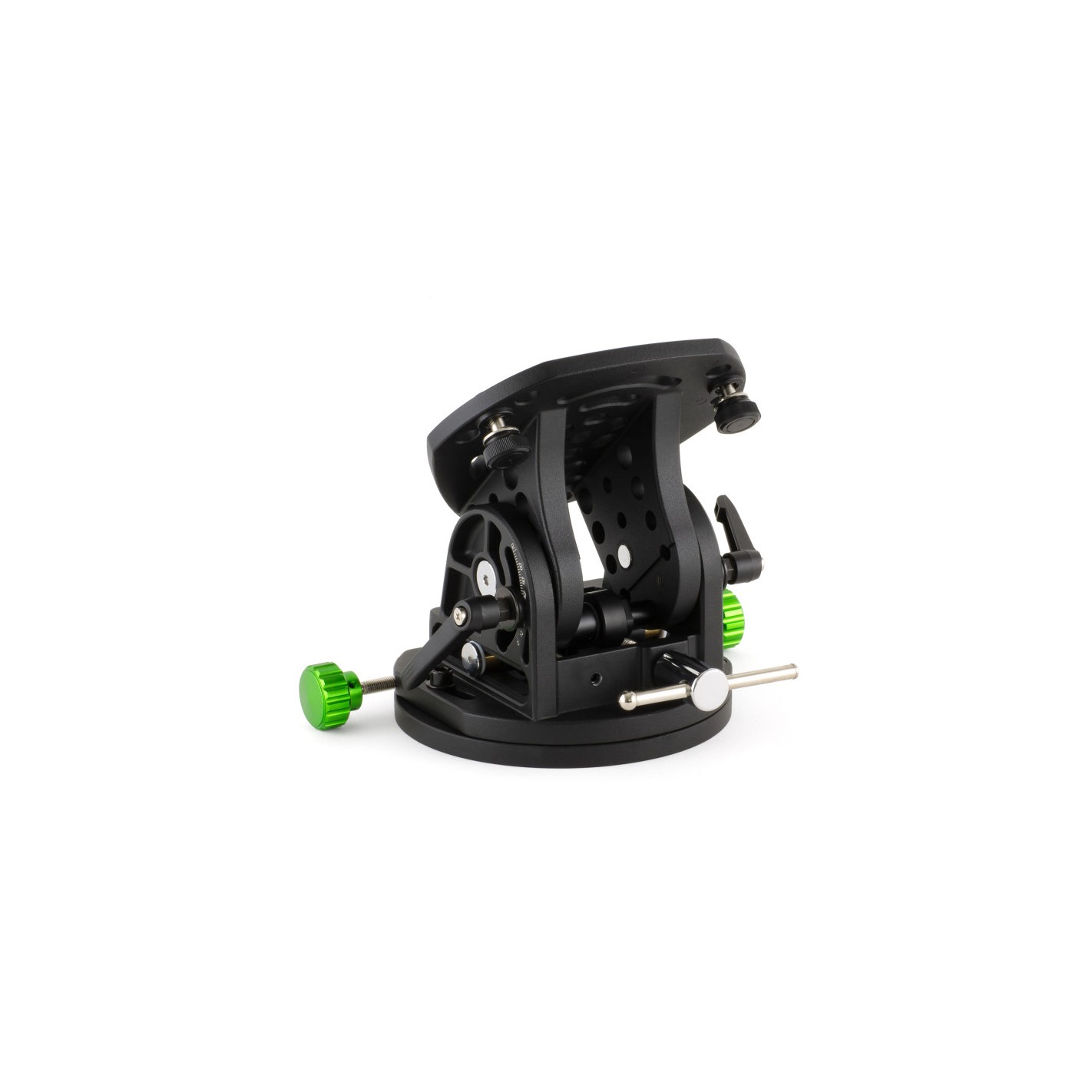

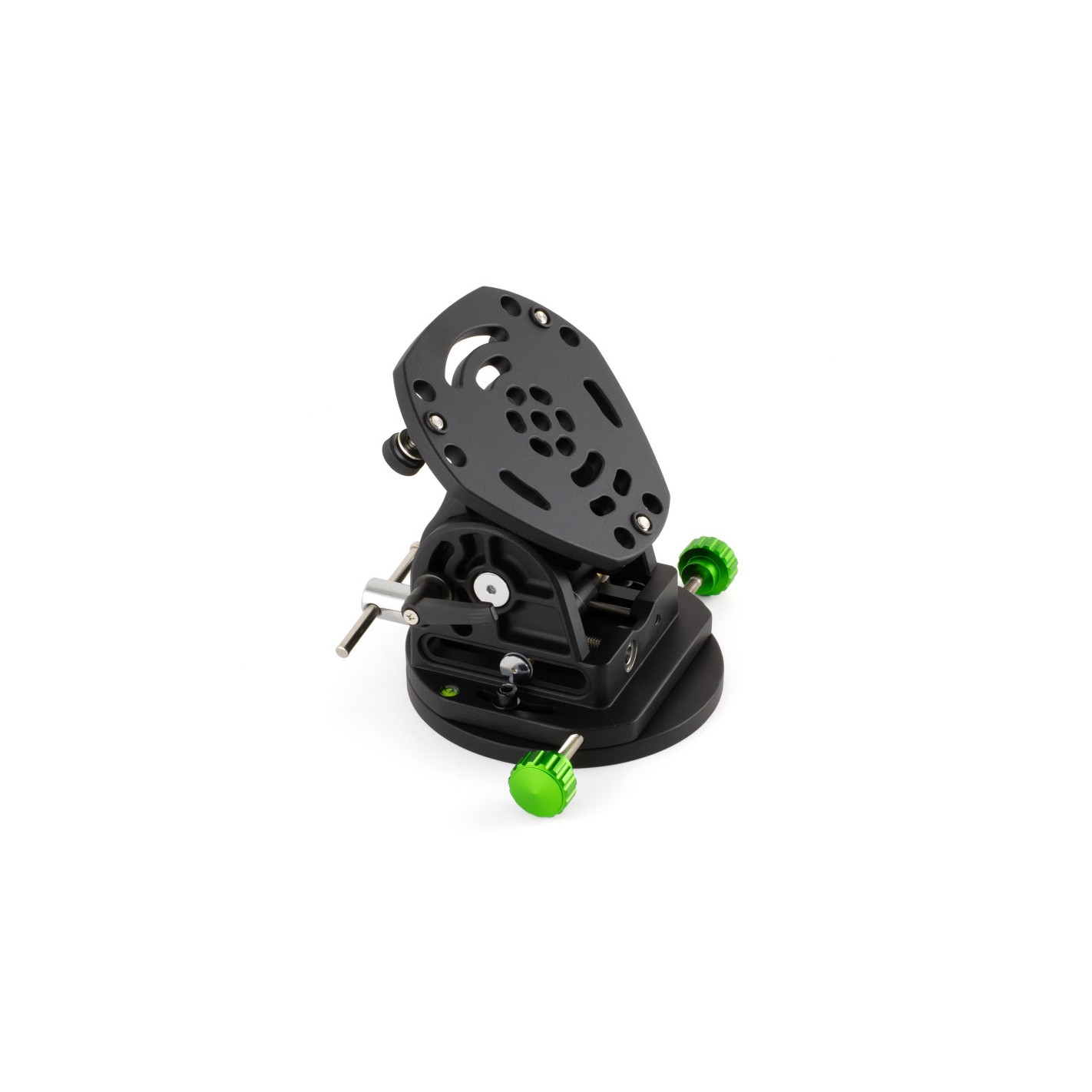

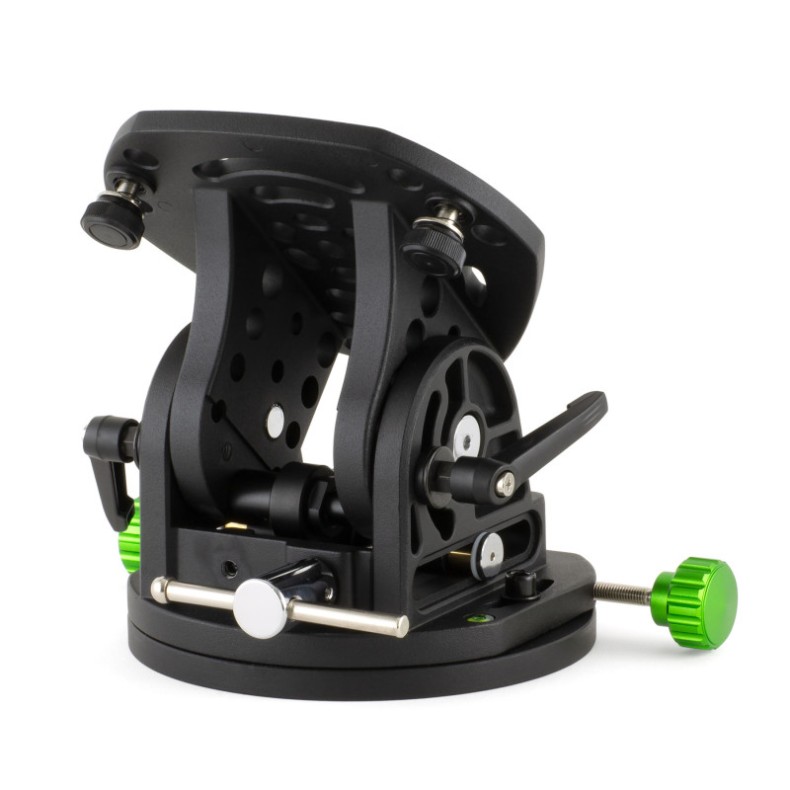

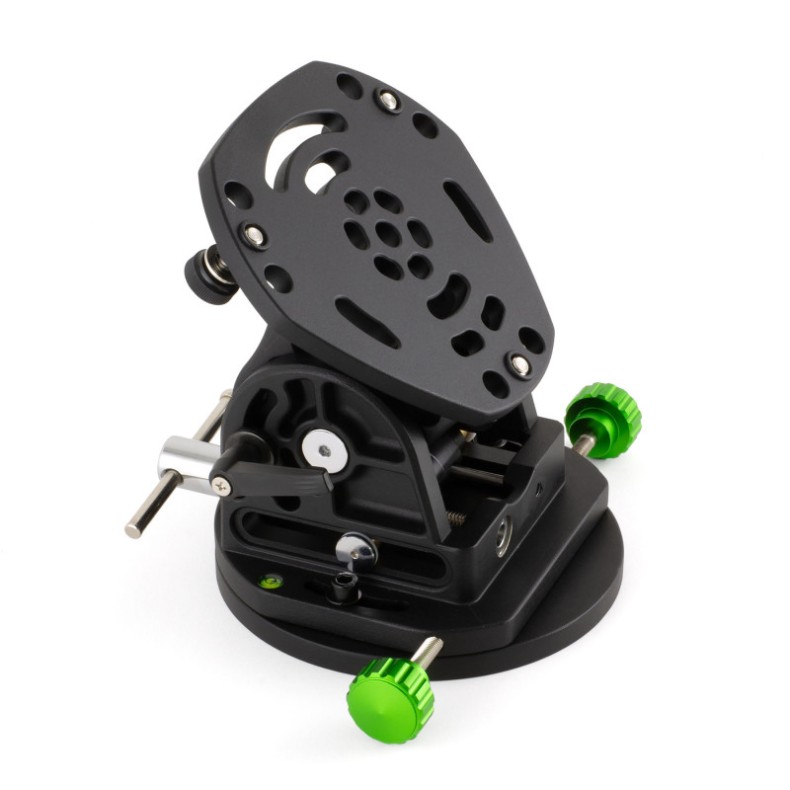

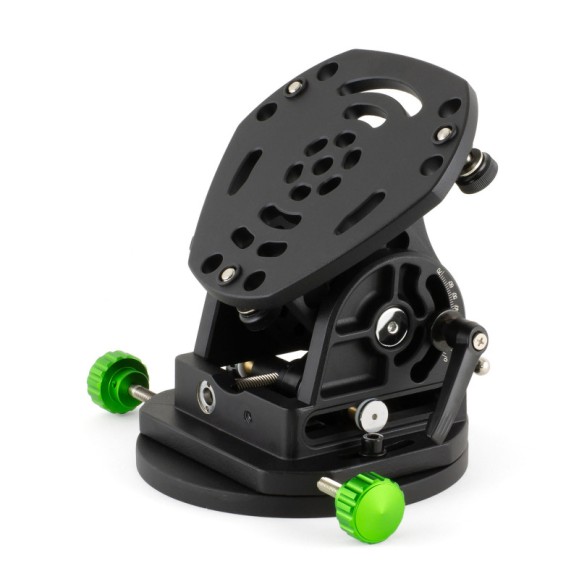

The Sky-Watcher Equatorial Table for Fusion 120i is designed specifically for this model. Its installation is very simple: it is placed between the tripod and the base of the mount, allowing you to tilt the axis of rotation to align it with the North Star. Thanks to its easily readable latitude scale and large adjustment screw, the alignment process is fast and convenient, even during night sessions. For fine azimuth adjustments, it incorporates large adjustment knobs, designed for precise and ergonomic use.
The base of the mount is firmly secured to the table by three sturdy fixing screws, guaranteeing stability during the entire observation session or photographic capture. With an own weight of 4 kg and a load capacity of up to 15 kg, the table allows working with common astrophotography configurations, such as 150 mm Maksutov-type optical tubes with accessories (eyepieces, cameras, diagonals).
Once mounted and configured, the Fusion 120i can operate in equatorial mode, which enables the use of its GoTo system for precise tracking of deep sky objects. This makes the Fusion 120i + equatorial table combination a very versatile option, both for visual astronomy and for making the leap to deep sky astrophotography with greater convenience and without the need to purchase a completely new mount.
In short, this equatorial table is the must-have accessory for Sky-Watcher Fusion 120i users who want to take their hobby a step further and capture detailed, rotation-free images of celestial objects.
Technical Features - Equatorial Wedge for Sky-Watcher Fusion 120i Mount
| Feature |
Detail |
| Compatibility |
Sky-Watcher Fusion 120i Altazimuth Mount |
| Load capacity |
Up to 15 kg |
| Weight |
4 kg |
| Latitude adjustment range |
0° a 70° |
| Azimuth adjustment range |
± 15° |
| Adjustment knobs |
Large adjustment wheels for comfortable use even at night |
| Latitude scale |
Engraved and easy to read |
| Mount attachment |
Three sturdy locking screws |
