Tilt Tilt Plate ZWO M48

Name: Tilt Tilt Plate ZWO M48
Brand: ZWO
SKU: ZWOZWM48-PLATE
Price: 33.02 EUR
Availability: PreOrder

Reference ZWOZWM48-PLATE

Stock at Supplier

33.02

VAT excluded Shipping 5/7d

To adjust the orthogonality of your sensor
M48 input/output
Black anodized metal construction
Backfocus generated 5 mm

Order it before 10 hours and 12 minutes and receive it between on Thursday, 12 February and Thursday, 19 February with UPS - Resto del mundo

Delivery Options

Carrier		Description	Estimated Delivery
	UPS - Resto del mundo	UPS - Rest of the World	Thursday, 12 February - Thursday, 19 February

UPS - Resto del mundo

UPS - Rest of the World

Estimated delivery:
Thursday, 12 February - Thursday, 19 February

✖

Description
Product Details

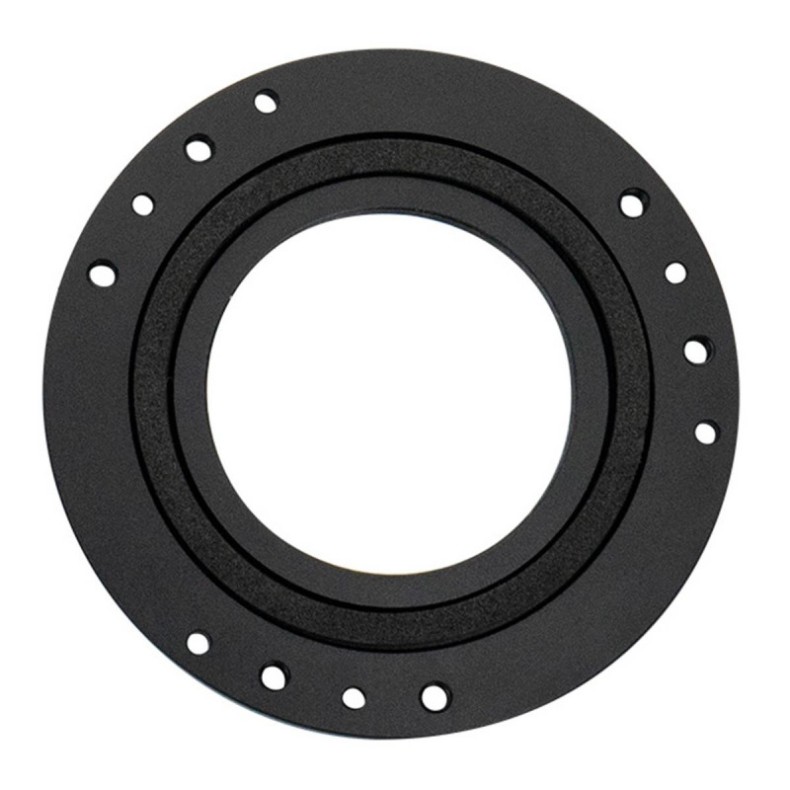

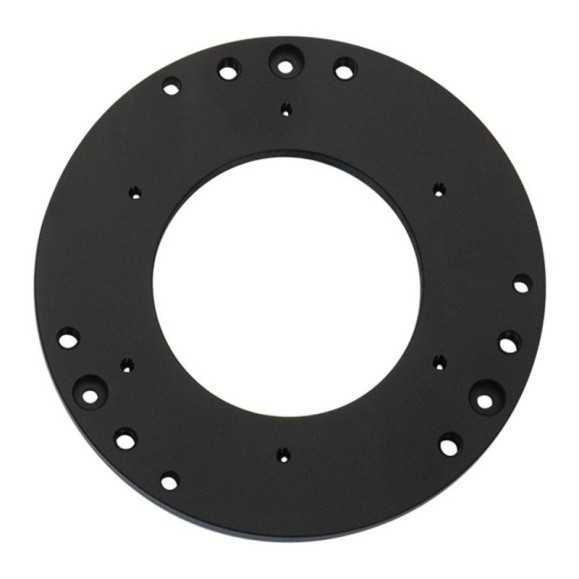

Tilt Tape ZWO M48

Astrophotography with ever larger sensors imposes demands that were previously less relevant. It is imperative that a large-diameter sensor (beyond the APS-C format) is perfectly perpendicular to the optical axis, otherwise very distorted stars will be produced at the edges of the field. This orthogonality defect, known as tilt, can be corrected by means of an adjustable adapter.

For this purpose, ZWO offers for its cameras a 5 mm thick tilt correction ring with M48 threads (in/out). It is attached to the front of ZWO ASI2600/6200/2400 cameras or to the OAG M68 splitter. Three screws at 120° allow, with the help of an Allen key, the tilt adjustment, while three others ensure the fixation.
Note: this accessory is included with full-format cameras.

Solid aluminum construction

Maximum diameter: 90 mm

Backfocus generated: 5 mm (to be taken into account in the calculation of the total backfocus)

Example of use

Tilt Tilt Plate ZWO M48
