Camera Kit BMS, USB3.0/ 10MP CMOS
BMS766110000AK15
Stock at Supplier
411.00
VAT excluded
Shipping 5/7d
High sensitivity CMOS sensor camera for microscopy applications.
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Wednesday, 12 November - Wednesday, 19 November |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Wednesday, 12 November - Wednesday, 19 November
✖
Camera kit, USB3.0, 10MP
The UC3MOS body, made of rugged zinc alloy, ensures an excellent solution for microscopy work. A high quality IR-CUT filter is incorporated to protect the camera sensor. No moving parts. These measures ensure a rugged and robust solution with a longer lifetime compared to other camera solutions.
| Sensor & Size(mm) | Pixel(µm) | G Sensitivity Dynamic Range SN Ratio |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|
|
10M/MT9J003(C) 1/2.3"(6.44x4.616) |
1.67x1.67 |
0.31 V/lux-sec |
7.2@3584x2746 |
1x1,2x2,4x4 |
0.38 ms~2000 ms |

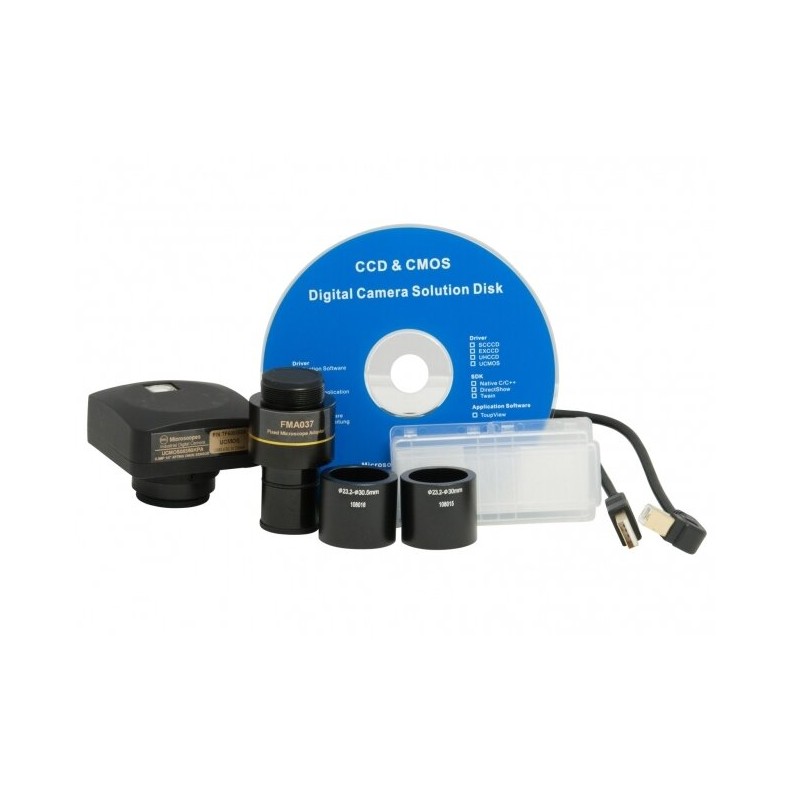

The box includes:
-Camera
-Software CD with BMS_pix3
-Calibration slide
-Microscope adapter with optics.
-Adapter from 23.2 mm to 30.0 mm.
-Adapter from 23.2 mm to 30.5 mm.
-----------------------------------------------------------------------------
| OTHER HARDWARE CONFIGURATION | |
|---|---|
|
Spectral range |
380-650 nm (with IR filter) |
|
White balance |
ROI white balance/manual time-tone adjustment |
|
Color reproduction technique |
Ultra-fine color engine |
|
Capture/control API |
BMS_pix3, native C/C++, C#, Directshow, Twain, Labview |
|
Recording system |
Still image and movie |
|
Cooling system |
Natural
|
| OPERATING ENVIRONMENT | |
|
Operating temperature |
-10 ~ 50 °C |
|
Storage temperature |
-20 ~ 60 °C |
|
Operating humidity |
30~80% relative humidity |
|
Storage humidity |
10~60% relative humidity |
|
Power supply |
DC 5 V via USB port of PC
|
| SOFTWARE ENVIRONMENT | |
|
Operating system |
Windows 8/10 and 11 (32 and 64 bit), OSx (Mac OS X) and Linux compatible |
|
PC requirements |
CPU: Equal to Intel Core2 2.8 GHz or higher |
|
Memory: 2 GB or more |
|
|
USB port: Hi-Speed USB 2.0 port |
|
|
Display: 17" or larger |
|
|
CD-ROM |
|
U3CMOS Series Dimensions
| Installation drawings. The UC3MOS body, made of a rugged zinc alloy, ensures a robust solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts are included. These ensure a rugged and robust solution with a longer lifetime compared to other industrial measured camera solutions. |
