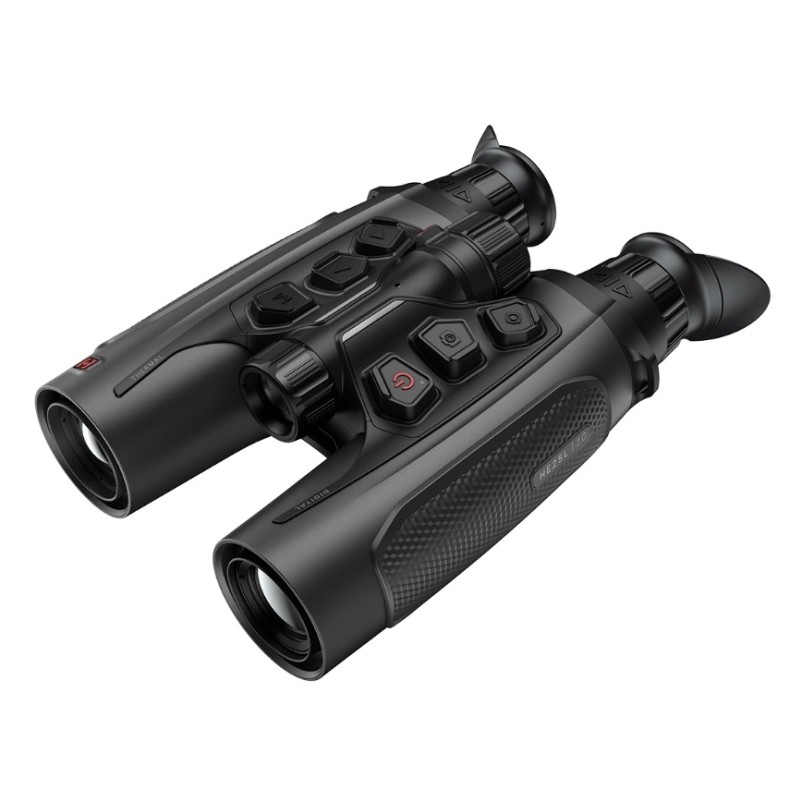

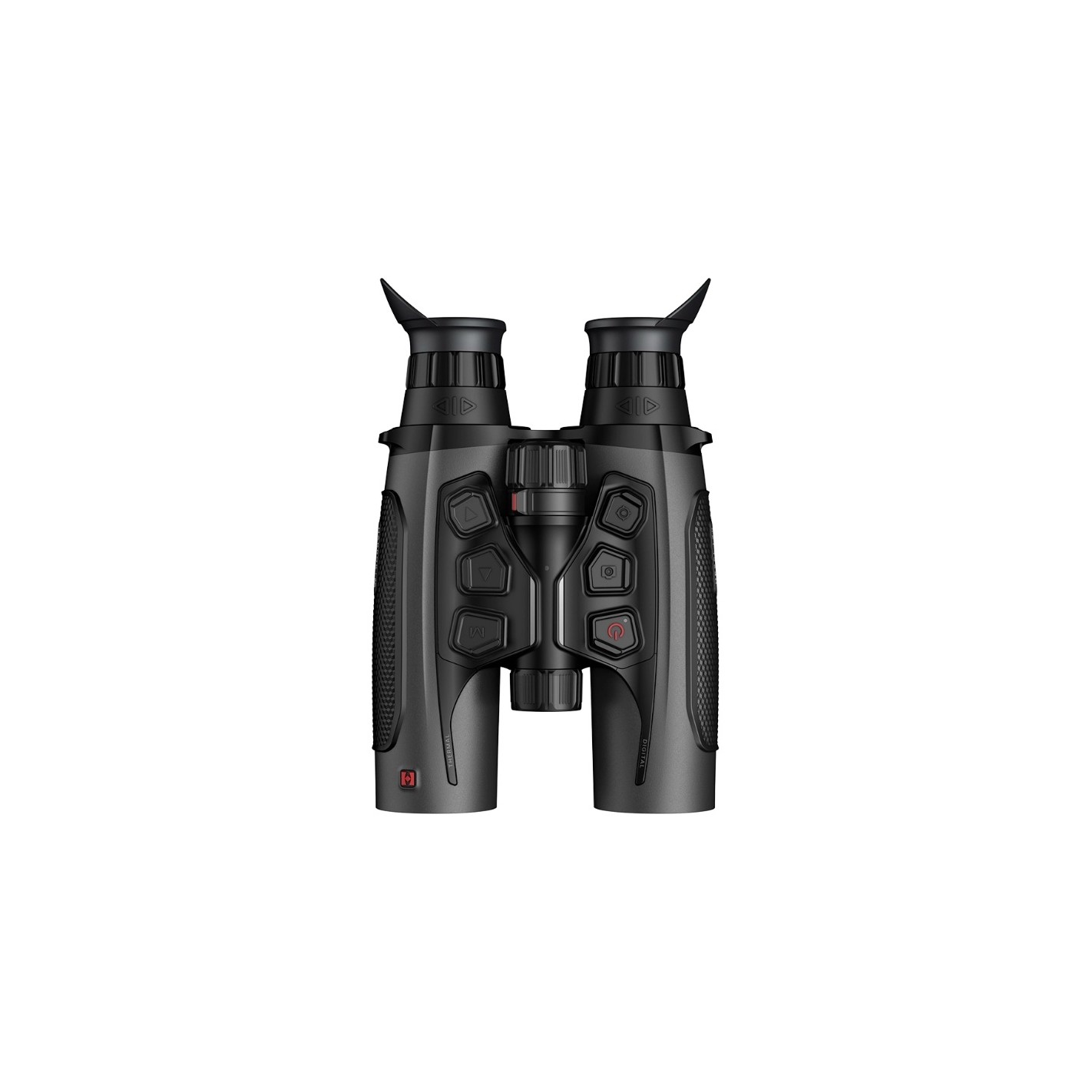

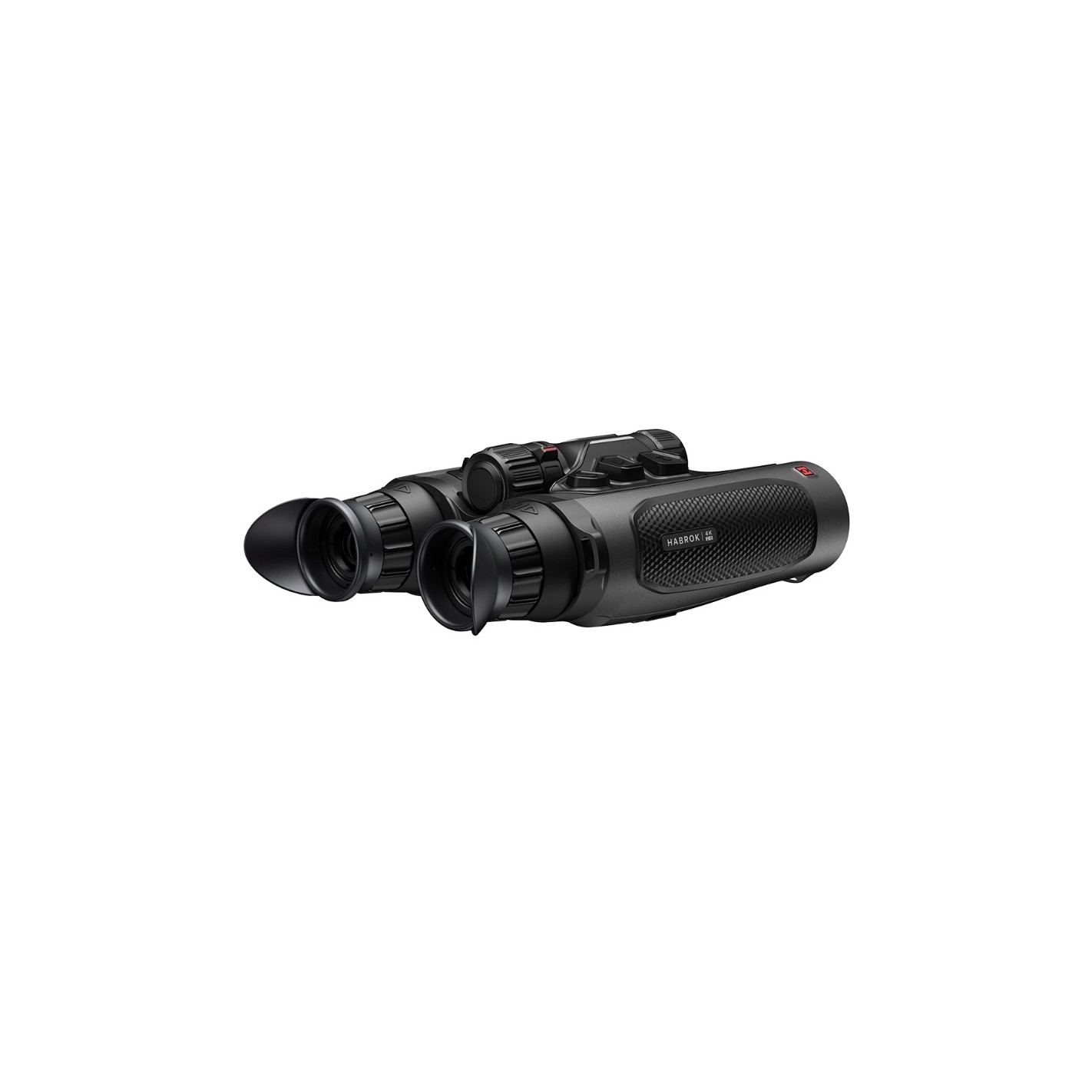

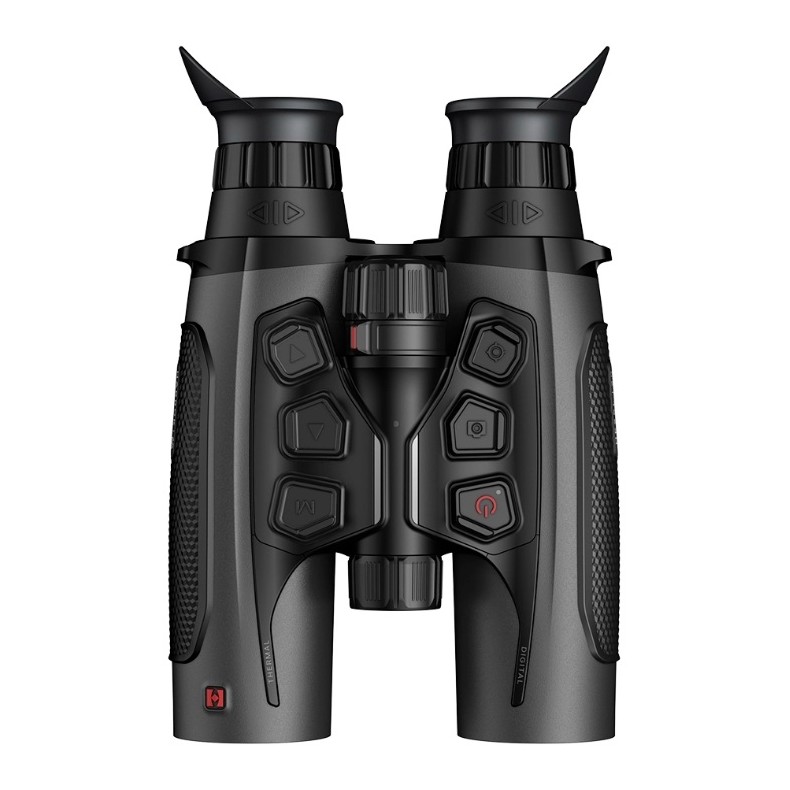

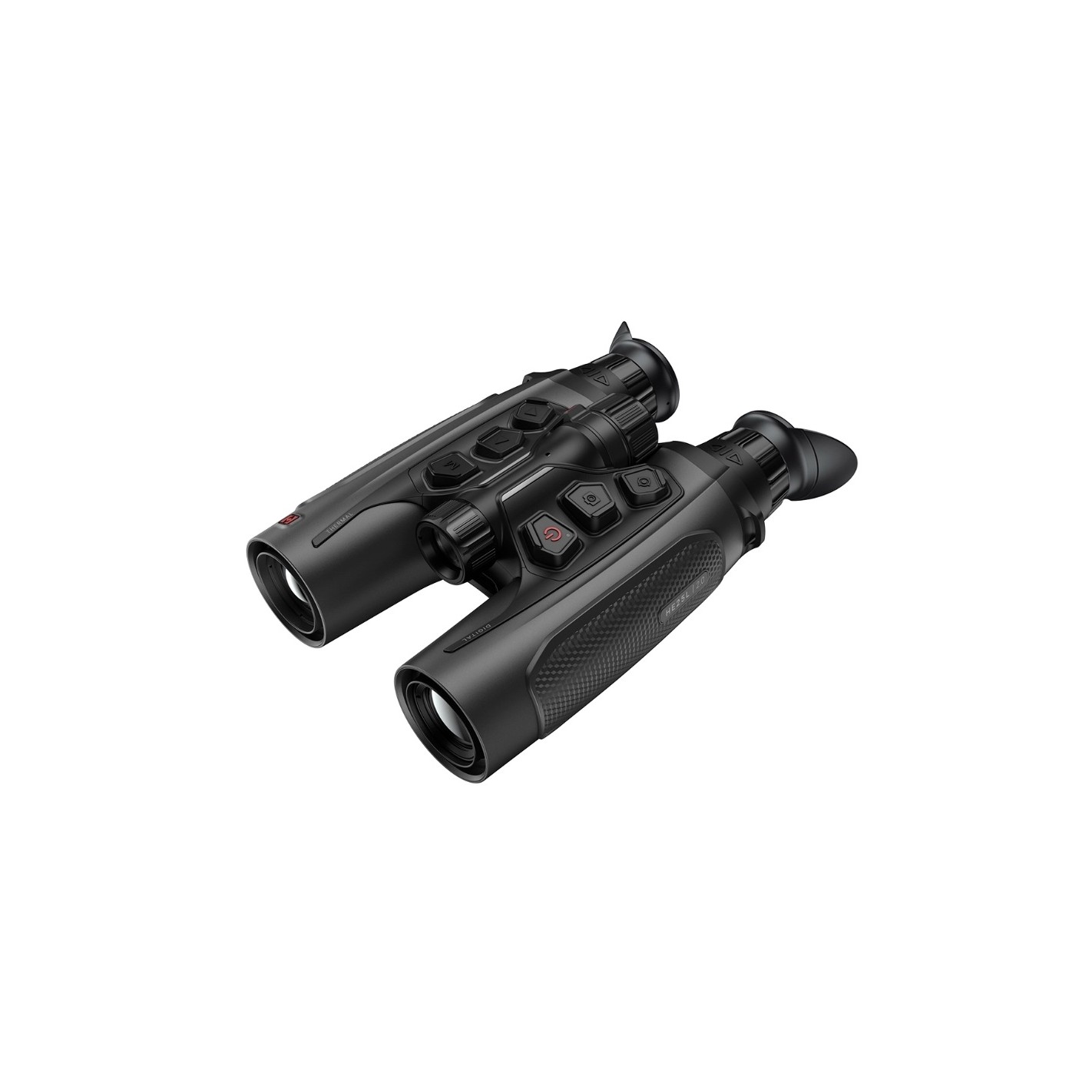

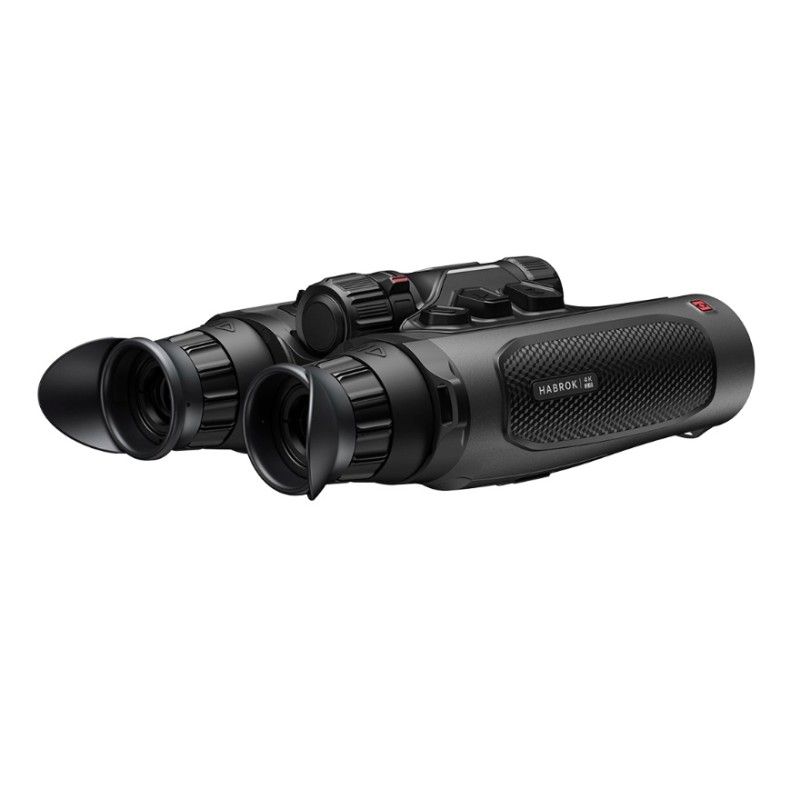

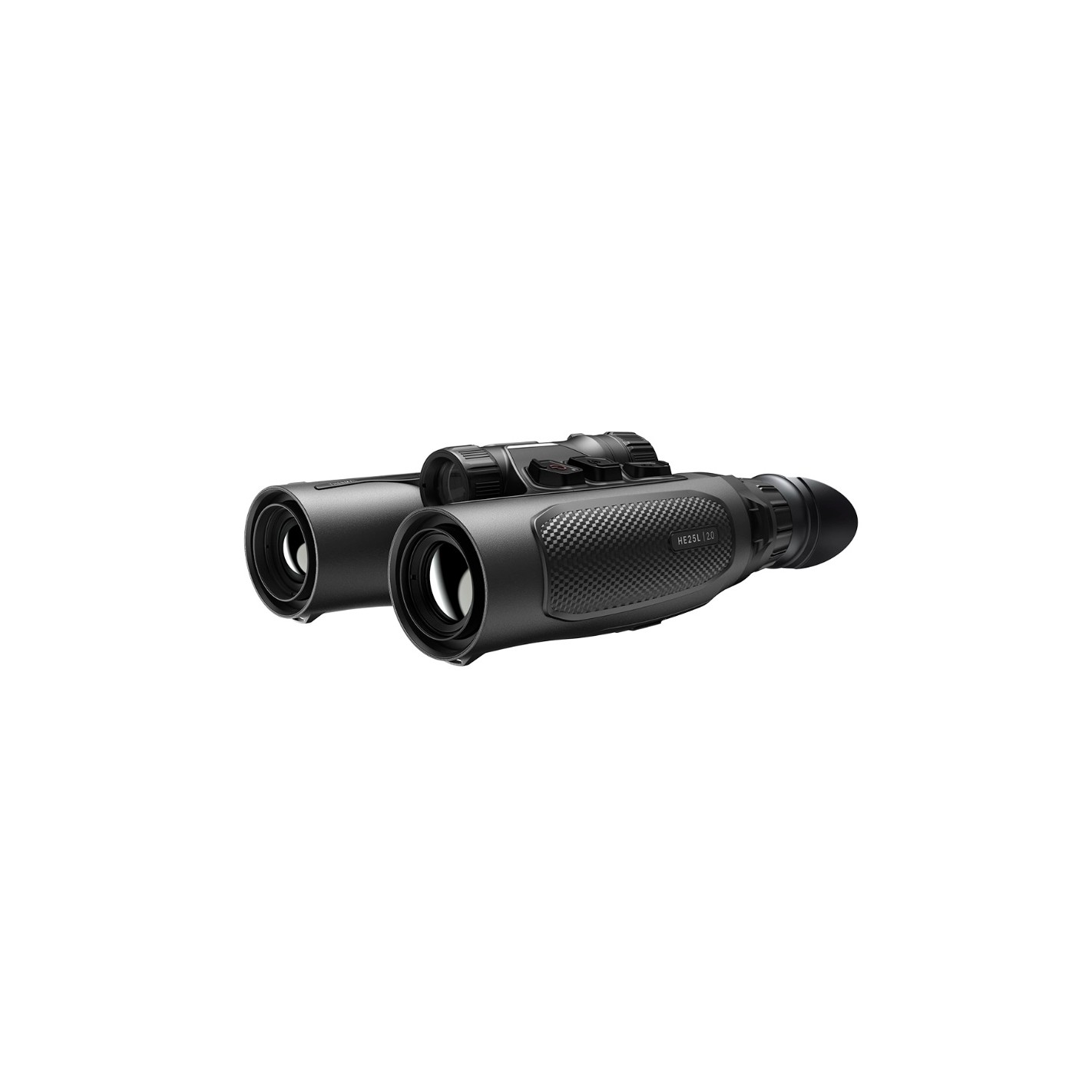

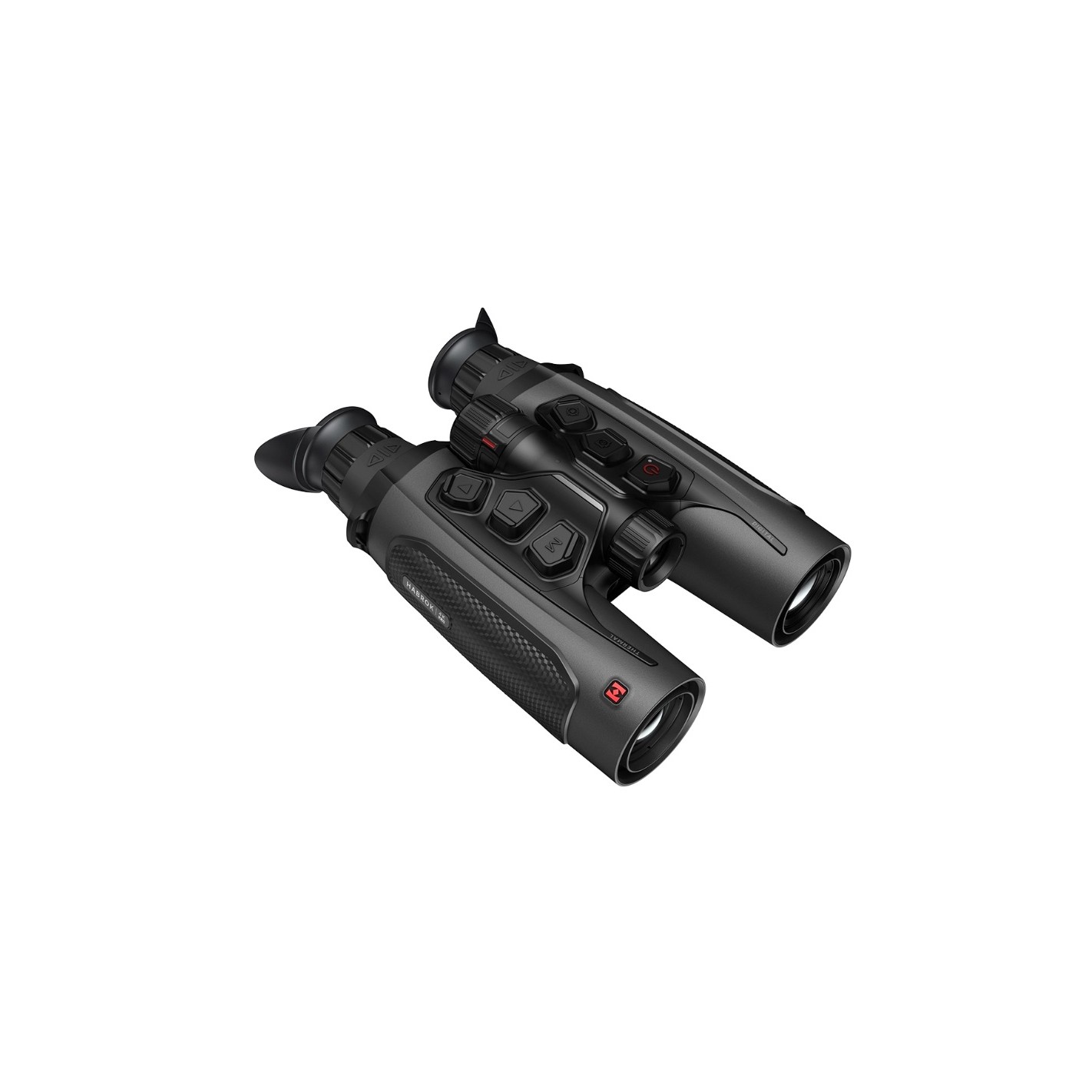

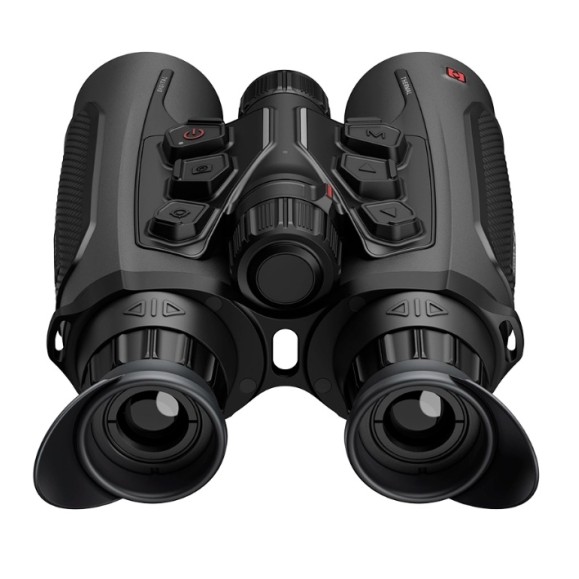

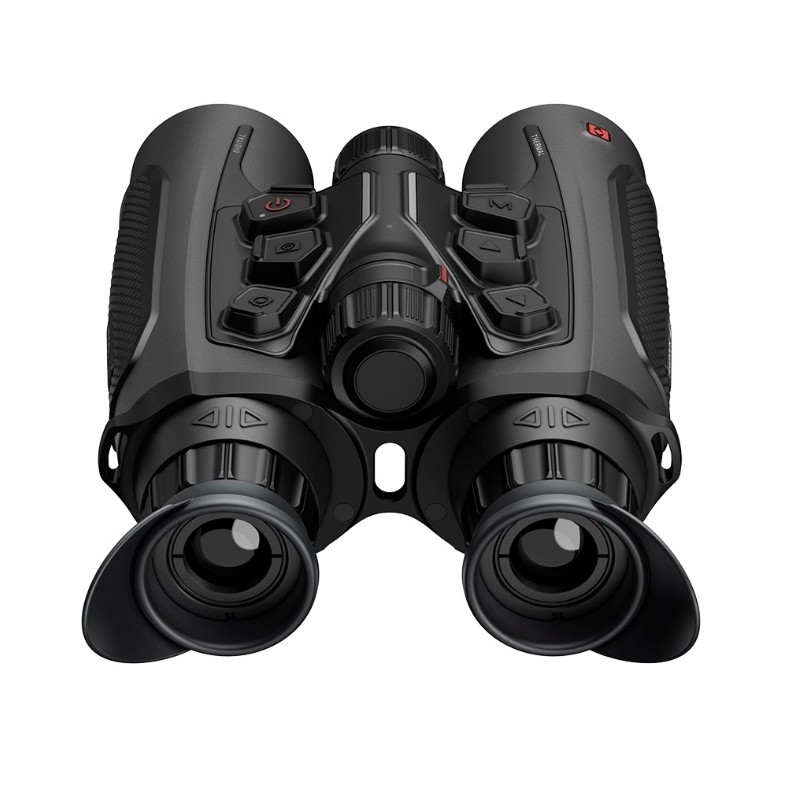

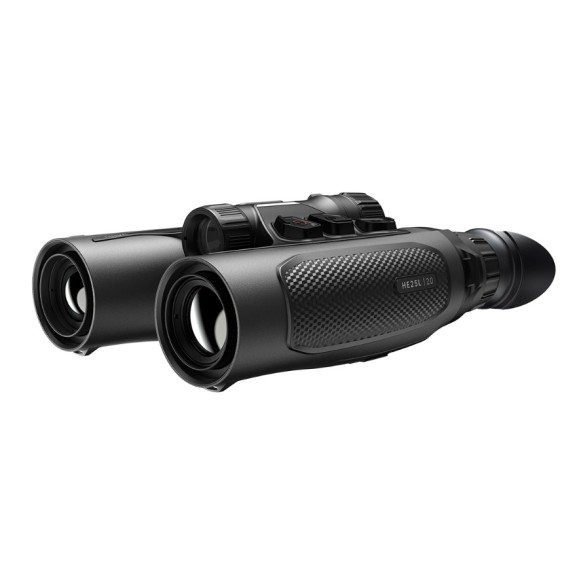

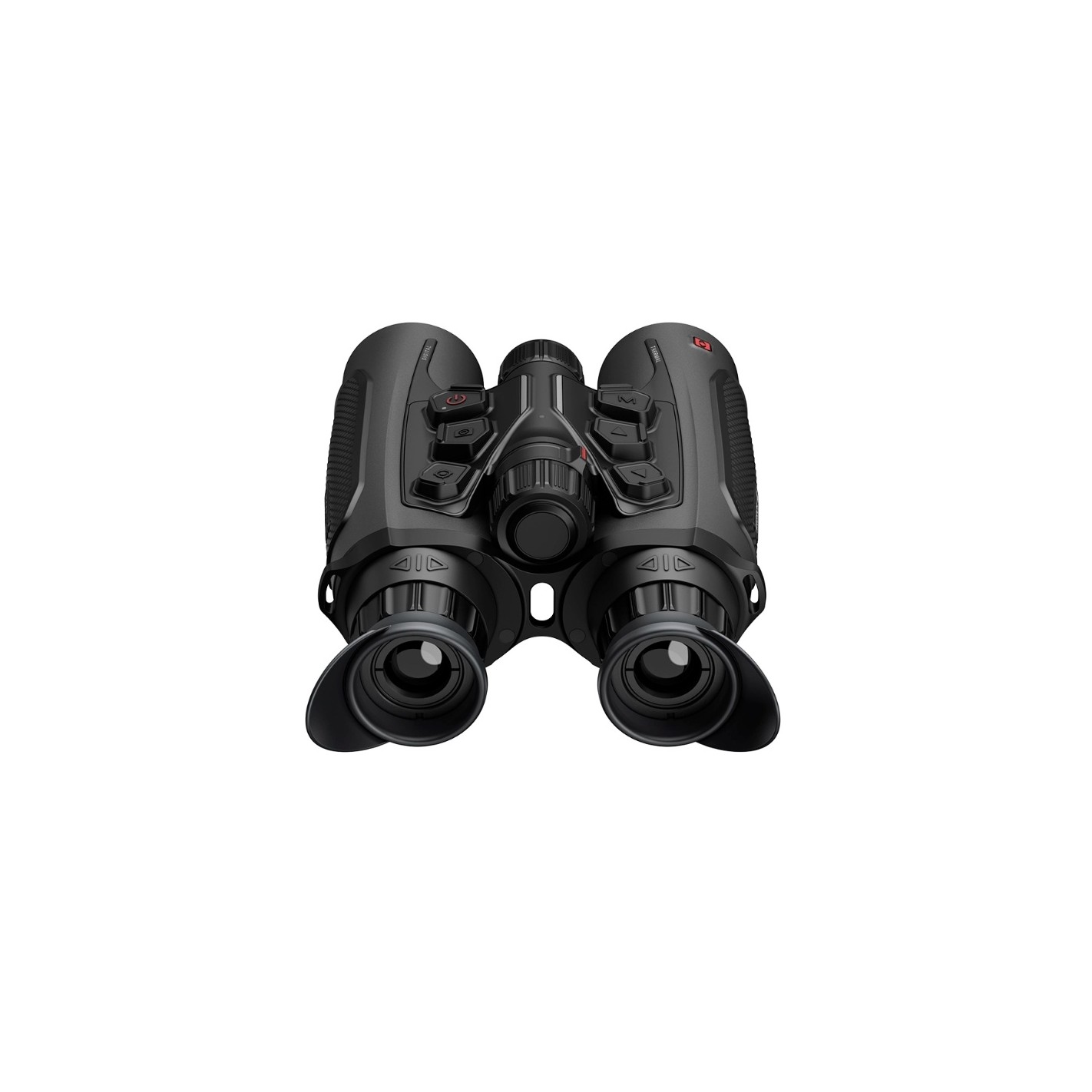

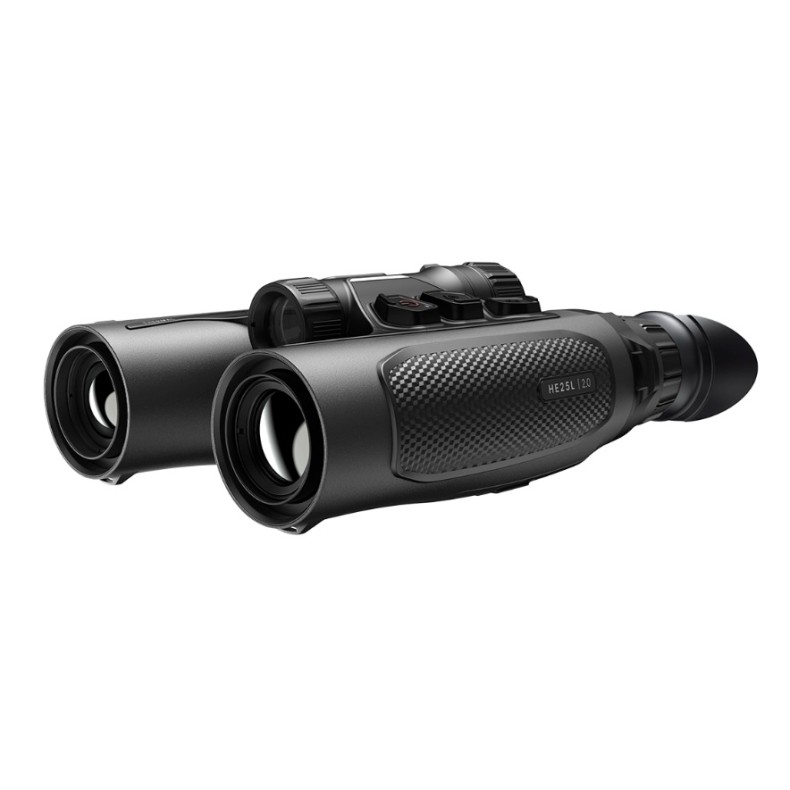

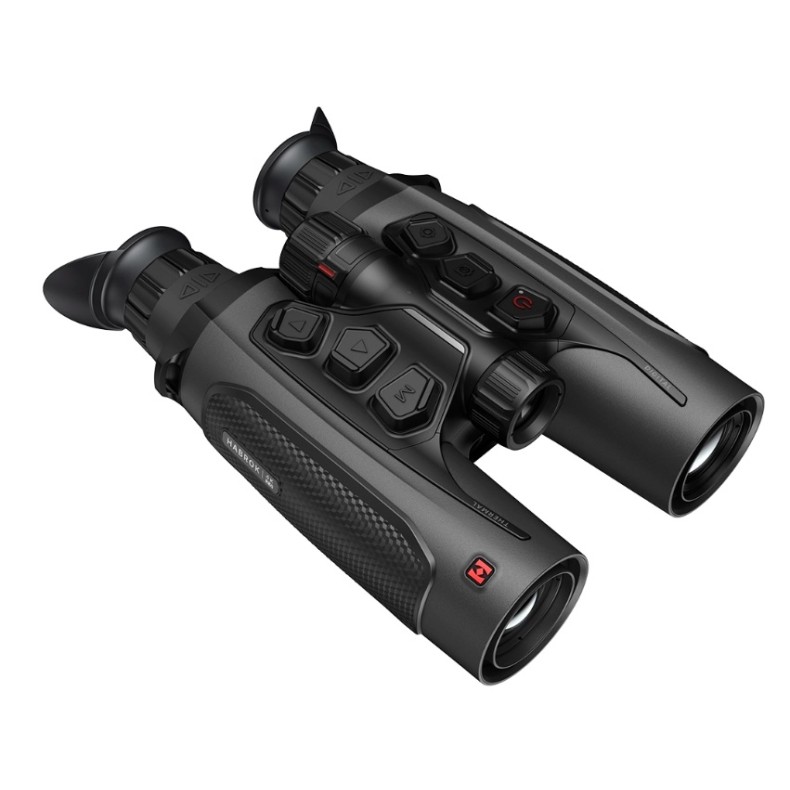

The Hikmicro Habrok 4K HE25L 2.0 is a new generation multi-spectrum binocular that combines thermal vision and 4K digital optics in a single compact, rugged and highly advanced device. Designed specifically for day, twilight and night hunting, as well as wildlife observation, surveillance, search and rescue in demanding conditions.
This 2.0 model incorporates a 256 × 192 pixel VOx thermal sensor with a NETD sensitivity of less than 18 mK, a significant improvement over the previous generation. It allows detection of minimal thermal differences even in environments with low thermal contrast and the 25 mm F1.0 thermal lens offers a detection range of up to 1200 meters, ideal for open terrain and forests.
In the optical channel, the HABROK HE25L 2.0 integrates a 3840 × 2160 4K CMOS sensor together with a 60 mm F2.2 lens, providing an extremely sharp and detailed image during daytime. The system enables digital magnifications from 5.5x to 22x, with progressive zoom support and electronic image stabilization from 2x, ensuring stable viewing even at high magnifications.
One of the great innovations of the 2.0 model is the incorporation of the HSIS (HIKMICRO Shutterless Image System), which eliminates shutter interruptions in the thermal channel, offering a smoother and more continuous image. In addition, it has interchangeable 850 nm and 940 nm intelligent IR illuminators, adapting to both maximum illumination and more discreet observation, with a nighttime range of up to 400 meters.
The device includes a 1000 meter laser rangefinder with an accuracy of ±1 meter, along with advanced features such as integrated GPS, digital compass, Hot Track, PIP (picture-in-picture), and video and audio recording. Everything is displayed through a 0.49" Full HD (1920 × 1080) OLED display, with multiple thermal palettes and optical color modes.
With a weight of 895 grams, IP67 protection, rechargeable and replaceable battery, and up to 6.5 hours of autonomy, the HABROK 4K HE25L 2.0 is a professional multispectrum tool, designed for demanding users looking for maximum precision, versatility and reliability in any scenario.
Main features
- Thermal detector with 256 × 192 @12 μm resolution
- NETD ultra high-sensitivity thermal module
- 25 mm F1.0 thermal lens with a detection range of up to 1,200 meters
- Ultra high resolution 3840 × 2160 CMOS 4K ultra-high resolution detector
- 60 mm F2.2 digital zoom lens with 5.5x to 22x digital zoom
- 0.49-inch OLED display with 1920 × 1080 resolution
- Interchangeable 850 nm and 940 nm IR illuminators and 1000 meter laser rangefinders
- Shutterless image system HSIS (HIKMICRO Shutterless Image System)
- Laser range finder (LRF) with ballistic calculator
- 895 grams in weight, with compact, robust and ergonomic design
Technical specifications
Thermal module
- Image sensor: uncooled VOx focal plane arrays
- Resolution: 256 × 192
- Pixel spacing: 12 μm
- Image frequency: 50 Hz
- Response band: 8 μm - 14 μm
- NETD:
- Lens: 25 mm F1.0
- Focus mode: Rear focus wheel
- Field of view: 7.0° × 5.3° (H × V)
- Magnification: 4.3x - 17.2x (4x)
- Supported digital zoom: 2x, 3x, 4x and 5x
- Minimum focusing distance: 3 meters
- Detection range: 1200 meters
Optical module
- Image sensor: 1/1.8″ progressive scan CMOS
- Resolution: 3840 × 2160 (4K)
- Lens: 60 mm F2.2
- Focus mode: Rear focus wheel
- Minimum illumination: 0.001 lux @ (F1.0, AGC activated)
- Magnification: 5.5x - 22x (4x)
- Supported digital zoom: 2x, 3x, 4x and 5x
- Field of view: 7.3° × 4.1° (H × V)
- IR illuminator: 940 nm (default) and 850 nm (replaceable)
- Smart IR: Yes
- Replaceable IR illuminator: Yes
- Night vision range: 400 meters
- Safety class: Class 1
Image display
- Monitor: 0.49 inches, OLED, 1920 × 1080 px
- Image frequency: 50 Hz
- Thermal Palettes: Black Hot, White Hot, Red Hot, Fusion
- Optical modes: Day, Night, Auto, Green, Yellow
- Brightness adjustment: Yes
- Contrast adjustment: Yes
- Tone adjustment: Cool / Warm
- Exit pupil: 8 mm
- Eyepiece distance: 15 mm
- Diopter adjustment: -5D to +3D
- Electronic image stabilization: Yes (thermal and digital channel, from 2x)
- Zoom Pro: Yes
Distance meter
- Laser rangefinder: Yes
- Rangefinder wavelength: 905 nm
- Maximum measuring range: 1000 meters
- Minimum measuring range: 10 meters
- Measuring accuracy: ± 1 meter
System
- Storage: 64 GB EMMC internal memory
- Video recording: Yes
- Audio recording: Yes
- Instant image capture: Yes
- Picture in Picture (PIP): Yes
- Hot Track: Yes
- Digital compass: Yes
- Integrated GPS: Yes
- Local album: Yes
- WiFi / Hotspot: Yes
- Standby mode: Yes
General
- Battery type: Rechargeable and replaceable lithium ion battery
- Autonomy: ≥ 6.5 hours (25 °C, with hotspot and rangefinder activated)
- External power supply: USB Type C (5 V DC, 2 A)
- Protection: IP67
- Working temperature: -30 °C to +55 °C
- Dimensions: 143.1 × 74.8 × 223.3 mm
- Weight: 895 grams (without batteries)
- Interpupillary adjustment range: 60 - 74 mm
- Tripod thread: 1/4″-20 UNC
- Warranty: 36 months
- Sensor warranty: 10 years
Box contents
- HABROK 4K HE25L 2.0
- Neck strap
- Tripod adapter
- Dust cloth
- USB Type C cable
- Quick Start Guide
