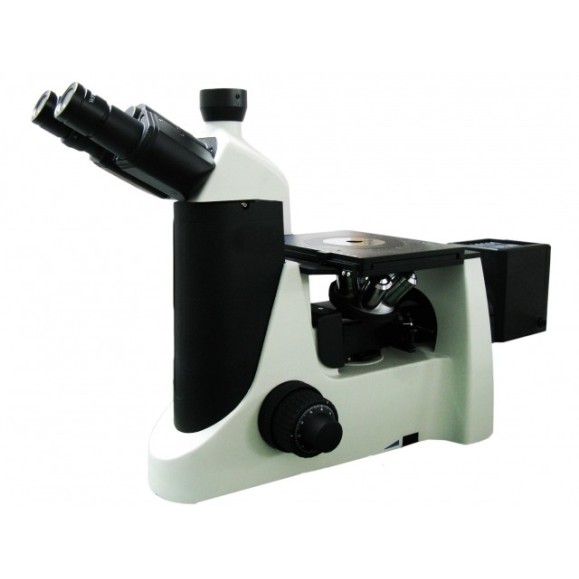

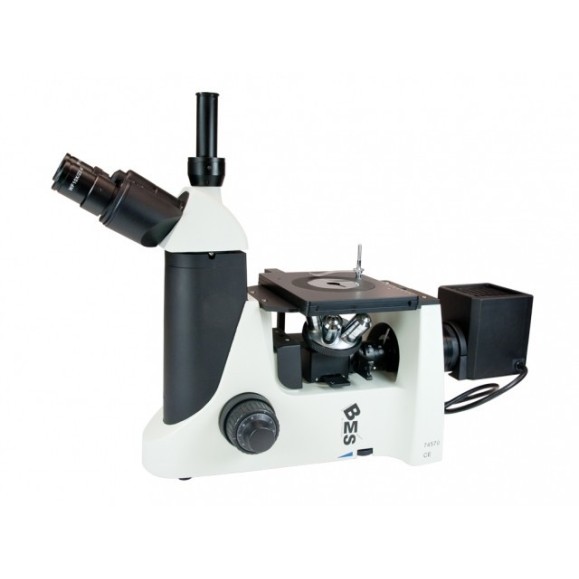

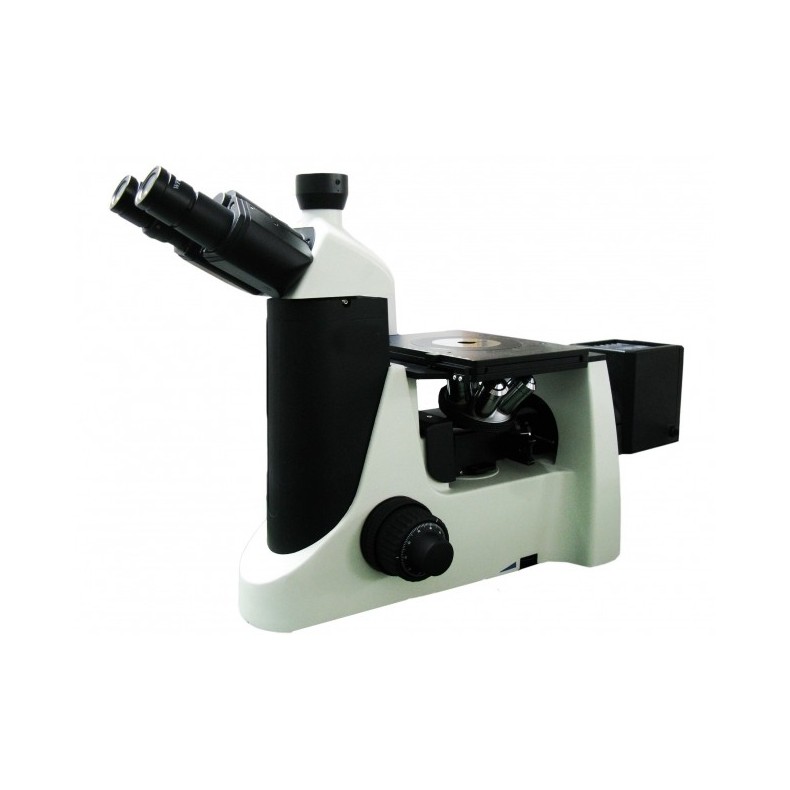

Microscope BMS Metallographic Inverted Triocular 74570

Professional Inverted Microscope for Metallography and Materials Research

• 🔍 High Performance Optics

  The microscope is equipped with wide-field EWF10x/22mm eyepieces, which provide a wide, comfortable and sharp view, even during prolonged observations.
  The trinocular head allows direct observation and simultaneous image or video capture using digital or DSLR cameras, ideal for documentation, training or computer-assisted analysis.

  Plan Infinity DIN-achromatic objectives guarantee superior optical quality, with excellent correction of field and chromatic aberrations. It includes the following magnifications:

  • 10x / 0.25 / WD 18.1 mm

  • 20x / 0.40 / WD 8.36 mm

  • 50x / 0.70 / WD 1.39 mm

  • 80x / 0.80 / WD 1,68 mm

  This combination covers a wide range of applications, from the general inspection of metal structures to the detailed study of fine microstructures and surface defects.

  ---

  ⚙️ Ergonomics and mechanical precision

  The coaxial macro and micrometer focusing system, available on both sides of the microscope, provides smooth and precise focus control, ensuring stable observations even at high magnifications.

  Its integrated 160 × 250 mm cross stage allows precise X- and Y-axis travel (120 mm and 78 mm respectively), providing sufficient space for large specimens, polished plates, flasks or Petri dishes. The robust and stable design of the system ensures maximum reliability during prolonged working sessions.

  ---

  💡 Professional illumination and contrast control

  The BMS Omkeermicroscoop has an integrated 6V-30W halogen illumination system, adjustable in intensity to adapt the light to each type of sample and observation technique.

  It also has a centerable condenser with iris diaphragm, adjustable in height by means of a rack and pinion, specially designed for long working distance (Long Working Distance).

  It includes blue, green, yellow and gray filters, as well as field diaphragm, to optimize contrast and color reproduction according to the type of material observed.

  ---

  📸 Prepared for scientific photography and video

  The vertical trinocular tube allows direct connection of digital cameras, DSLRs or scientific CCD/CMOS cameras via optional adapters. This makes the BMS Omkeermicroscoop a perfect system for metallographic documentation, university teaching and software-assisted digital analysis.

  Thanks to its compatibility with professional cameras, it is possible to capture high-resolution images, perform measurements, create reports or share observations in real time in both industrial and academic environments.

  ---

  main applications

  The BMS Omkeermicroscoop Metallographic Trinocular is designed for:

  • Metallography and materials analysis laboratories.

  • Quality control in production and welding processes.

  • Research and development (R&D) in engineering, metallurgy and materials science.

  • Technical and university training in fields related to physics, chemistry or engineering.

  • Study of fractures, defects, inclusions and microstructures in metals and alloys.

  ---

  ⚙️ Technical specifications

  Feature	Description
  Eyepieces	EWF10x/22mm, wide field
  Head	Trinocular, with interpupillary distance and diopter adjustment
  Objective nosepiece	Quadruple, rotatable and precise
  Objectives	Plan Infinity DIN-Achromatic 10x, 20x, 50x, 80x
  Focusing system	Coaxial macro and micrometric bilateral
  Stage	160×250 mm, offset X 120 mm / Y 78 mm
  Condenser	Centerable, height adjustable, iris diaphragm, long working distance diaphragm
  Illumination	Halogen 6V-30W, adjustable intensity, with filters (blue, green, yellow, yellow, gray)
  Photographic tube	Compatible with SLR and CCD/CMOS cameras via adapters
  Power supply	AC current, built-in internal power supply
  Recommended use	Metallography, materials engineering, quality control, technical education

  ---

  🌟 O utstanding advantages

  • Plan Infinity optics with flat, sharp images across the entire field.

  • Large working space, ideal for metallic and large samples.

  • Rugged, durable construction for intensive use.

  • Ready for professional photography and video.

  • Powerful, adjustable halogen illumination for detailed analysis.

  ---

  💬 Conclusion

  The BMS Trinocular Metallographic is a complete, accurate and versatile solution for any laboratory or industrial environment requiring advanced metallographic analysis. Its balance of optical performance, ergonomics and digital documentation capabilities makes it a must-have tool for metalworking professionals, materials engineers and quality control technicians.
