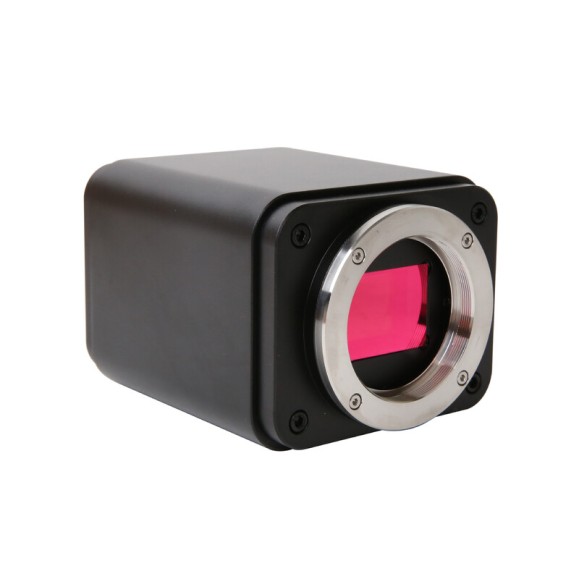

toupCam X8CAM4K 16MPA camera, color, CMOS, 1/1.1", 2.4 µm, 60 fps, 16 MP, HDMI/LAN/USB

X8CAM4K

The CMOS cameras of the X8CAM4K series are equipped with HDMI/network/USB and other optional data outputs. They are characterized by high resolution, high frame rate and excellent image quality, making them suitable for professional applications requiring an extremely high level of detail and color reproduction. The basic features are listed below:

Sony back-illuminated CMOS sensor with large lens area

With 10-bit ISP processing, it offers improved color reproduction, remarkable sharpness and 3D noise reduction effects, as well as more accurate ROI white balance

4K HDMI/RED/USB multiple video outputs usable synchronously

Automatic switching between 4K and 1080P depending on monitor resolution.

SD card/USB memory to store recorded images and videos: stand-alone system.

Supports RAW image recording and display.

Supports automatic uploading of images to the server via network.

Supports USB voice control module, which allows real-time control of the camera by voice commands for taking pictures, recording videos, freezing images and other operations.

Provides real-time video EDF function and real-time video WDR output function.

Provides real-time stitching function for higher quality images through real-time processing.

Offers two sets of standard ISP parameters for upright microscopes and inverted microscope or stereo loupes.

New user interface, navigation interface offers extensive functions of file editing, image comparison, real-time video image comparison, multi-image EDF function, multi-image stitching function.

Built-in XCamView for camera control and image processing, supporting automatic edge detection and measurement functions.

Text input field supports Chinese and English character input.

toupView/ToupLite software for PC. IOS/Android apps for Smartphones or tablets.

Specifications

Pixel size: 2.4

Photo resolution: 5440x3060

Video resolution: 5440x3060

Required adapter: 1x c-mount

Frame rate per second (fps): 60

Image transmission: HDMI

Chip size (″): 1/1.1

Expandable memory: yes

Color camera: yes

Shutter: Rolling Shutter

Megapixel: 16

Cooling: no

Interface: HDMI, USB 3.0, LAN, SD card

Sensor: CMOS (Sony Exmor)

Software: ToupView/ToupLite

Supported System: Windows, Linux, macOS, iOS, Android

Video function: yes

Sensitivity (mV/s): 470

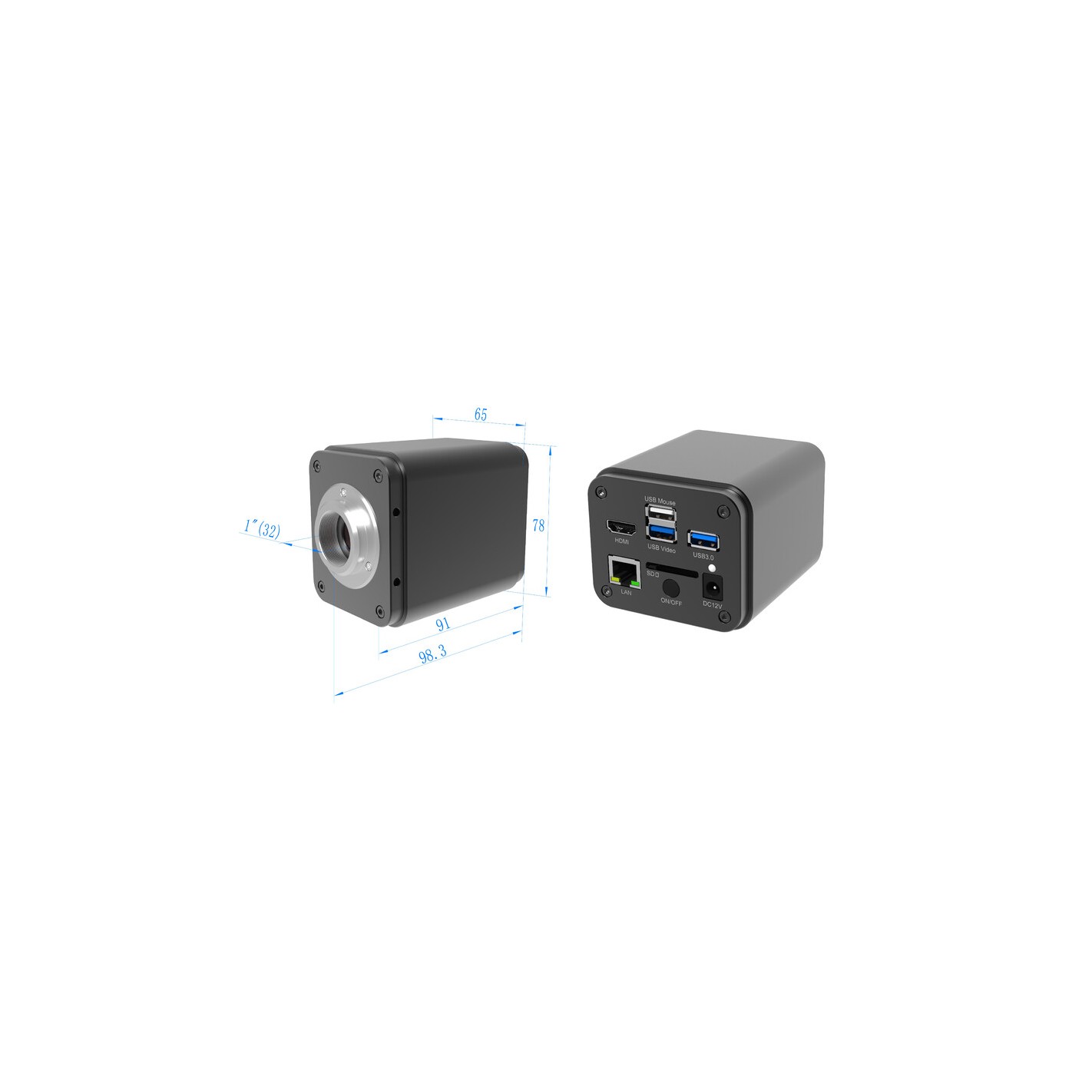

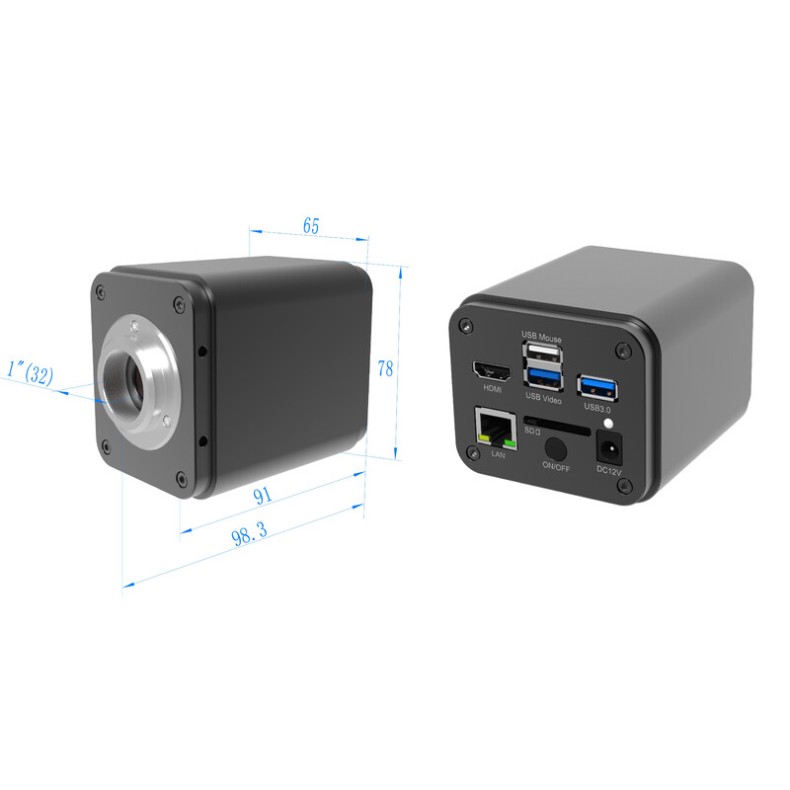

Overall

Width (mm): 98.3

Height (mm): 78

Length (mm): 65

Weight (g): 470

Series: X8CAM4K

Field of application

Medical: yes

Industry: yes

Education: yes

Automotive: yes

Technical: yes

University: yes
