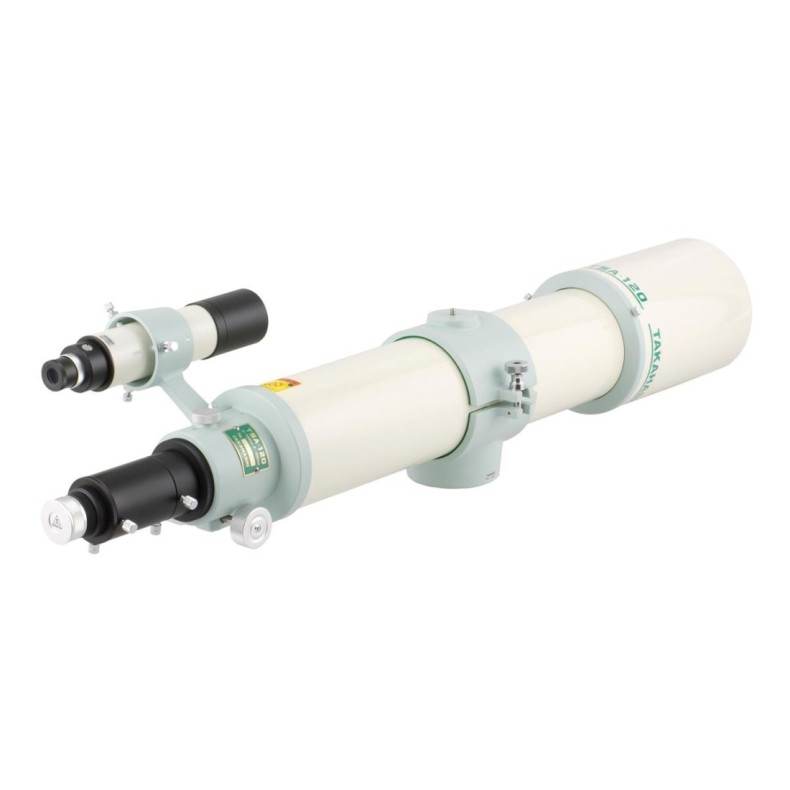

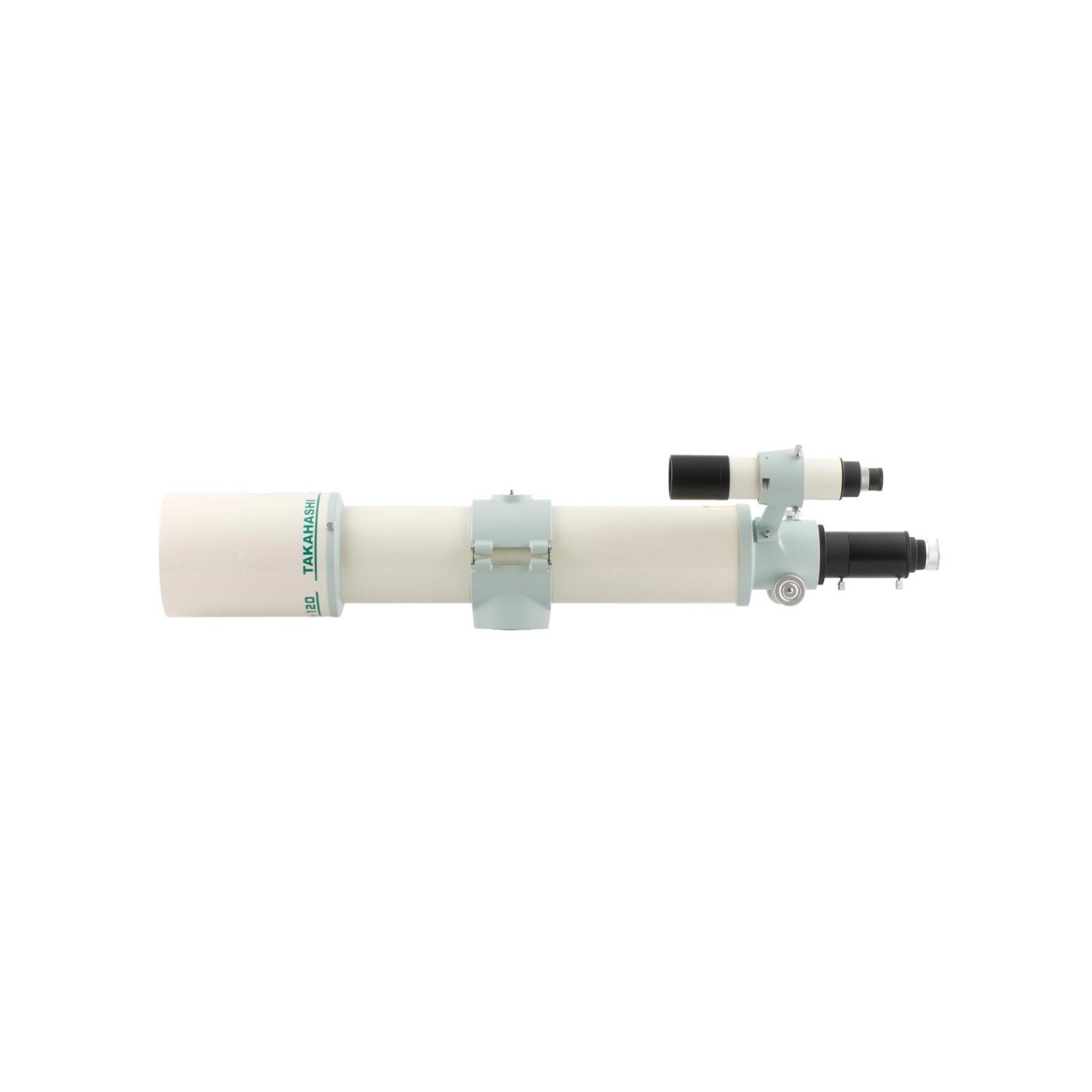

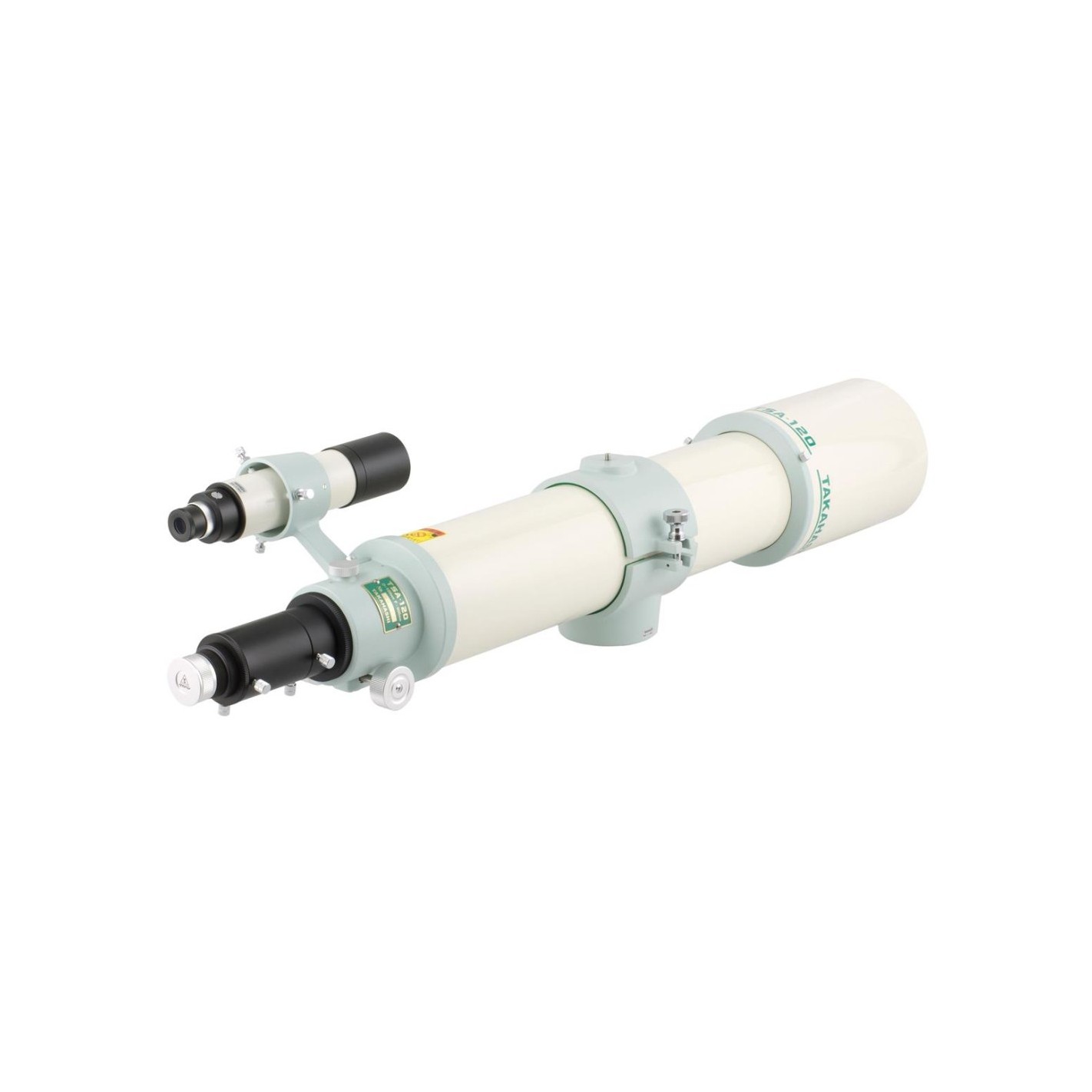

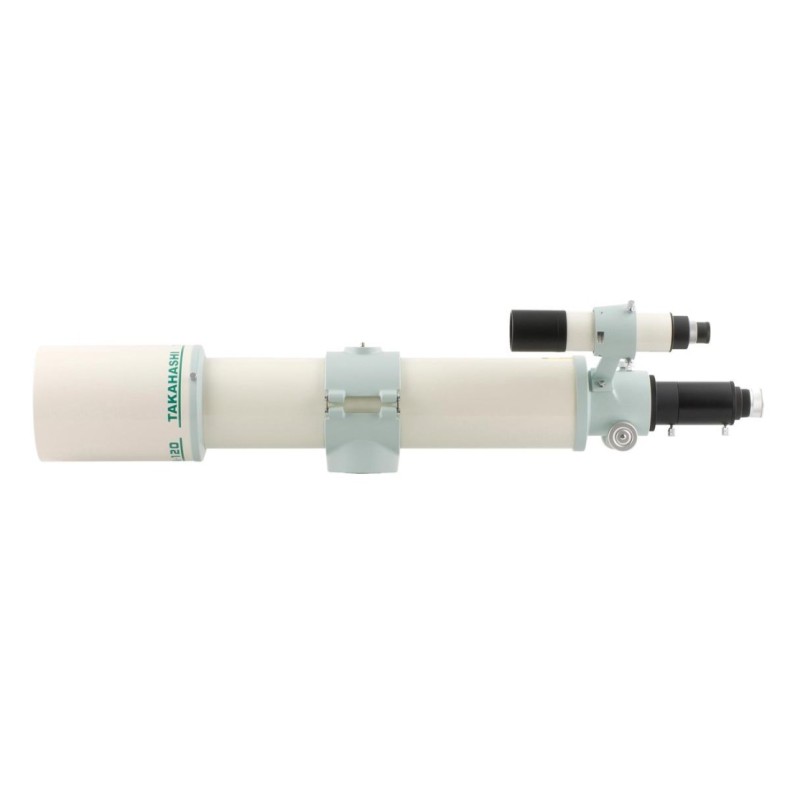

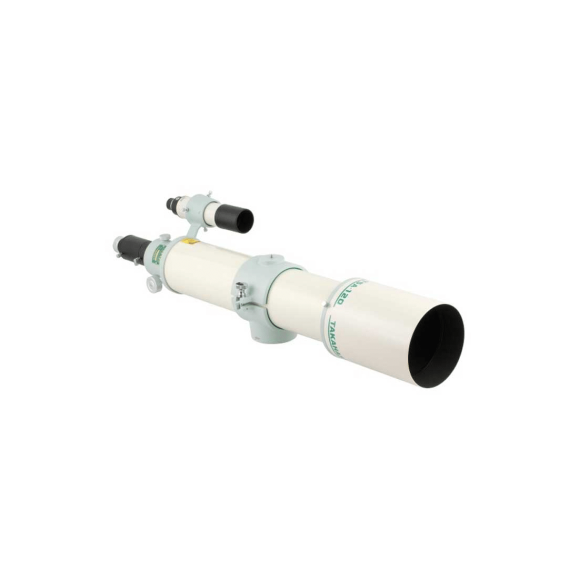

Optical tube Takahashi tsa-120 complete D-120mm F900mm F/8 with accessories

The TSA-120 is characterized by its simplicity, versatility and excellent price/performance ratio.

Apochromatic objective with triple fluorite lens.

Extremely versatile, observation and image.

Retractable fogging protector.

Optical tube with accessories.

Quality Takahashi, Japanese craftsmanship.

With the same features and specifications as the TSA-102S, it is equipped with a 120 mm diameter lens and 900 mm focal length (F/7.5), apochromatic design with three glass elements with low dispersion (ED), retractable hood, excellent mechanics and versatility of use, both in visual and photographic use.

In addition, the TSA-120 is extremely lightweight, weighing only 6.7 kilograms, which avoids having to use large and heavy mounts. It can optionally use the same optional accessories as its smaller brother, such as focal reducer (F/5.6), field corrector (F/7.3) and focal extender (1.6x).

Equipped with a 2.7" diameter rack and pinion focuser, 7x50 finder with illuminating reticle, finder mount, optical tube clamp and Ø 2"/1.25" adapter. The tube length is 990 mm and the diameter is 125 mm. Diameter of the lens hood: 160 mm.

The TSA-120 is equipped with a triplet ED apochromatic lens, with air gap, 120 mm diameter (focal length 900 mm and F/D 7.5), mounted on a 3-group barrel. The latter ensures good stability of the optomechanical chain against the usual stresses of transport and significant temperature variations during use. It has a retractable anti-fog shield and the tube length does not exceed 990 mm, with a moderate weight of 6.7 kg.

The lens is designed for a high level of observational and photographic performance. Chromatic aberration at short wavelengths (blue/violet) is reduced by one third compared to that of the older FS-102/FS-128 with fluorite objective. The Strehl ratio at wavelengths optimal for human vision is almost perfect at 99.2 %, equivalent to that of the TOA series.

The TSA-120 is therefore a lightweight, compact and economical telescope whose performance approaches that of the TOA, flagship models from Takahashi and recognized as some of the best in the world.

The incorporation of the optional field corrector allows imaging at native focus. The TOA-35 (F/D 5.25) reducer makes deep sky photography easier. All mounts meet the requirements for rigidity and flexibility of use demanded by new imaging devices such as digital cameras and the latest generation of CCD cameras.

.

OPTICAL CHARACTERISTICS

Telescope Feature Telescope Takahashi TSA-120

Triplet ED Apochromatic Objective

Air-gap objective mount. 3 lenses/3 groups. 1 ED glass lens S-FPL53

Multicoated hard coatings

Useful diameter 120 mm

At native focus

Focal length 900 mm

Relative aperture F/D 7.5

Backfocus 227.5 mm

With field corrector TOA-35FL

Focal length 882 mm

Relative aperture F/D 7.3

Diameter of the corrected image circle 40 mm

Backfocus 117.5 mm

With focal length reducer TOA-35RD

Focal length 672 mm

Relative aperture F/D 5.6

Diameter of corrected image circle 40 mm

Backfocus 62.5 mm

With EXT-ED1.5X Extender

Focal length 1350 mm

Relative aperture F/D 11.3

Diameter of corrected image circle 44 mm

Backfocus 117.5 mm

Telescope focal point diagram Takahashi TSA-120 in focus

Telescope focus point diagram Takahashi TSA-120 with field corrector TOA-35FL

Telescope focus point diagram Takahashi TSA-120 with focal length reducer TOA-35RD
