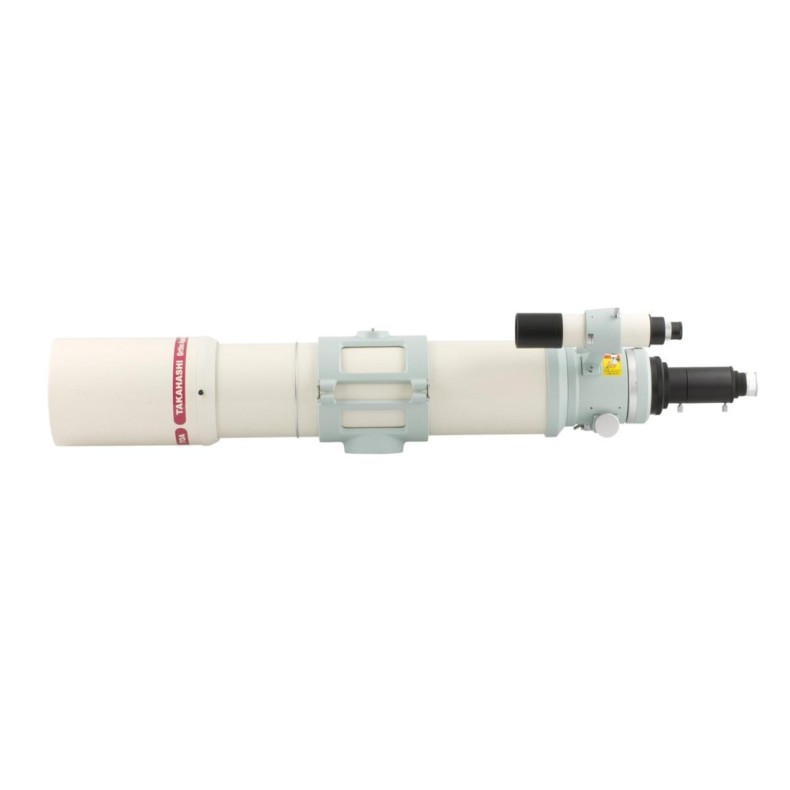

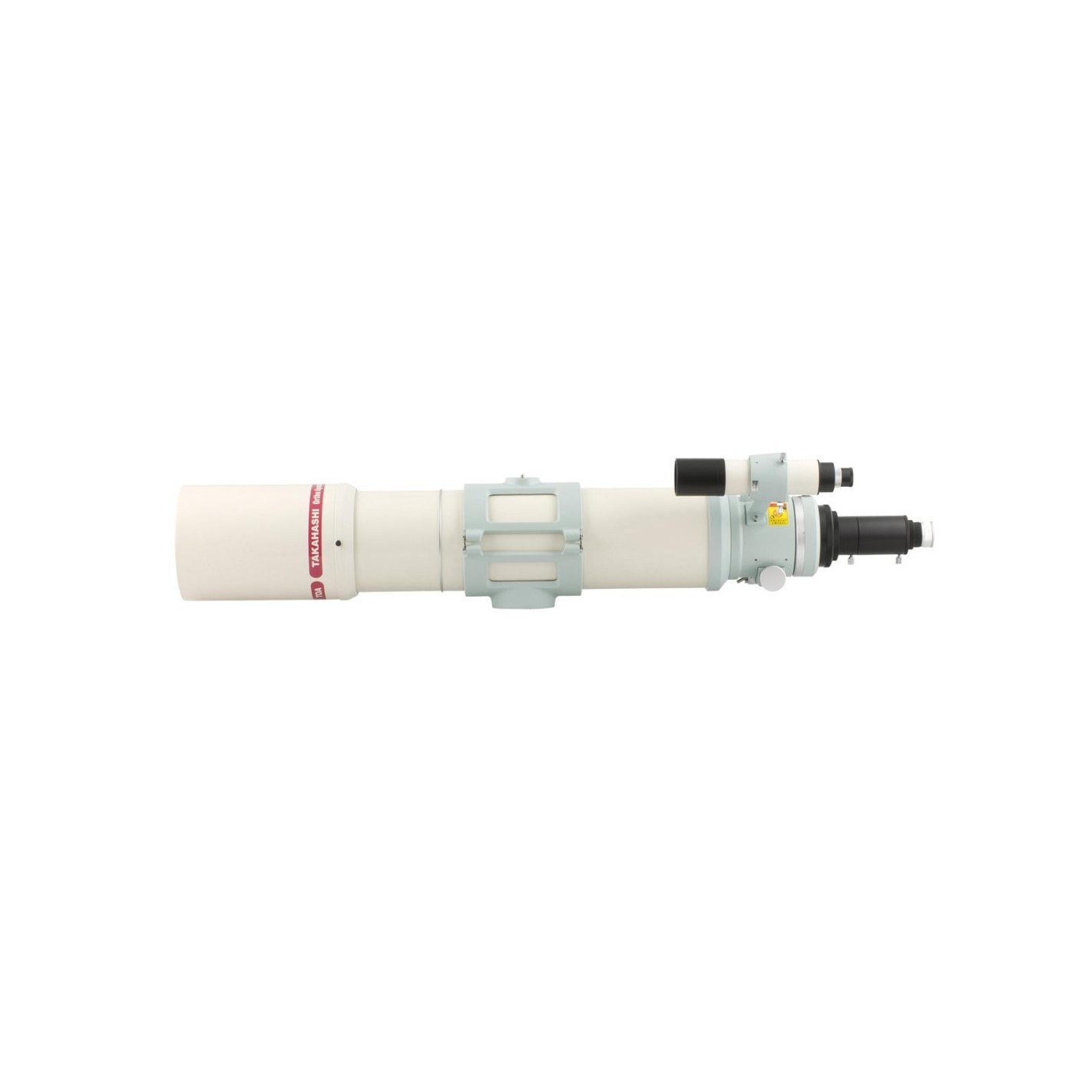

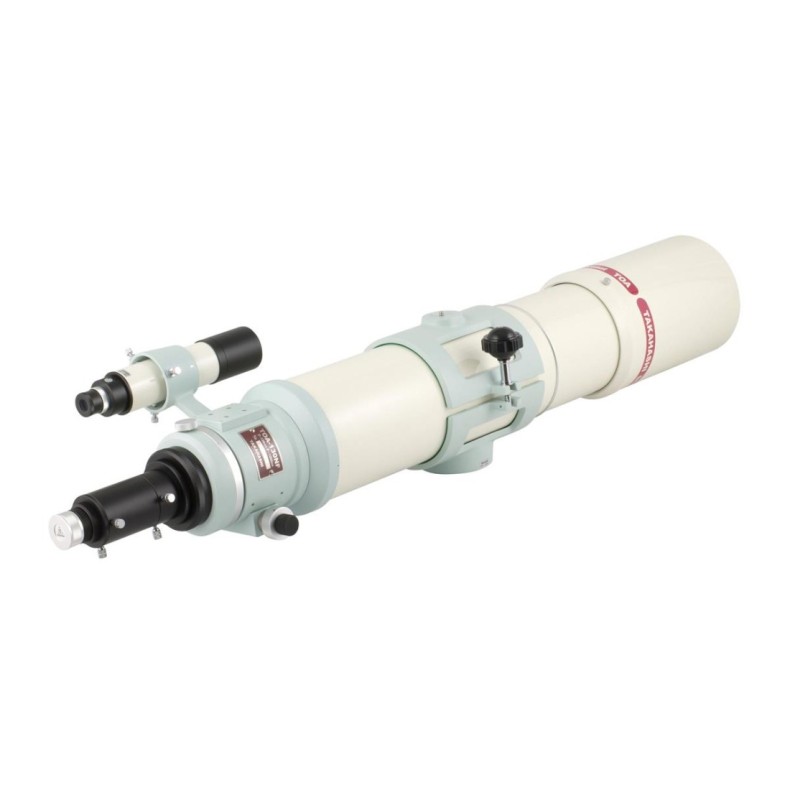

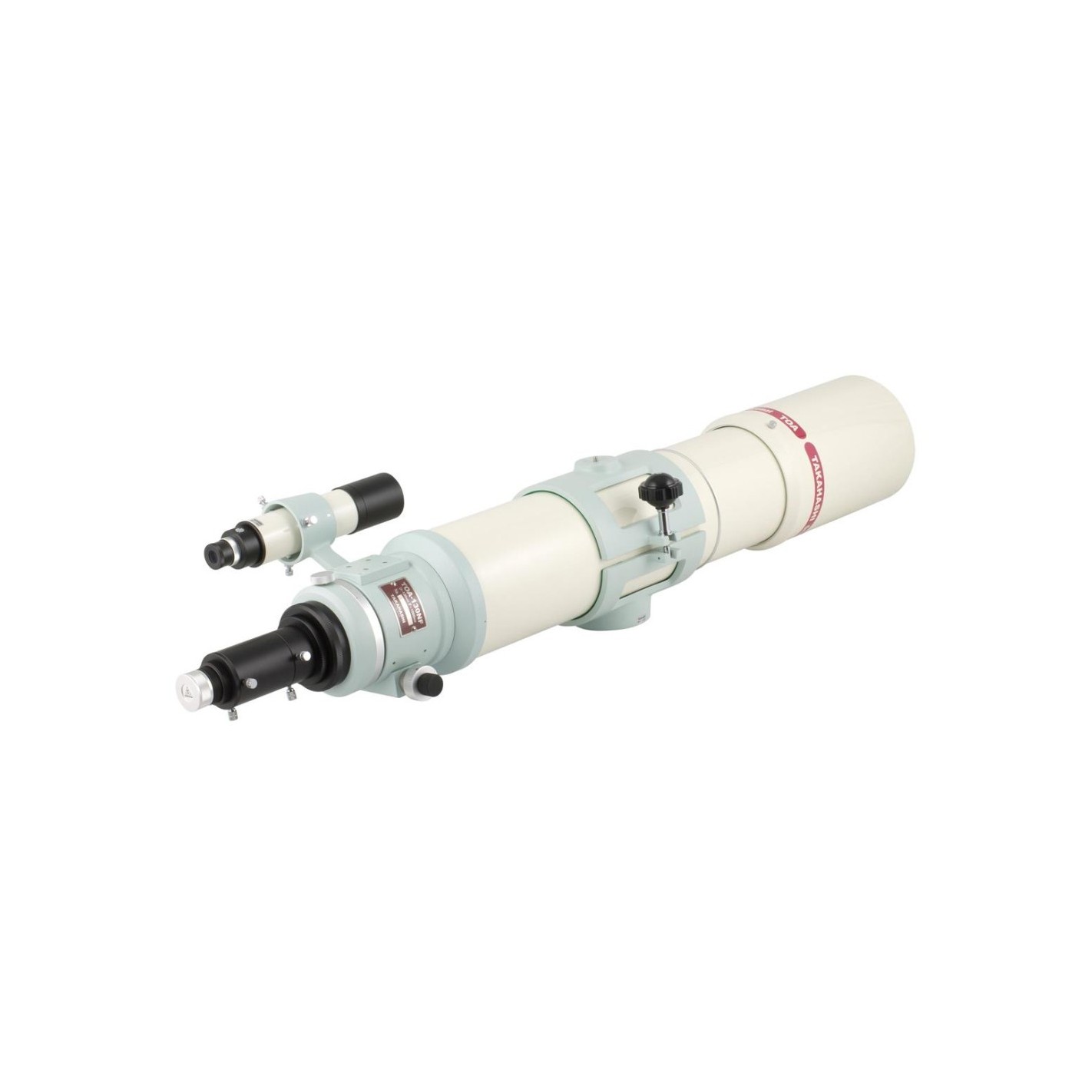

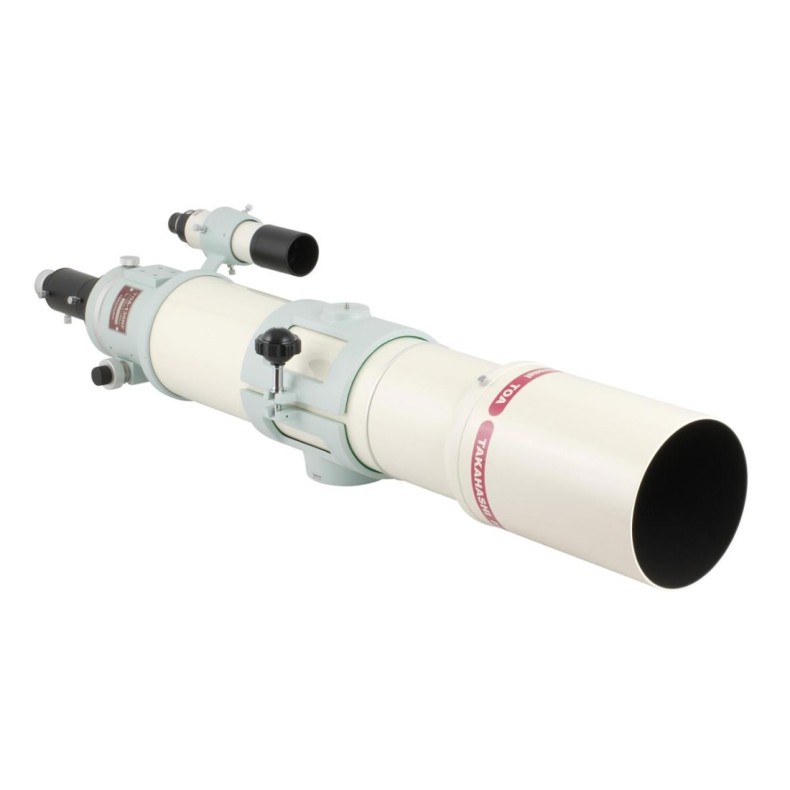

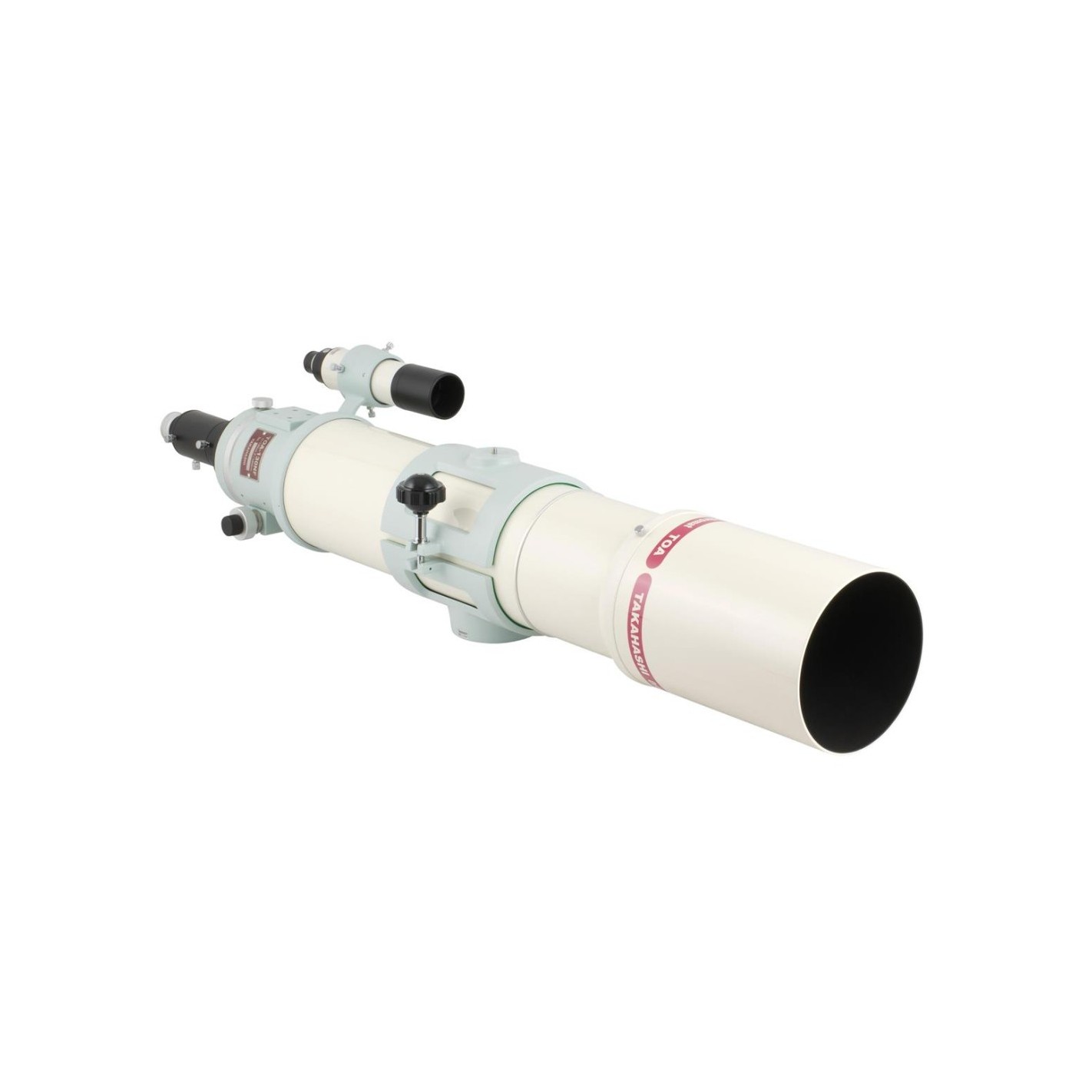

Optical tube Takahashi TOA-130NFB complete D-130mm F1000mm F/7.7 50.8/31.75

The Triplet Ortho-Apochromat concept of TOA binoculars combines outstanding sharpness and contrast. This unique optical formula, based on a high air-gap ED triplet, has the advantage of completely eliminating spherical aberration, while offering the best chromatic correction in the binocular range Takahashi. The TOA excels in both high planetary resolution and deep sky imaging, taking full advantage of the capabilities of cameras with the largest sensors.

The TOA-130NFB is supplied with a retractable demister. The oversized 102 mm diameter rack is equipped with a 1/7 reduction and a rotating collar for photographic framing. Thanks to this configuration, the NFB is decidedly image-oriented. It allows more robust photographic setups, especially with large CCD cameras, without generating mechanical stresses. This rack supports some specific accessories, such as the 67 FL supercorrector, which offers an incredible 92 mm image circle (60% without vignetting).

Features Telescope Takahashi TOA-130NFB

Triplet ED Apochromatic Objective

Large air-gap objective mount. 3 lenses/3 groups. 2 ED glass lenses S-FPL53

Hard multi-coating coatings

Useful diameter 130 mm

At native focus

Focal length 1000 mm

Relative aperture F/D 7.7

Backfocus 274.5 mm

With TOA-35 FL field corrector

Focal length 980 mm

Relative aperture F/D 7.5

Image circle diameter 40 mm

Backfocus 117.5 mm

With supercorrector 67 FL

Focal length 1000 mm

Relative aperture F/D 7.7

Image circle diameter 92 mm

Backfocus 106.2 mm

With focal length reducer TOA-35 RD

Focal length 698 mm

Relative aperture F/D 5.4

Image circle diameter 44 mm

Backfocus 65.5 mm

With EXT-ED1.5X extender

Focal length 1500 mm

Relative aperture F/D 11.5

Image circle diameter 44 mm

Backfocus 117.5 mm

Mechanical characteristics

Telescope Feature Telescope Takahashi TOA-130NFB

Tube length 1155 mm (1022 mm with retracted foghorn)

Tube diameter 156 mm

Weight 12.3 kg

Focusing Rack and pinion 112 mm (4'') with 1/7 microfocuser

The telescope Takahashi TOA-130NFB [TOK13200], complete tube, is delivered with the following items:

[TKA00552] a 7.5x50 finder with reticle

[TKA00563] one 7x50 finder mount

[TKA31420] Tube holder (DI 156 mm)

DOT DIAGRAMS
