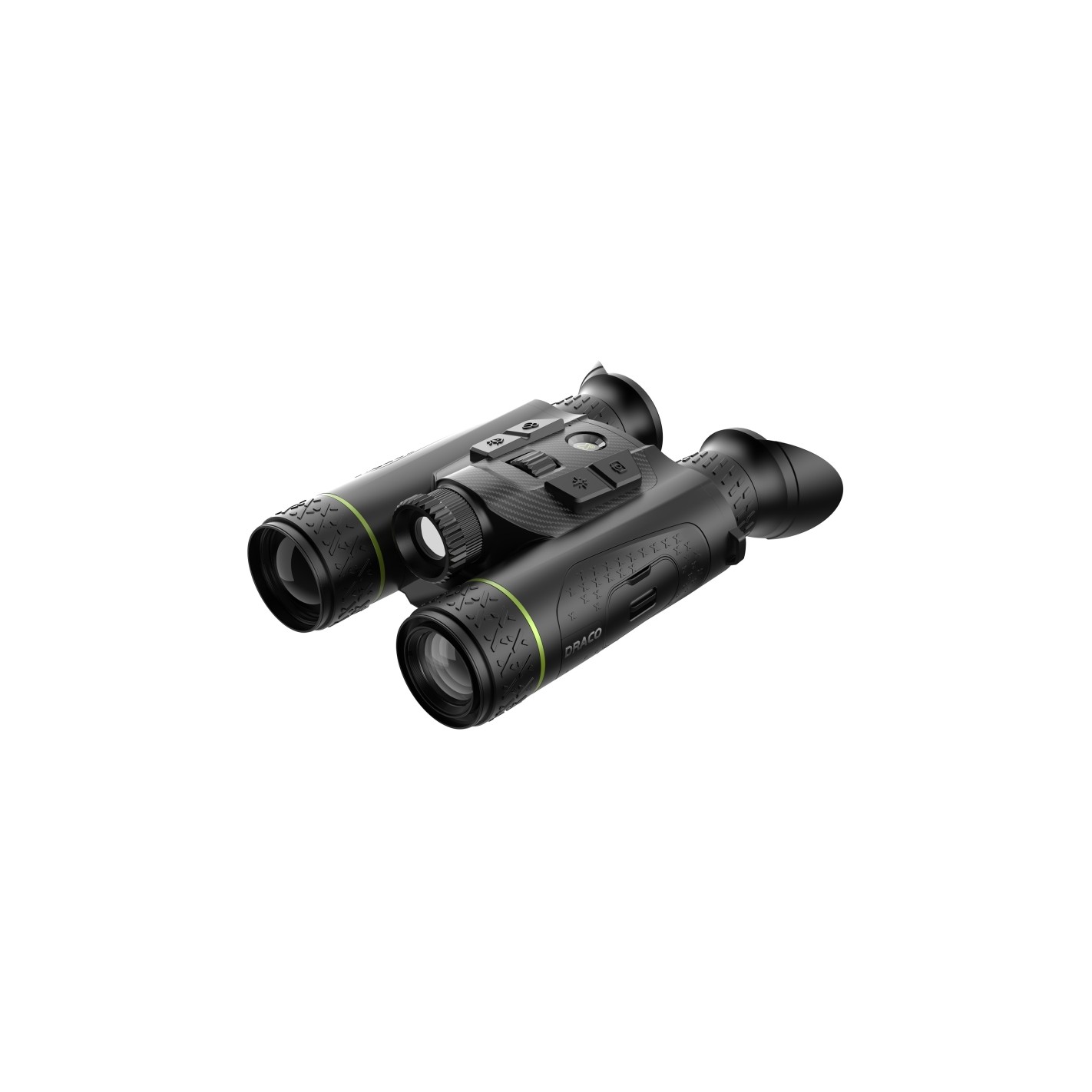

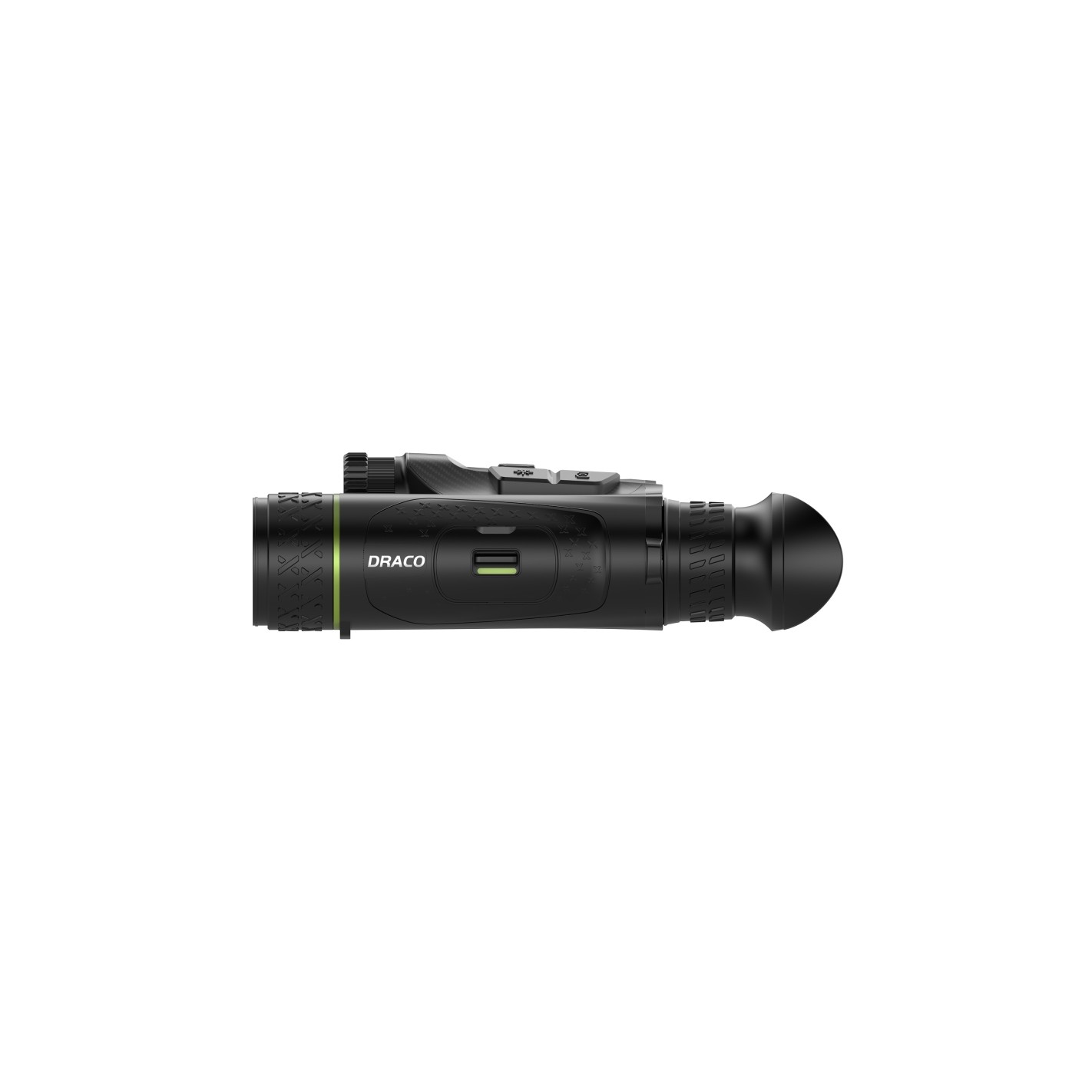

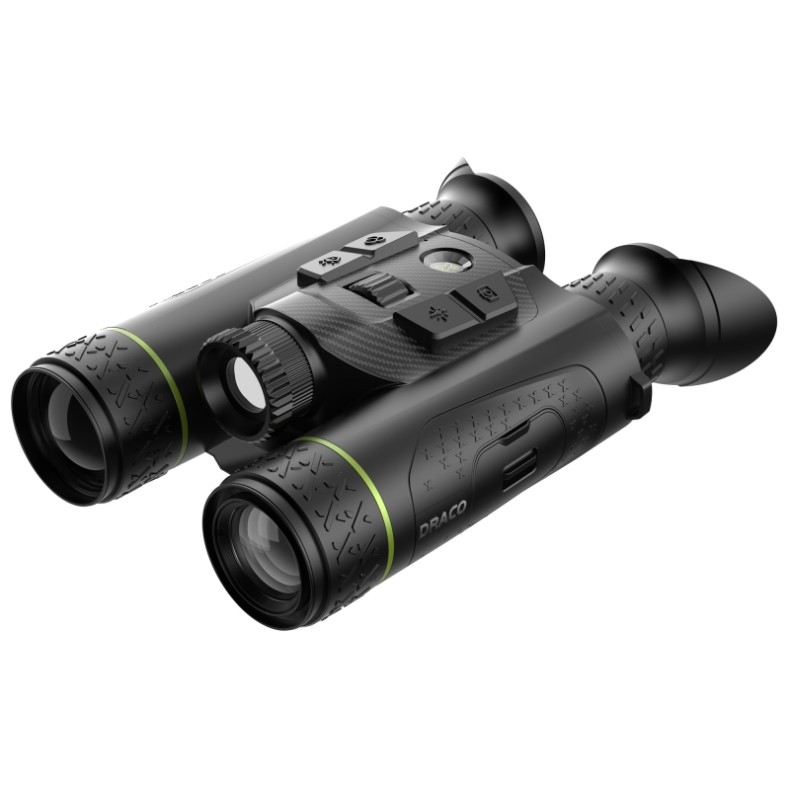

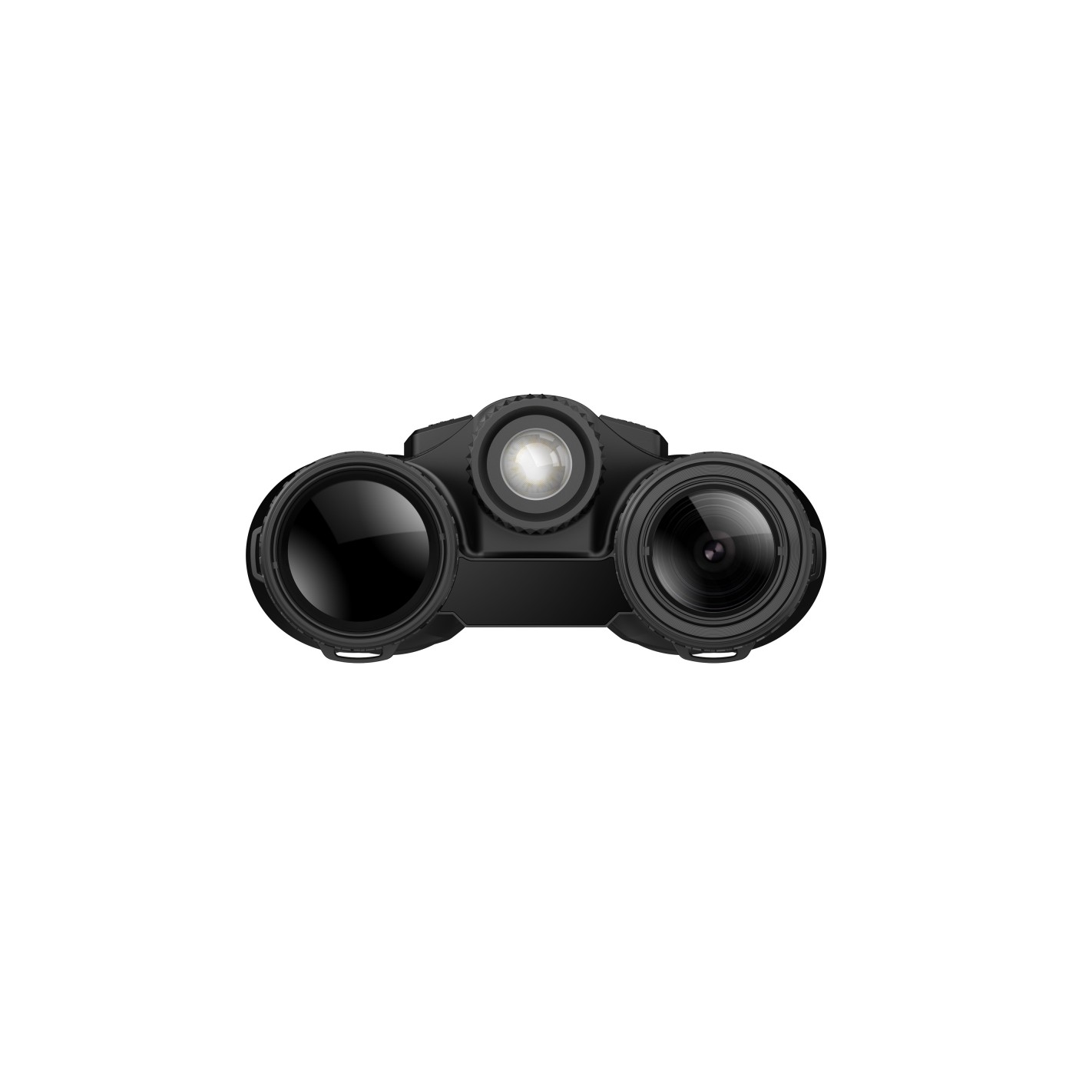

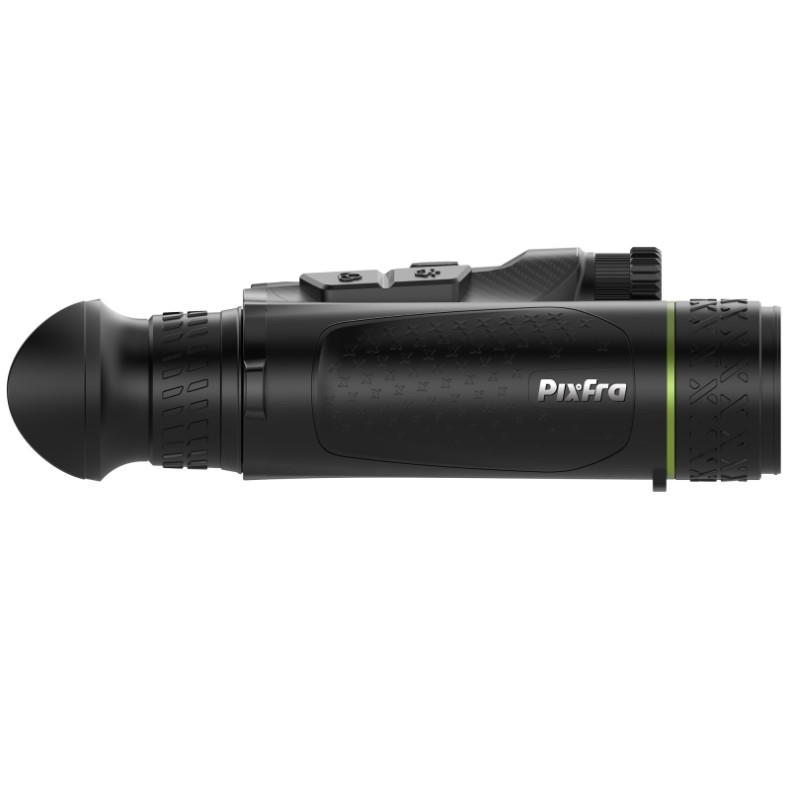

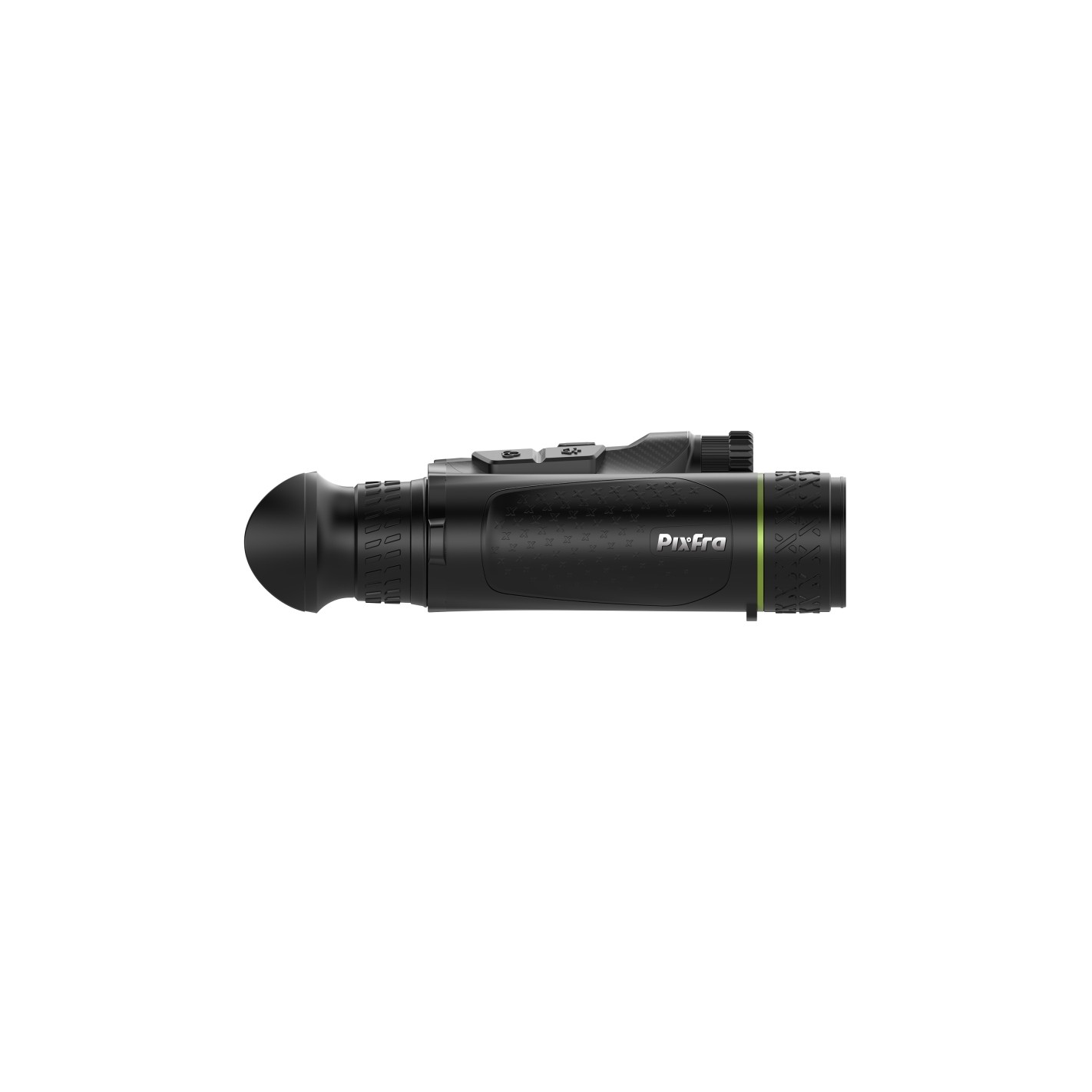

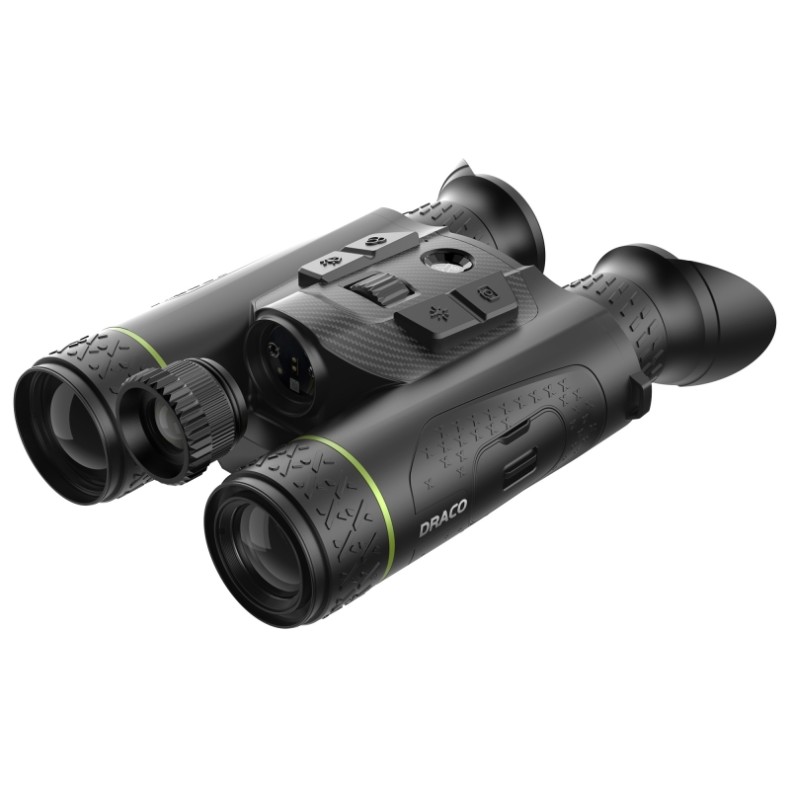

PIXFRA Draco D635-4K LRF 4-in-1 multispectral thermal binoculars with night vision and laser range finder

D635-4K - Application and technology

The Draco D635-4K is the smart choice for those seeking maximum mobility and high performance over short to medium distances. The 640×512 thermal sensor with NETD
Ergonomic design and ultra-lightweight body

At only 600 grams, Draco offers an ergonomic design that ensures portability and comfortable one-handed operation for a clear, real-time view of your environment anytime, anywhere.

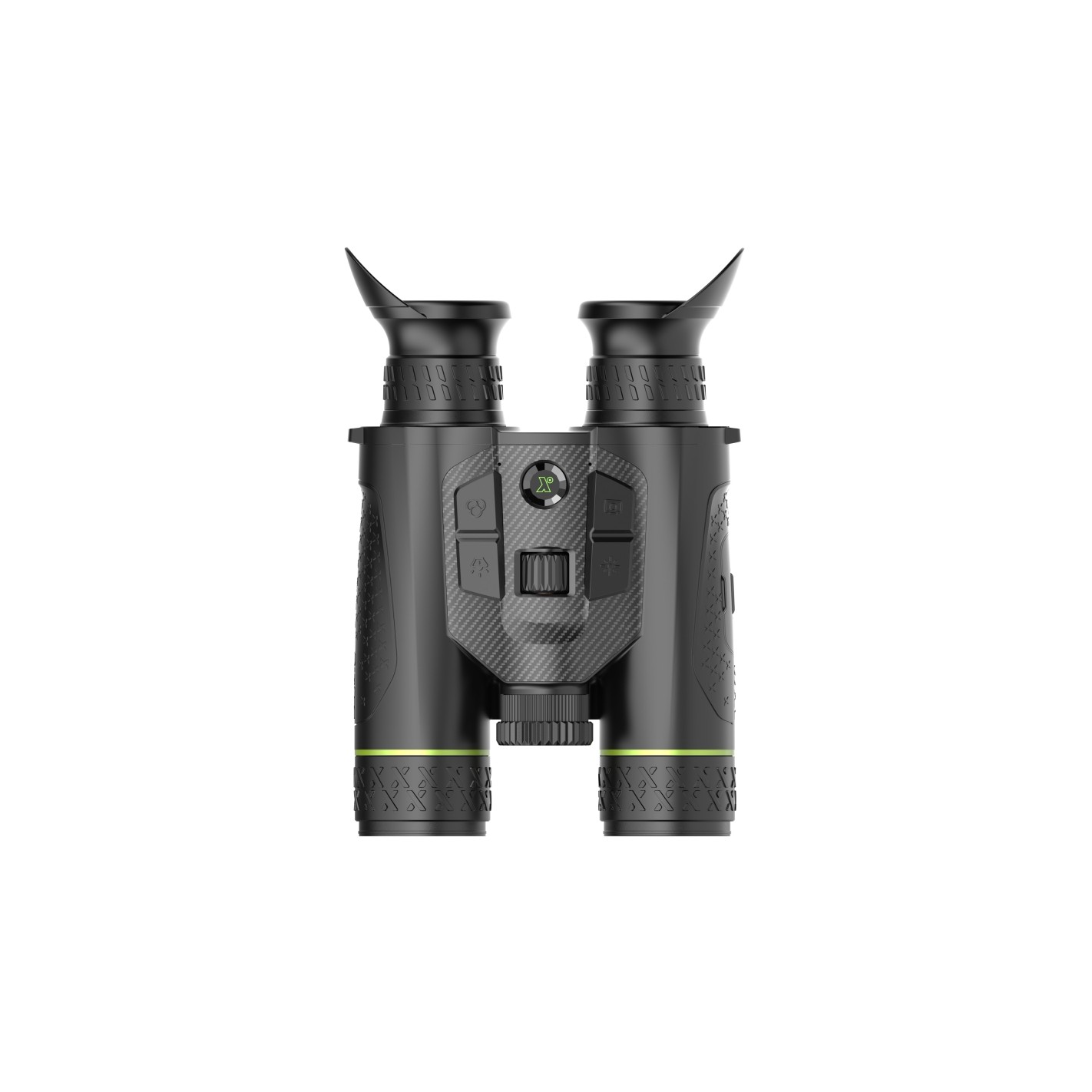

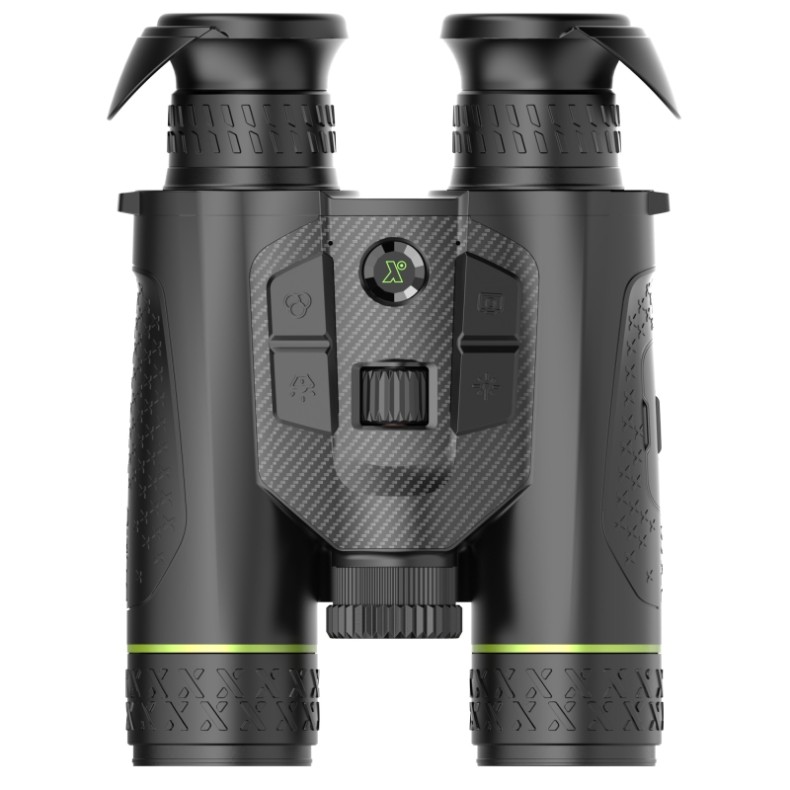

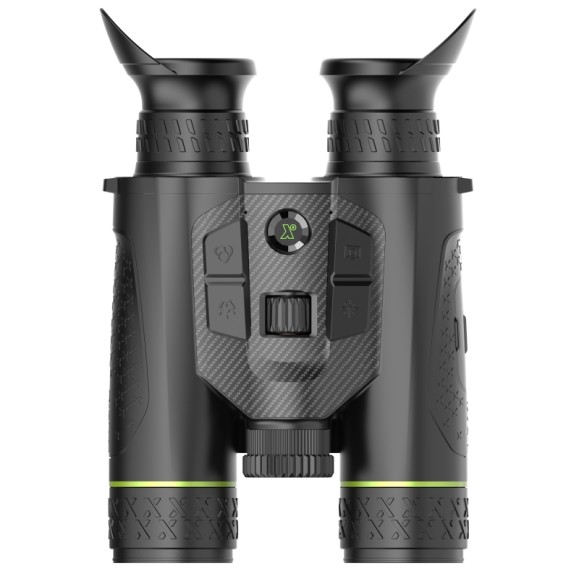

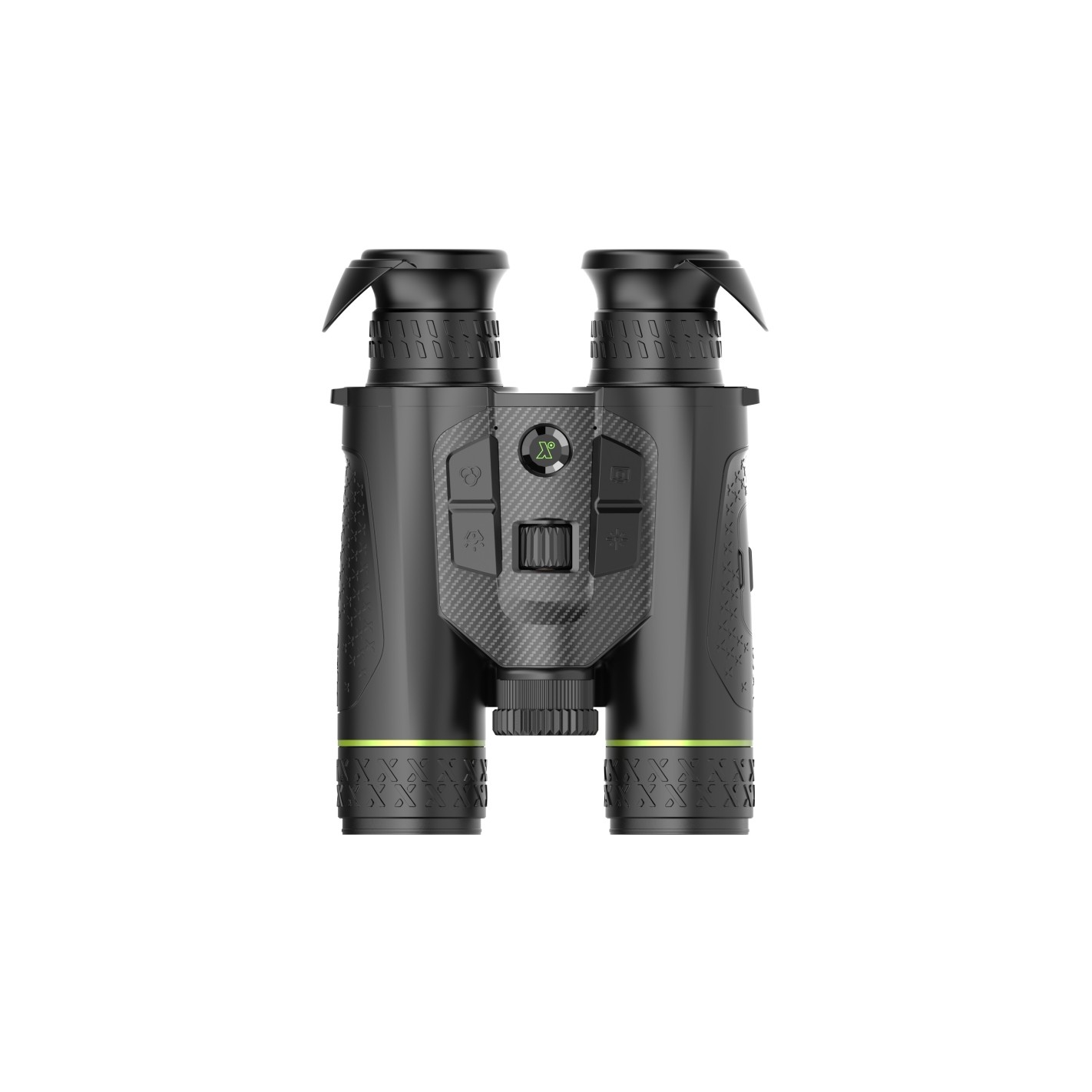

Multifunction wheel and four-button layout

The multi-function wheel combined with a four-button layout reproduces the zoom mechanism of traditional optical binoculars. This intuitive configuration allows for error-free blind operation, making it easy to press the buttons without looking at the device.

4-in-1 functionality

Draco combines thermal camera, 4K digital night vision, laser rangefinder and infrared illumination, covering diverse needs in a single device.

Unsurpassed image quality in every frame

Draco employs 4K UHD night vision to take sharpness to a new level. In low light conditions it delivers exceptionally clear images and, thanks to increased night vision sensitivity, keeps details visible even in low light.

High sensitivity thermal imaging

Powered by a detector with NETD ≤15 mK (f/1.0) and advanced PIPS 3.0 technology, Draco achieves exceptional thermal imaging. It accurately captures subtle temperature differences, reveals target details in complex environments and delivers richer thermal layers, providing outstanding clarity for thermal viewing needs.

Immersive viewing clarity

The 0.49" Full HD OLED display combined with an 18x eyepiece offers an unparalleled viewing experience while maintaining an excellent field of view. In addition, Pixfra innovatively adopts a curved interface that maximizes the field of view.

Convenient menu memory function

After exiting the menu, if you re-enter within 15 seconds, Draco will automatically resume at the last used position. This avoids having to repeatedly return from the initial screen and speeds up operation.

Comprehensive visualization experience

Equipped with Electronic Image Stabilization (EIS) and anti-fog function, Draco offers a clear and stable view even in bad weather, ensuring comfort and stability during prolonged observations.

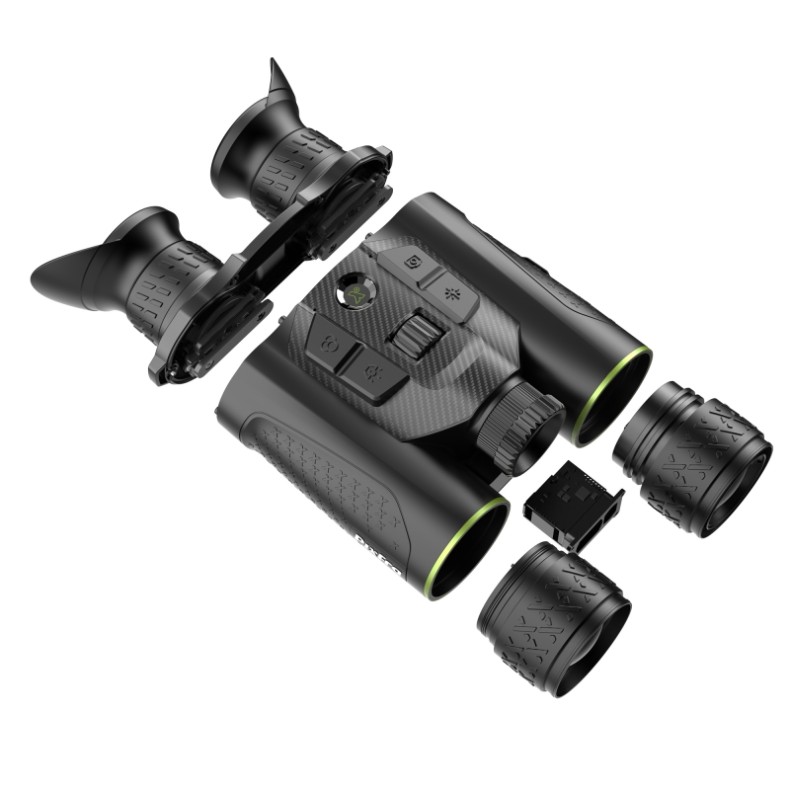

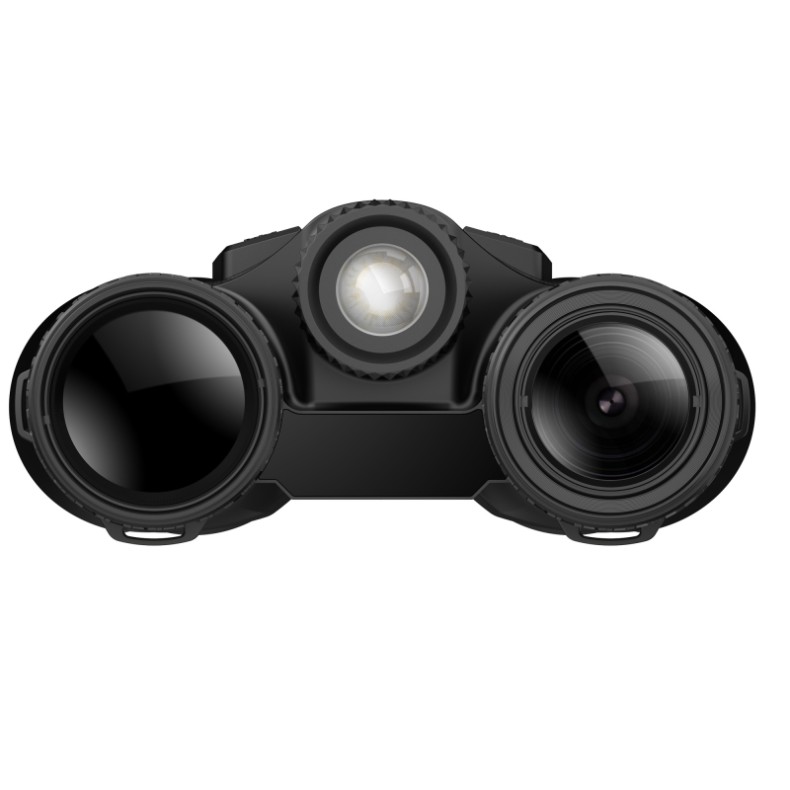

Optional IR illumination

The detachable 940 nm infrared illuminator extends the range and adapts to different observation needs. Whether observing wildlife or protecting your property, it offers excellent performance in the dark.

Long autonomy with flexible power options

Draco provides at least 8 hours of autonomy and offers versatile charging options: direct AC charging, charging via power banks and charging the battery separately in a compartment. It also works with a single battery.

Exclusive Pixfra chest harness

The Pixfra chest harness includes a special strap that keeps the Draco safely suspended, preventing it from touching the ground even if you let go, for practical and safe use.

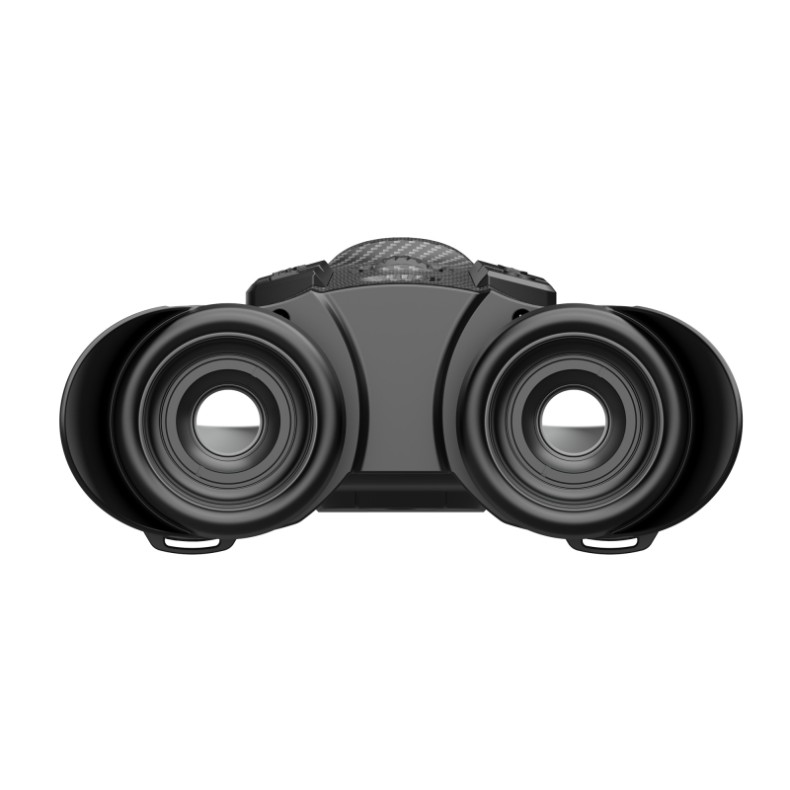

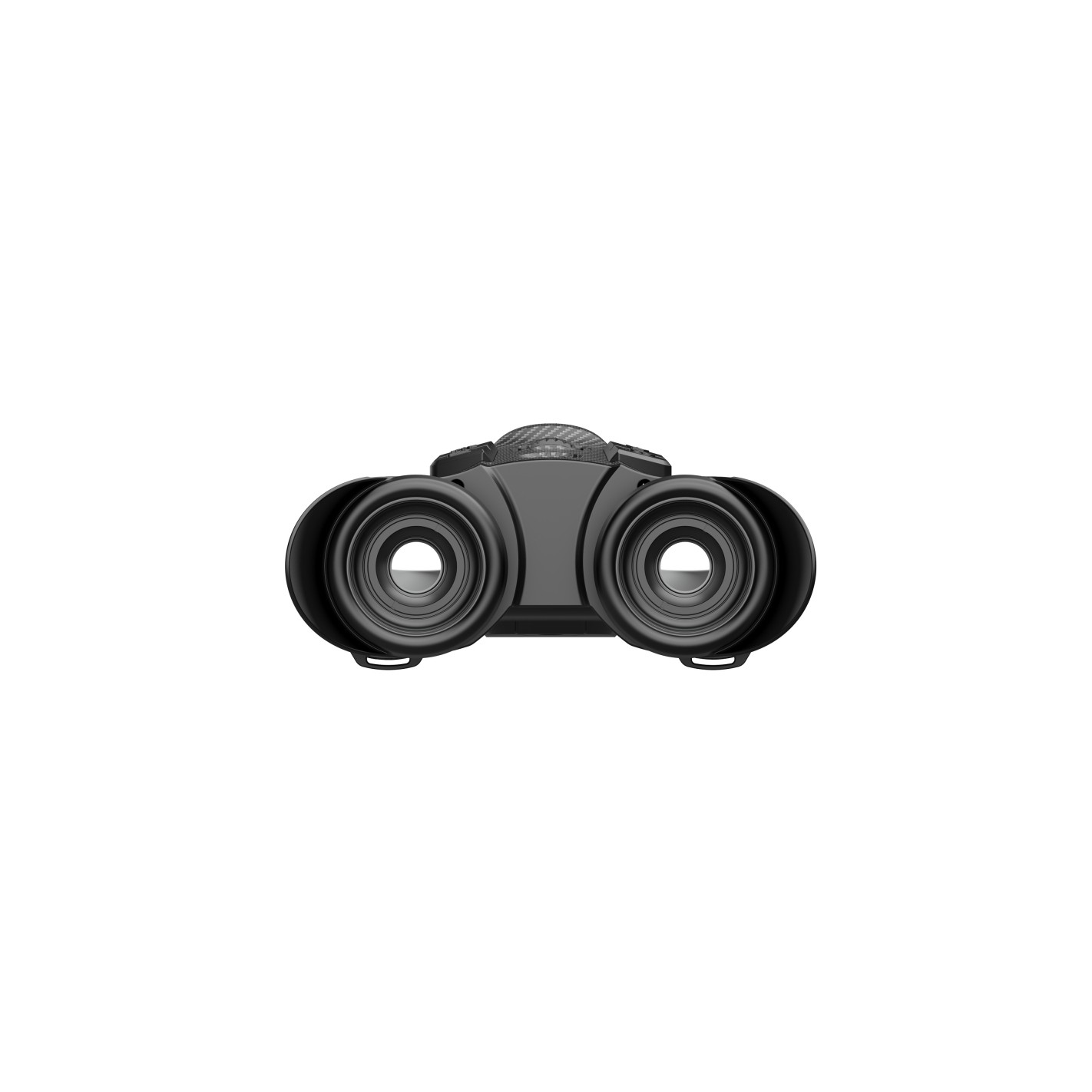

Well-designed folding eyepieces and adjustable interpupillary distance

Soft, folding eyepieces with ergonomic curve reduce fatigue and fit comfortably during prolonged use. Adjustable 60-74 mm interpupillary distance allows you to align the eyepieces with your eye separation for accurate and comfortable viewing.

Stable transmission via Wi-Fi access point

Draco incorporates a Wi-Fi access point that ensures stable signal transmission to the application. Whether in complex wireless environments or over long distance connections, it maintains smooth and uninterrupted video transmission, providing reliable access to real-time images.

Draco - for hunters who accept no limits

Precision, power and comfort in a single device.

So that, day or night, you always see what really matters.

CHARACTERISTICS

• Thermal sensor: 640×512 (NETD
• Thermal FOV @100 m: 21.9 × 17.6 m; thermal magnification 2.5-20× (8×); sensing up to 1800 m
• Digital vision sensor: 3840 × 2160 (4K UHD), CMOS 1/1.8"
• Lens NV 55 mm; magnification NV 5.5-44×; FOV NV @100 m: 14 × 8.8 m
• Laser rangefinder up to 1000 m
• Detachable IR illuminator 940 nm
• Display: OLED 0.49", 1920 × 1080; 18× eyepiece
• PIPS 3.0; EIS (electronic stabilization); anti-fog mode
• Menu memory (returns to the last position in 15 s)
• 2.4/5 GHz dual-band Wi-Fi; 64 GB storage; internal gallery
• Silent buttons; multifunction wheel + four buttons
• Magnesium casing, IP67 protection; GPS
• Dimensions 195.0 × 130.6 × 61.7 mm; weight ≤ 620 g
• Power supply 2× 18650; 9 h+; also works with 1× 18650; charging by mains/power bank/charger

INCLUDES

• Draco D635-4K
• 4× 18650 batteries
• Charging base
• USB cable
• Pixfra chest bag
• Carrying strap
• Instruction Manual
