Wanderer Astro ETA M54 Electronic Tilt Adjuster (Electronic Tilt Adjuster)

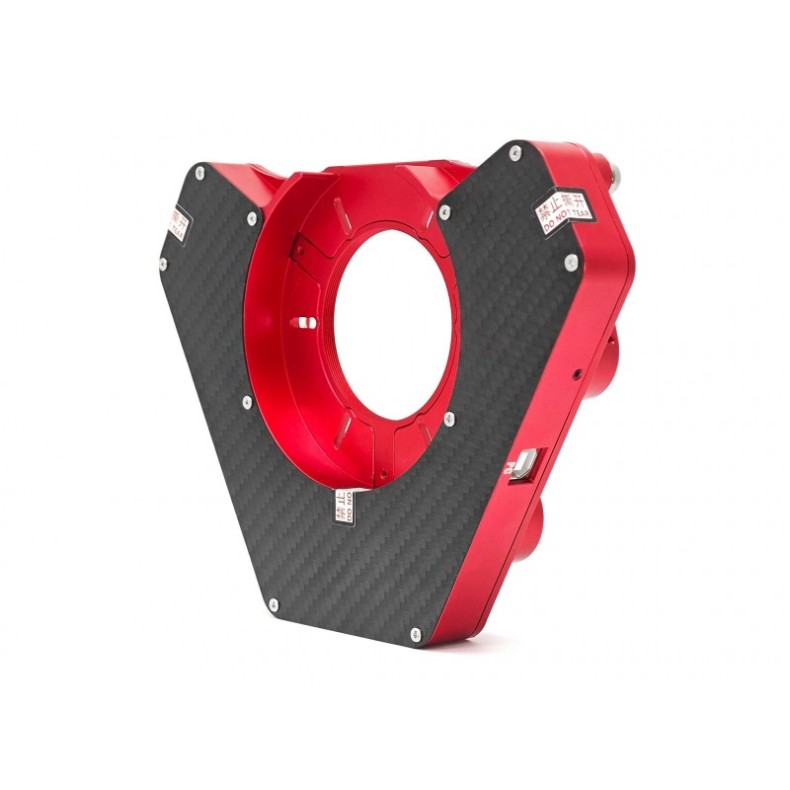

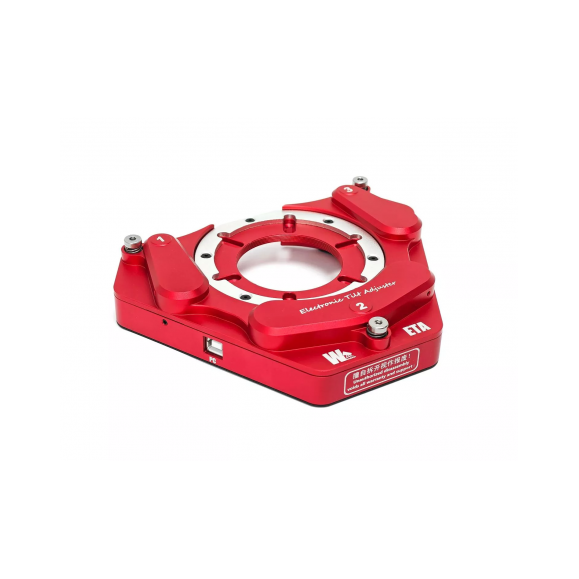

Wanderer ETA M54 - 5mm electronic tilt and backfocus adjuster for high-precision astrophotography

The Wanderer ETA M54 is a revolutionary ultra-thin electronic tilt and backfocus adjuster designed specifically for advanced astrophotography. At only 5 mm thick, it offers pinpoint accuracy in optical alignment, completely eliminating cumbersome and inaccurate manual adjustments. It allows remote and automatic tilt and focus distance correction, previously unthinkable in this format.

Patented ultra-thin design

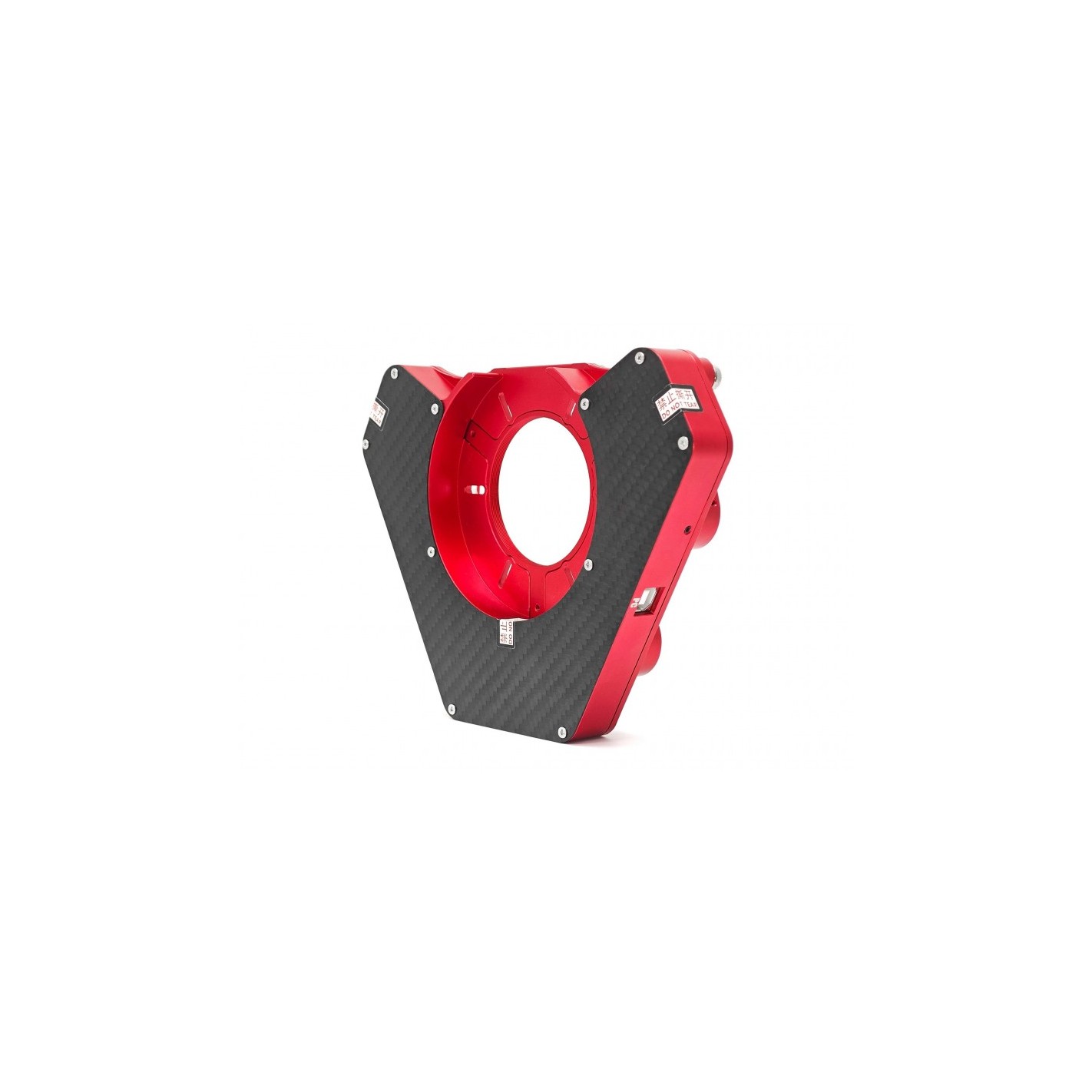

Thanks to its innovative and patented structure, the **Wanderer ETA M54** occupies only **5 mm of backfocus**, when mounted directly on a **camera or off-axis guide (OAG)** by means of screws. Its light weight (470 g) and double nested layer design ensure perfect sealing without light leakage, even in demanding configurations.

Compatible with 55 mm backfocus

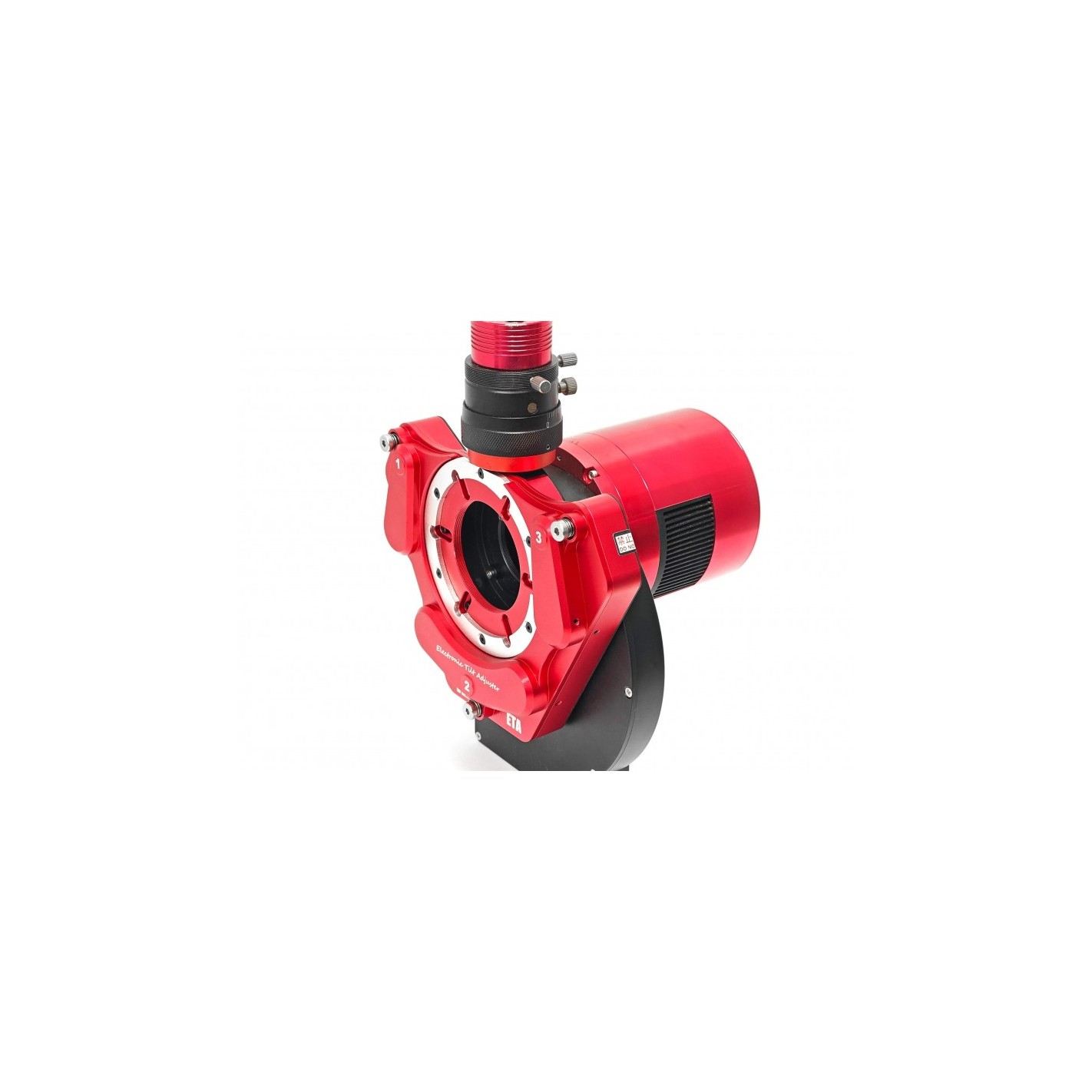

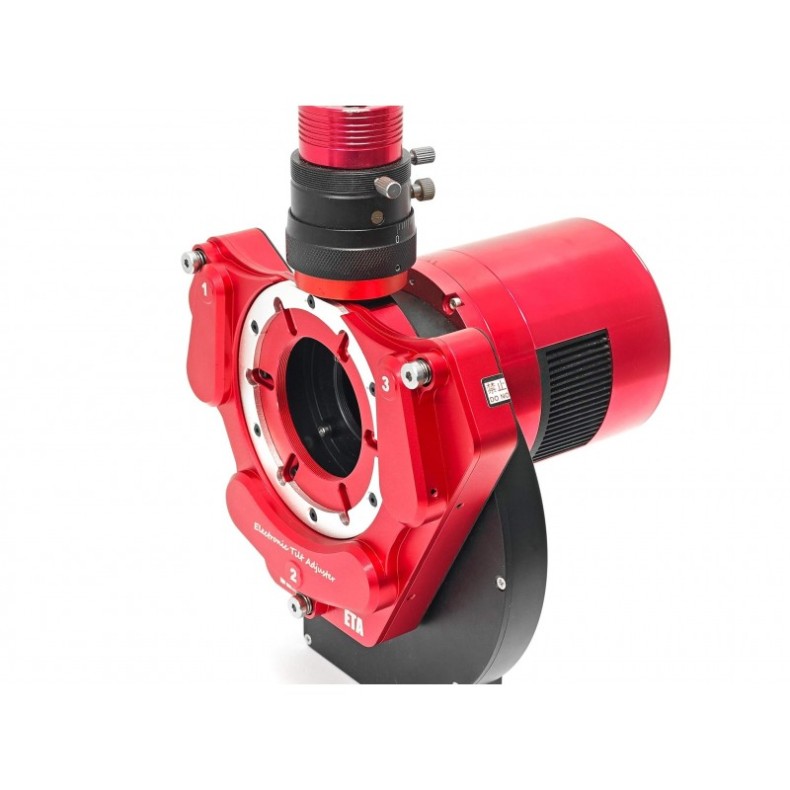

Installed in conjunction with an **OAG or compatible camera**, the system maintains the standard **55 mm backfocus distance**, making it **fully compatible with most optical trains** on the market.

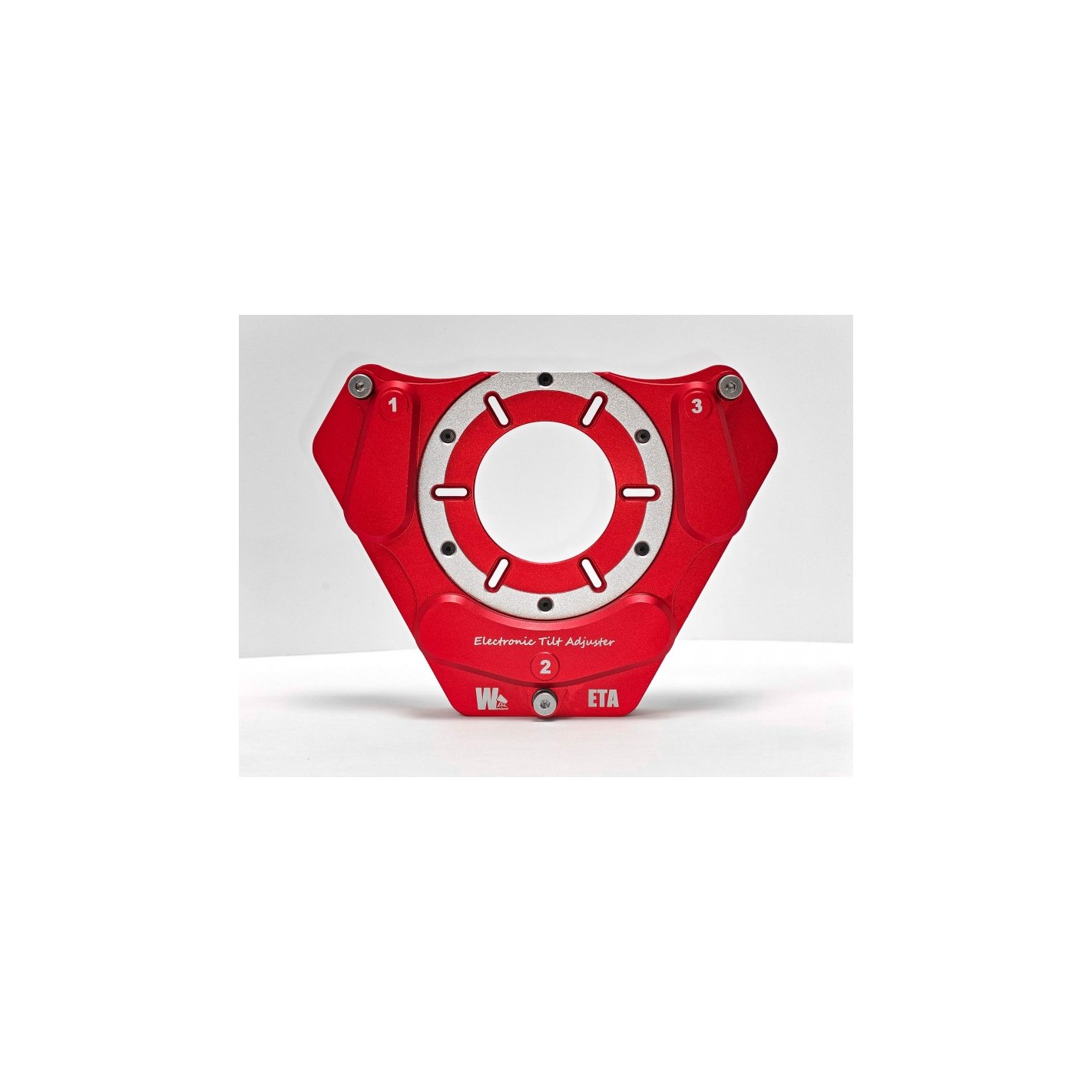

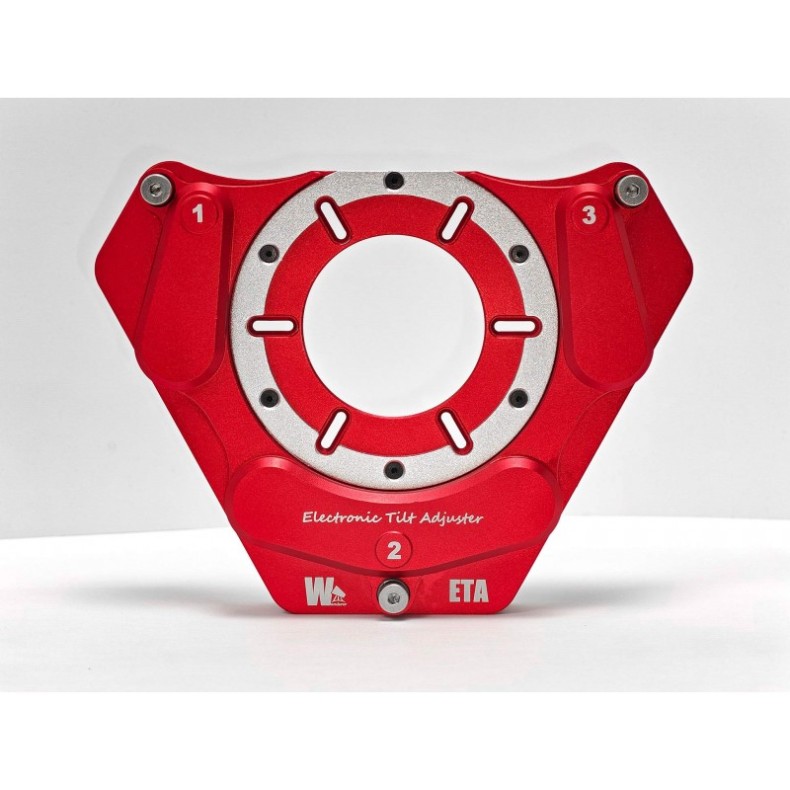

Three-point electronic tilt adjustment

The system incorporates **three independent adjustment motors** and **three high precision encoders**, offering:

* Adjustment travel up to 1.2 mm

* Motor resolution: 0.005 microns per step

* Positioning accuracy: up to 2 microns

This level of accuracy is ideal for equipment with fast focal ratios and large format sensors, far exceeding traditional manual tilt adjusters.

Extreme cold-resistant performance

The ETA M54 has been tested under extreme conditions, maintaining its operational performance down to -25 °C, making it the perfect choice for winter astrophotography sessions or high mountain locations.

Advanced structural engineering

Consisting of more than 50 parts and 1000 curved surfaces, the ETA M54 has been designed using precise calculations and rigorous optimizations to ensure maximum rigidity and structural stability.

Dedicated software for total control

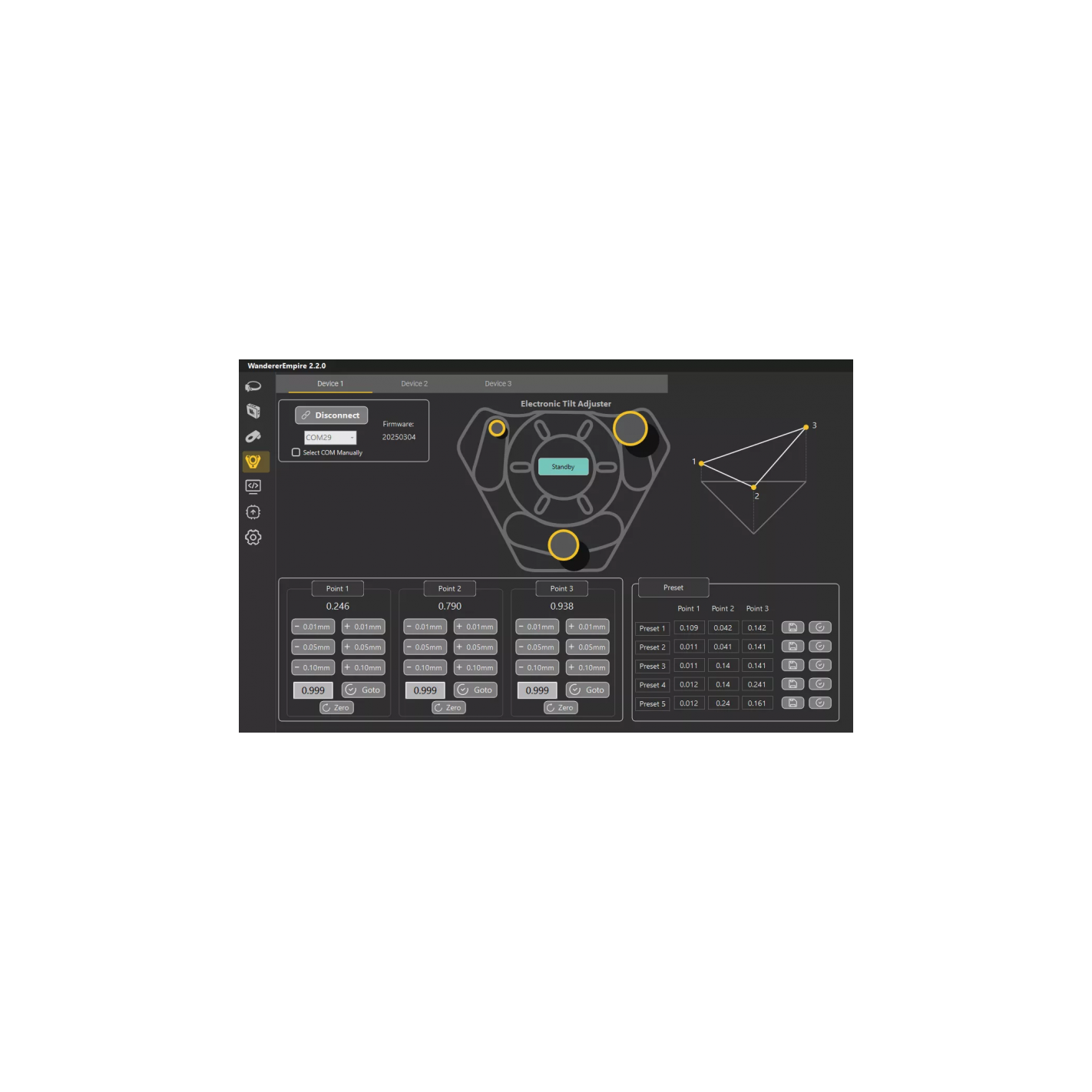

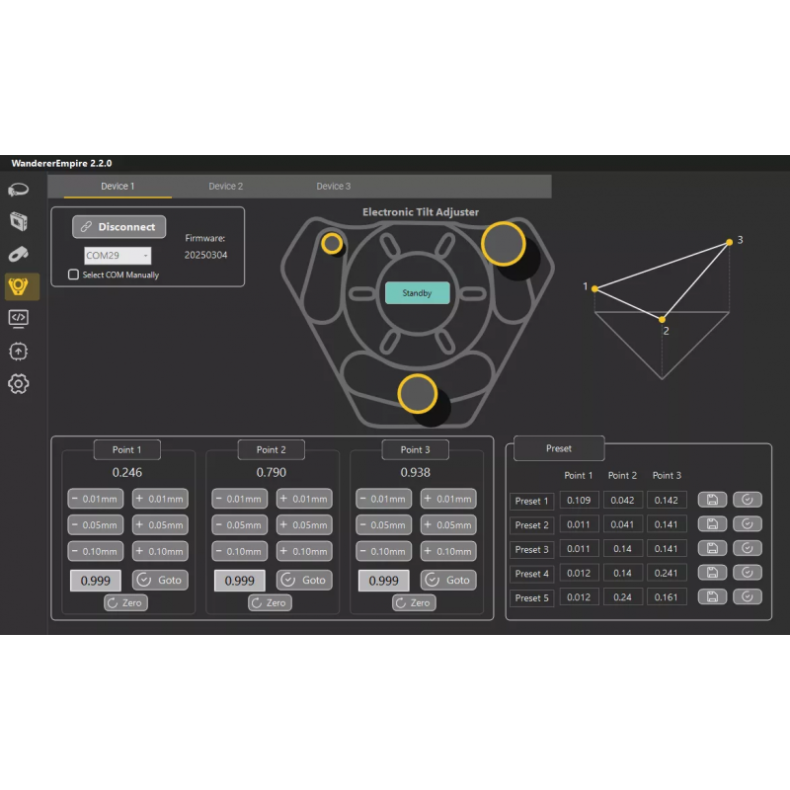

Full support is provided by WandererEmpire software, which offers an advanced, intuitive and powerful interface to control all system parameters accurately and easily, from the PC.

Ideal for demanding astrophotographers looking for maximum optical performance

The Wanderer ETA M54 is the ultimate solution for those who need automatic fine-tuning of tilt and backfocus with maximum precision, without compromising space or mechanical stability. Especially recommended for setups with fast optics, large sensor cameras and extreme conditions shooting sessions.

Wanderer ETA M54 Technical Specifications

* Power supply: Via USB (5 V, 0.5 A)

* USB connection: USB 2.0 type B (cable included)

* Weight: 470 g

* Load capacity: Up to 3 kg

* Backfocus consumption (focuser travel): 5 mm (e.g. connected directly to the OAG via screws)

* Adjustment travel: 1.2 mm

* Setting accuracy: 0.002 mm (2 microns)

* Motor resolution: 0.005 microns per step

* Operating temperature: -25 °C to 50 °C (-4 °F to 122 °F)
