Oberwerk 100XL-ED
The Oberwerk 100XL-ED is one of the largest and most powerful models in the XL series, offering unmatched performance in a surprisingly portable design. With 100 mm FK-61 ED objectives, a 24 mm clear prism aperture and a waterproof, nitrogen-filled magnesium alloy body, this instrument delivers sharp, high-contrast, chromatic aberration-free images at up to 94x magnification.
Despite its large aperture, the 100XL-ED weighs only 5.67 kg, making it easy to carry and handle, even in field conditions. Its focal length of 560 mm , together with the included 14 mm and 8-element eyepieces (40x magnification) with a wide apparent field of view of 70° , provides a true field of view of 1.75° .
The 18 mm eyepiece distance and 2.5 mm exit pupil provide comfortable viewing, even with glasses. In addition , thanks to the dual helical focusers , you can use your favorite 1.25" astronomical eyepieces .
Key features:
- Extendable eyecups to reduce glare and improve contrast.
- Picatinny rail handle for mounting spotting scopes or laser pointers.
- Luna pearl white finish with red anodized accents.
- Interpupillary distance from 50 to 80 mm, suitable even for children.
- Includes rugged aluminum frame case (upgradeable to travel case).
- Individually collimated to 140x magnification, within 8 seconds of arc.
Specifications
- Objective lenses: 100 mm ED
- Focal length: 560 mm
- Standard magnification: 40x (14 mm eyepieces included)
- Maximum recommended magnification: 80x (7 mm eyepieces)
- Apparent field of view: 70
- True field of view: 1.75° (40x)
- Exit pupil: 2.5mm (40x)
- Relief eyepiece: 18mm (40x)
- Minimum focusing distance: 25 meters
- Interpupillary distance: 50-80 mm
- Weight: 5.67 kg
- Total weight with carrying case: 13.6 kilograms (13.6 kg)
- Case dimensions: 76 × 41 × 30 cm
- Construction: Magnesium alloy, waterproof, nitrogen-filled
- Focusers: Dual 1.25″ helical focusers
- Included accessories: Two 14 mm eyepieces, aluminum hard carrying case

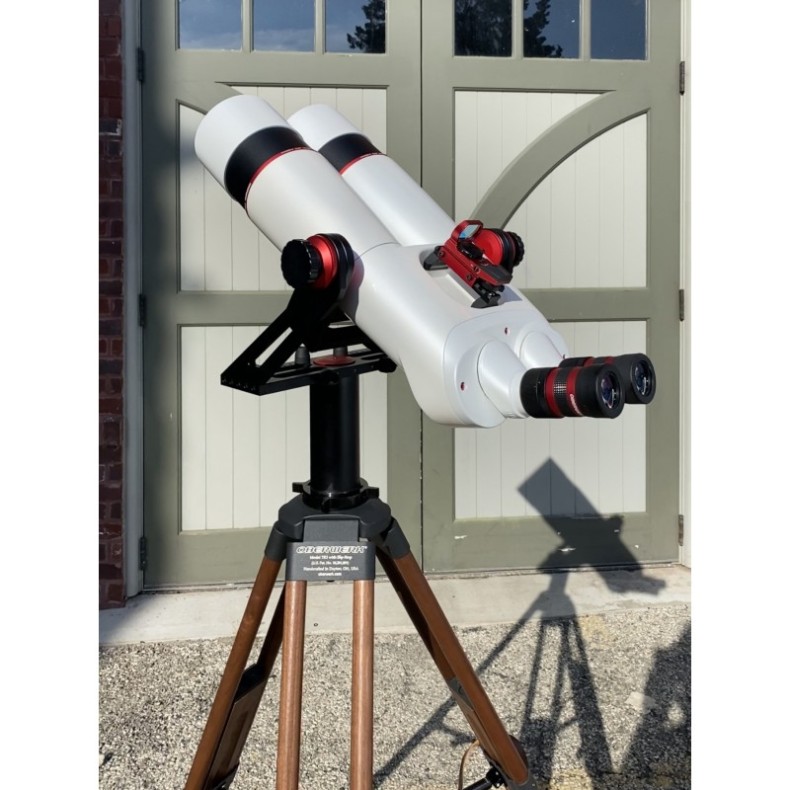

* Tripod shown for illustrative purposes. It is not included with the binoculars.
