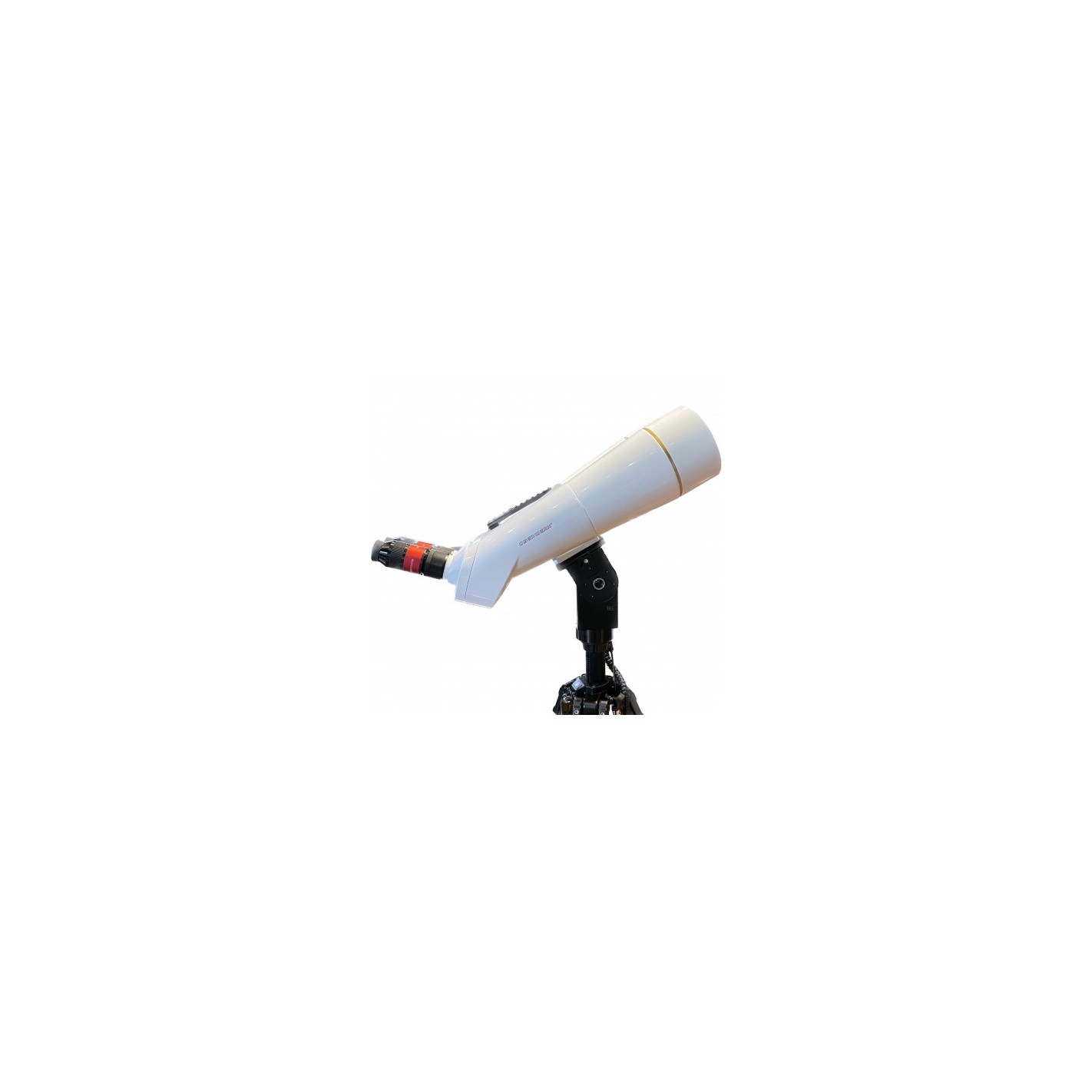

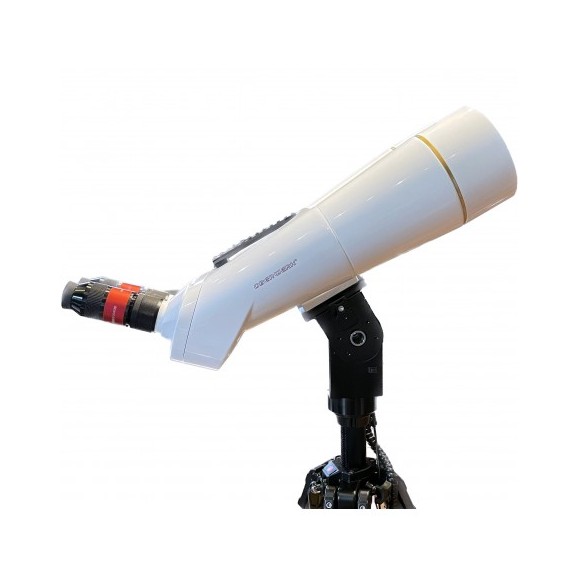

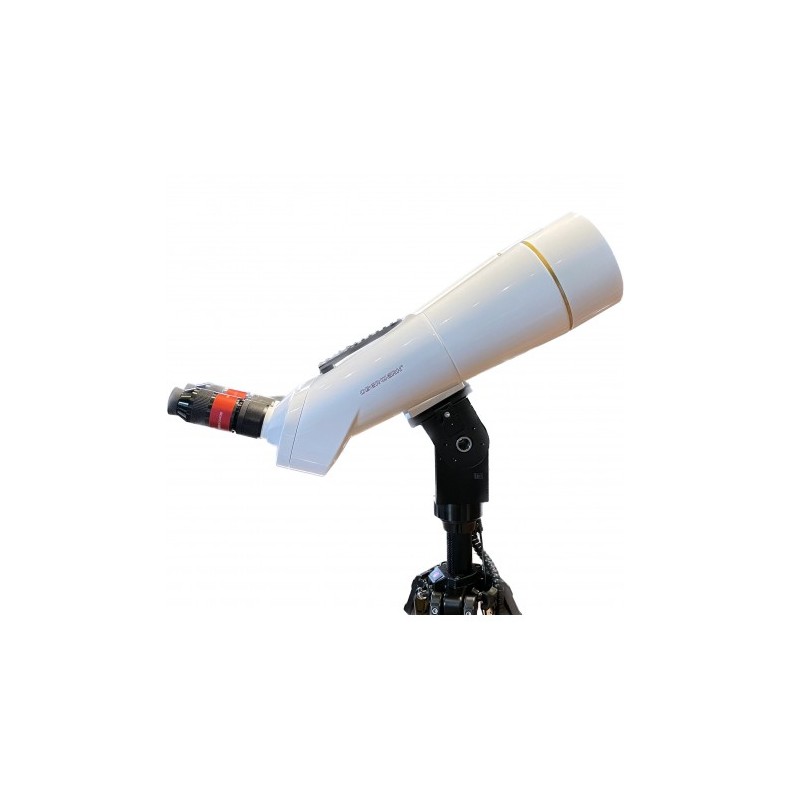

Oberwerk 120XL-SD
Equipped with 120 mm FCD100 apochromatic lenses with a focal length of 670 mm and 27 mm free aperture prisms (same as the 127XL-SD), it offers very similar optical performance to the 127 mm model, at a lower cost and reduced weight of approximately 2.3 kg.
Despite its wide aperture, it weighs only 8.8 kg, making it more manageable than the 127XL-SD. Like all SD models in the XL series, it features an elegant "Luna Pearl" white finish with gold anodized accents.
Included are our top-of-the-line 8-element 14mm Oberwerk eyepieces with a 70° apparent field, providing 48x magnification.
Alternative configurations are also available: 30x (22 mm eyepieces) and 96x (7 mm eyepieces).

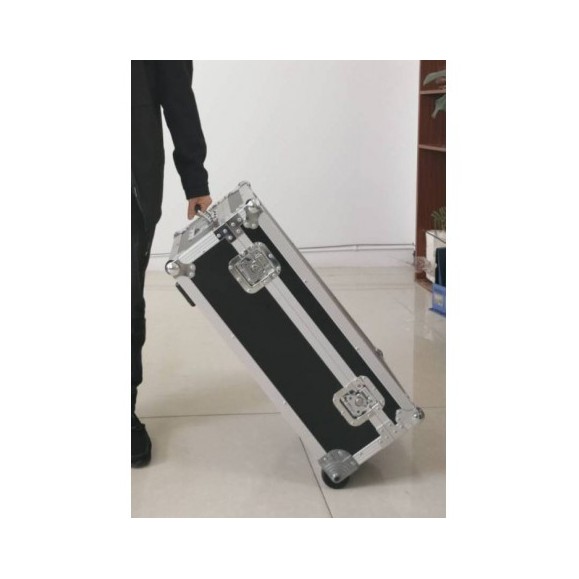

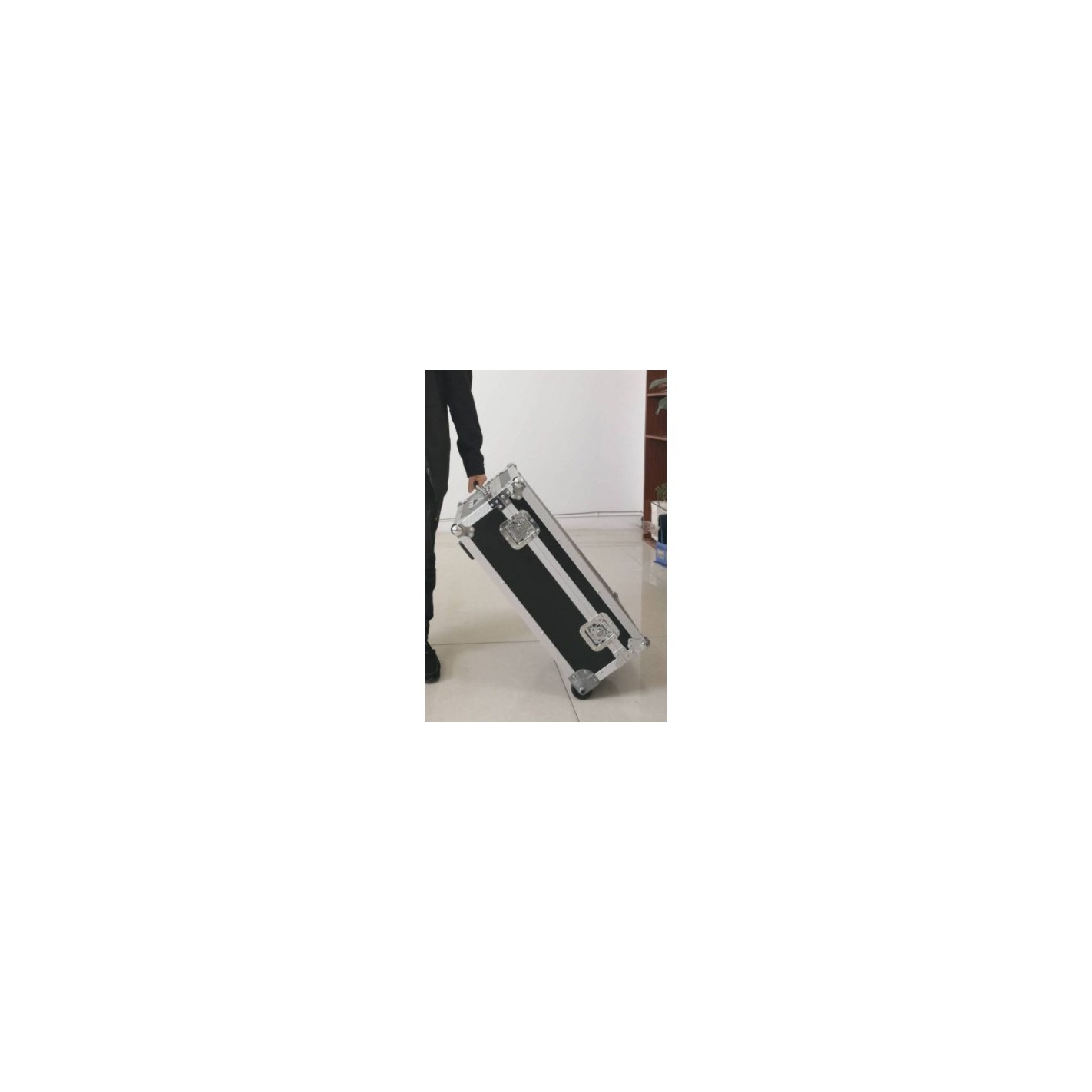

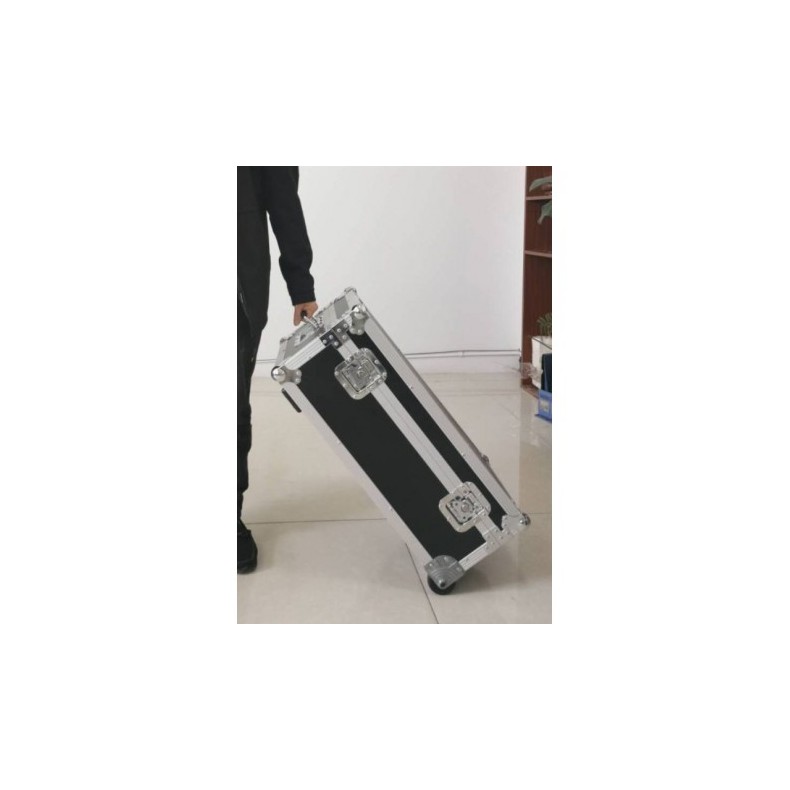

The rugged hard case with integrated wheels facilitates transport.
Each specimen is individually collimated and tested up to 168x (tolerance
Main features:
- 120 mm SD FCD100 apochromatic 120 mm apochromatic objectives with a focal length of 670 mm.
- 27 mm clear aperture prisms (same as 127XL-SD) for maximum brightness
- Lightweight 8.85 kg magnesium-aluminum body
- Redesigned Vixen style dovetail foot with ¼" and 3/8" threads for universal mounting compatibility and better balance
- Top Picatinny rail for finder or laser attachments
- Extendable sunshades to block stray light and protect lenses
- Wide interpupillary distance (IPD) range (50-80 mm) for a perfect fit to any observer.
- Includes 14 mm, 8-element eyepieces (48×, 70° apparent field of view).
- Optional 22 mm (30×) and 7 mm (96×) eyepieces
- Manually collimated to 168× (precision
Specifications
- Objective Lenses: 120mm FCD100 SD APO
- Focal length: 670 millimeters
- Standard magnification: 48x (14 mm eyepieces included)
- Maximum recommended magnification: 96x (7 mm eyepieces)
- Apparent field of view: 70
- True field of view: 1.46° (1.46°)
- Exit pupil: 2.5mm (14mm eyepieces included)
- Eyepiece relief: 18mm (14mm eyepieces included)
- Minimum focusing distance: 25 meters
- Interpupillary distance: 57-80 mm
- Weight: 8.8 kg
- Total weight with case: 13.6 kilograms (13.6 kilograms)
- Case dimensions: 76 × 41 × 30 cm
- Construction: Magnesium alloy, waterproof, nitrogen-filled
- Focusers: Dual 1.25″ helical focusers
- Included accessories: Two 14 mm eyepieces, aluminum hard carrying case

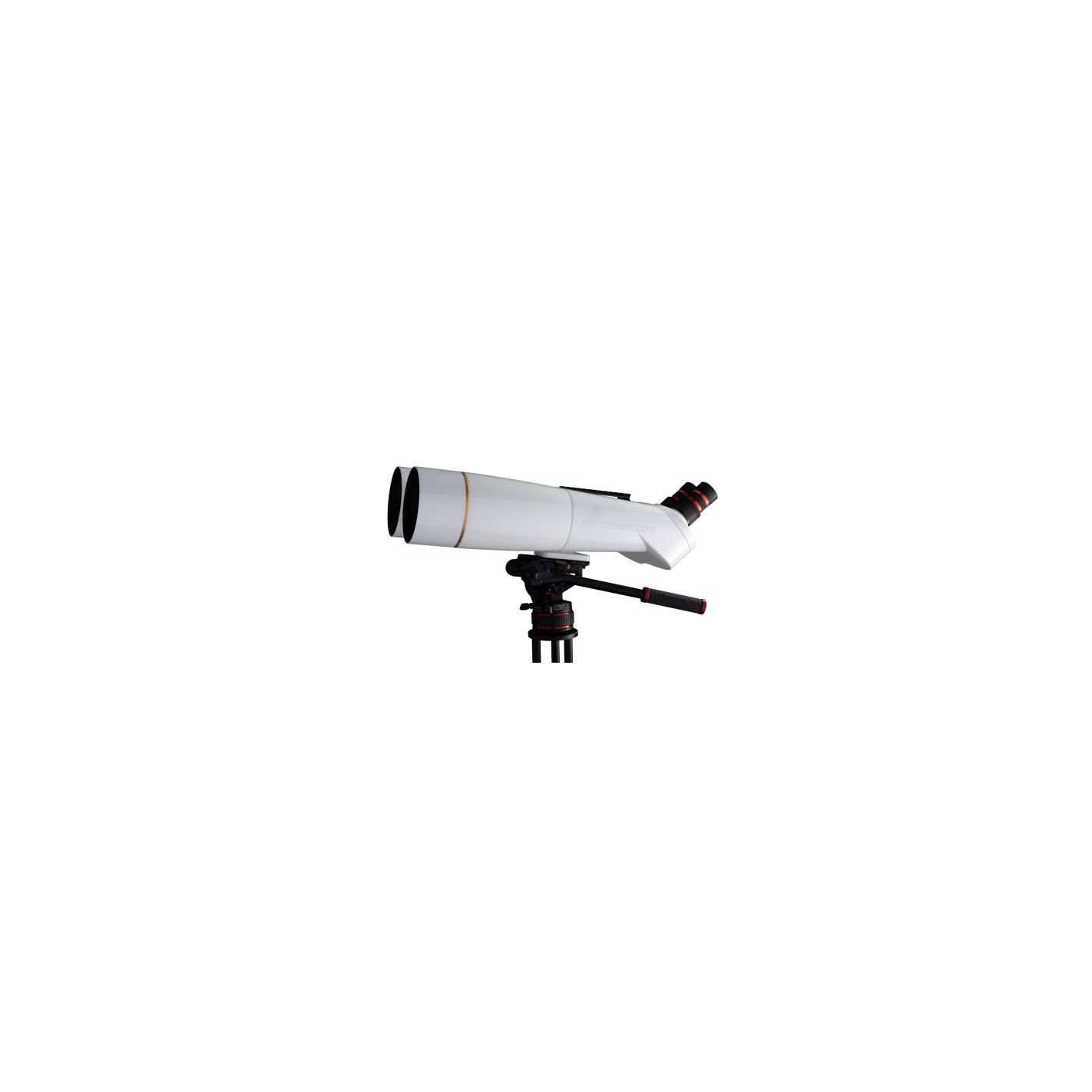

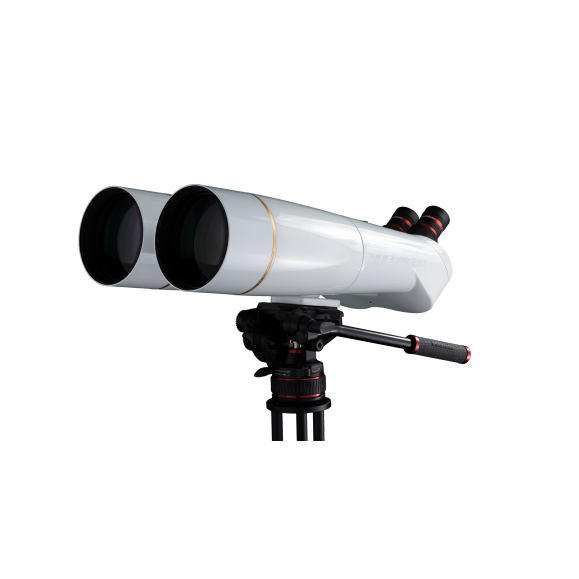

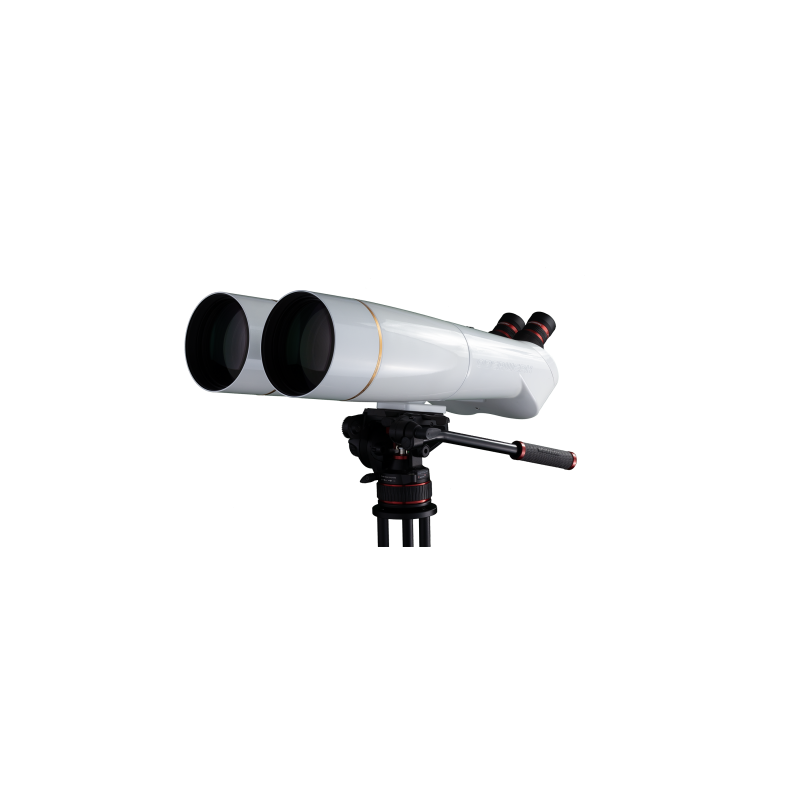

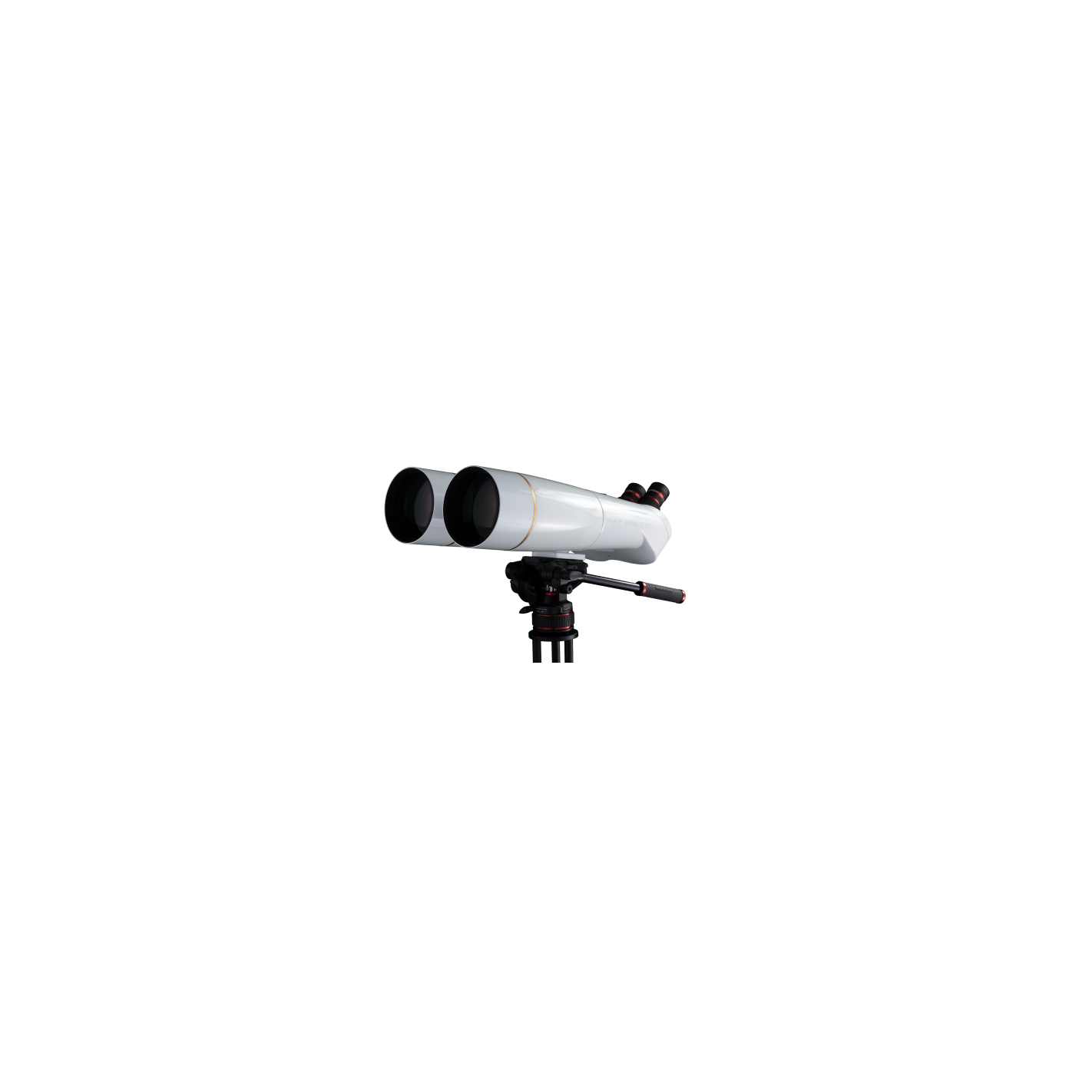

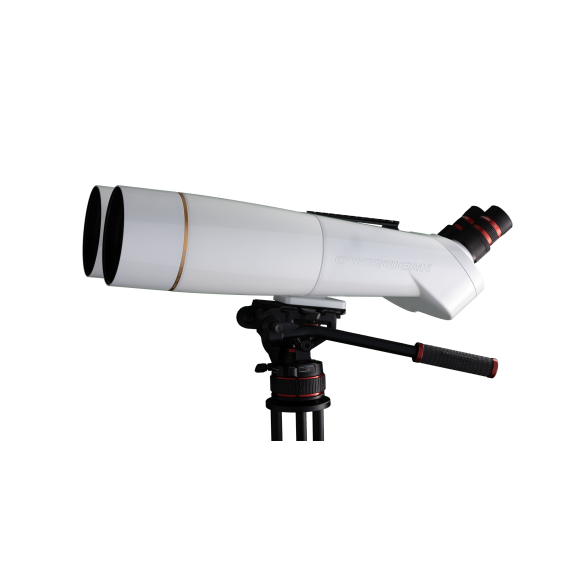

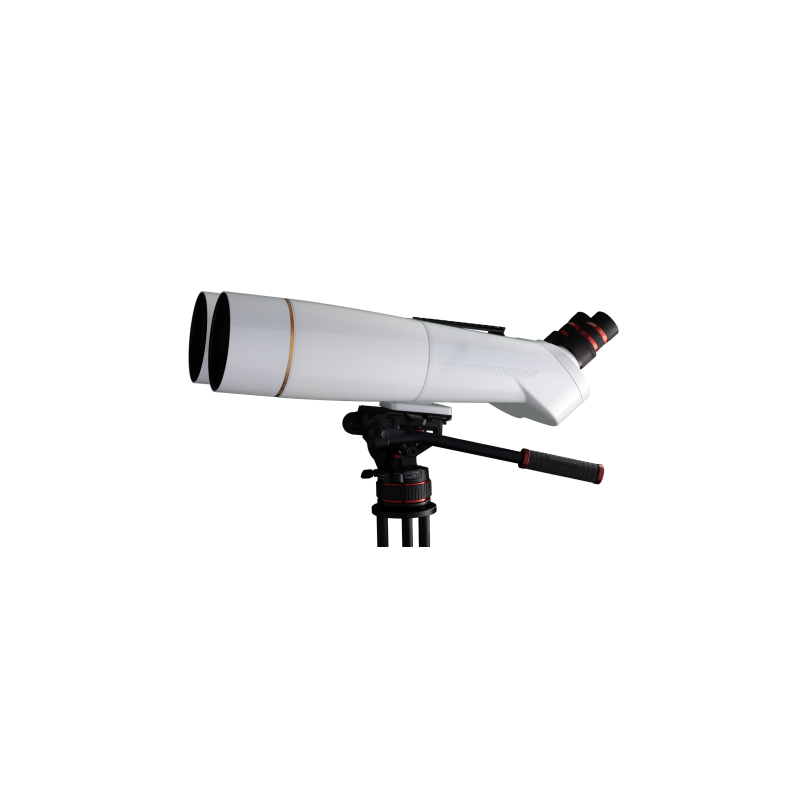

* Tripod shown for illustrative purposes. It is not included with the binoculars.
