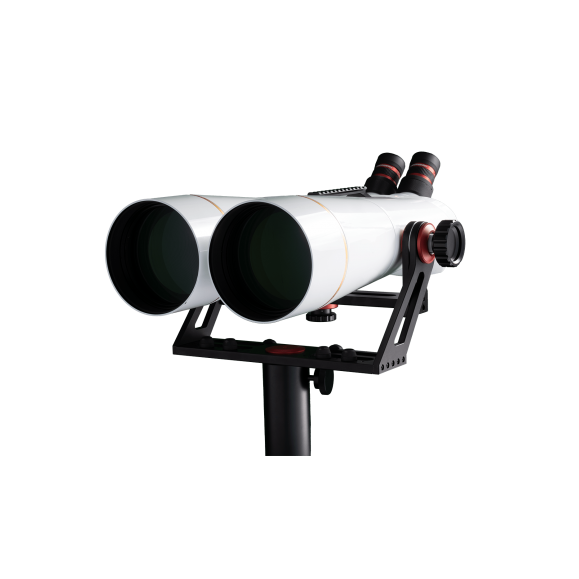

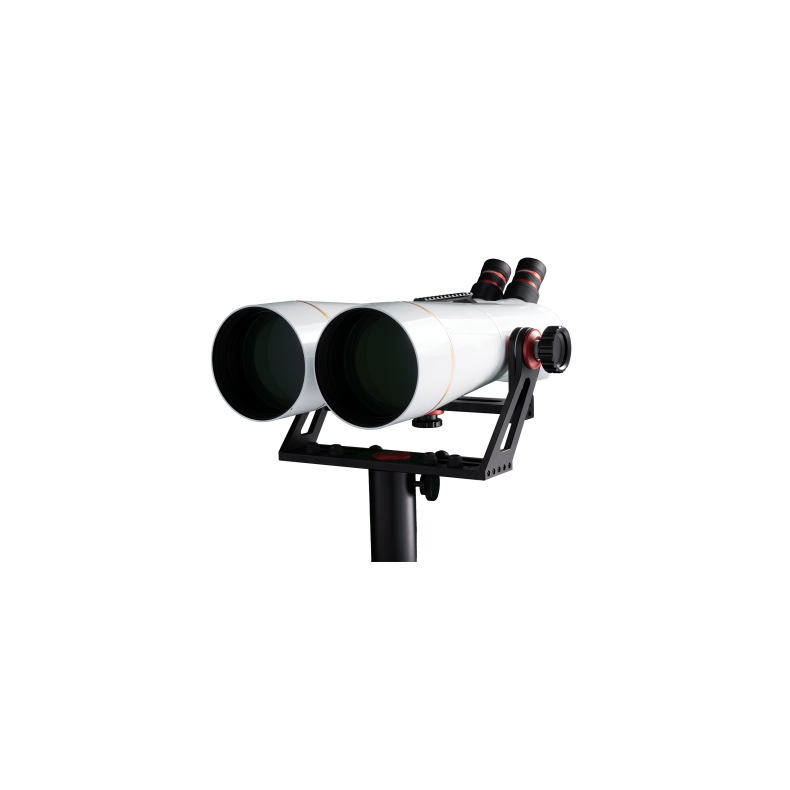

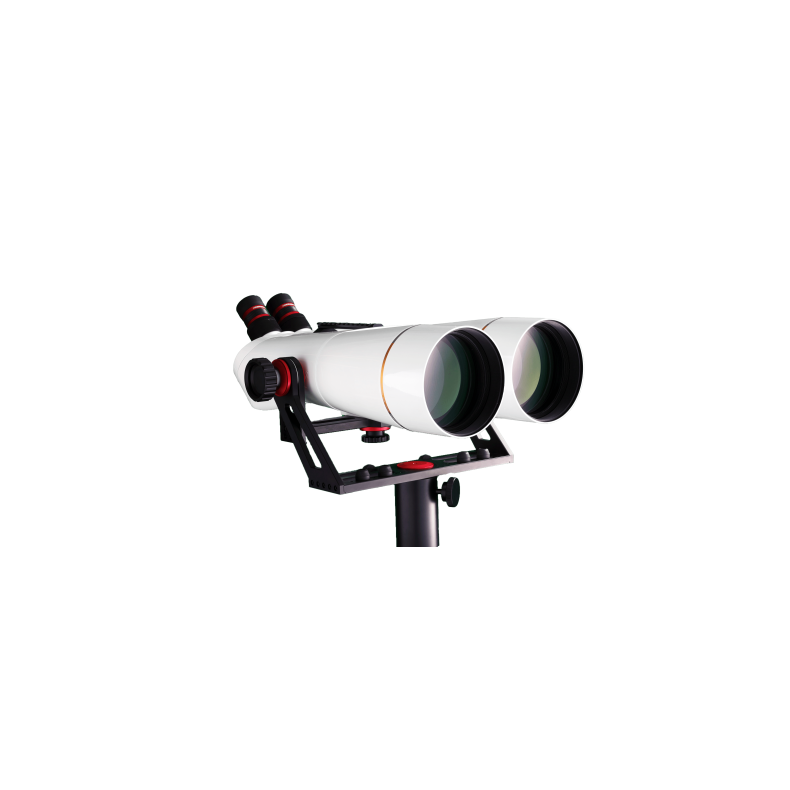

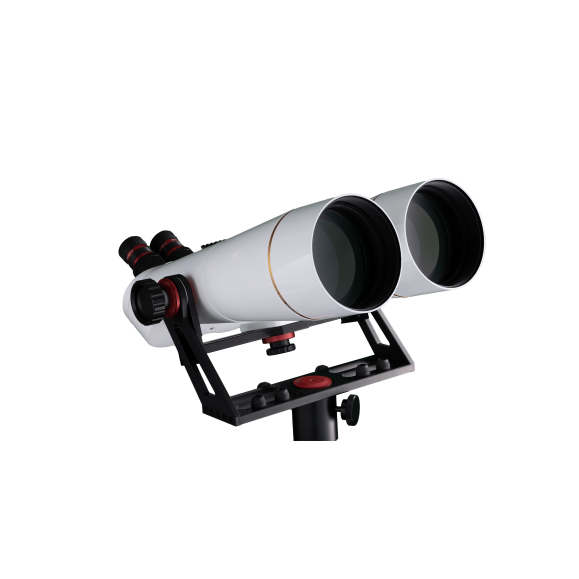

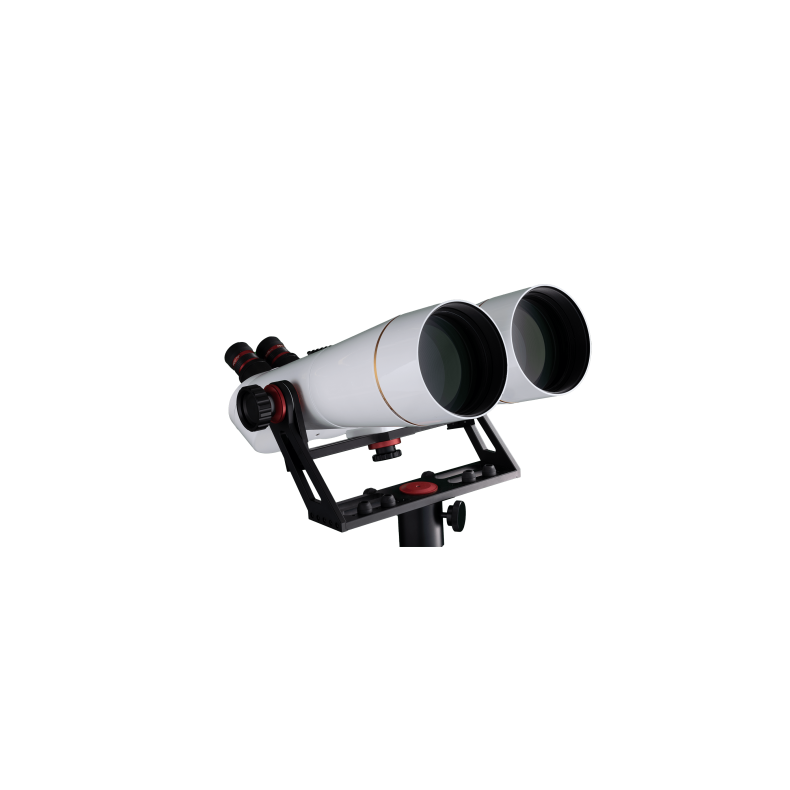

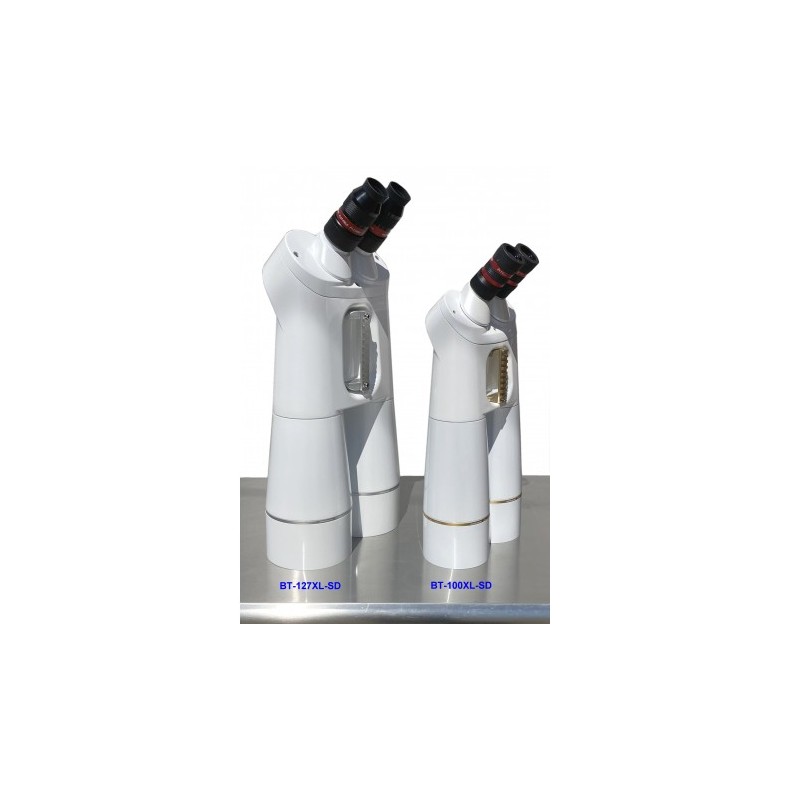

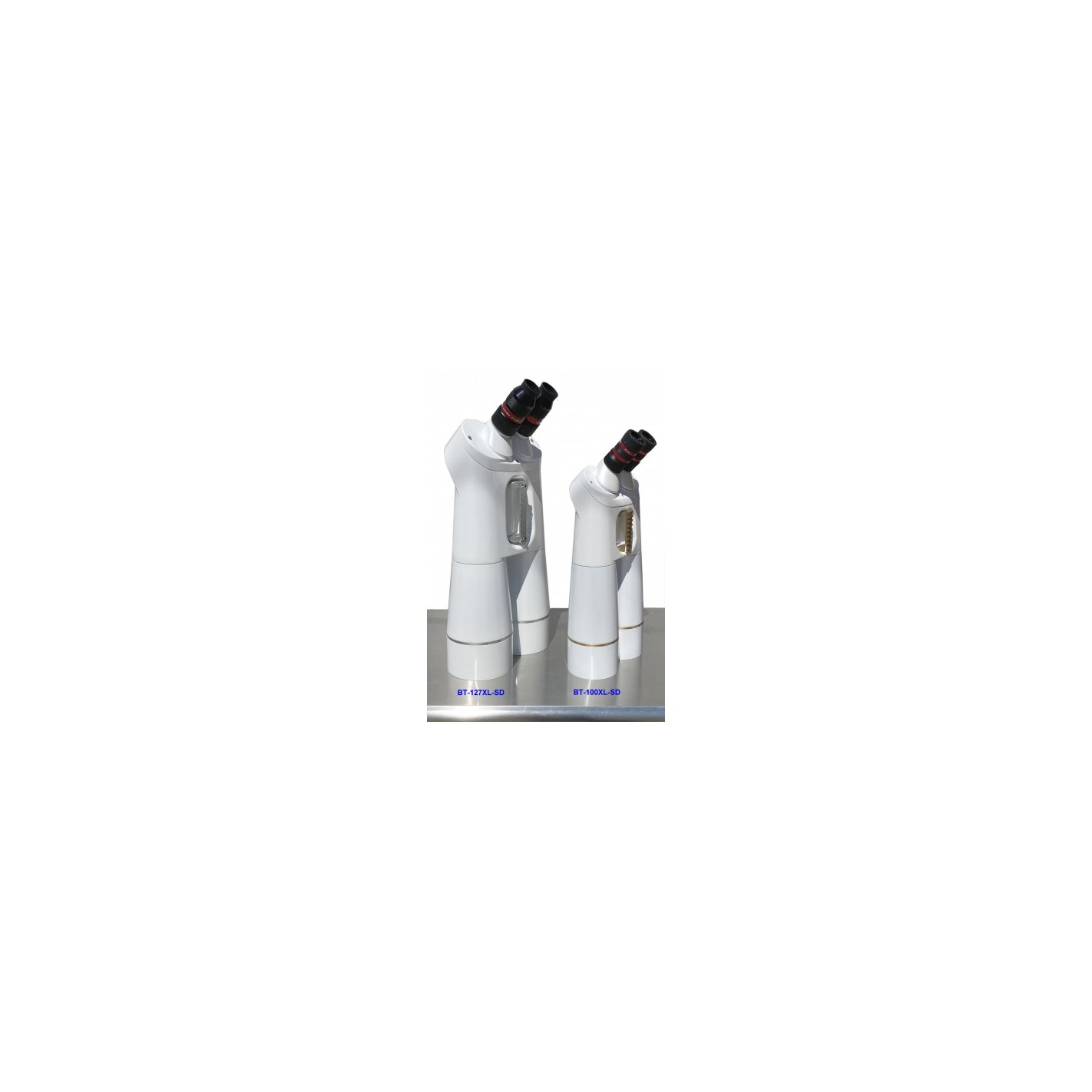

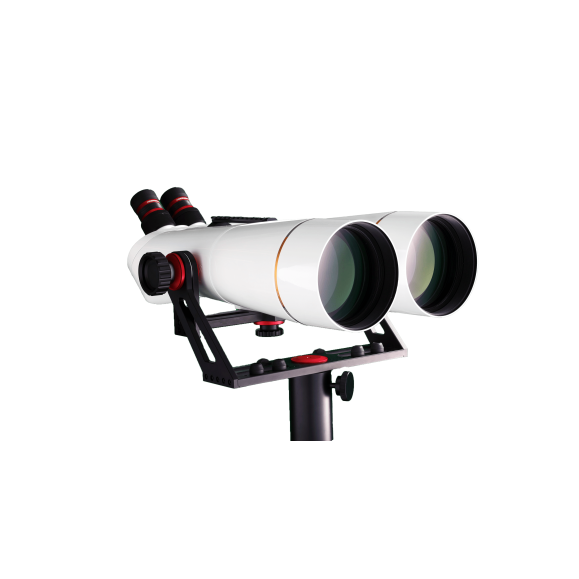

Oberwerk 127XL-SD 127 mm 45° binoculars with case

Oberwerk 127XL-SD

Designed to be the highest-performance production binoculars on the market, without compromise, the Oberwerk 127XL-SD offers unmatched image quality while being far more practical than the giant 150 mm binoculars: lighter, less expensive and easier to assemble.

Despite the two huge triple lenses and large prisms, the magnesium alloy body keeps the weight down to just 11.1 kg, making it surprisingly manageable.

Like the other SD models, it features the refined pearl white "Luna Pearl" finish with gold anodized accents and comes with a hard case with integrated wheels for easy transport.

Top-of-the-line 14mm 8-element Oberwerk eyepieces (46x, 70° apparent field) are included. Optional 30x (22 mm) and 93x (7 mm) configurations are also available.

Each specimen is collimated and tested up to 163x (tolerance

Main features:

• 127 mm (5") APO SD FCD100/FK-61 triplet objectives
• Extendable eyecups to reduce stray light and improve contrast
• Picatinny rail grip for mounting finders or laser pointers.
• Interpupillary distance adjustable from 57 to 80 mm (57 to 80 mm)
• Rigid case with wheels for transport included
• Certified collimation up to 163x (

Specifications

• Lenses: 127 mm APO SD FCD100/FK-61 Triplet FCD100/FK-61
• Focal length: 650 mm
• Standard magnification: 46x (14 mm eyepieces included)
• Optional magnifications: 30x (22 mm), 93x (7 mm)
• Apparent field of view (AFOV): 70° (70°)
• True Field: 2.35° (30x) / 1.75° (46x)
• Exit pupil: 5.3 mm (30x)
• Eye relief: 18 mm (46x)
• Minimum focus: 25 meters
• Interpupillary Diaphragm (DIP): 57-80 mm
• Binoculars weight: 11.1 kg (11.1 lbs.)
• Case weight: 29.5 kg
• Case dimensions: 89 × 56 × 46 cm (35 × 22 × 18 inches)
• Housing: Magnesium alloy, waterproof, nitrogen-filled
• Focusers: 1.25″ helical
• Included Accessories: Hard case with wheels, 14 mm eyepieces, 70° apparent field of view.

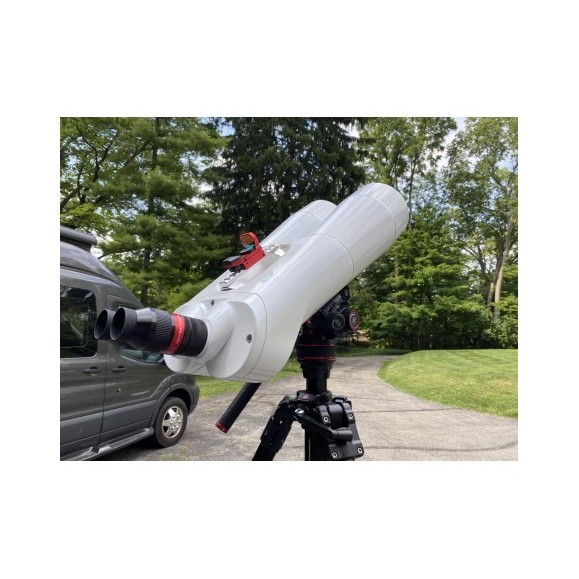

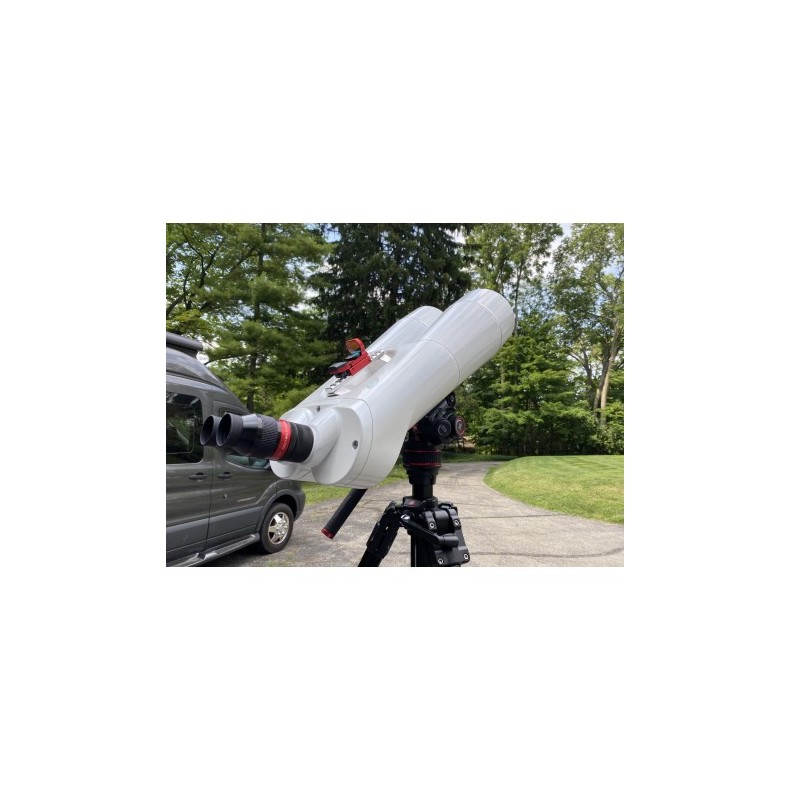

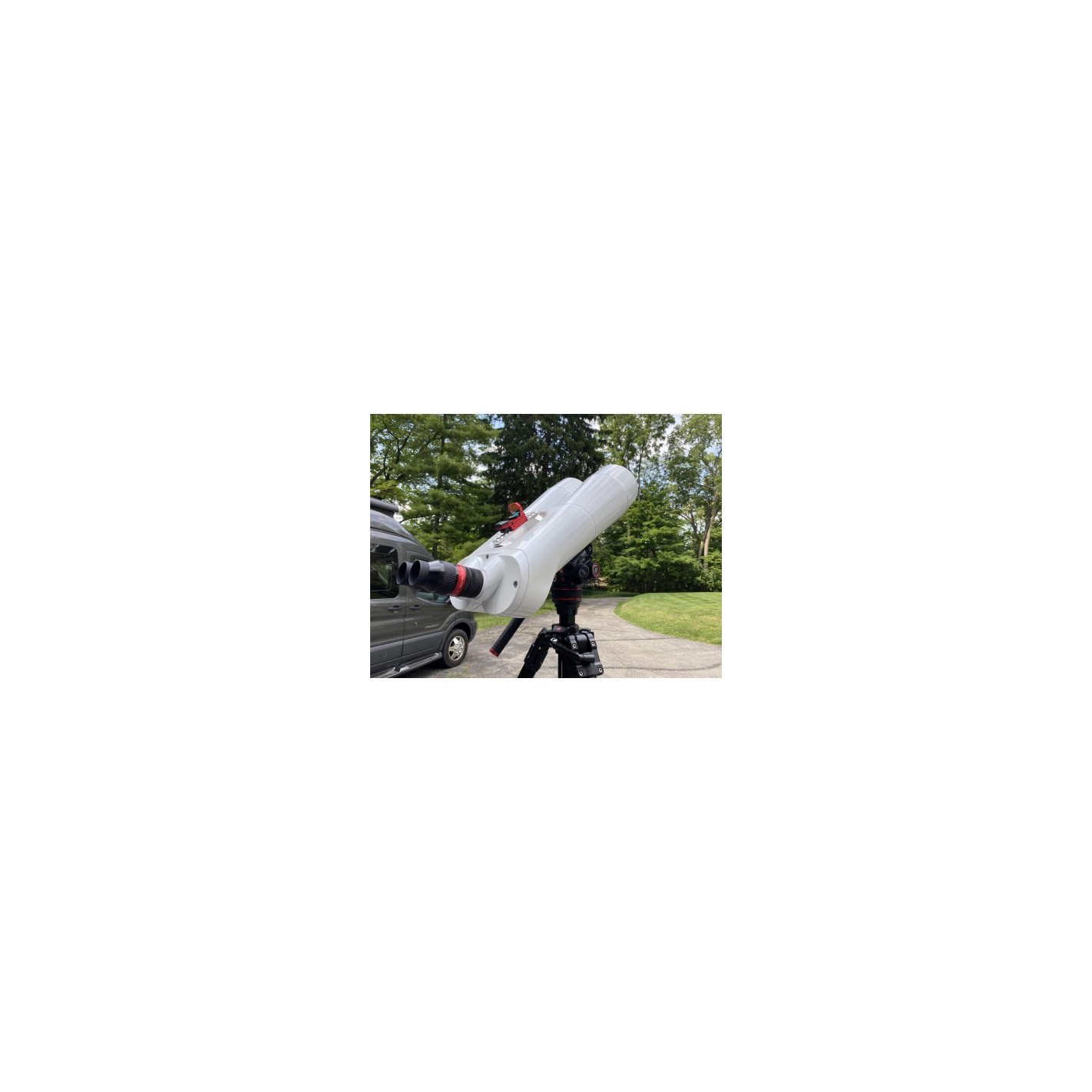

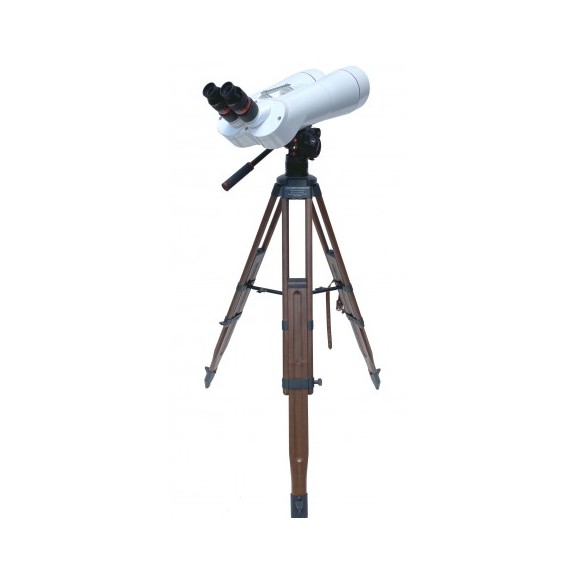

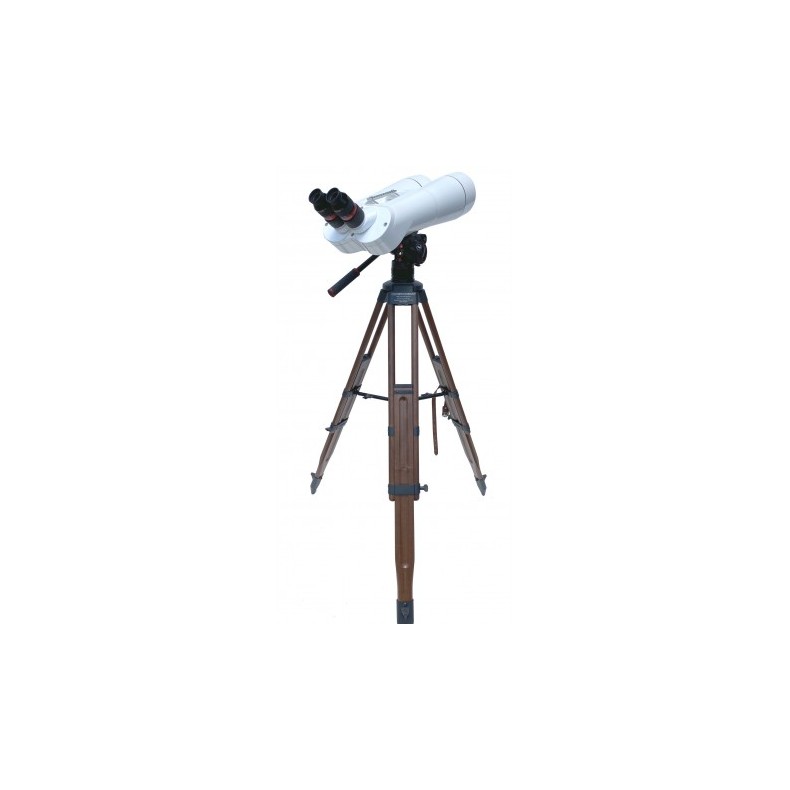

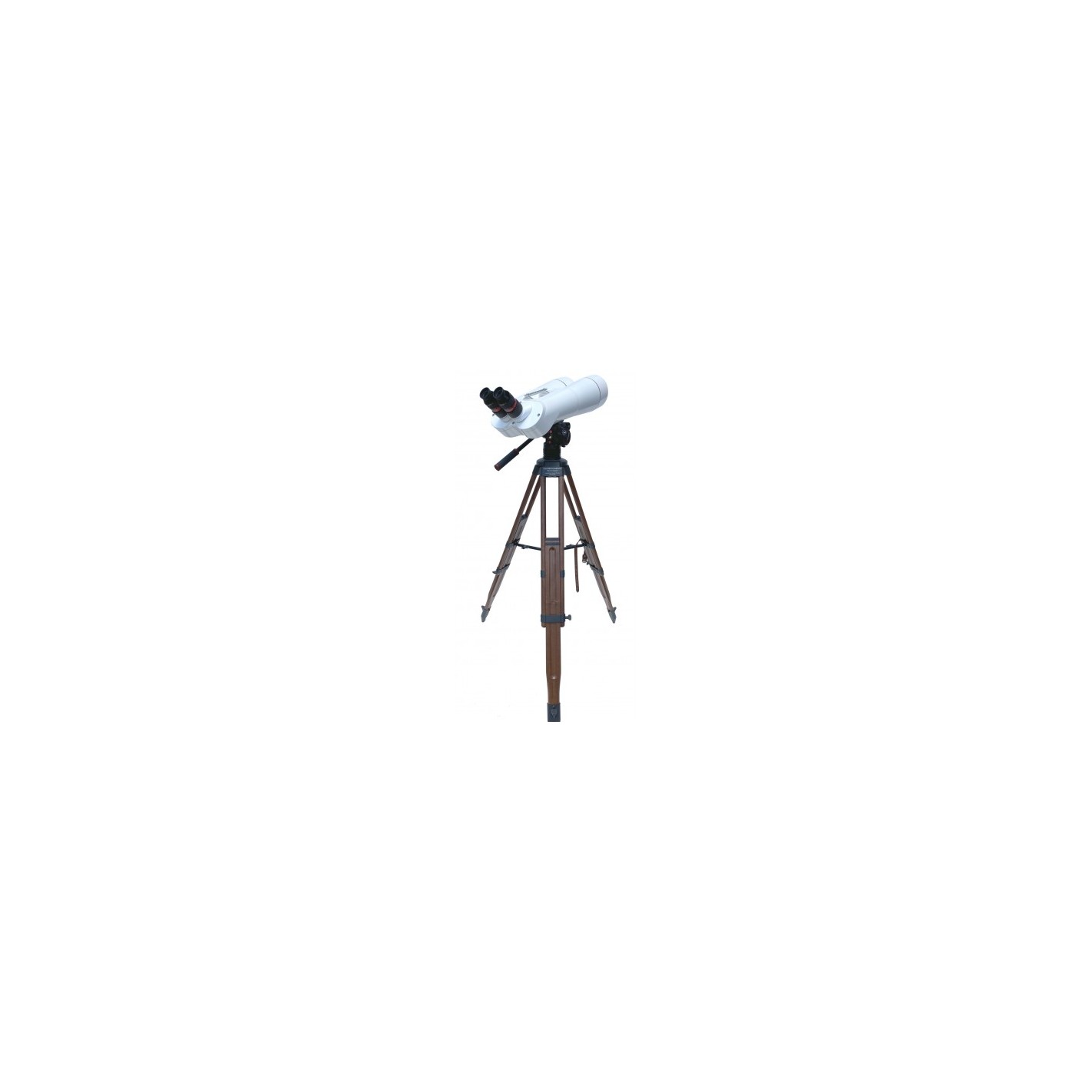

* Tripod shown for illustrative purposes. Not included with binoculars.
