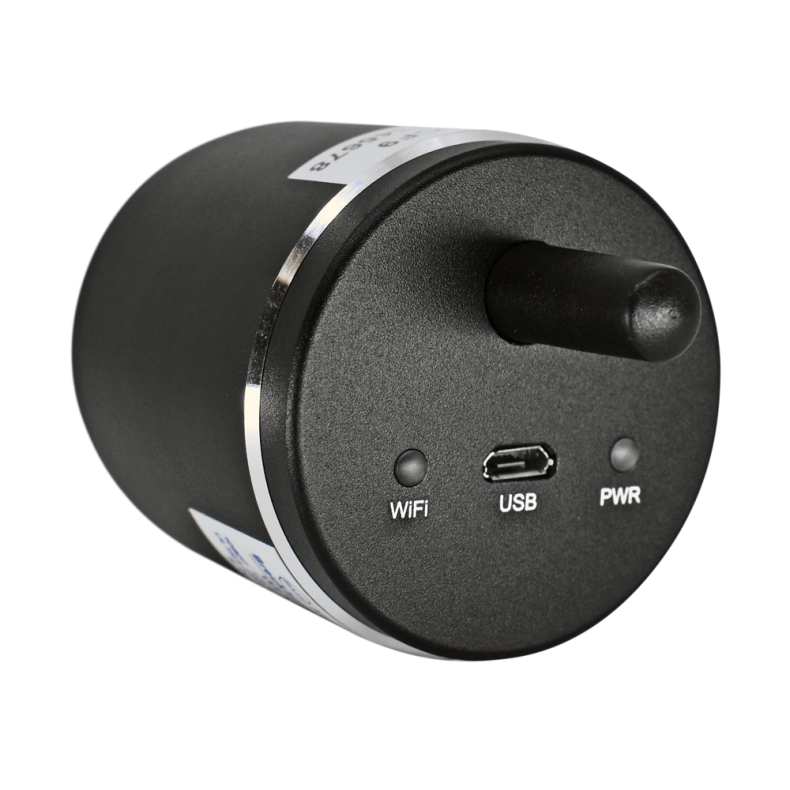

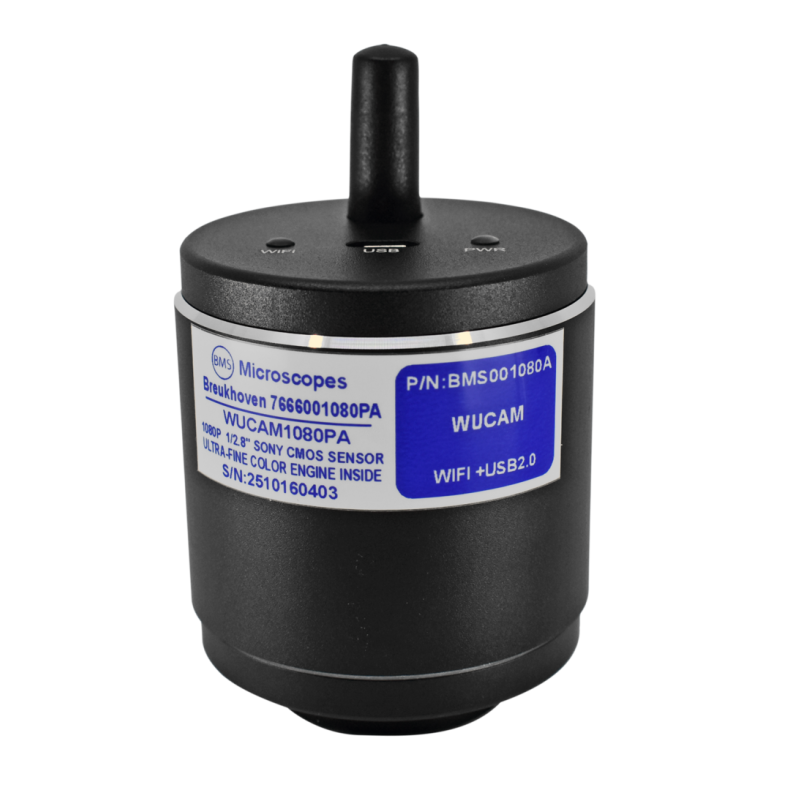

Camera BMS 2 MP CMOS USB 2.0 with WiFi

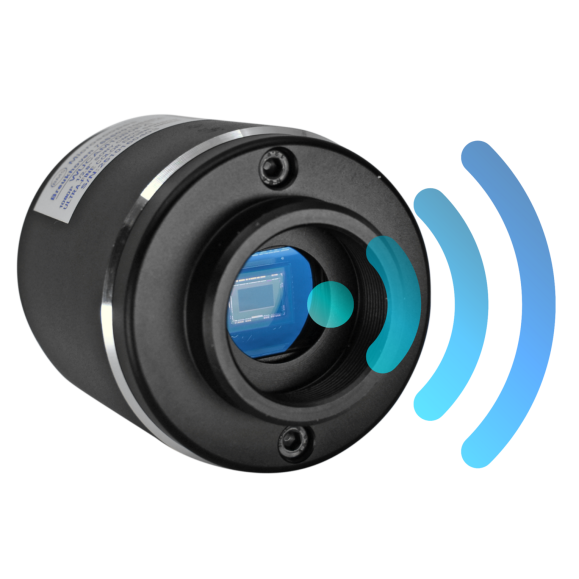

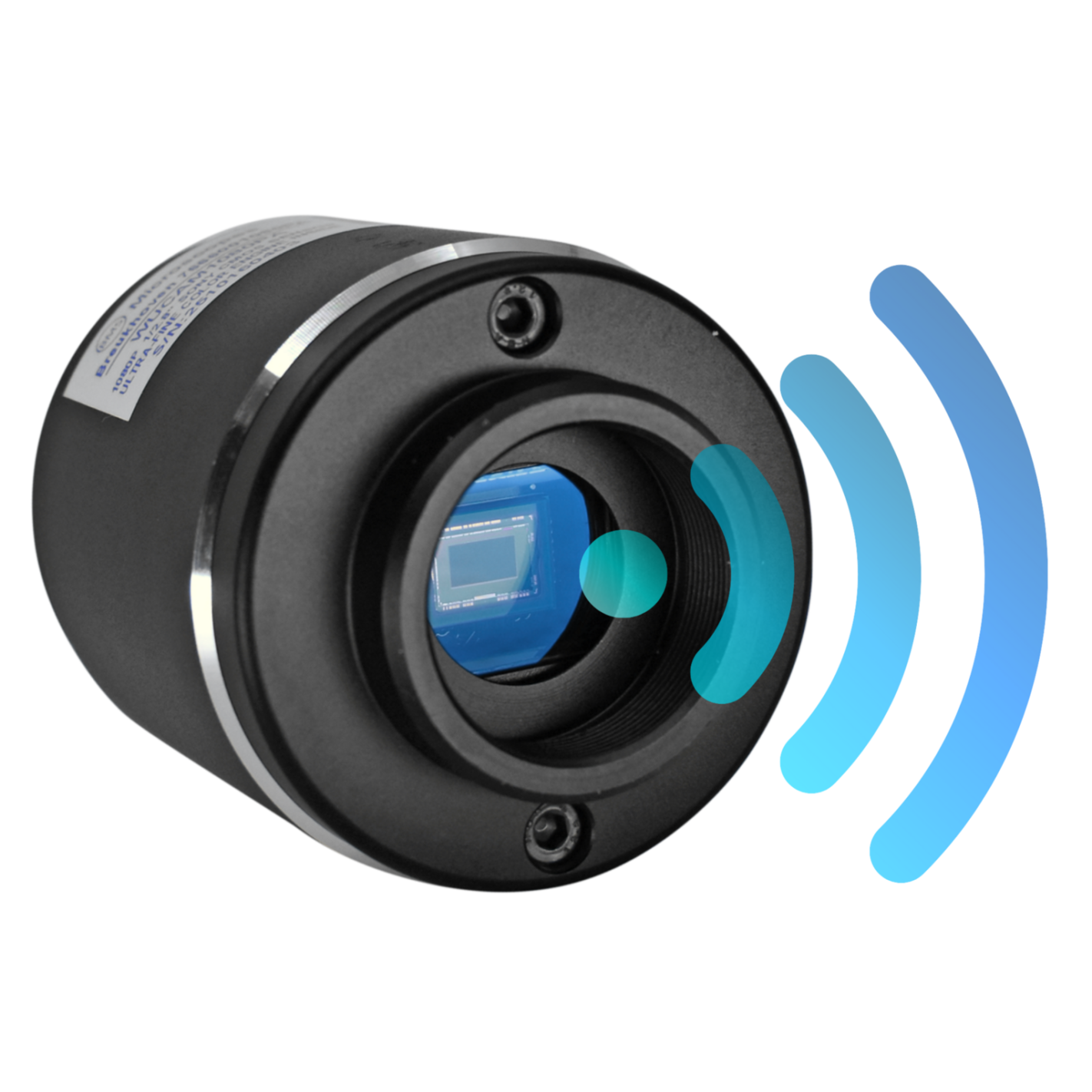

The 2 MP Wi-Fi digital camera transforms any microscope BMS into a wireless imaging solution. The camera transmits high-resolution images directly to Wi-Fi enabled devices such as computers, tablets and smartphones running iOS, Android, Linux and Windows. Equipped with the BMS_pix3 software, the camera enables image capture, measurement and annotation for both teaching and research purposes. The robust zinc-aluminum housing and C-mount connector ensure reliable performance and seamless integration with microscopes BMS. Dual connectivity options via USB 2.0 Type-C and Wi-Fi offer flexible use on multiple devices.

Transform your BMS microscope into a digital cinema with the USB camera.

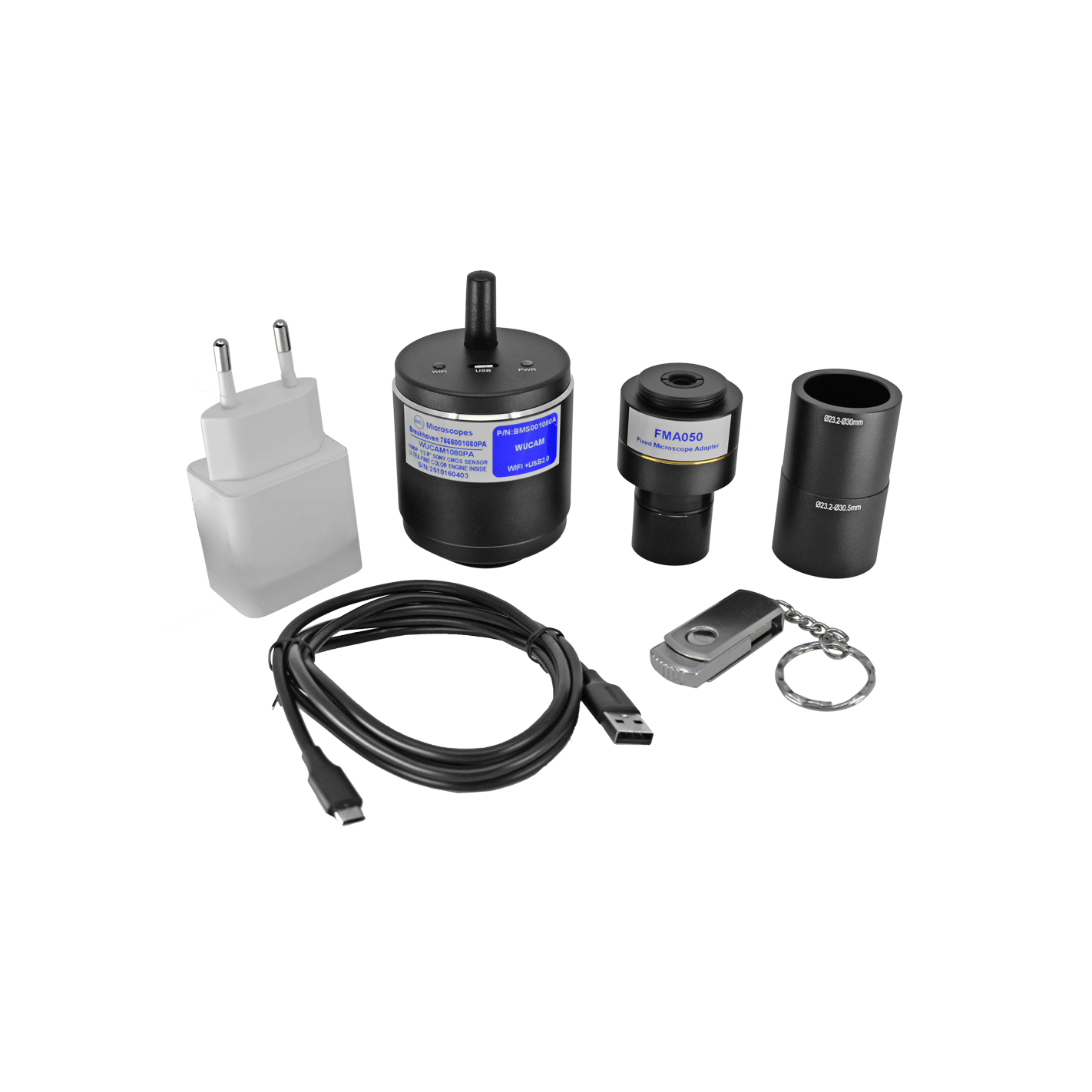

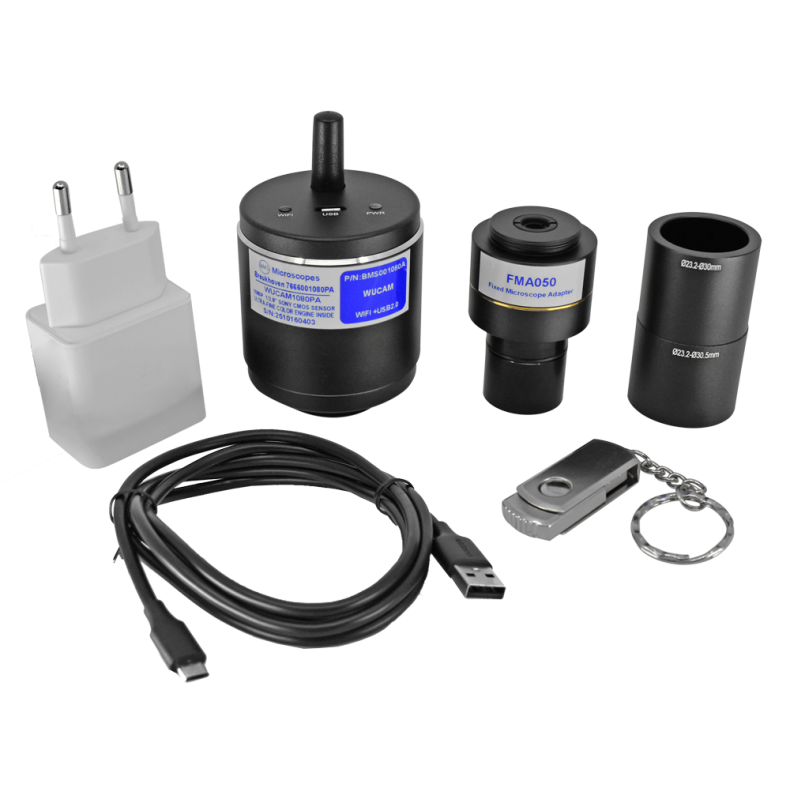

The BMS USB camera instantly transforms any BMS microscope into a high-definition digital cinema. Simply connect it with the included reduction lens and adapters and stream crisp live video to any USB device. Capture sharp still images and detailed analysis. Powered entirely by USB, no additional cables or power supplies are required. Observations become more vivid, demonstrations more engaging and research more efficient.

Reliable USB 2.0 connectivity.

USB 2.0 ensures reliable data transfer between the camera and any USB-compatible device, including PCs, laptops and all-in-one computers. It offers stable live video and fast image capture, making it ideal for classrooms, labs and everyday tasks. With consistent performance and smooth operation, it offers a reliable solution for professional use.

Sharp and accurate 2 MP images.

The 2-megapixel sensor captures over 2 million pixels, delivering sharp images that reveal important details. Ideal for education, laboratories and research, it offers reliable measurements, clear documentation and high quality images for presentations or reports.

Key Features

• Resolution: 1920 × 1080 (2 MP) captures detailed images of specimens, allowing students and researchers to observe structures and record results.
• Sensor: Sony IMX307(C) Starvis CMOS delivers clear, sharp images for both classroom demonstrations and accurate lab work.
• Sensor size: 1/2.8" (5.57 × 3.13 mm), optimized for microscopy, with a good balance between field of view and sharpness
• Pixel size: 2.9 × 2.9 µm provides sharp, well-defined images for high-quality observations and analysis
• Capture system: Photo and video allows capture of high quality images and videos for versatile documentation and analysis
• Sensitivity: 1.0 V/lux-sec provides good light sensitivity and produces clear images in various lighting conditions.
• Dynamic Range/SNR: 71 dB / 44 dB provides good contrast and low noise for accurate image capture
• Frame rate (FPS): USB 50 at 1920 × 1080 / Wi-Fi 50 at 1920 × 1080 ensures smooth live viewing during interactive lessons and fast-paced lab processes
• Exposure: automatic and manual, 0.14 ms ~ 2000 ms for flexible brightness control in different lighting conditions
• Spectral range: 380-650 nm with IR cut-off filter
• White balance: full area white balance, manual temperature and hue adjustment
• Color technology: Ultra-thin color engine

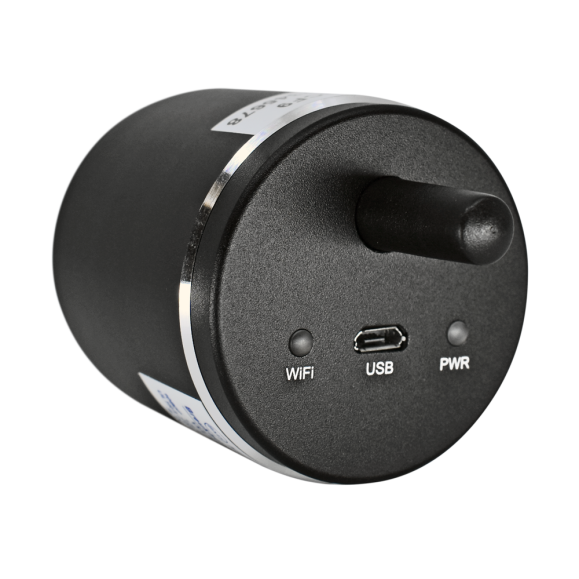

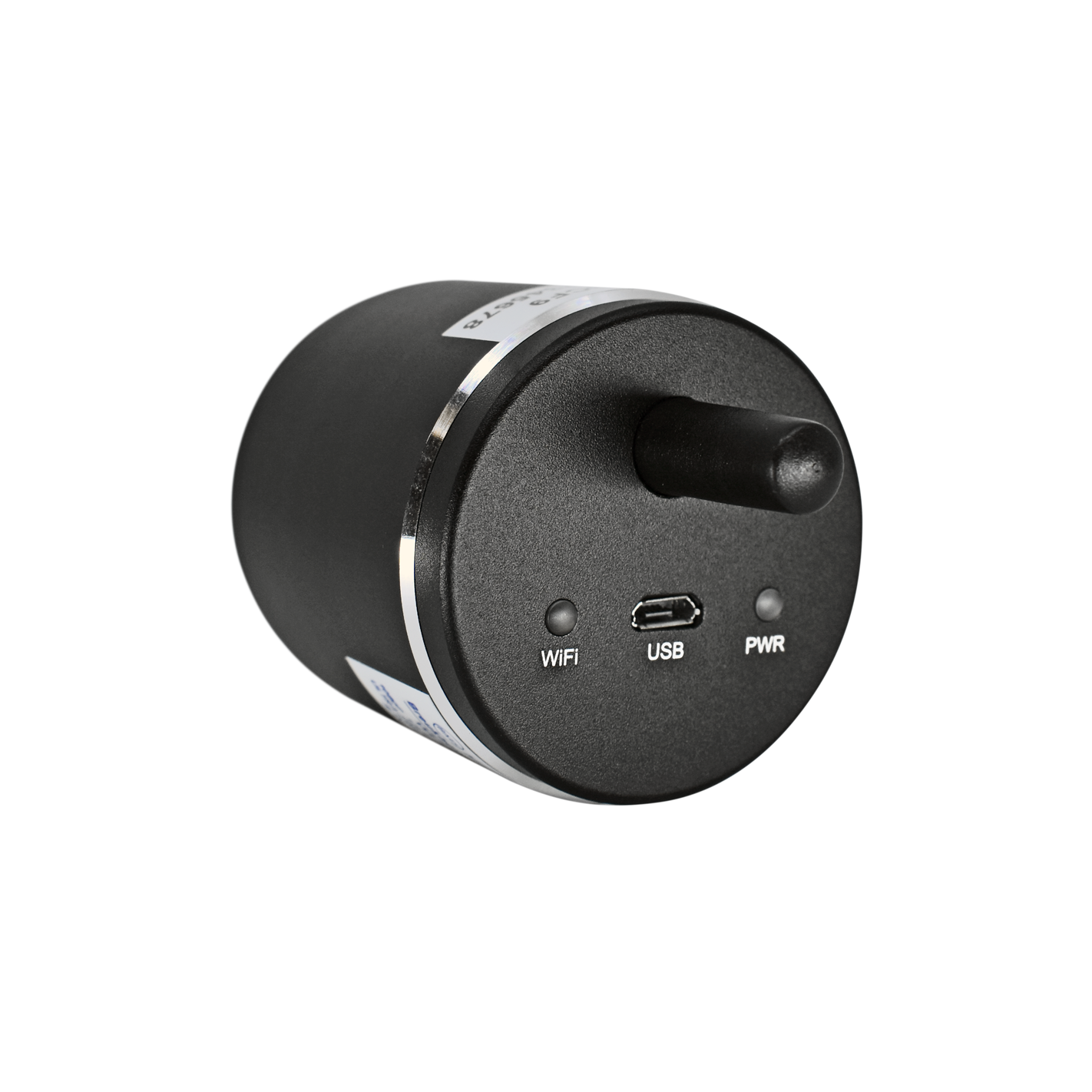

• Multiple output options: USB 2.0 Type-C and Wi-Fi 802.11b/g/n, transmit high-resolution images to multiple devices simultaneously, compatible with iOS, Android, OS X, Linux and Windows

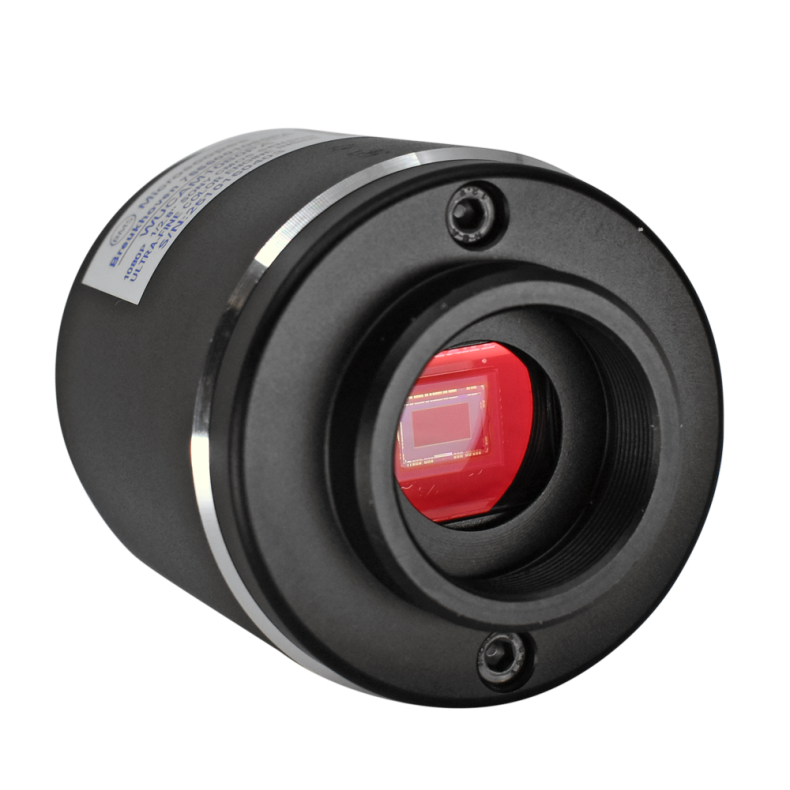

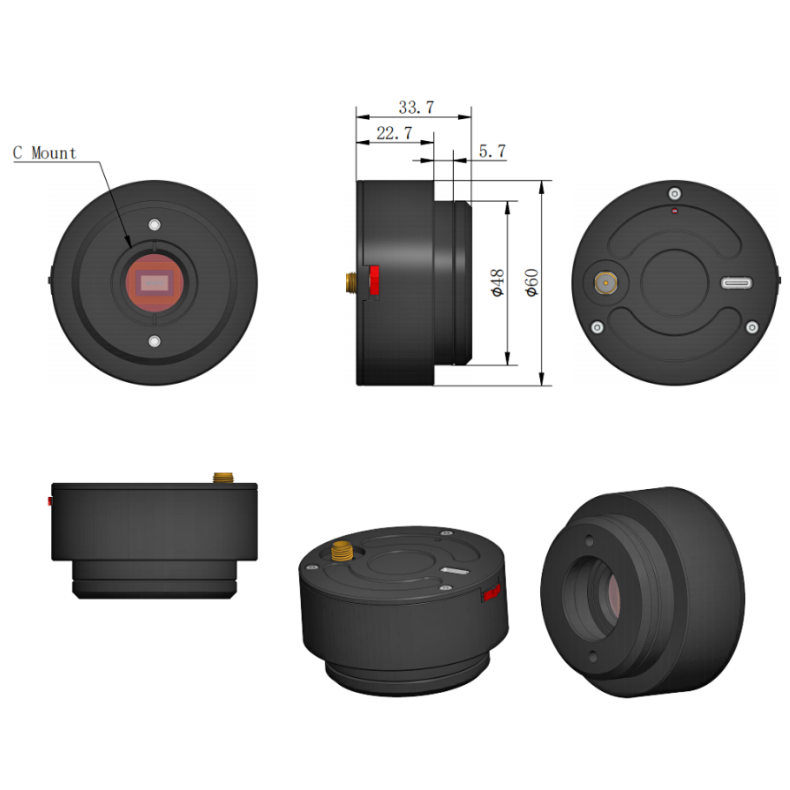

• Mounting: C-mount, 25.4 mm (1 inch) diameter with 32 threads per inch
• Housing: Integrated zinc alloy and aluminum alloy for durability.
• Software: BMS_pix3 for image capture, video recording and measurement. Full version for Windows, light version for Linux and macOS.
• Capture/control SDK: Cross-platform SDK for Windows/Linux/macOS/Android (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.)
• Cooling system: Natural
• Maximum number of connected devices: ≤3
• Operating temperature: -10 ~ 50 °C
• Storage temperature: -20 ~ 60 °C
• Operating humidity: 30~80 % RH
• Storage humidity: 10~60 % RH
• Supported operating systems: Microsoft® Windows® 11 and later, macOS and Linux. Windows 7/8/10 is still supported, but for optimal performance, the latest update is recommended. BMS_pix3 software is available in full version for Windows and in light version for Linux and macOS.
• PC requirements: CPU equivalent to Intel Core2 2.8 GHz or higher, 2 GB or more memory, Wi-Fi adapter with DHCP enabled, 17" or larger screen
• Mobile access: free apps for iOS and Android
• Tablet: iPad or Android tablet
• Applications: Ideal for teaching, demonstrations, research documentation, interactive lessons, multi-user observations, and quick lab processes.

Advanced software included.

BMS_pix3 software offers powerful tools for capturing, analyzing and processing microscopy images. Copy and paste this URL into your browser to download the software: http://extern.bmsmicroscopes.com/BMS_pix3/BMS_pix3.zip.

• Stitching: combines multiple images into a uniform whole.
• EDF (Extended Depth of Focus): produces images with full sharpness at different depths.
• Video recording: record high quality live video for analysis and presentations.
• Measurement tools: Measure lengths, angles, arcs, areas and more.
• File formats: Save still images in BMP, TIFF, JPG, PICT, PTL and other formats.
• Image editing: Process images similar to PhotoShop.
• Live capture: record videos and photos simultaneously in multiple resolutions.
• Layers and watermarks: add layers, watermarks, tiles and mosaics.
• Color and exposure: adjust color, exposure, saturation, contrast and orientation.
• Resolution and histogram: change resolution, histogram, grain and diffusion.
• Image transformation: transform images with edge detection and digital distortion.
• Advanced measurement: Measure single lines, parallel, perpendicular, or rectangular, elliptical and irregular surfaces.
• Annotations: Add notes, measurements, text, arrows and labels with customizable text size and color.
• Unit flexibility: take measurements in microns, millimeters, centimeters, inches, feet and more at any magnification and with desired tolerances.
