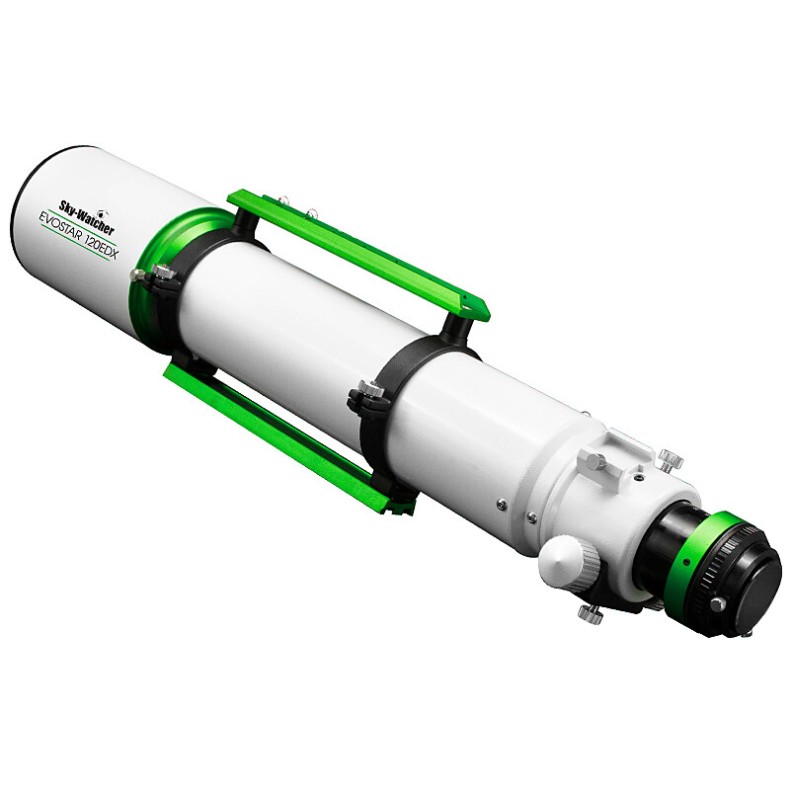

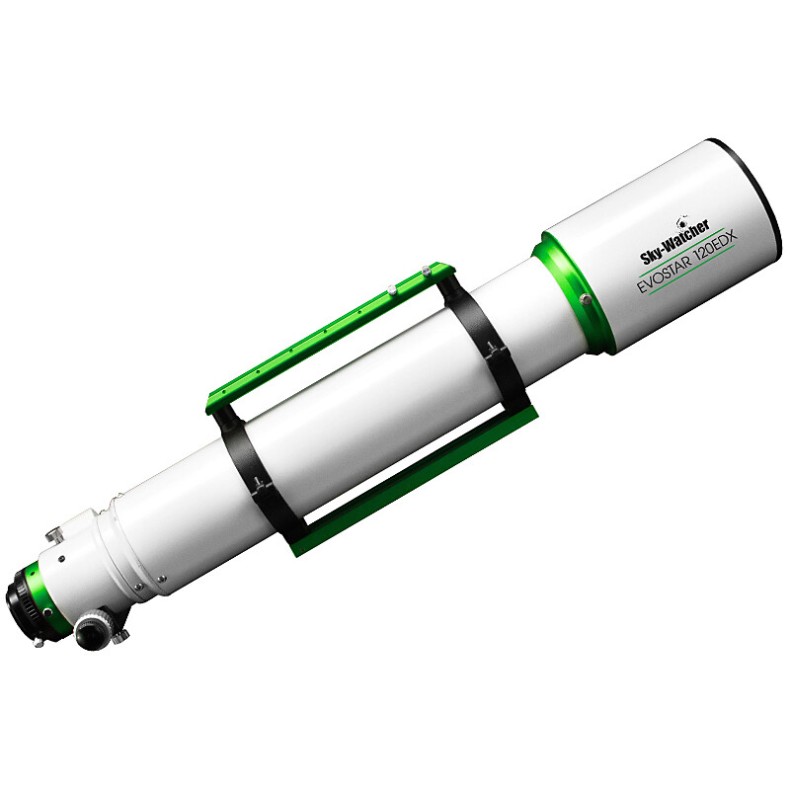

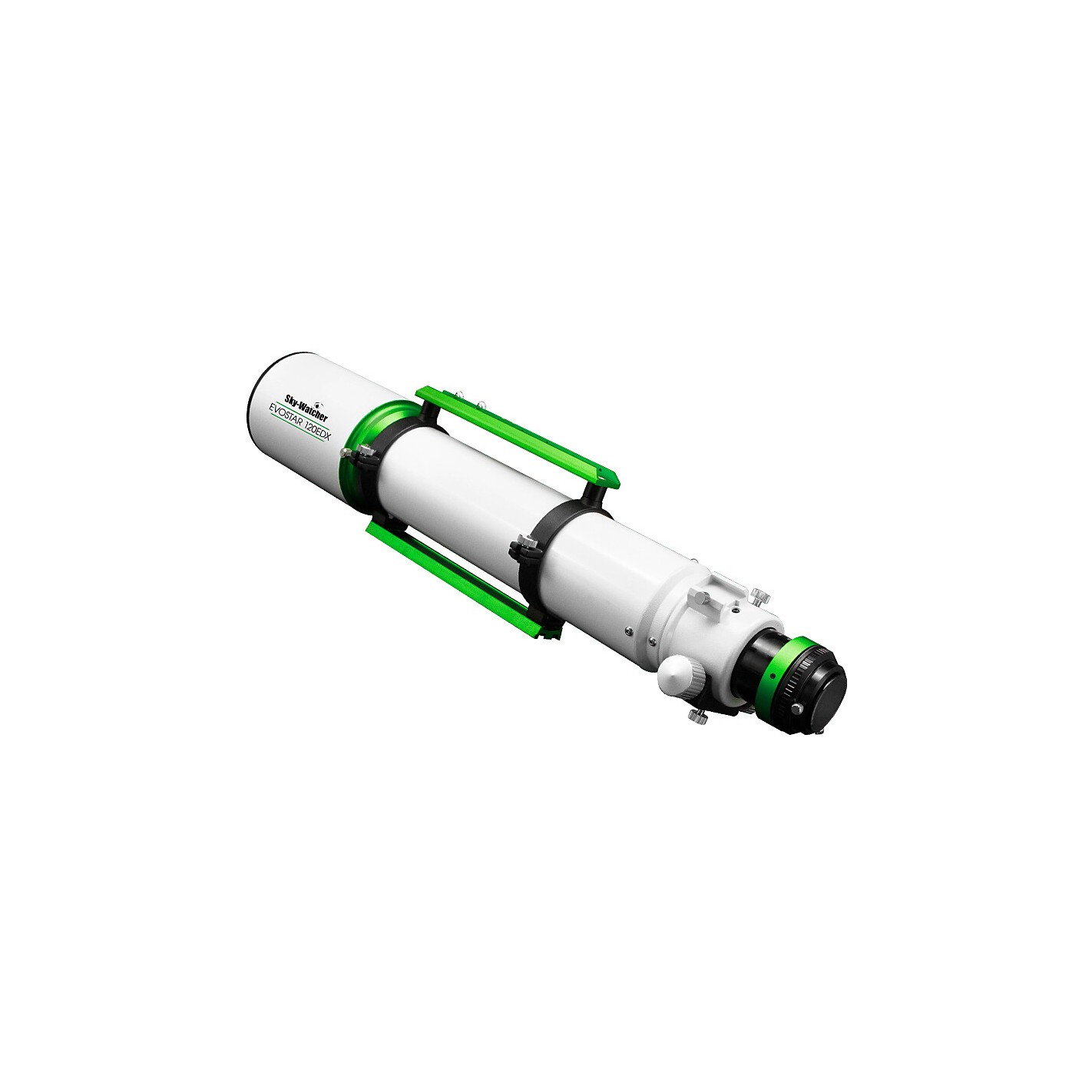

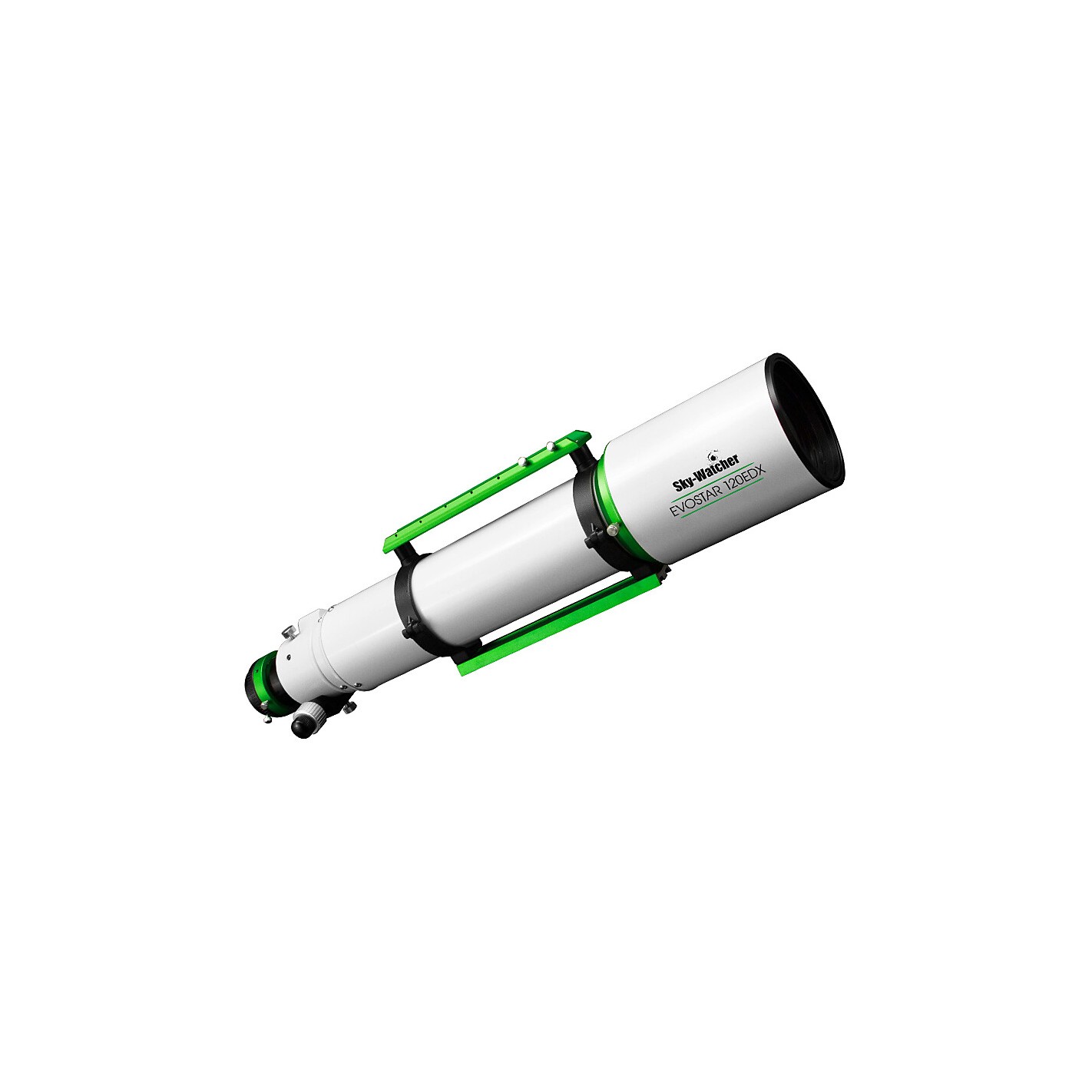

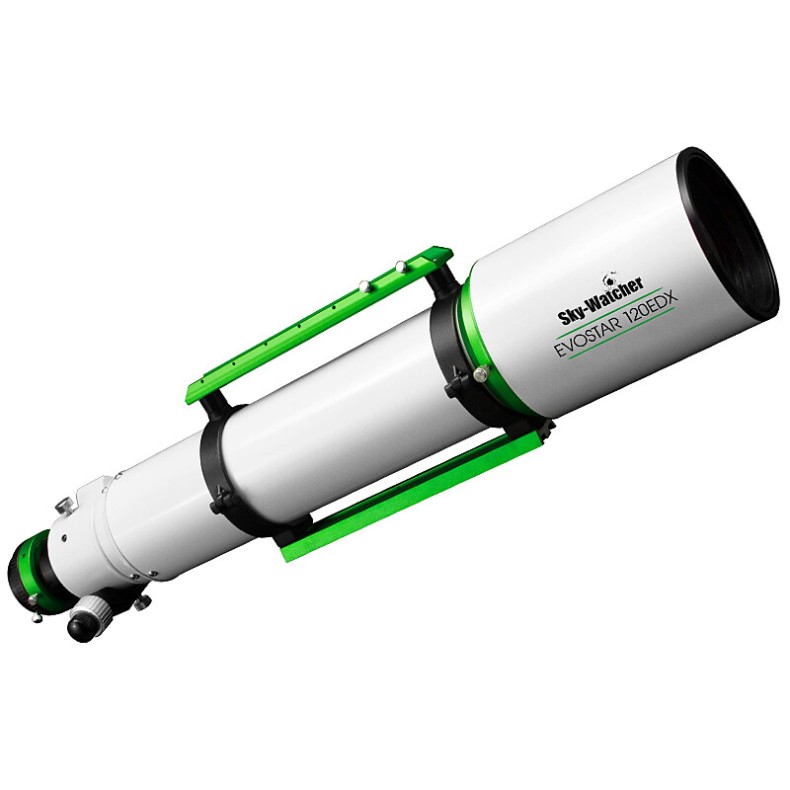

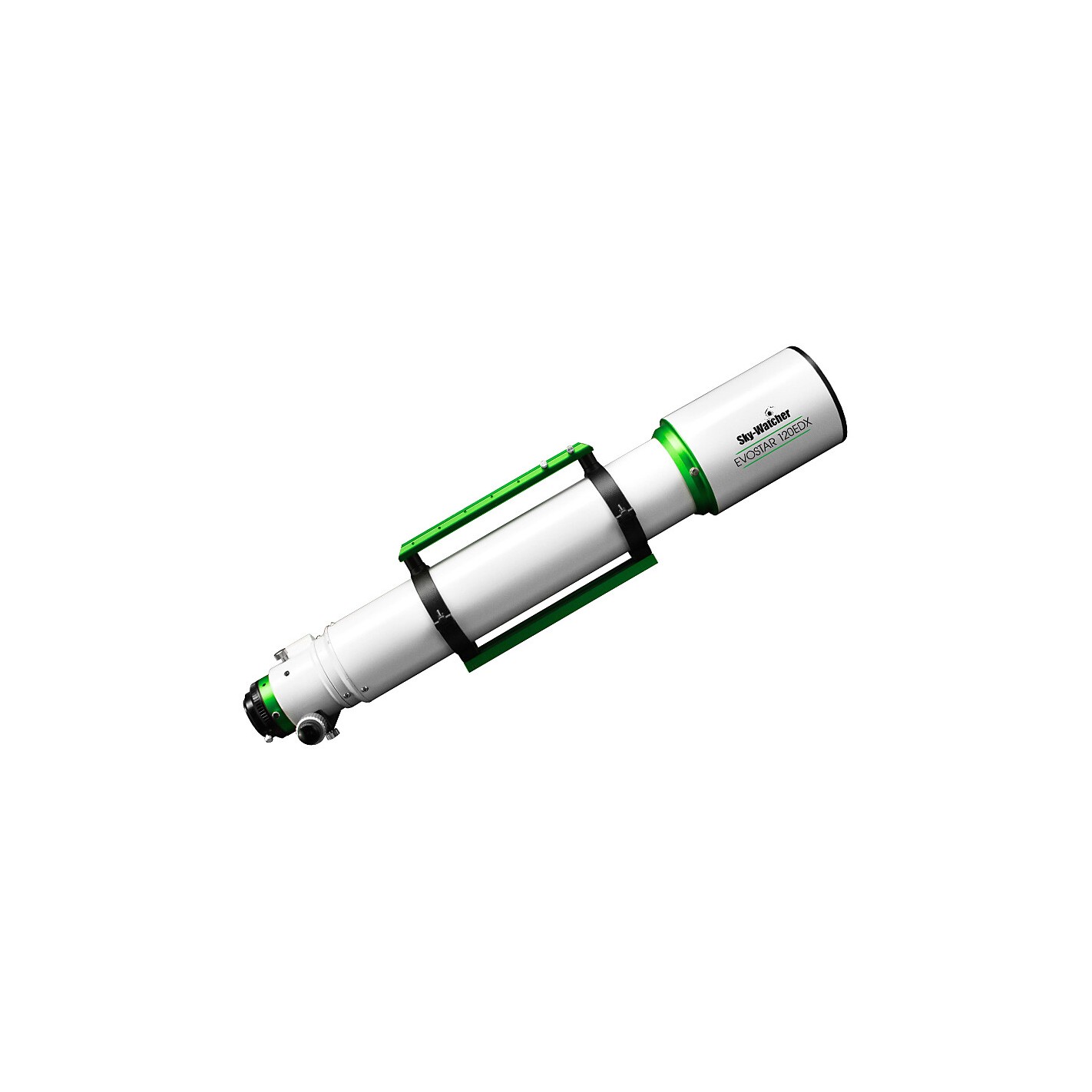

SkyWatcher Evostar 120EDX f/7.5 SkyWatcher telescope - Perfect balance between observing and astrophotography

The SkyWatcher Evostar 120EDX is part of the new generation of EDX refractors, available in diameters from 80 to 150 mm, designed to meet the needs of the most demanding astronomers. With its 120 mm aperture, this model offers an ideal balance between optical power, versatility and portability, making it perfect for both planetary observation and deep sky photography.

Thanks to its f/7.5 focal ratio, the Evostar 120EDX is able to offer exceptional detail when observing the Moon, Jupiter or Saturn, while capturing nebulae, clusters and galaxies with great precision when combined with a field corrector or reducer. In addition, its aperture captures 44% more light than a 100 mm refractor, providing brighter and more contrasted images.

🔹 High-quality optics with HOYA Japanese ED glass

To achieve the designation "apochromatic" (APO), a refractor must correct both primary and secondary chromatic aberrations. The Evostar 120EDX employs a doublet with an ED (Extra-low Dispersion) glass element manufactured by HOYA (Japan), which dramatically reduces chromaticity and eliminates annoying color fringing on bright objects such as planets or the Moon.

All optical surfaces are multi-coated to minimize light transmission losses and improve contrast. In addition, SkyWatcher applies the "Metallic High-Transmission" (MHC) coating, with a transmission close to 99.5%, resulting in brighter, cleaner and high-contrast images.

🔹 Crayford 2.6" Dual Speed 10:1 focuser and 360° rotation

The Evostar 120EDX's 2.6" Crayford focuser offers precision mechanics and high load capacity, essential for astrophotographic work with large-format cameras. Its 10:1 reduction allows fine and precise focusing, even on long exposures.
The tube features a 360° rotation system that maintains focus fine-tuning while conveniently adjusting the framing. A locking nut ensures stability even in extreme orientations of the optical tube.

🔹 Robust construction and premium design

The optical tube of the Evostar 120EDX is made entirely of CNC-machined steel, with no plastic parts, offering exceptional rigidity and durability. Its interior is beveled and blackened to eliminate internal reflections and maximize contrast.
Includes two metal attachment rings, Losmandy dovetail and a retractable lens hood, making it easy to transport and install on any mid-range or high end equatorial mount.

⚙️ Technical Specifications

• Optical type: Apochromatic refractor with ED doublet

• Lens diameter: 120 mm

• Focal length: 900 mm

• Focal ratio: f/7.5

• ED glass material: HOYA (Japan)

• Optical Coating: Multi-Coating + MHC (Metallic High-Transmission Coating)

• Focuser: Crayford Dual Speed 2.6" with 1:10 reduction

• Focuser rotation: 360°

• Accessory Compatibility: 2" (50.8 mm) and 1.25" (31.75 mm)

• Hood: Retractable

• Tube length: 774 mm (with hood retracted) / 848 mm (extended)

what's included in the box?

The SkyWatcher Evostar 120EDX f/7.5 comes fully equipped and ready to use right out of the box. It includes all necessary accessories for transport, installation and perfect balancing of the optical tube:

• 1x SkyWatcher Evostar 120EDX f/7.5 refractor optical tube

• 1x Pair of SkyWatcher metal rings for a firm and stable hold

• 1x Dovetail type Vixen (compatible with most SkyWatcher and non-SkyWatcher mounts)

• 1x Retractable sunshield to protect the lens and reduce unwanted reflections

• 1x Carrying handle with Synta type finder base

• 1x Synta type finder base (compatible with most standard finderscope bases)

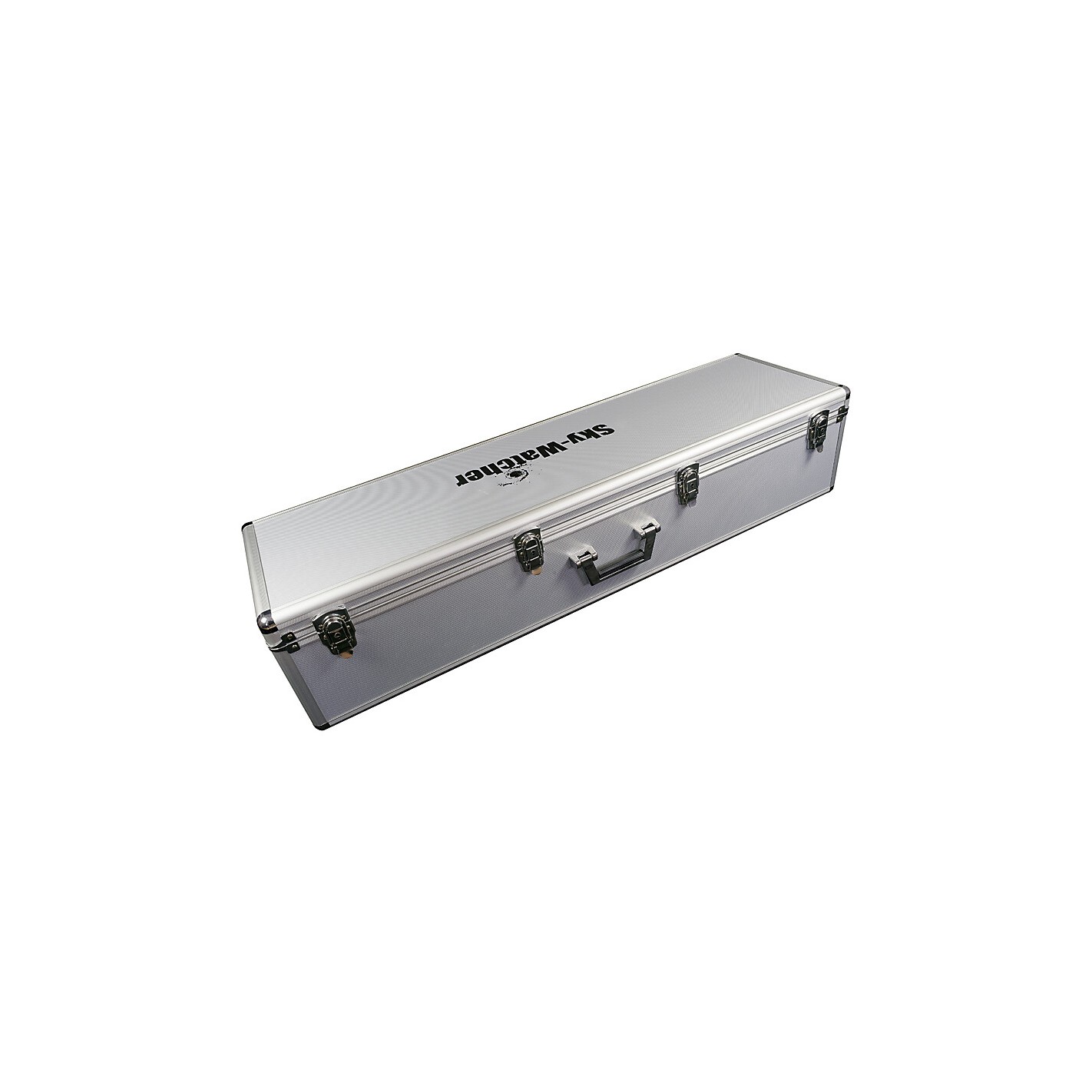

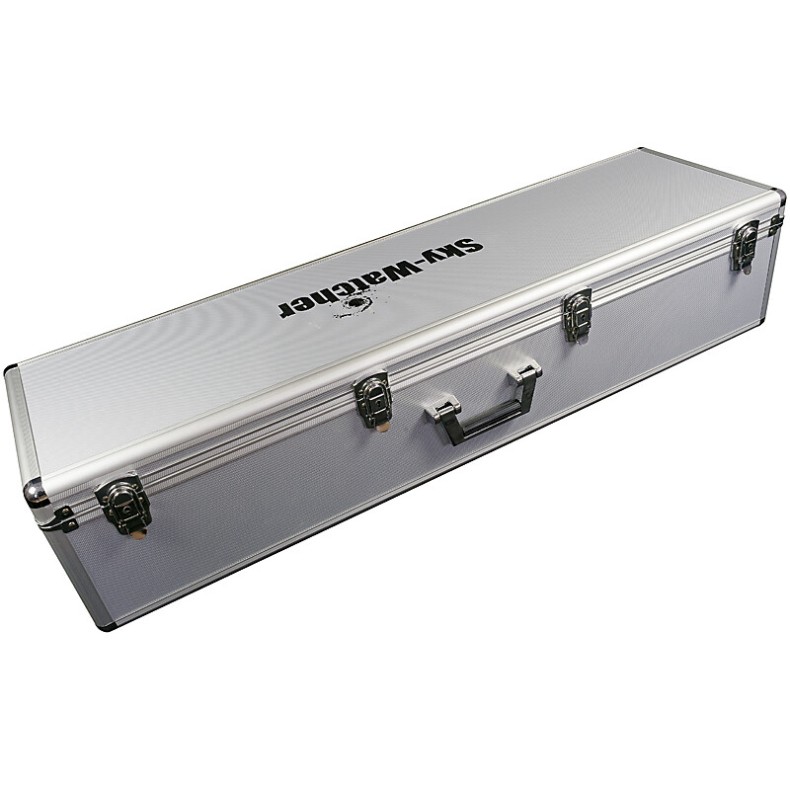

• 1x Rigid carrying case, ideal for storing and protecting equipment during travel or prolonged storage

🌌 In brief

The SkyWatcher Evostar 120EDX f/7.5 combines exceptional optics with precise mechanics, making it a versatile tool for visual astronomers and advanced astrophotographers. Its HOYA ED doublet, 2.6" dual speed focuser and rugged metal construction position it as one of the best refractors in its price range.
