ASKAR 0.7x reducer for Askar 80ED
ASK07X
Stock at Supplier
198.31
VAT excluded
Shipping 5/7d

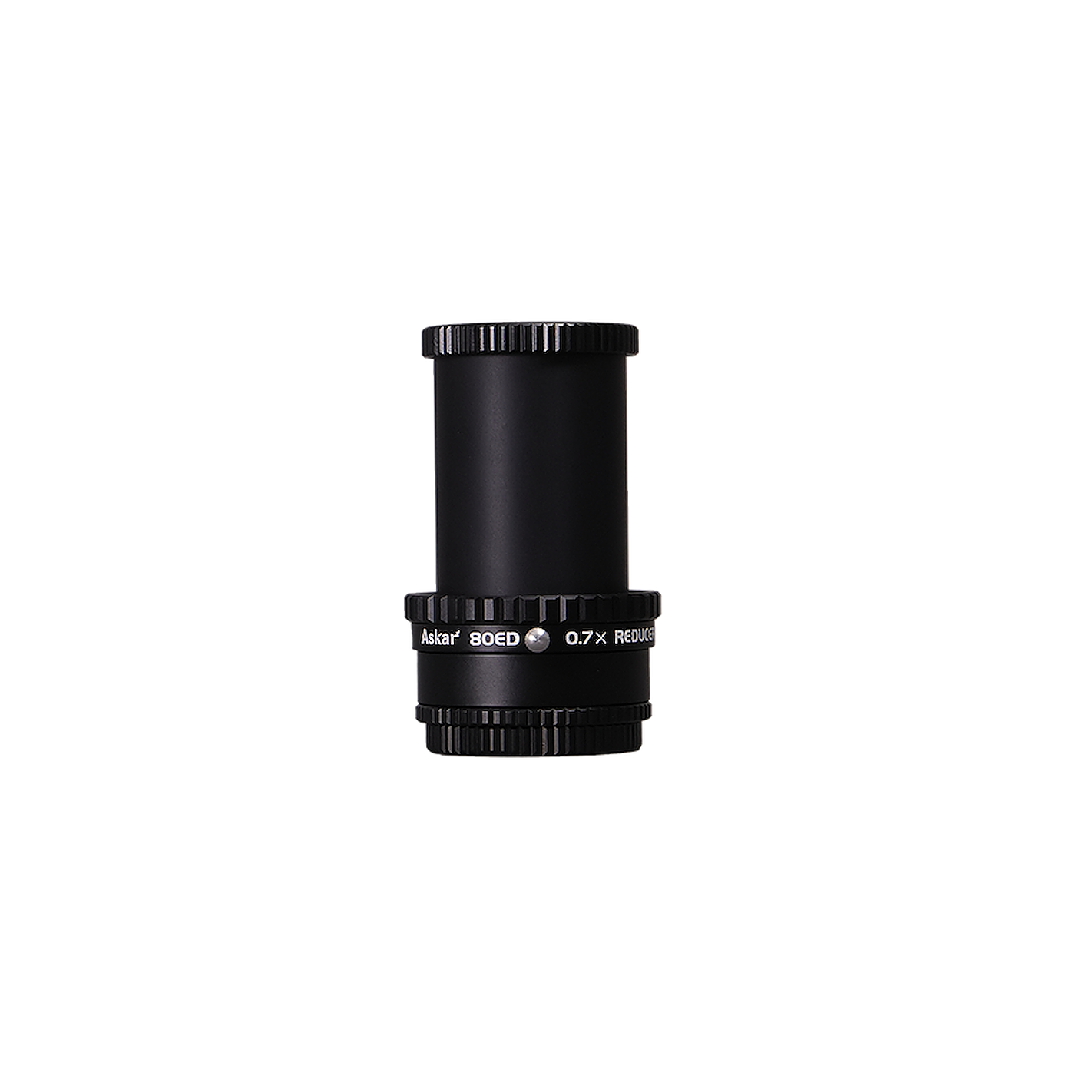

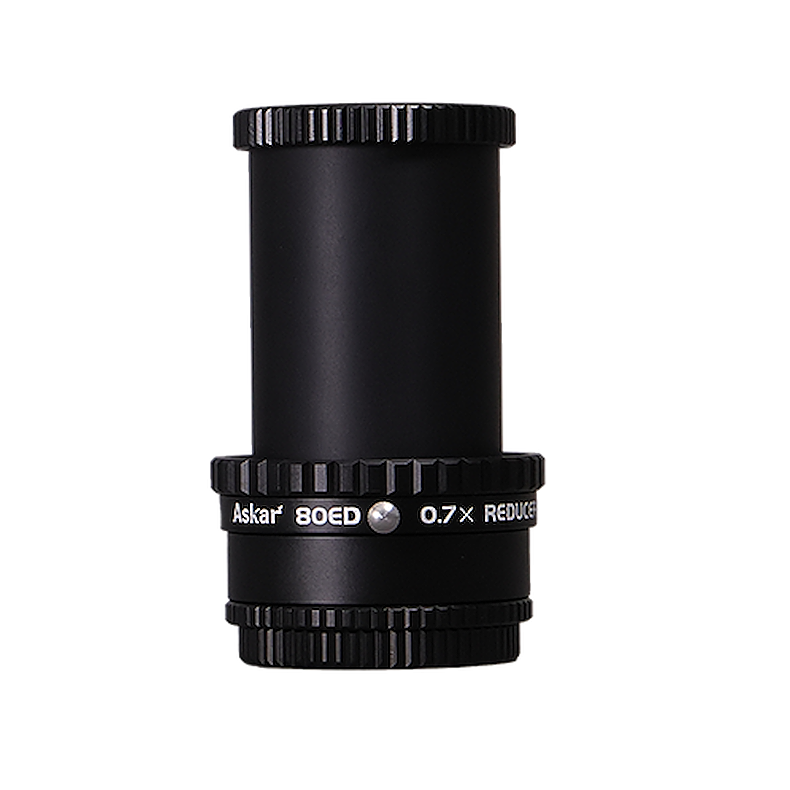

0.7x image reducer designed for the Askar 80ED
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Thursday, 26 June - Thursday, 3 July |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 26 June - Thursday, 3 July
✖
General features of the accessories for Askar 80ED
- Triplet design, with one piece of ED-glass
- Optimized for APS-C format
0.7x reducer
The 0.7x reducer reduces the Askar 80ED to f/4.9 while providing a field flattening correction.
Few telescopes of the same type on the market today are equipped with a reducer of this reduction factor. The shorter focal ratio provides an even wider field of view and faster exposure speeds, making it perfect for imaging large nebulae, star clusters, and faint, fast-moving celestial objects.
Features
The rear end adapter has a built-in 2-inch M48×0.75 filter thread, without the need for the additional filter box, allowing direct filter attachment.
The entire unit is CNC machined and comes with threaded metal caps on both ends to prevent dust when not in use.
ColourMagic filter (optional)
Threaded metal cap
Built-in 2" filter thread
360° rotator
Installation diagram
Specifications 0.7x reducer
(After attaching）80ED Focal Length: 392mm
（After coupling）80ED Focal ratio: f/4.9
Lens number: Triplet design (including an ED glass)
Image circle: APS-C
Back-focus: 55mm（From the base of the M48） male thread
Weight: 0.32kg
Rear thread type: M54×0.75
M48×0.75 (filter thread M48×0.75 inside)
Product diagram
Installation
0.7x reducer optical diagram
0.7x reducer spot diagram
Longitudinal aberration reducer 0.7x
Relative illumination diagram 0.7x reducer 0.7x
