Made of durable full metal construction, Seestar Th10 Tripod Head is compatible with most tripods and accessories on the market. It comes with a quick release plate that supports 3/8 ″ and 1/4 ″ screws, allowing for easy setup with a wide variety of devices.
With a self weight of 411 g, this tripod head can carry a large payload of 5 kg.

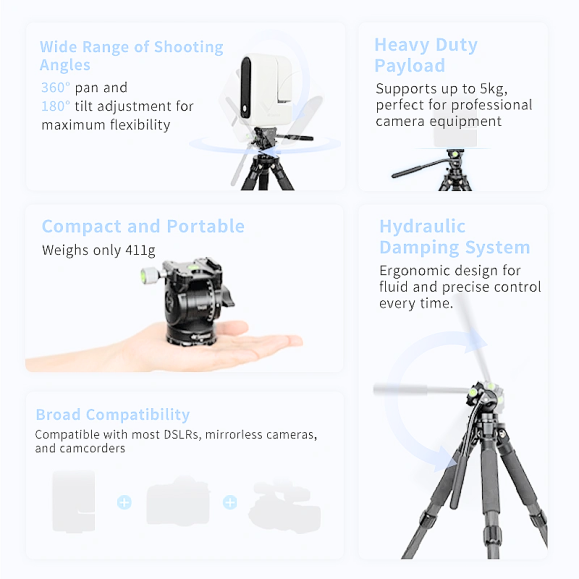

why choose the Seestar Th10 tripod head?
Compact and portable: weighs only 411g
Hydraulic damping system: ergonomic design for fluid and precise control every time.
Wide range of shooting angles: 360° horizontal and 180° tilt adjustment for maximum flexibility
Heavy-duty payload: supports up to 5kg, perfect for professional camera equipment
Wide compatibility: compatible with most DSLRs, mirrorless cameras and camcorders
Compact and portable

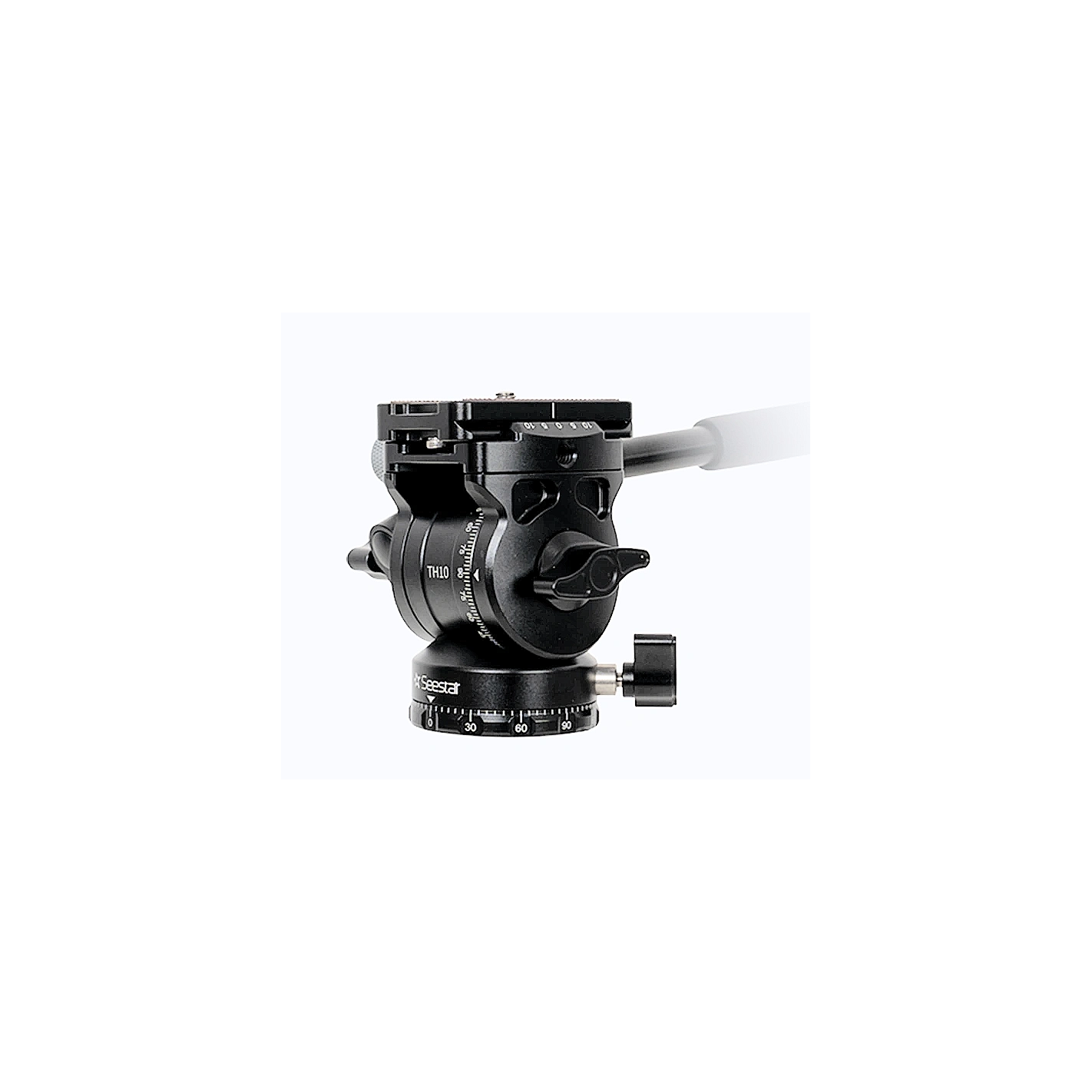

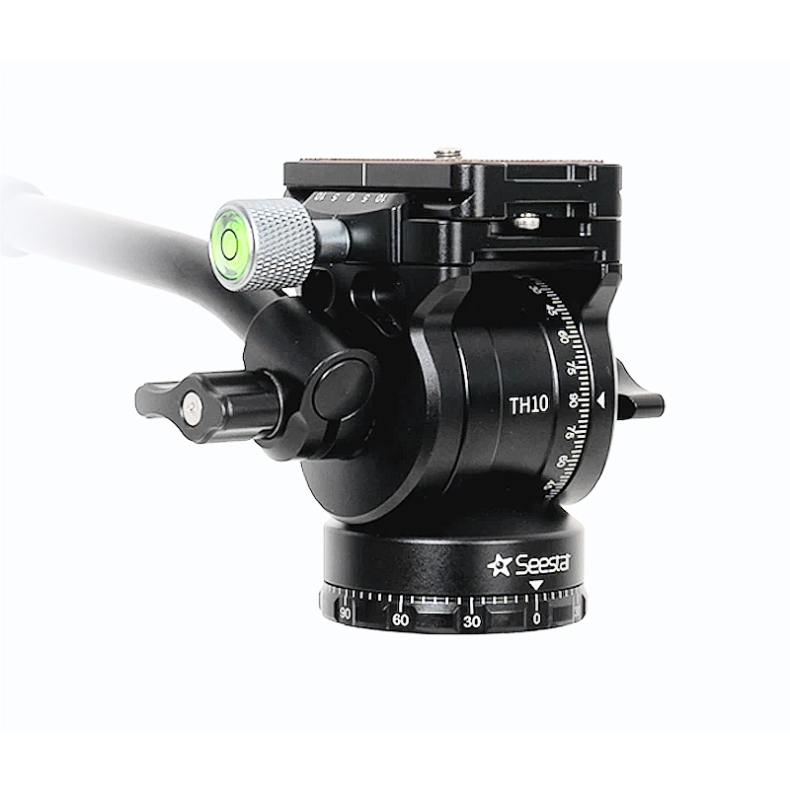

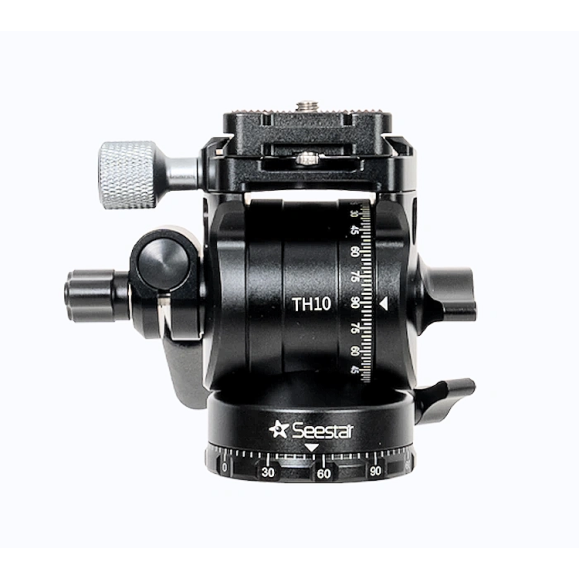

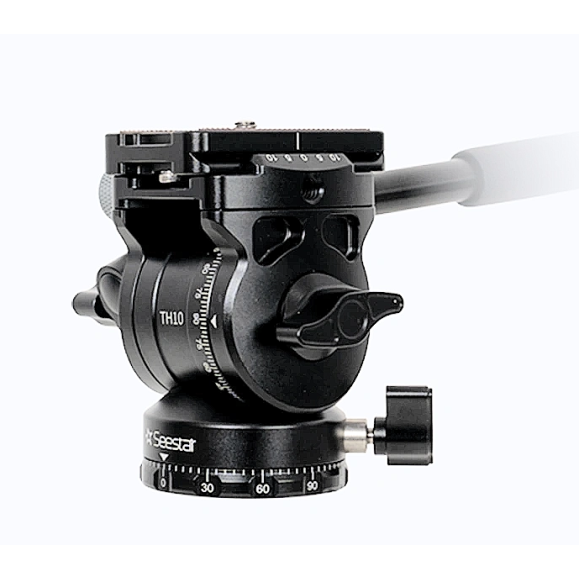

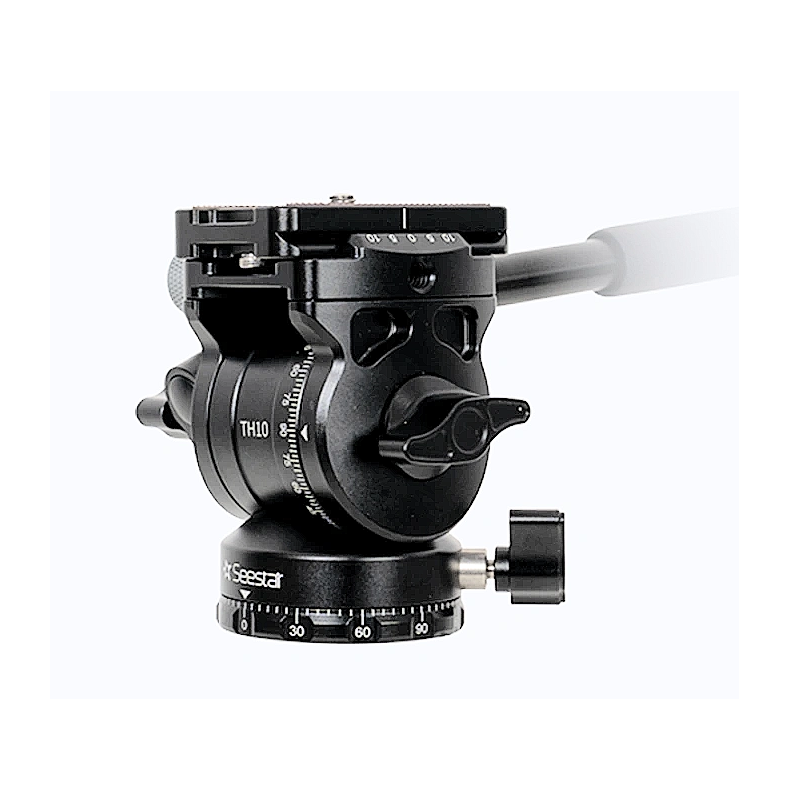

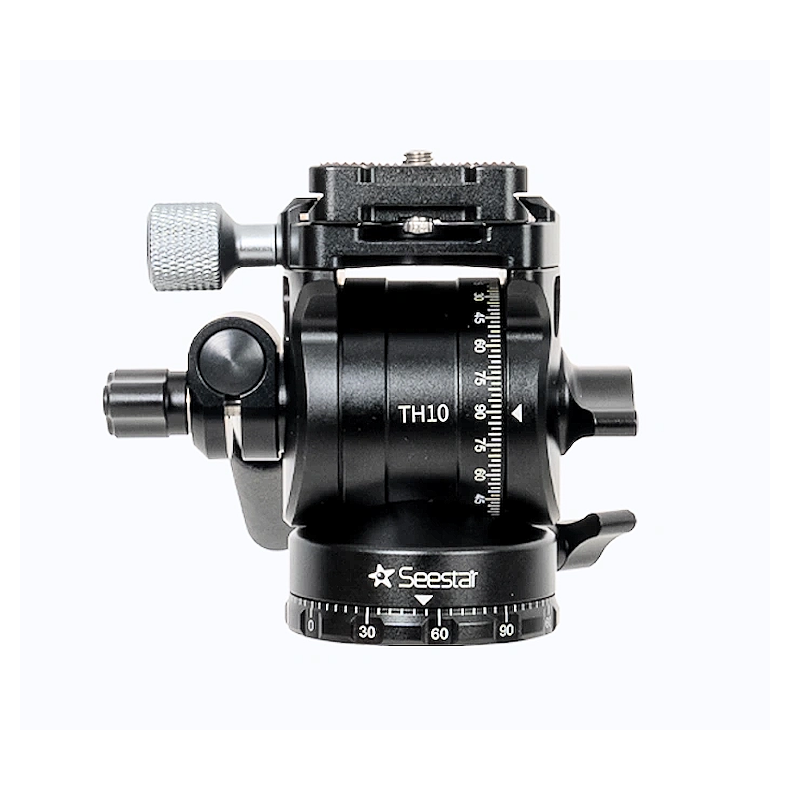

Seestar Th10 is a compact hydraulic tripod head, with a height of only 84mm and a weight of only 411g. The base diameter is 50 mm. Made of CNC machined aluminum alloy, it offers a premium feel and increased durability, all while being incredibly lightweight. Perfectly designed for use with the Smart Smart telescope in equatorial mode.
Hydraulic Damping System
With an ergonomic hydraulic damping system, the Seestar Th10 tripod head makes polar alignment smoother than you expect.
With just a light touch, you can easily adjust pan scale and tilt, making it perfect for beginners!
Wide range of angles
The Seestar Th10 tripod head supports 360° horizontal movement and -90° to 90° tilt, offering moderate damping for smooth adjustments and stable control. When used with Seestar, you can quickly calibrate angles by scale and switch to equatorial mode with a single click on the app. Intuitive knobs ensure secure locking, allowing effortless multi-shot shooting.
(360° PAN | -90° to 90° TILT)
Wide compatibility
The Seestar Th10 tripod head features a standard 1/4 ″ screw on top, compatible with most SLR cameras, mirrorless cameras, camcorders and more, with an included adapter for 3/8 ″ screws, making it perfect for the SeeStar series.
The base has a 3/8 ″ screw hole, ensuring compatibility with most tripods, monopods and desk stands.
With a high load capacity of up to 5kg, it is built to handle your equipment with ease.
Product Details
Sample Images
Connection Method
When using the Seestar S50 TC20 tripod with the Th10 tripod head, you will notice that the tripod head might hit the tripod leg at some certain angles. Therefore, this combo is not compatible with regions below 15° latitude.
Note: TC20 is the tripod that comes with the Seestar S50.
1- After unfolding the tripod, adjust each leg to the desired length and lock securely in place. Next, place the tripod body on a flat, stable surface. Align one leg approximately due north (in the northern hemisphere). Carefully observe the spirit level and adjust the height of the leg to ensure that the bubble is centered within the marked circular indicator. At this point, the tripod is set up correctly.
2- First, install Th10 by screwing the 1/4 ″ to 3/8 ″ threaded screw adapter into the Seestar, subsequently, use a coin wrench to tighten the adapter screws.
3- Attach the quick release plate, making sure it fits securely to the Seestar (See attached pictures for reference). Then tighten the screws on the quick release plate to ensure proper polar alignment during the setup process.
4- Tighten the horizontal adjustment knob on the bottom of the TH10 and attach the TH10 to the tripod. Then, loosen the knob and keep the doublet tail groove pointing north, which should align with the north-facing support leg. Finally, tighten the knob.
5- Install the Seestar device on the Th10, aligning it with the Dovetail groove. Tighten the knob firmly to ensure that the device is secure. Once confirmed, the installation is complete.
The Seestar Th10 hydraulic tripod head allows the Seestar S50 and S30 to operate in Equatorial (EQ) mode.
Note: When using the Seestar S50 in equatorial (EQ) mode with the Th10 tripod head and TC20 tripod (included with the Seestar S50), be aware that the equipment may collide with the tripod legs at certain angles. Therefore, this configuration is not recommended for use in regions below 15° latitude.
Structural dimension diagram
Product Contents
