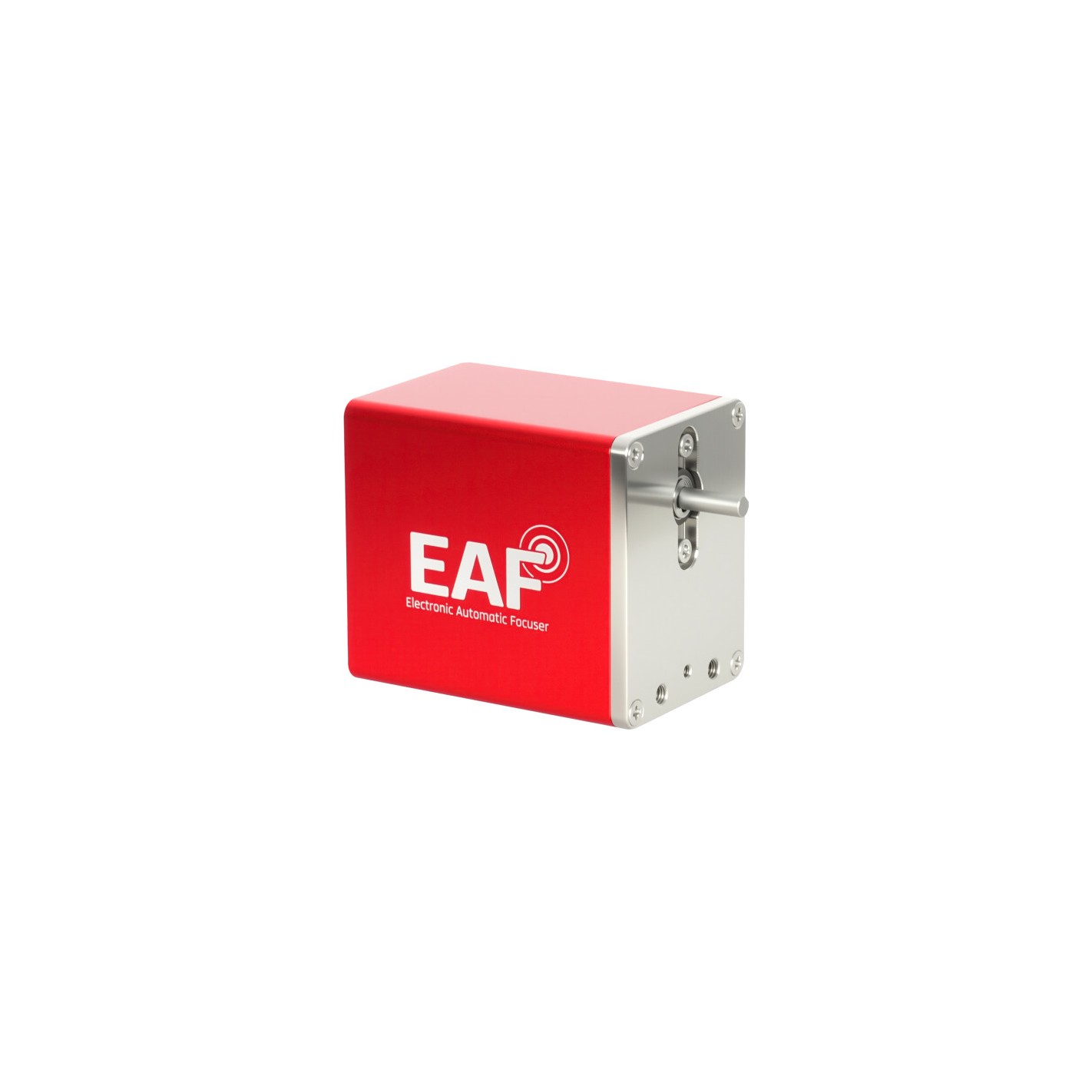

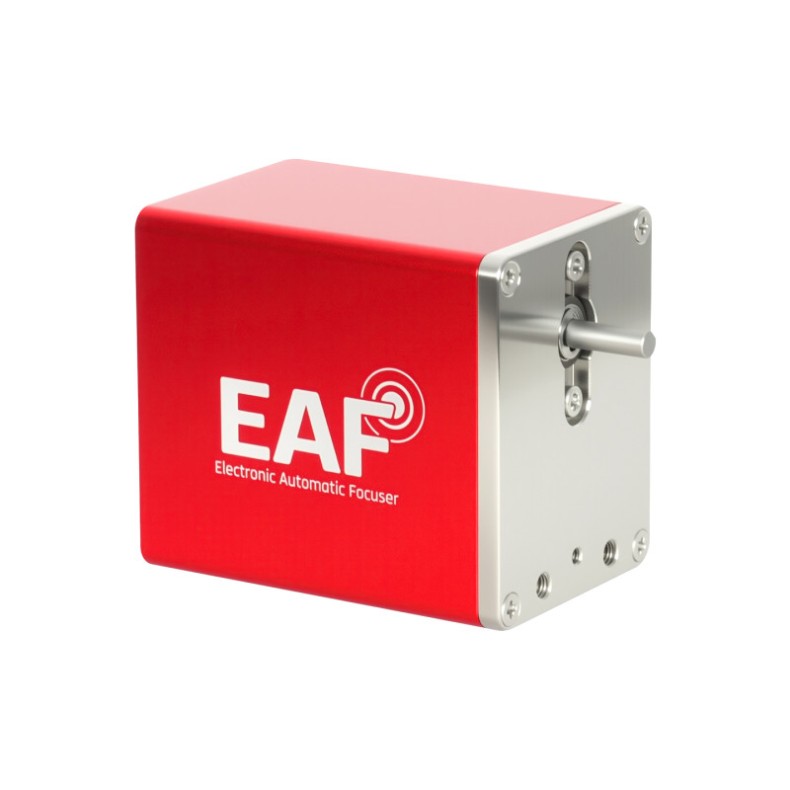

Focusing motor ZWO EAF-N

To expand its range of accessories for its cameras and the needs of astrophotographers, ZWO offers a compact focusing motor. Called EAF (Electronical Automatic Focuser), it can be installed on a wide range of instruments using a rigid mounting bracket and controlled with most current software or with the ASIAIR box.

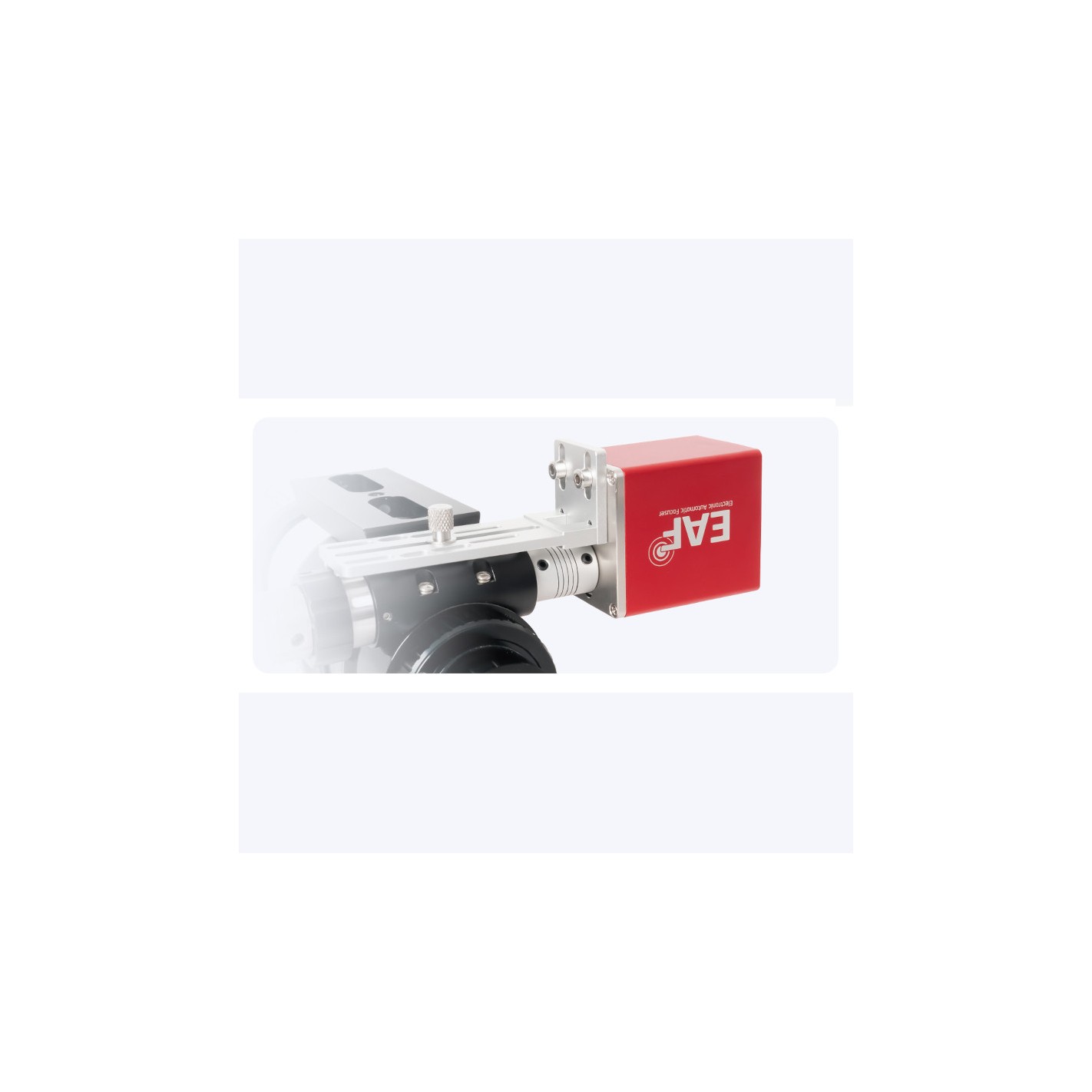

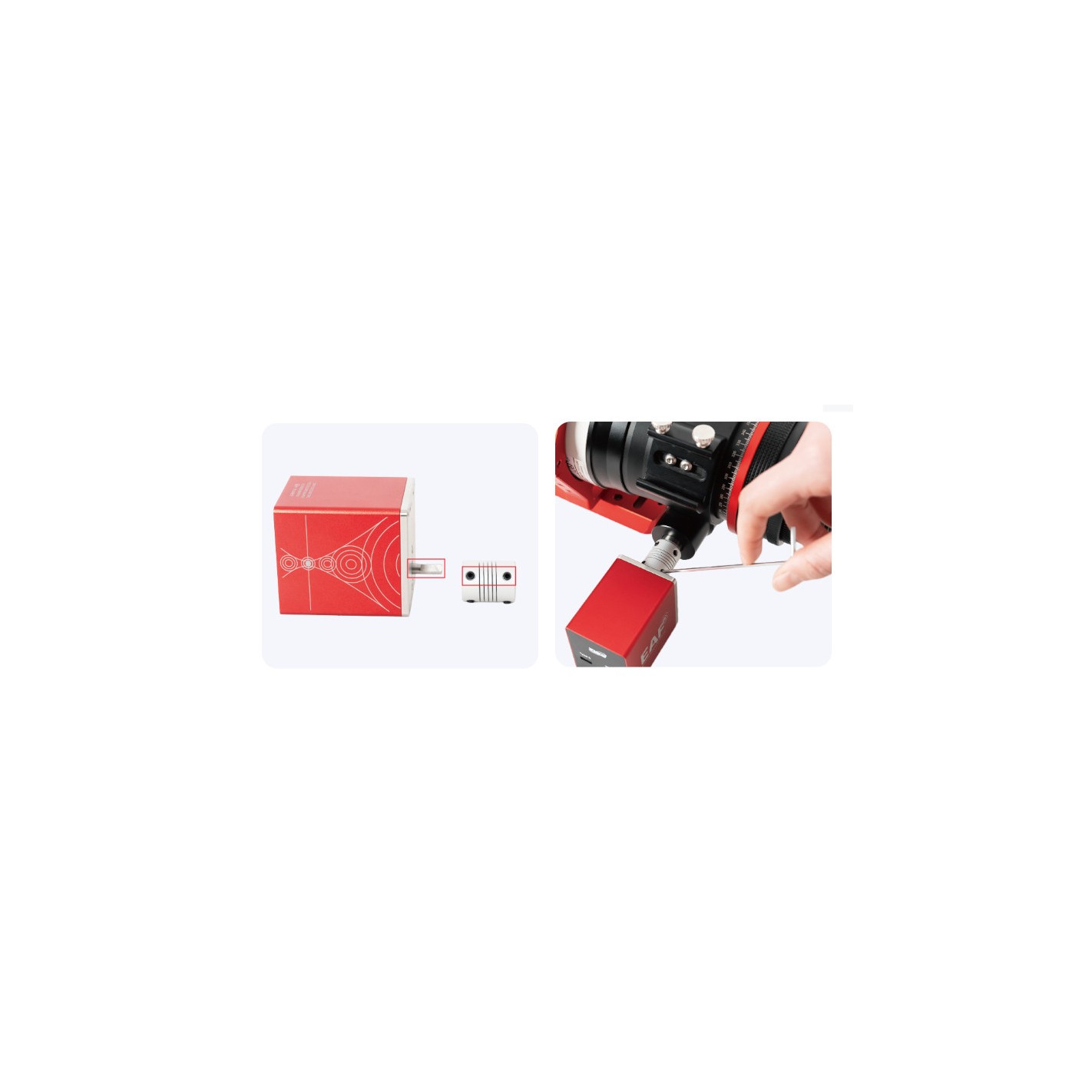

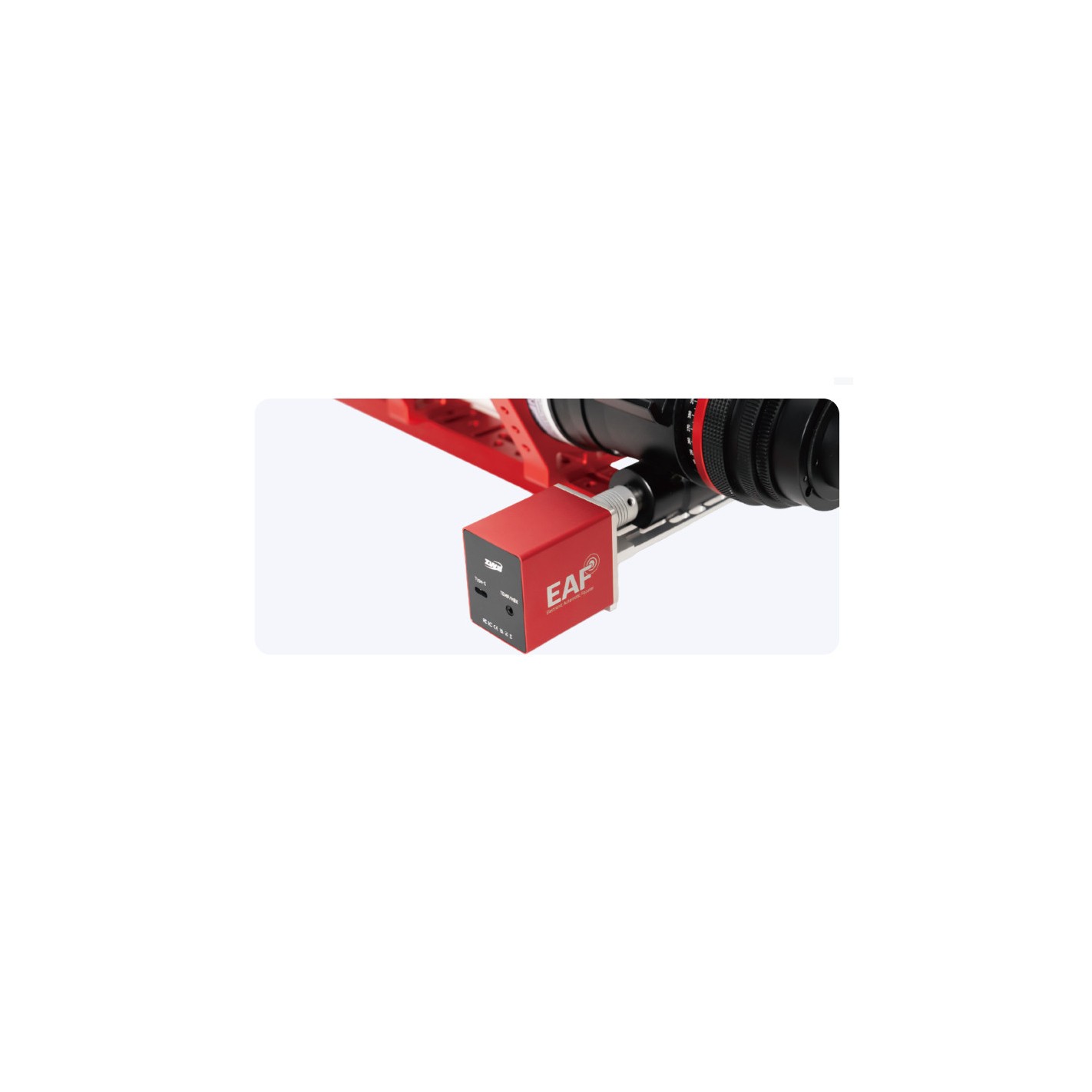

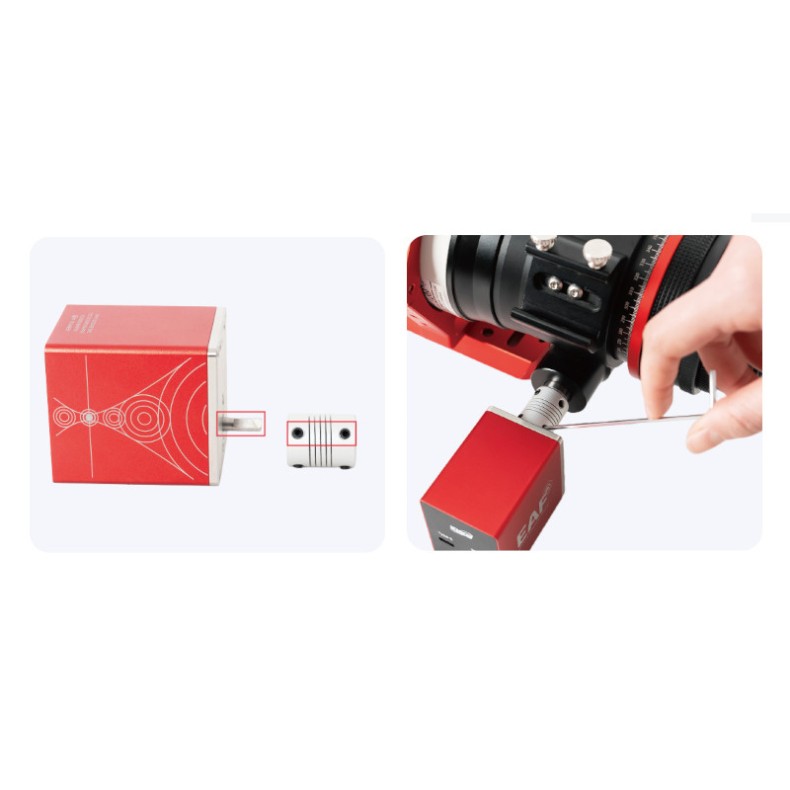

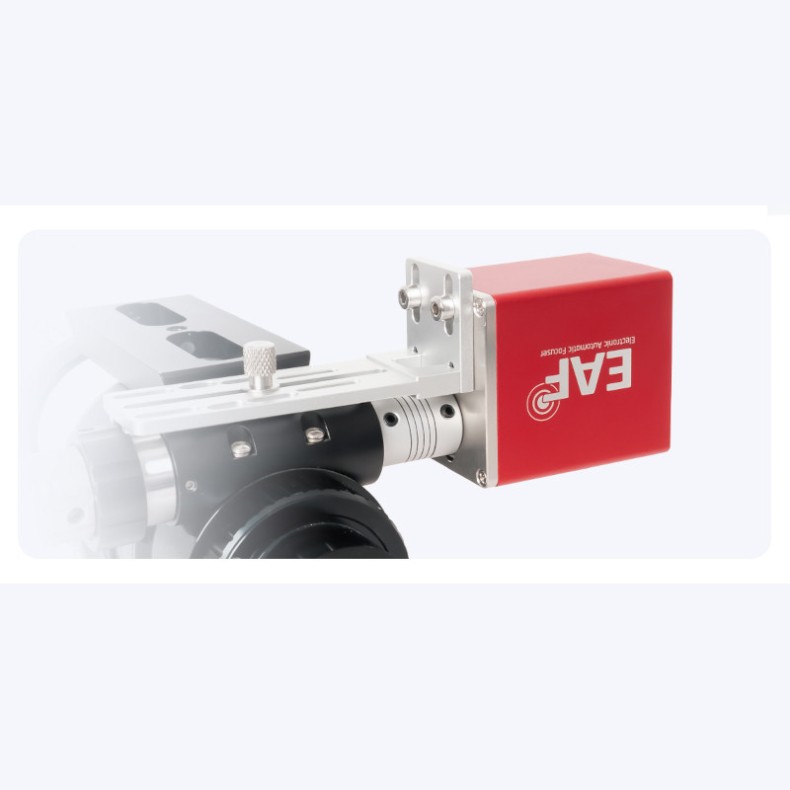

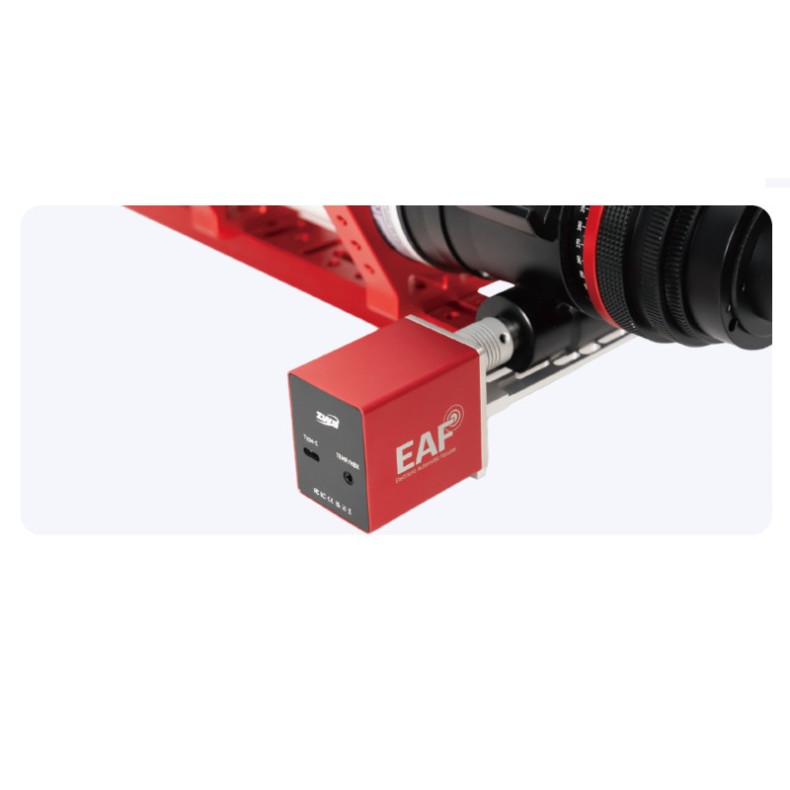

Good focusing is crucial to obtain a quality image. Motorized focusing provides greater precision and avoids touching the optical tube (which causes annoying vibrations, especially at high magnifications). Thanks to a fast, precise and compact system, ZWO allows you to significantly improve the quality of your images, an essential plus for planetary or deep sky astrophotography. An L-shaped aluminum bracket is perforated with several strips and holes, allowing the EAF to be attached to a wide range of eyepiece holders. Four couplers are supplied to fit different axes of existing eyepiece holders (at the focusing wheel end).

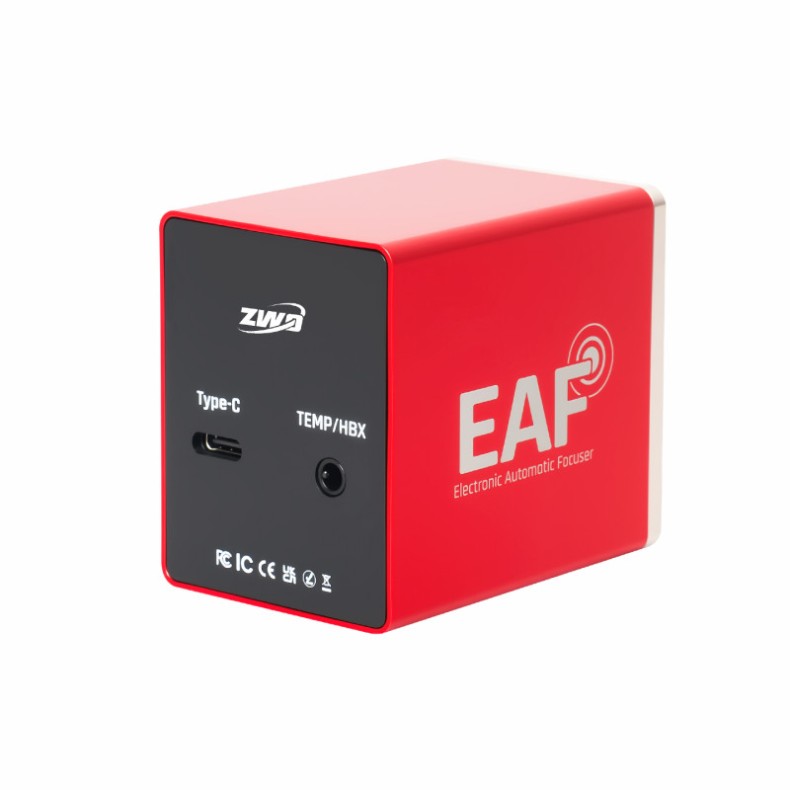

View of the adjustment motor ZWO EAF, Pro version on the left and -N version on the right

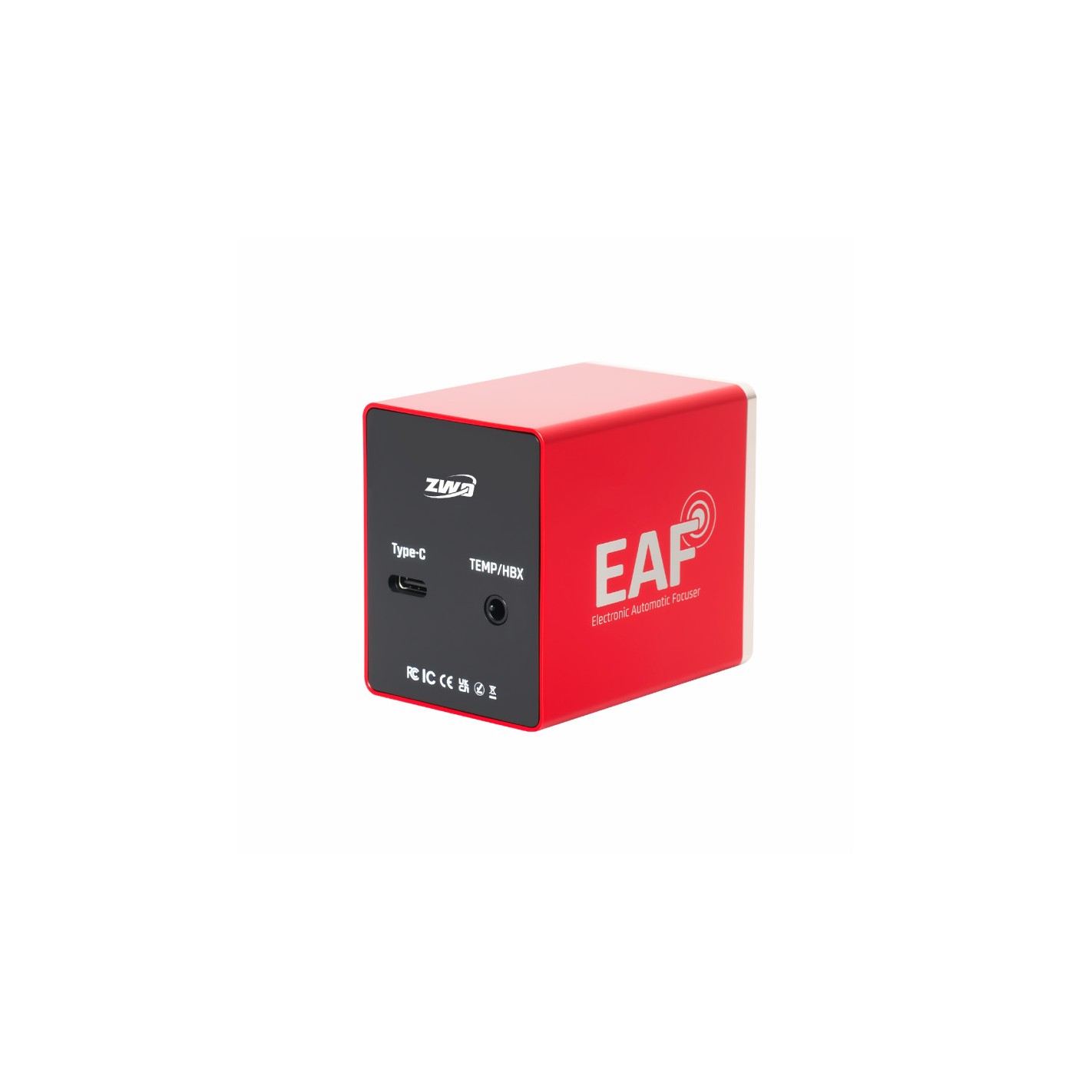

The stepper motor used provides a rotation of up to 7.5°/sec for high focusing accuracy, and withstands loads of up to 5 kg. Connection to your PC or ASIAIR is via a USB2.0 cable; the new -N version is -C type. The EAF is compatible with ASCOM and INDI for autofocusing via a wide range of software. Optionally, a control card and a temperature sensor can be purchased.

Warning: If you connect the EAF-N with its USB Type-C port to the ASIAIR's Type-C output, you will not have enough power to power it. The ASIAIR port is only useful for data transmission.

Specifications: Stepper motor ZWO EAF-N

Resolution: 7.5°/sec - Ratio: 1:128

Load capacity: 5kg

Coupling shaft: 4mm

Data transfer: USB2.0 type C to A port

Power supply 5V (500mA): via USB port

Auxiliary port: optional connection for control panel / thermal probe

Dimensions: 41mm x 52mm x 70,3mm

Weight: 215g

Dimensions and dimensions of the focusing motor ZWO EAF-N
