SkyWatcher Field Flattener corrector for Esprit 120ED and 120EDX

SkyWatcher Field Flattener Field Corrector for Esprit 120ED

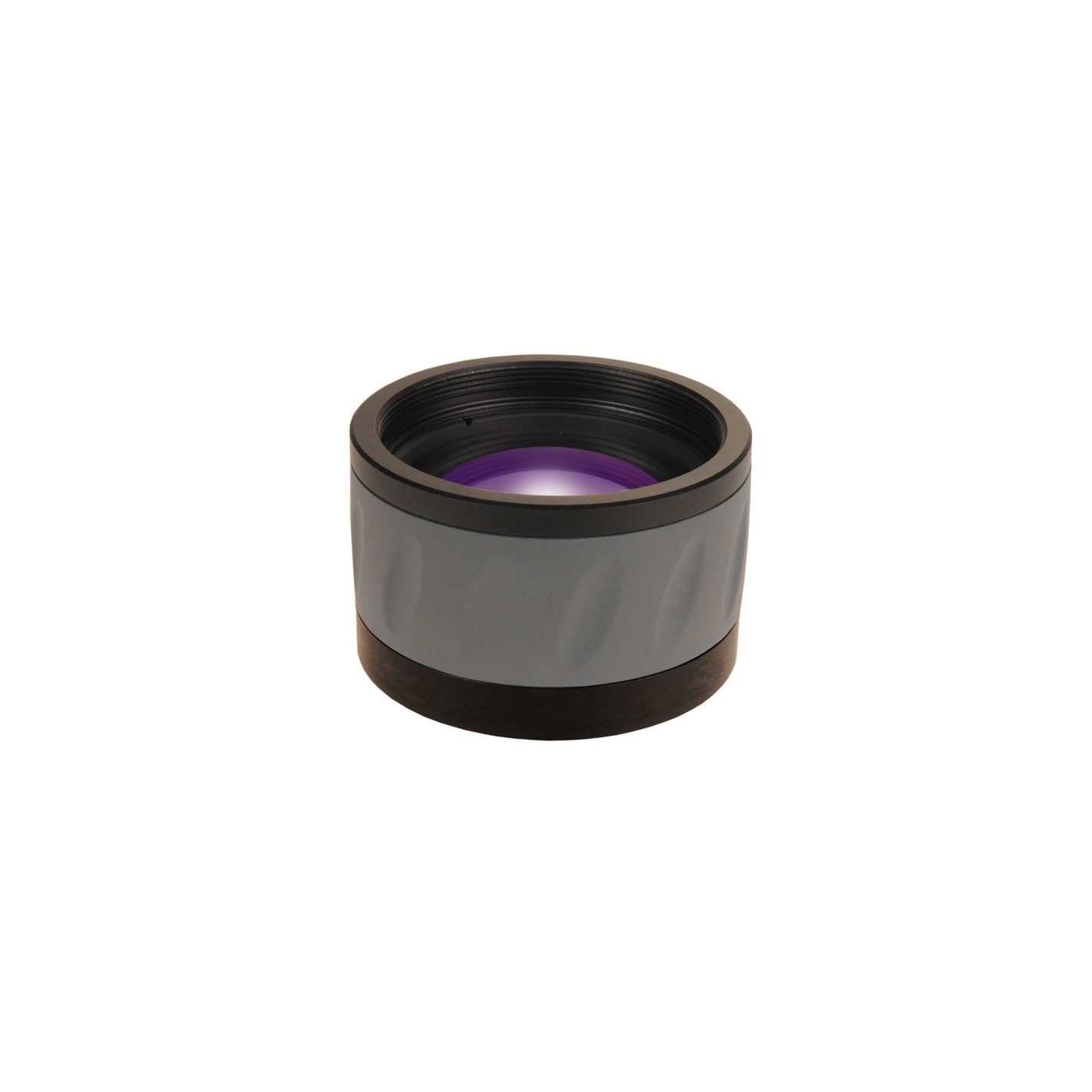

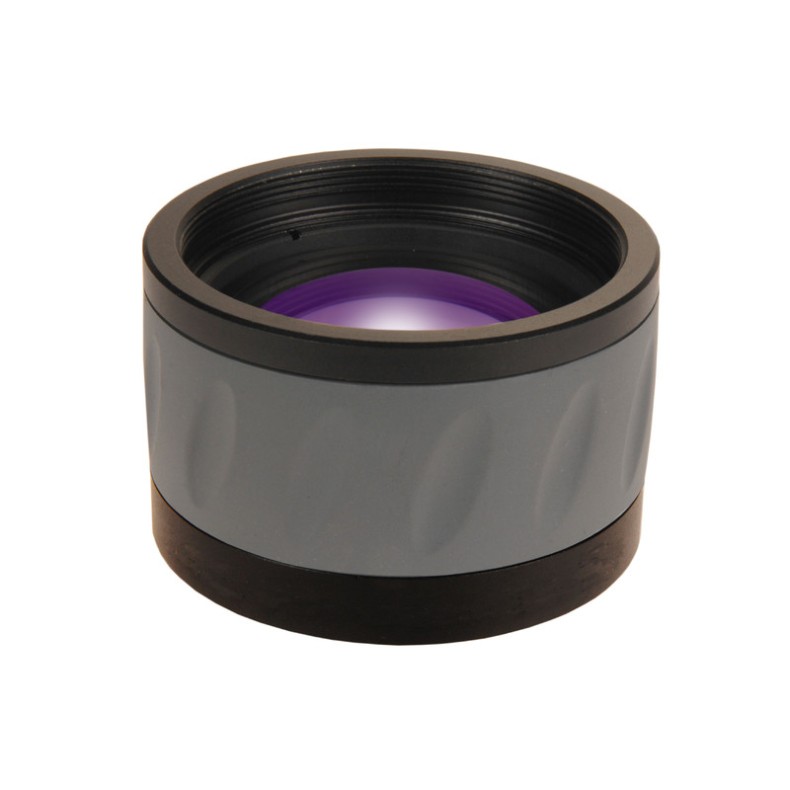

Turn your SkyWatcher Esprit 120ED f/7 apochromatic SkyWatcher telescope into a high-performance astrograph with this Field Flattener designed specifically for this model. The corrector eliminates the telescope's field curvature, delivering perfectly sharp, in-focus images right to the edges of the sensor, even with full-format cameras.

With correction and uniform illumination up to 42 mm in diameter, this accessory enables professional results with both CCD/CMOS astronomical cameras and DSLR or mirrorless cameras. Its optical design does not change the original focal length of the Esprit 120ED, maintaining the tube's characteristic brightness and contrast.

The Field Flattener has an M74x1 female thread for direct connection to the telescope focuser and an M48x0.75 male thread (2" filter thread) on the camera side, which facilitates the use of standard filters without the need for additional rings. The working distance of 55 mm ensures a perfect fit with T-rings and common accessories for DSLR or astronomical cameras.

Manufactured with precision optics and multi-coating treatment, this corrector guarantees excellent light transmission, high contrast images and sharp stars right to the edge of the field.

⚙️ Technical Specifications

• Type: Flat field corrector for astrophotography

• Compatible telescope: SkyWatcher Esprit 120ED (f/7 triplet apochromatic)

• Field corrected and illuminated: 42 mm diameter

• Telescope side thread: M74x1 (female)

• Thread on camera side: M48x0.75 (male, compatible with 2" filters)

• Working distance: 55 mm

• Compatibility: CCD, CMOS, DSLR and mirrorless cameras up to full-frame format

🌌 In brief

The SkyWatcher Field Flattener for Esprit 120ED is the perfect complement to achieve flat field, high quality images, taking advantage of the full optical potential of the Esprit 120ED. Ideal for deep sky astrophotography with large sensors and full-format cameras.
