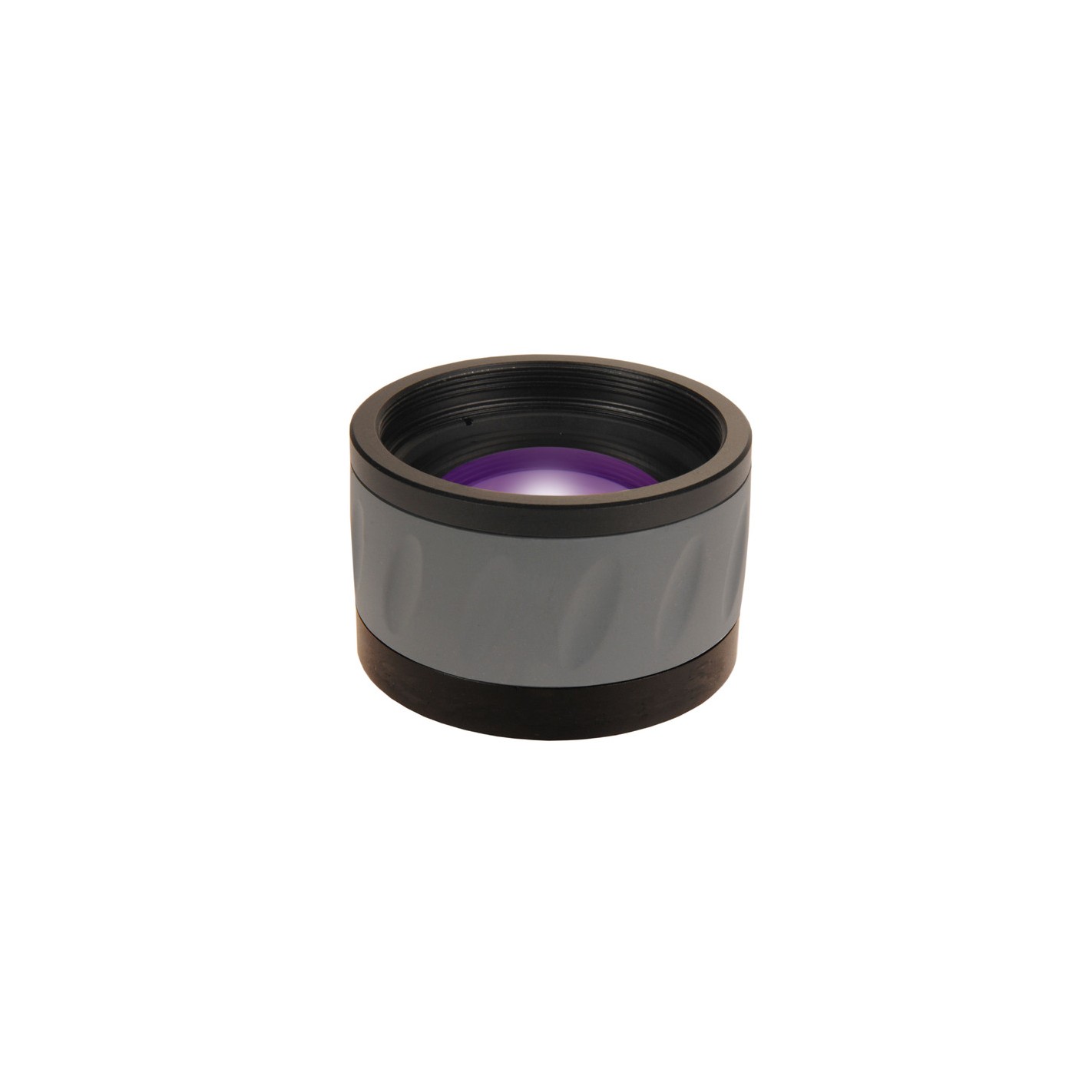

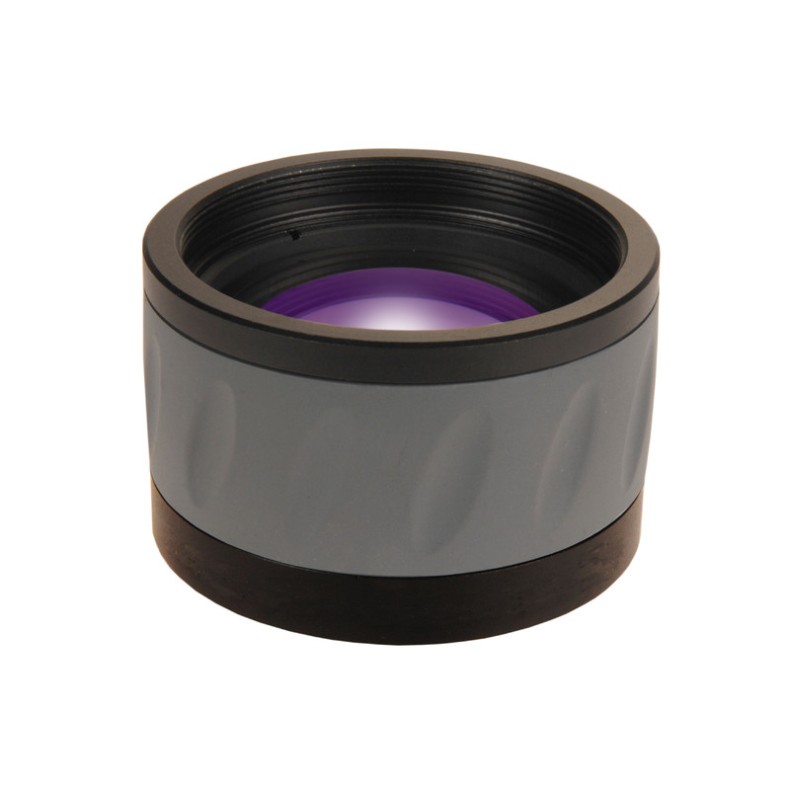

SkyWatcher Field Flattener Corrector for Esprit 150ED and 150EDX
SkyWatcher Field Flattener corrector for Esprit 150ED
Turn your SkyWatcher Esprit 150ED f/7 apochromatic SkyWatcher telescope into a high-performance professional astrograph with this specifically designed Field Flattener. This optical accessory eliminates the telescope's natural field curvature, providing sharp, in-focus images right to the edges even with full-format sensors.
Thanks to its correction and uniform illumination up to 42 mm in diameter, the corrector ensures exceptional results in deep-sky astrophotography with CCD/CMOS, DSLR or mirrorless astronomical cameras. The design maintains the original focal length of the Esprit 150ED, preserving the f/7 focal ratio and its excellent light gathering capability.
The corrector features a female M74x1 thread for direct connection to the telescope focuser, and a male M48x0.75 thread (2" filter thread) on the camera side, allowing for easy attachment of standard filters without changing the focusing distance. The 55mm working distance ensures a perfect fit with common T-rings and adapters for DSLR or astronomical cameras.
Built with precision optics and multi-coated optics, this SkyWatcher Field Flattener guarantees optimum light transmission, high contrast and flawless stellar reproduction right to the edge of the field.
⚙️ Technical Specifications
-
Type: Flat field flattener for astrophotography
-
Compatible telescope: SkyWatcher Esprit 150ED (f/7 apochromatic triplet)
-
Corrected and illuminated field: 42 mm diameter
-
Telescope side thread: M74x1 (female)
-
Thread on camera side: M48x0.75 (male, compatible with 2" filters)
-
Working distance: 55 mm
-
Compatibility: CCD, CMOS, DSLR and mirrorless cameras up to full-frame format
🌌 In brief
The SkyWatcher Field Flattener for Esprit 150ED is the essential accessory for flat field imaging, without distortion or elongated stars, exploiting the full optical potential of the Esprit 150ED. Ideal for advanced and large format astrophotography, with professional results from the first exposure.
SkyWatcher Field Flattening Corrector for Esprit 150ED and 150EDX
