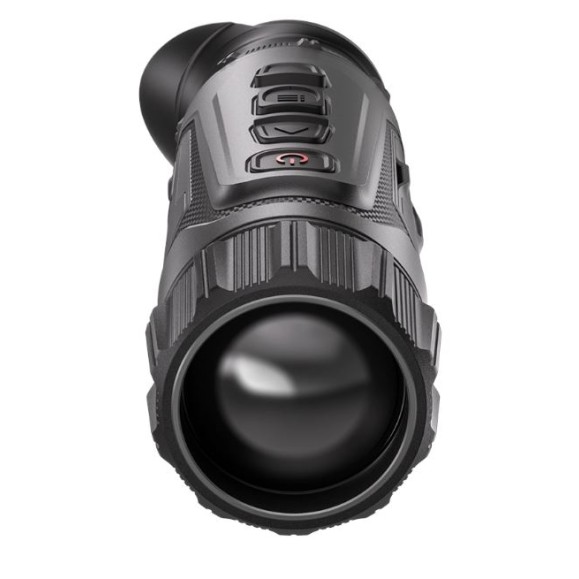

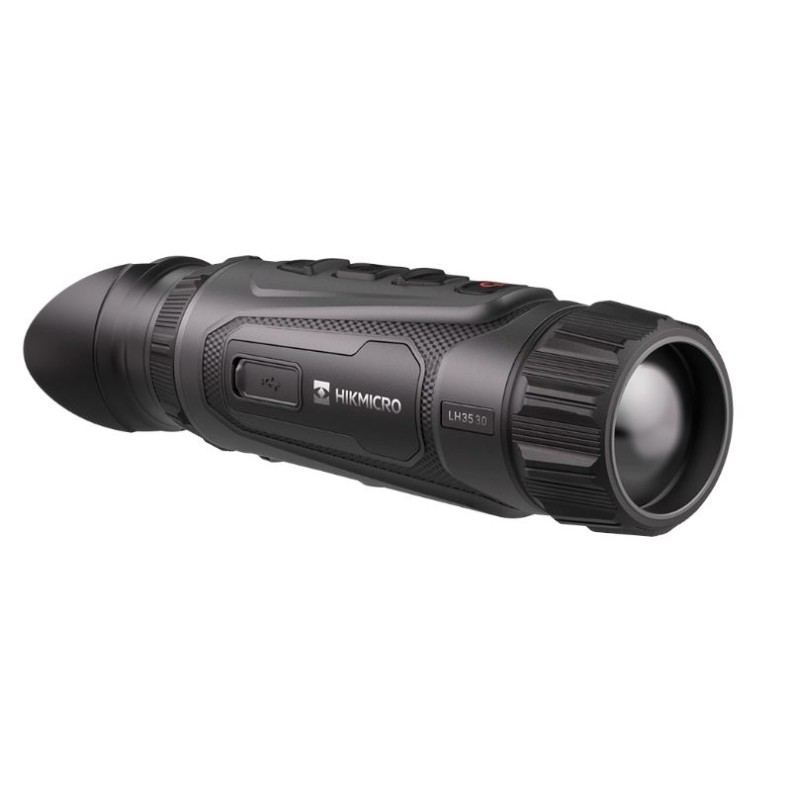

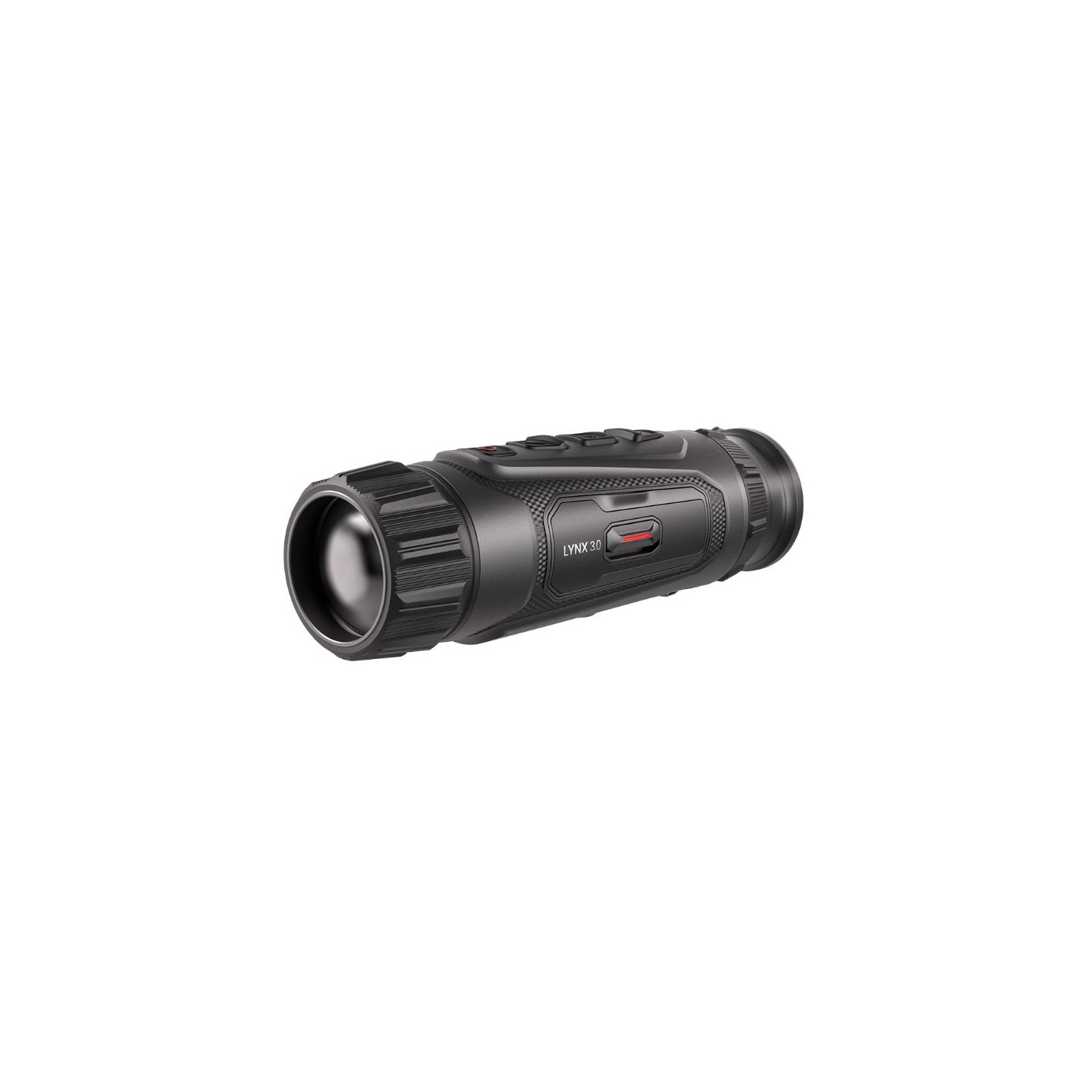

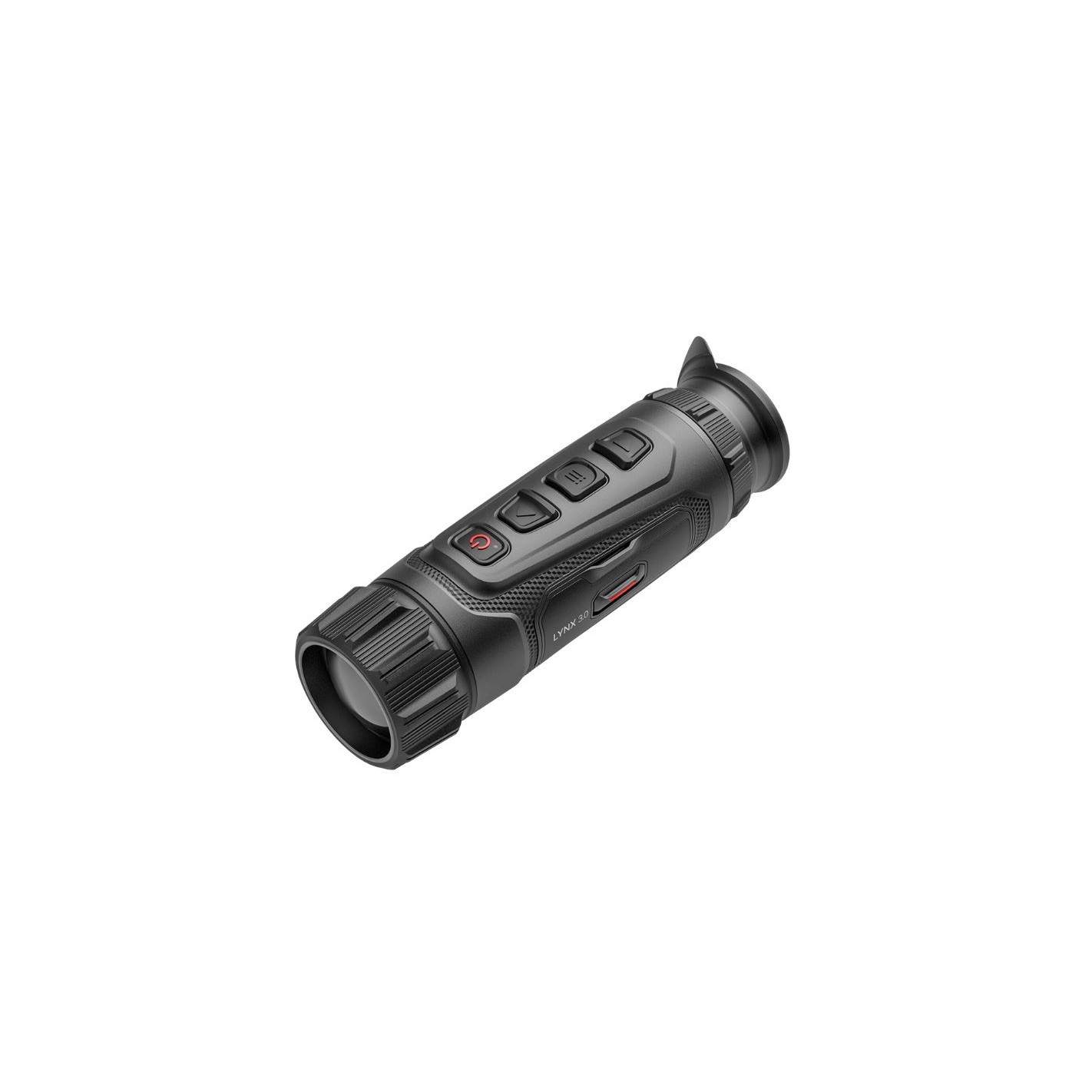

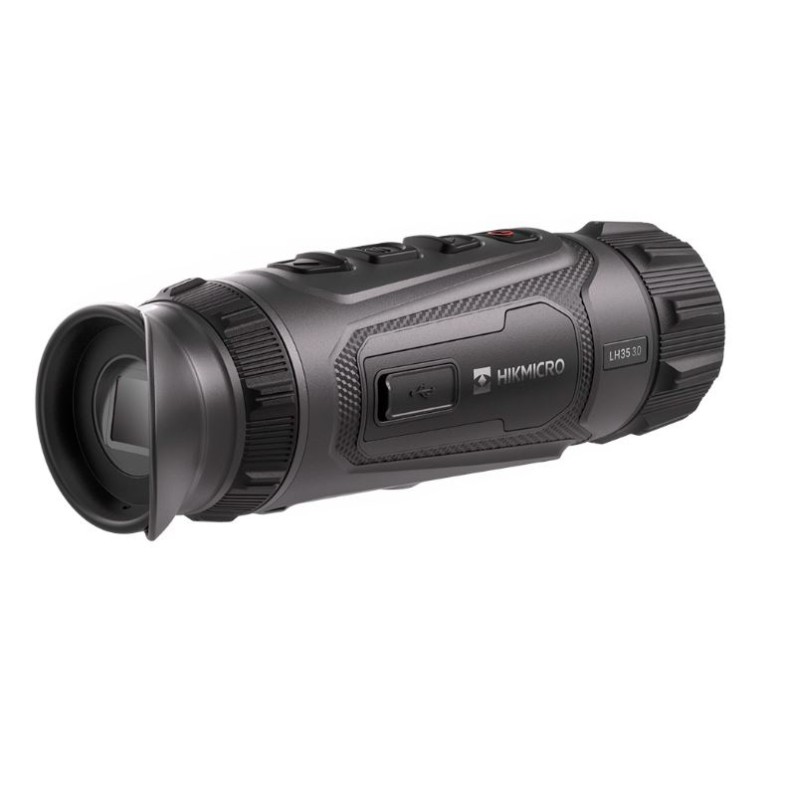

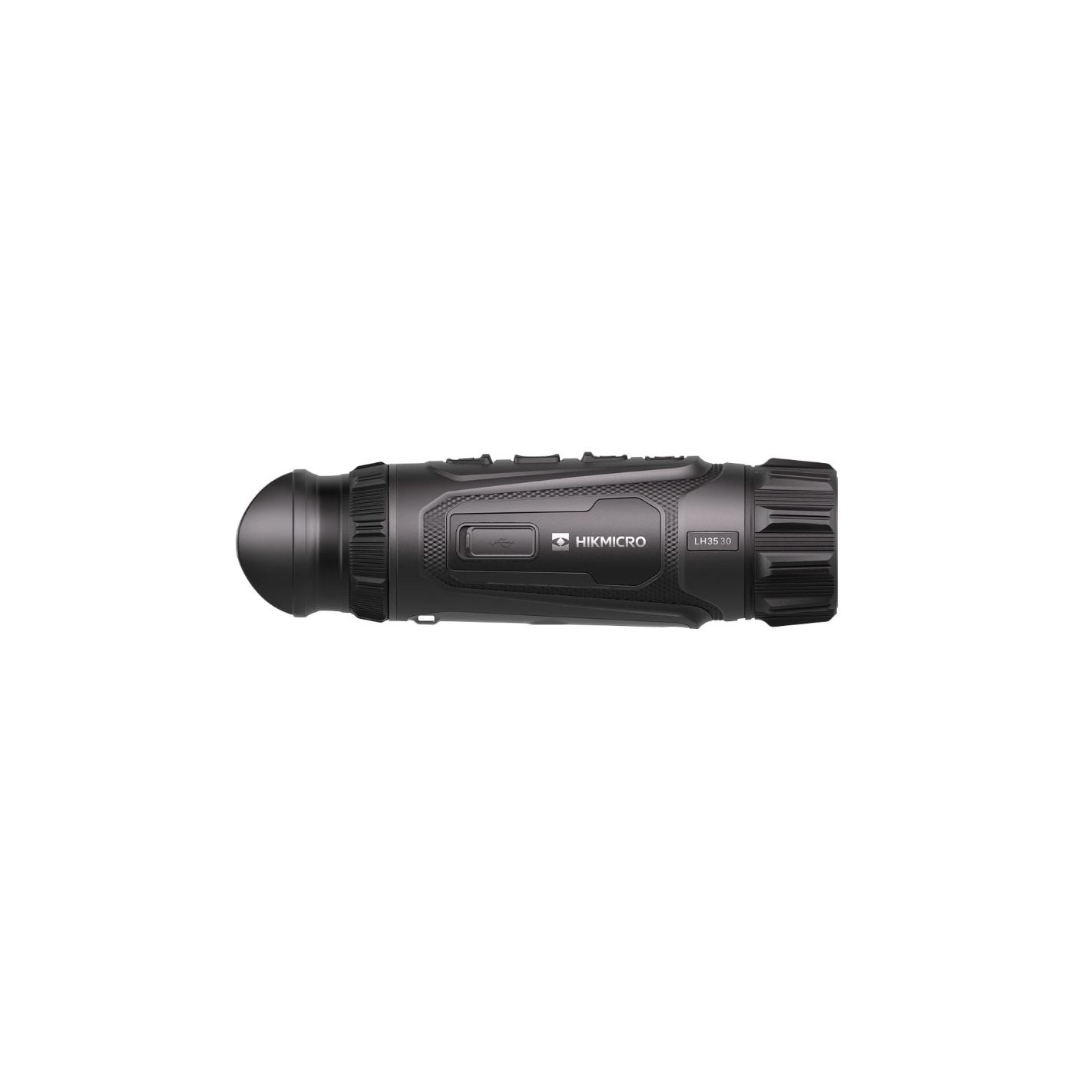

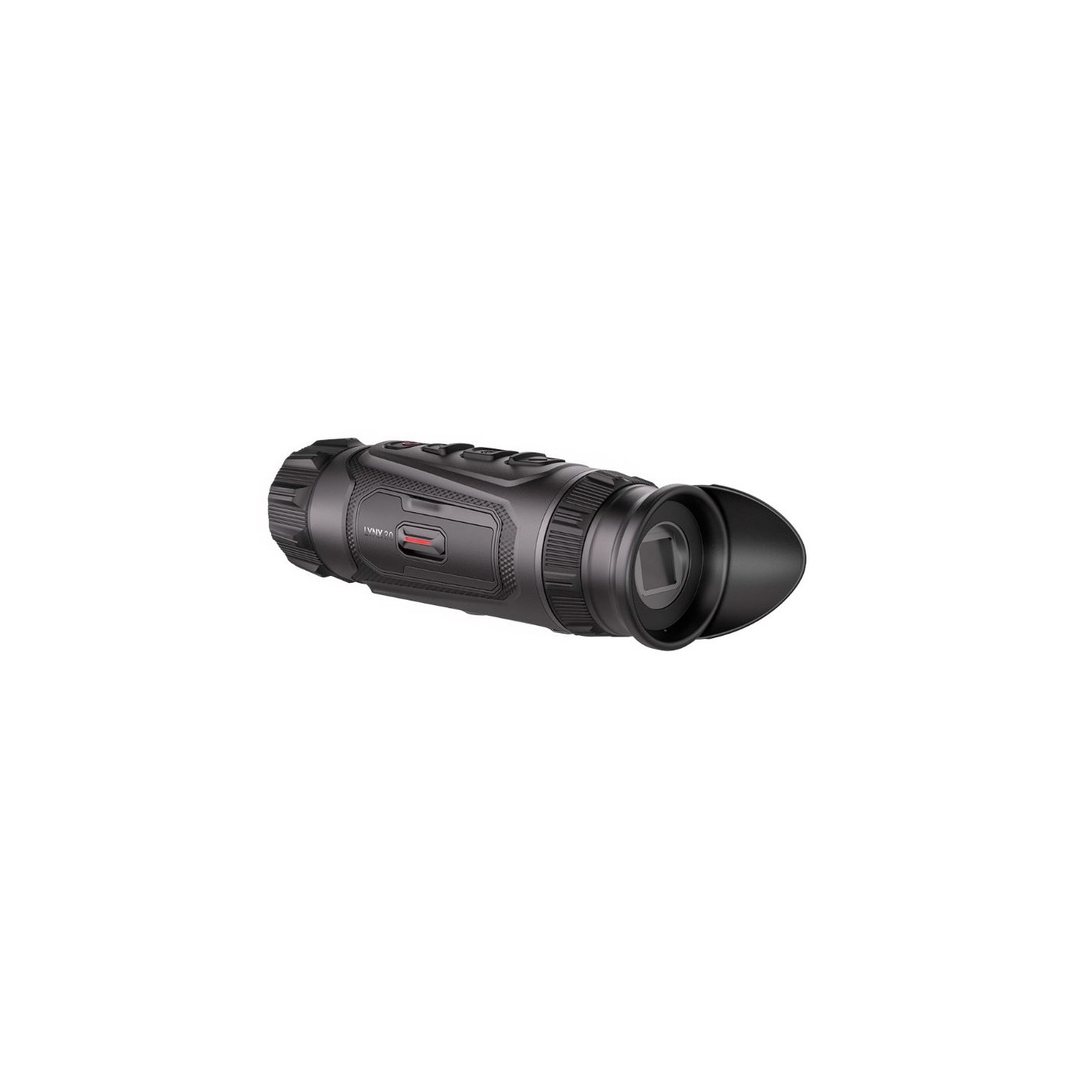

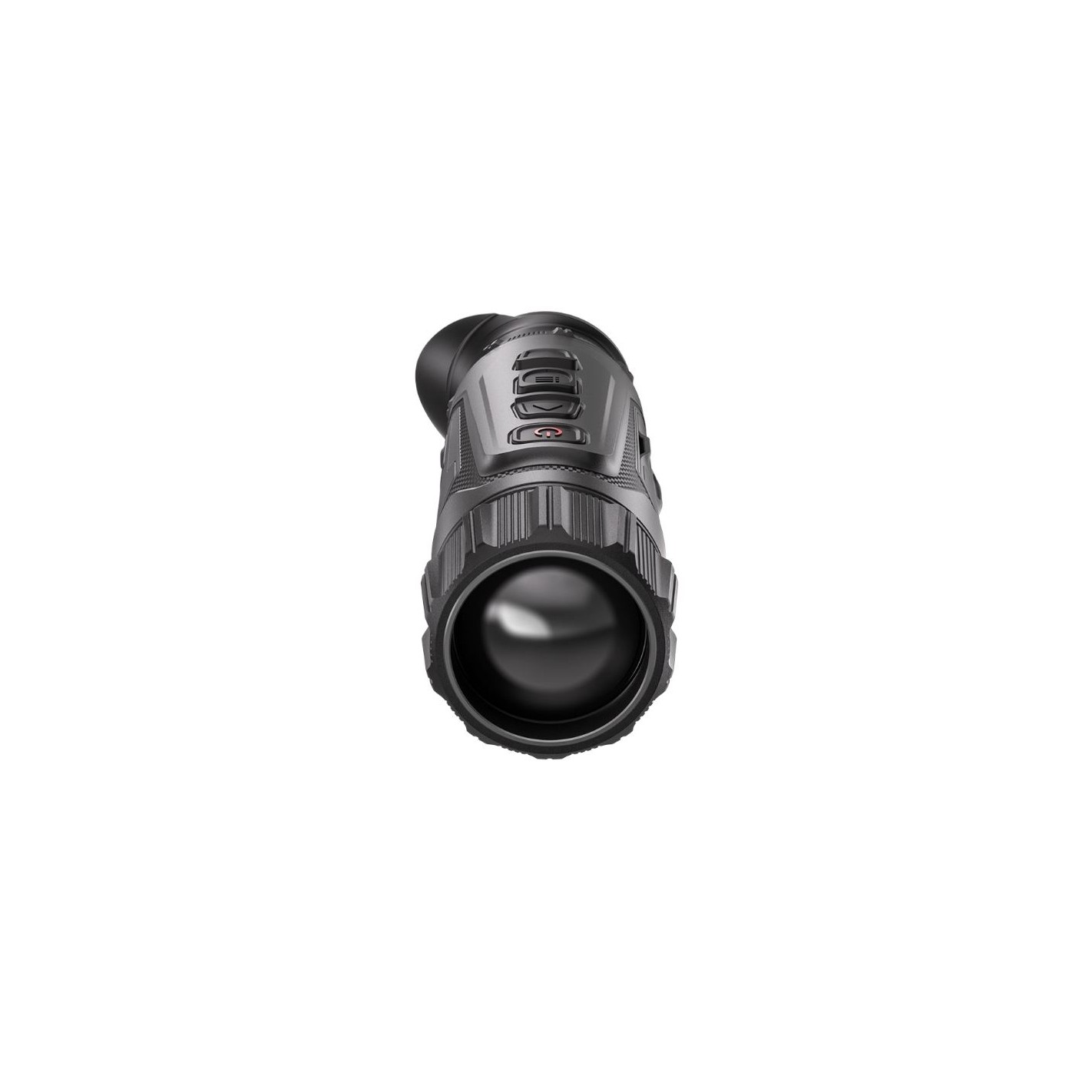

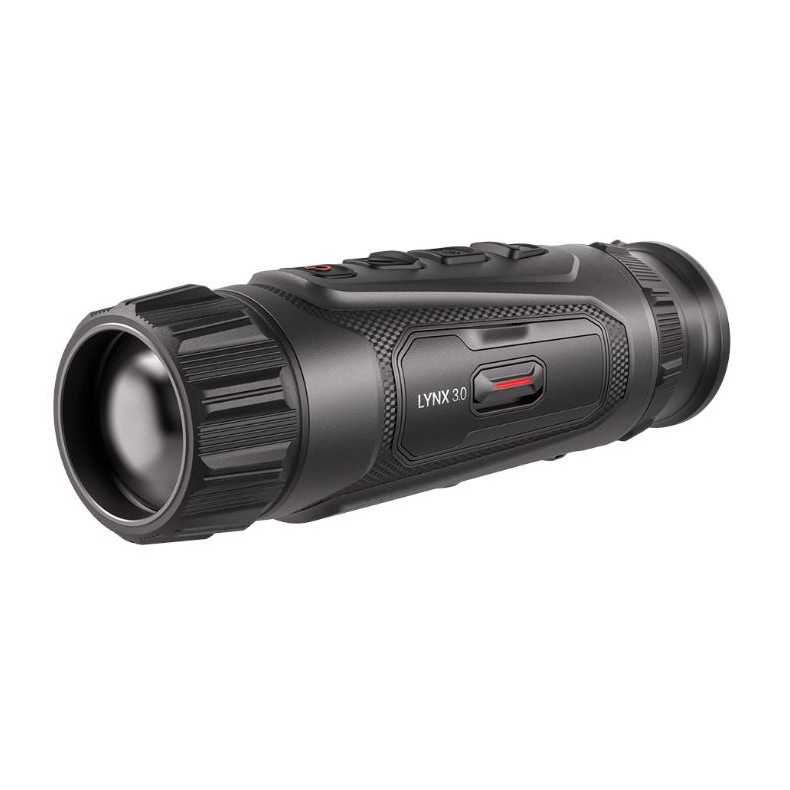

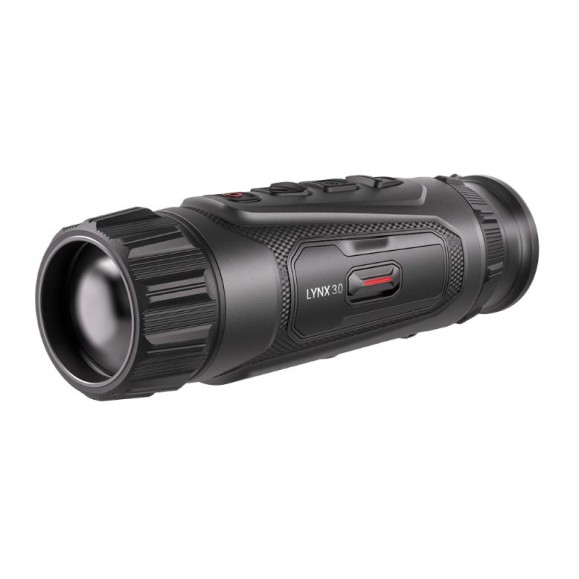

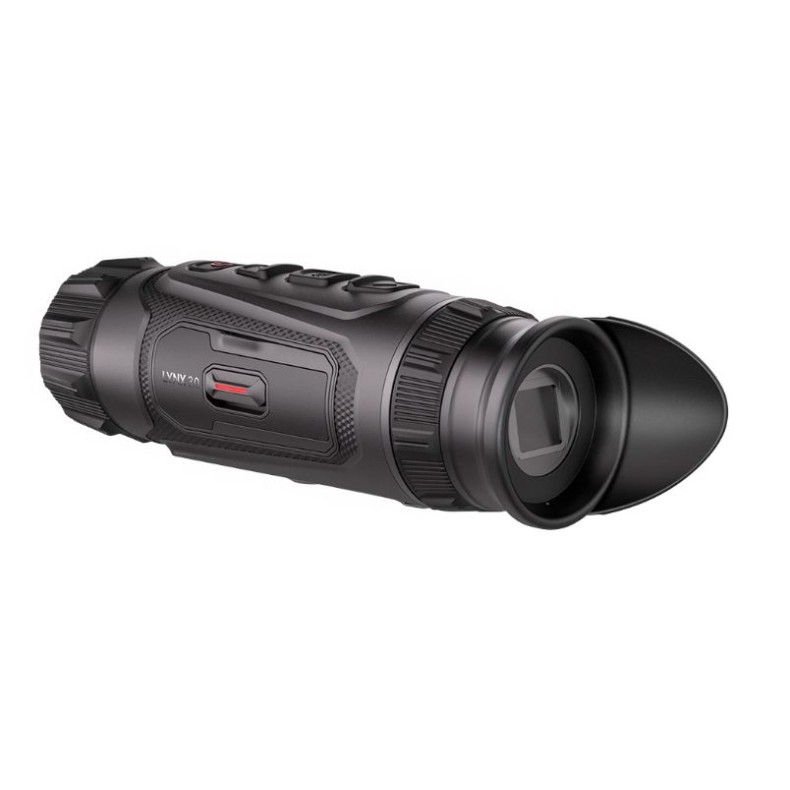

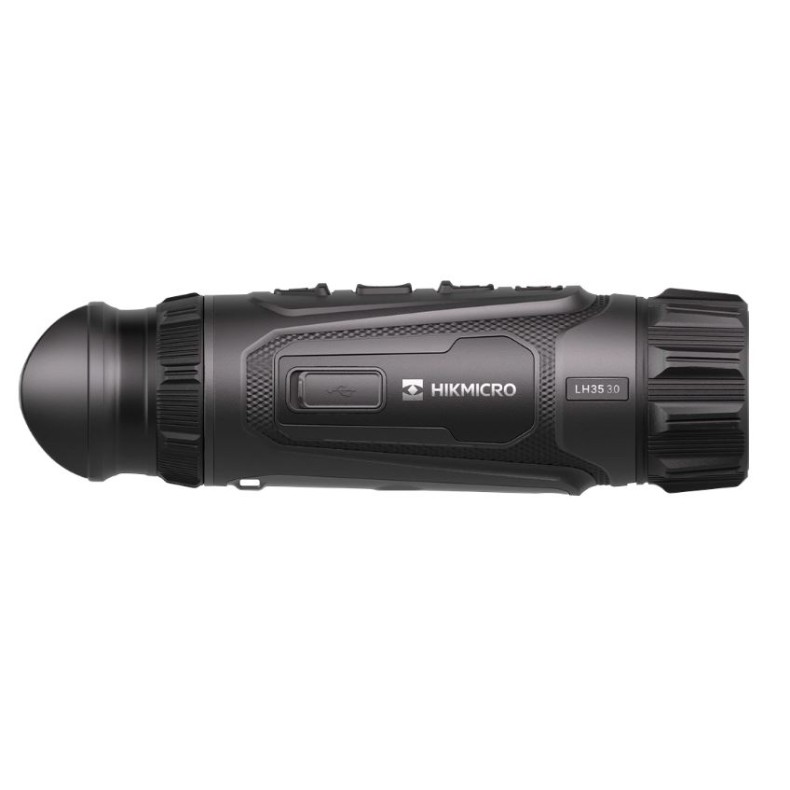

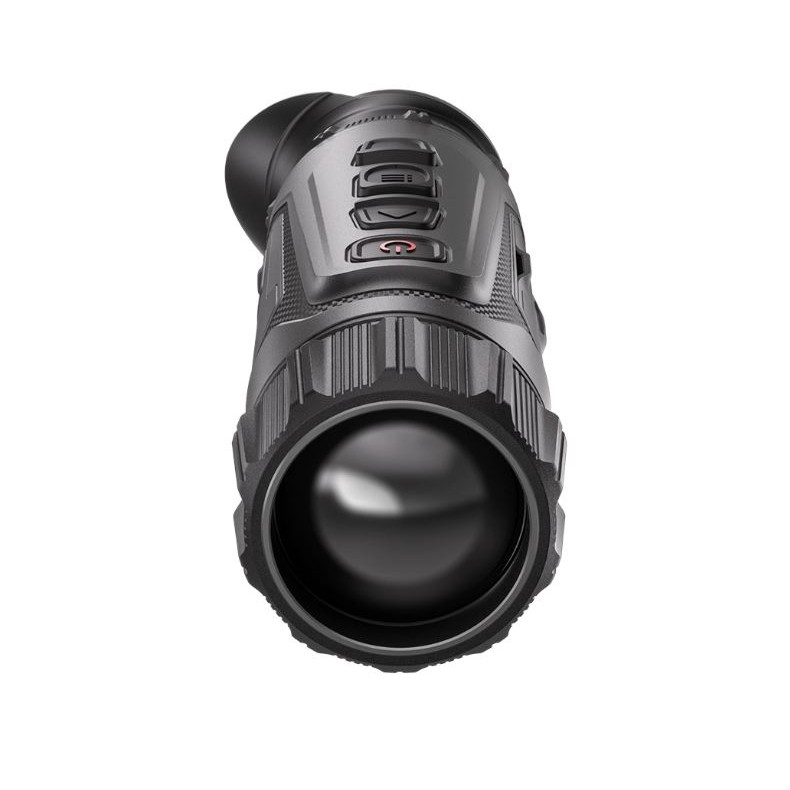

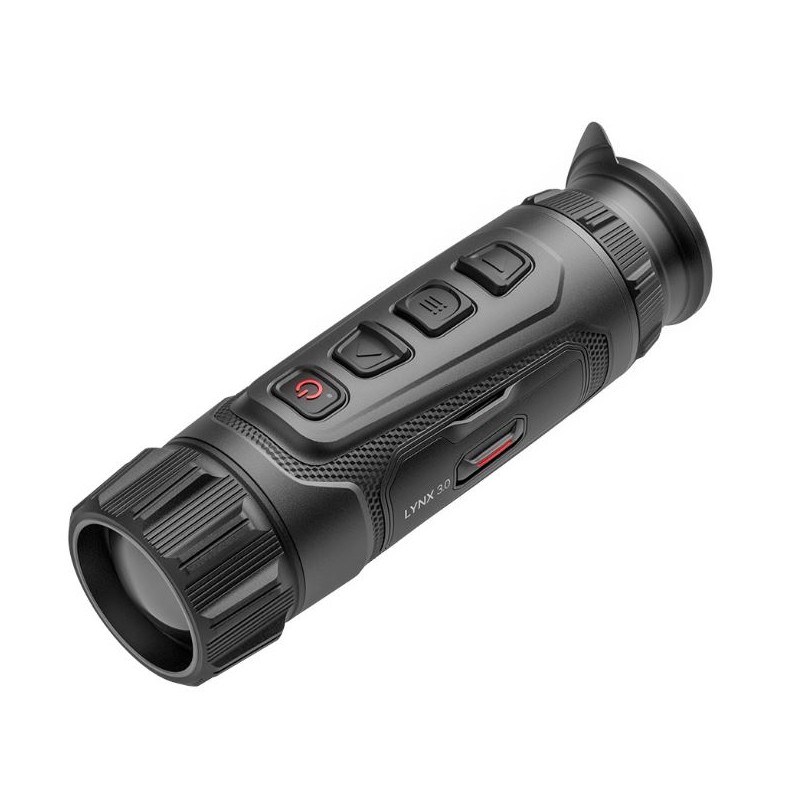

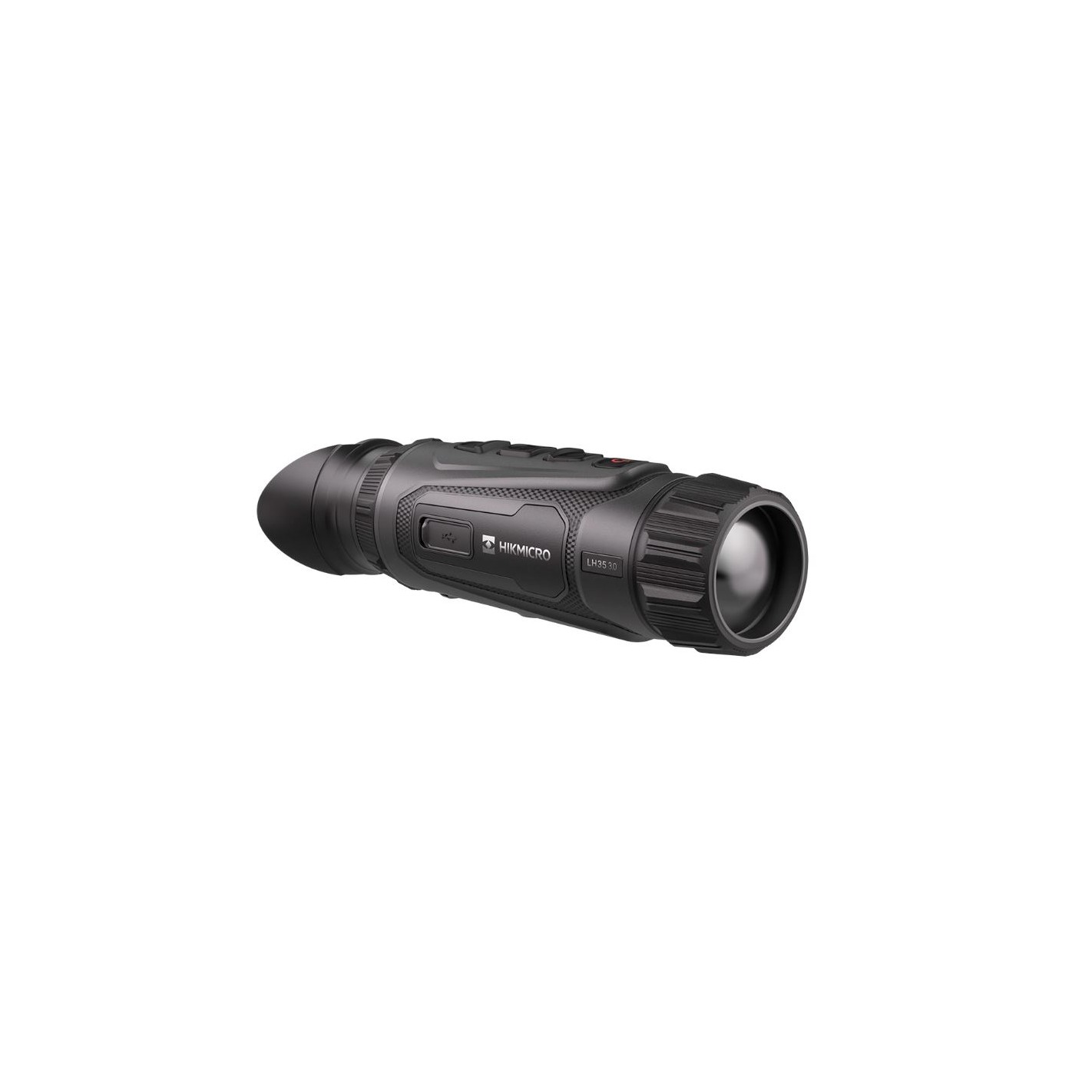

Thermal Monocular HIKMICRO LYNX Pro LH35 3.0 HM055

The Hikmicro Lynx monocular with a base magnification of 3.4x, a 384×288 sensor and a 35 mm F1.0 lens, the Hikmicro Lynx Pro LH35 3.0 offers a versatile solution for demanding situations. It features a wide field of view of 7.5° (13.1 m at 100 m) and a detection range of up to 1,800 m, making it ideal for those seeking premium quality with non-refreshing technology.

Key Features

• High-sensitivity thermal module with NETD
• 35 mm F1.0 lens with a thermal detection range of up to 1,800 m.
• Image Pro 3.0 and Zoom Pro algorithms with artificial intelligence technology.
• HIKMICRO Shutterless system without image refresh.
• 0.49 inch AMOLED screen with 1920 × 1080 resolution.
• Rechargeable and replaceable 18650 battery providing up to 4.5 hours of continuous operation at -20 ℃.
• Lightweight design of 354.5 g, with a pocket size.

Specifications

Thermal module

• Image sensor: uncooled VOx focal plane arrays
• Resolution: 384 × 288
• Frame rate: 50 Hz
• Pixel spacing: 12 μm
• Waveband response: 8 μm to 14 μm
• NETD: Less than 15 mK (@25°C), F# = 1.0
• Lens (focal length): 35mm, f1.0
• Detection range: 1,800 m
• Min. focusing distance: 3.5 m (10 ft)
• Magnification: 3.4x to 27.2x (8x)
• Field of view (H × V), Degrees / m @100m: 7.5° × 4.6°/13.1 m × 8.0 m

Display Image

• Display: 1920 × 1080, 0.49 inch, OLED
• Palettes: Warm black, Warm white, Warm red, Fusion, Monochrome red, Monochrome green
• Exit pupil: 6 mm
• Eye relief: 20 mm
• Diopter (range): -5 D to +3 D
• Brightness adjustment: Yes
• Tint Adjustment: Cool, Warm
• Contrast Adjustment: Yes
• Video recording: Yes
• Snapshot Image Capture: Yes
• Audio Recording. Yes
• Standby mode: Yes

System

• Storage: Built-in EMMC (64GB)
• PIP
• Hotspot: 2.4/5G WiFi Frequency Band
• Hot Track
• Distance measurement
• Audio and video capture

Power supply

• Battery type: Replaceable and rechargeable 18650 lithium ion battery
• Battery operating time: 5 hours continuous WiFi operation at 25°C (77°F)
• Power Supply Type-C: 5VDC, 2A. Support External Power Supply

General

• Protection level: IP67
• Dimensions: 169.6 mm × 53.6 mm× 49.5 mm
• Weight: 354.5 g without battery
• Operating Temperature: -30°C to +45°C (-30°F to +45°C)

Box Contents

• Thermal monocular Hikmicro Lynx Pro LH35 3.0
• Battery charger
• 2 batteries
• Dust cloth
• Type C cable
• Quick Start Guide
