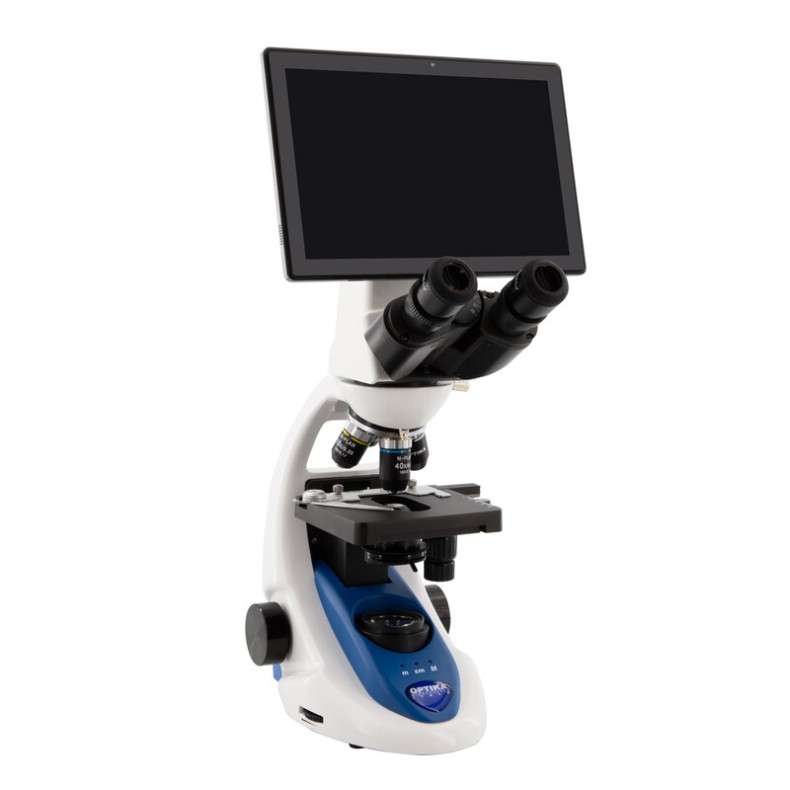

Digital Biological microscope OPTIKA B-190TBPL+ with motorized focus

Optika B-190TBPL+ - Digital microscope with 3-step motorized focus and 5 MP camera

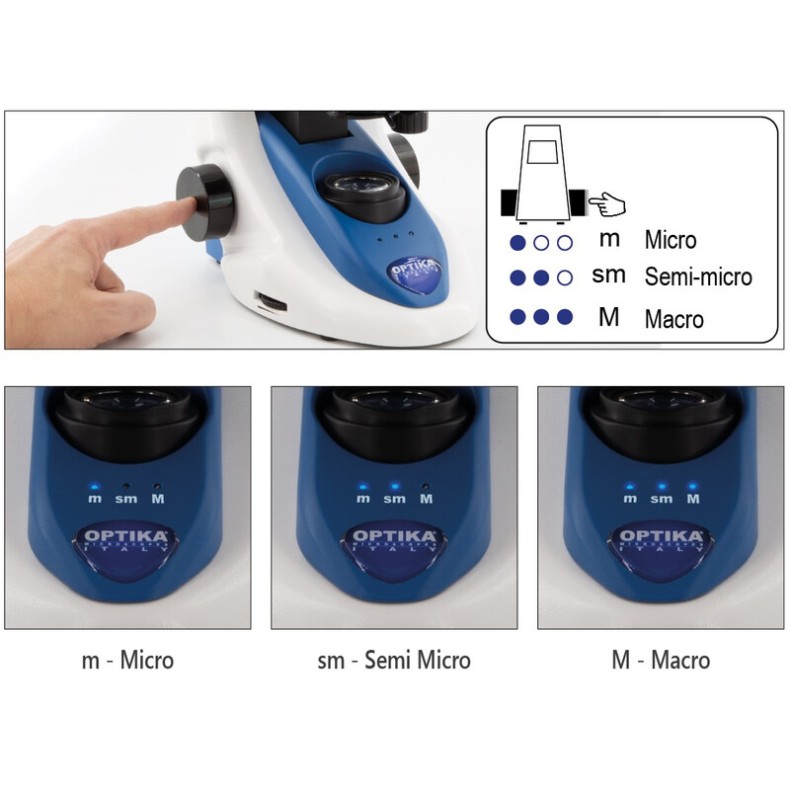

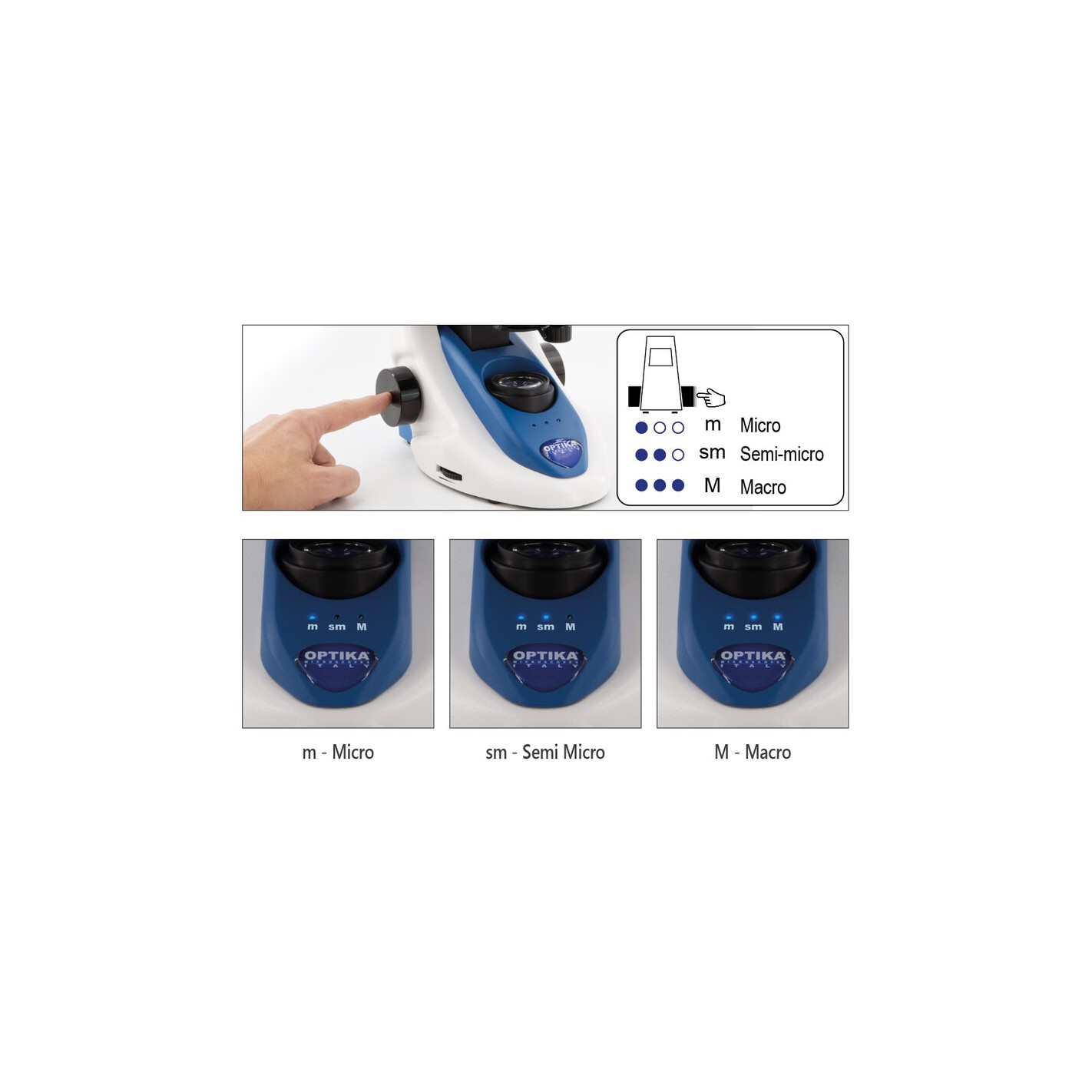

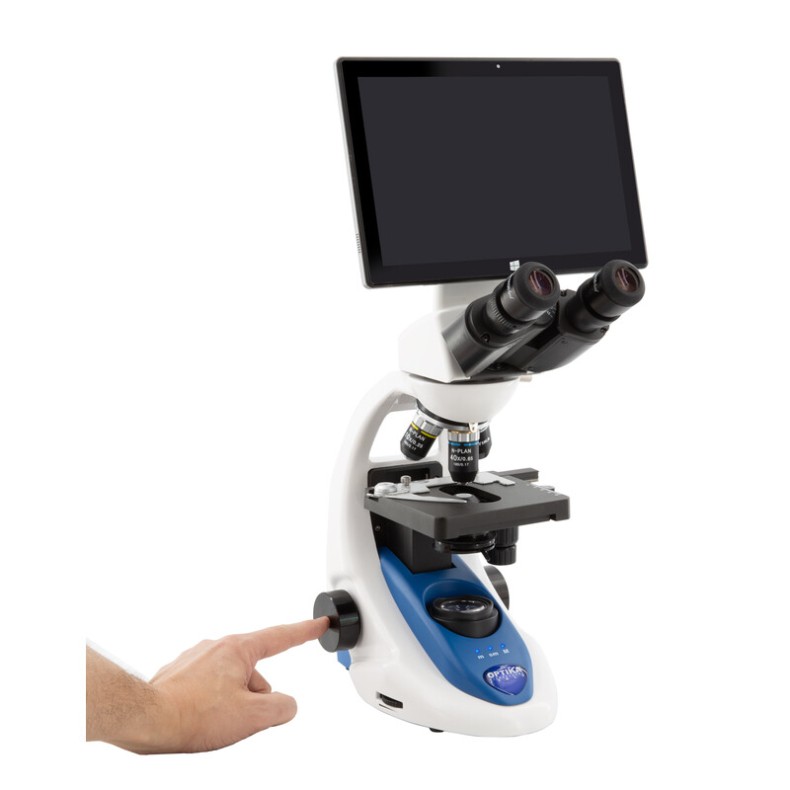

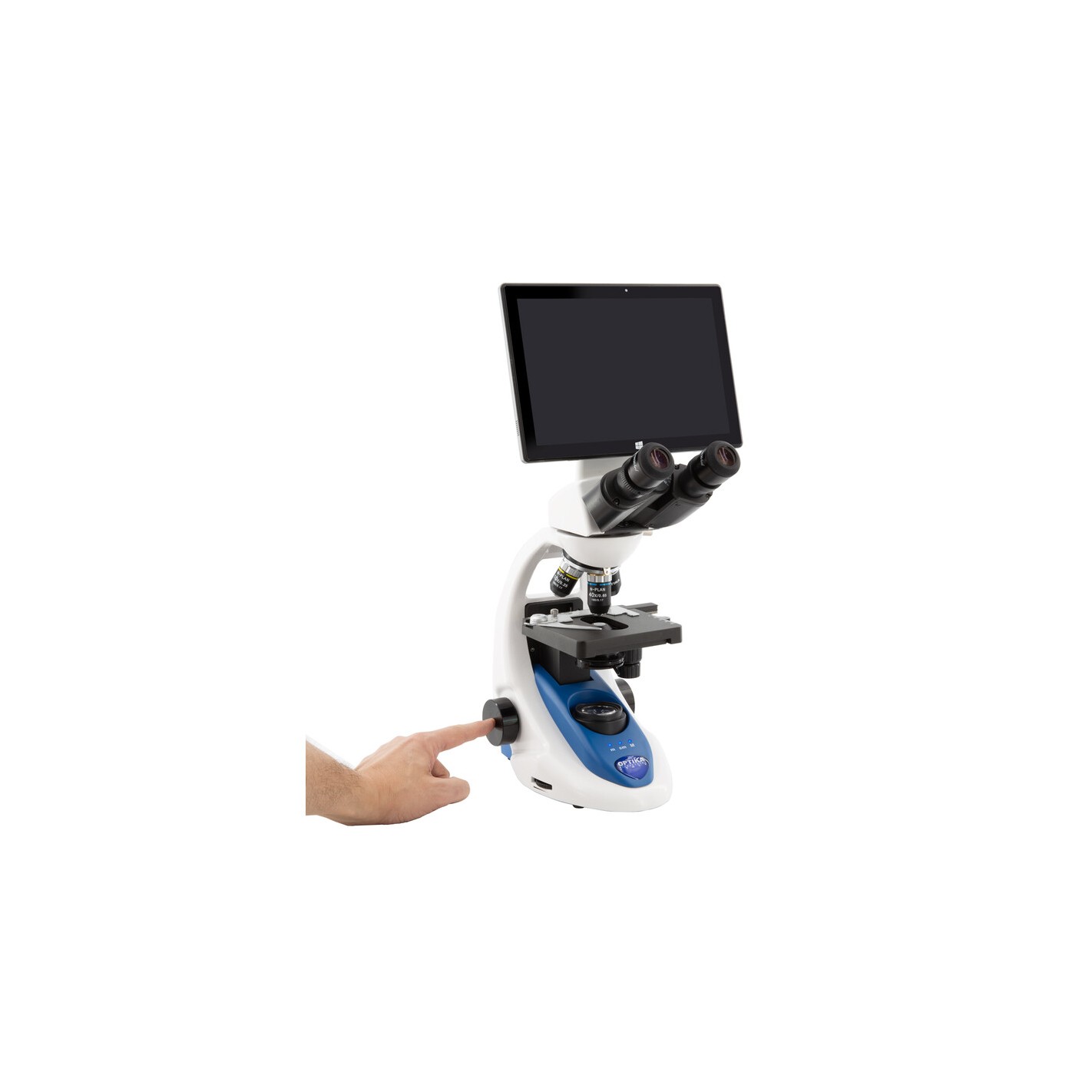

The Optika B-190TBPL+ combines modern digital technology with precise microscopy. It is the first microscope of its kind with three-step electronically controlled all-electron focusing, ideal for training, routine use and demanding observations. The focus type is conveniently changed with a push button and indicated by LEDs.

Overview of focus levels:

Macro: 250 µm per step (7500 mm per turn of the knob), for quick and coarse adjustments

Semi-micro: 8 µm per step (240 mm/turn): for precise approximation

Micro: 1 µm per step (30 mm/turn): for very precise sharpness corrections

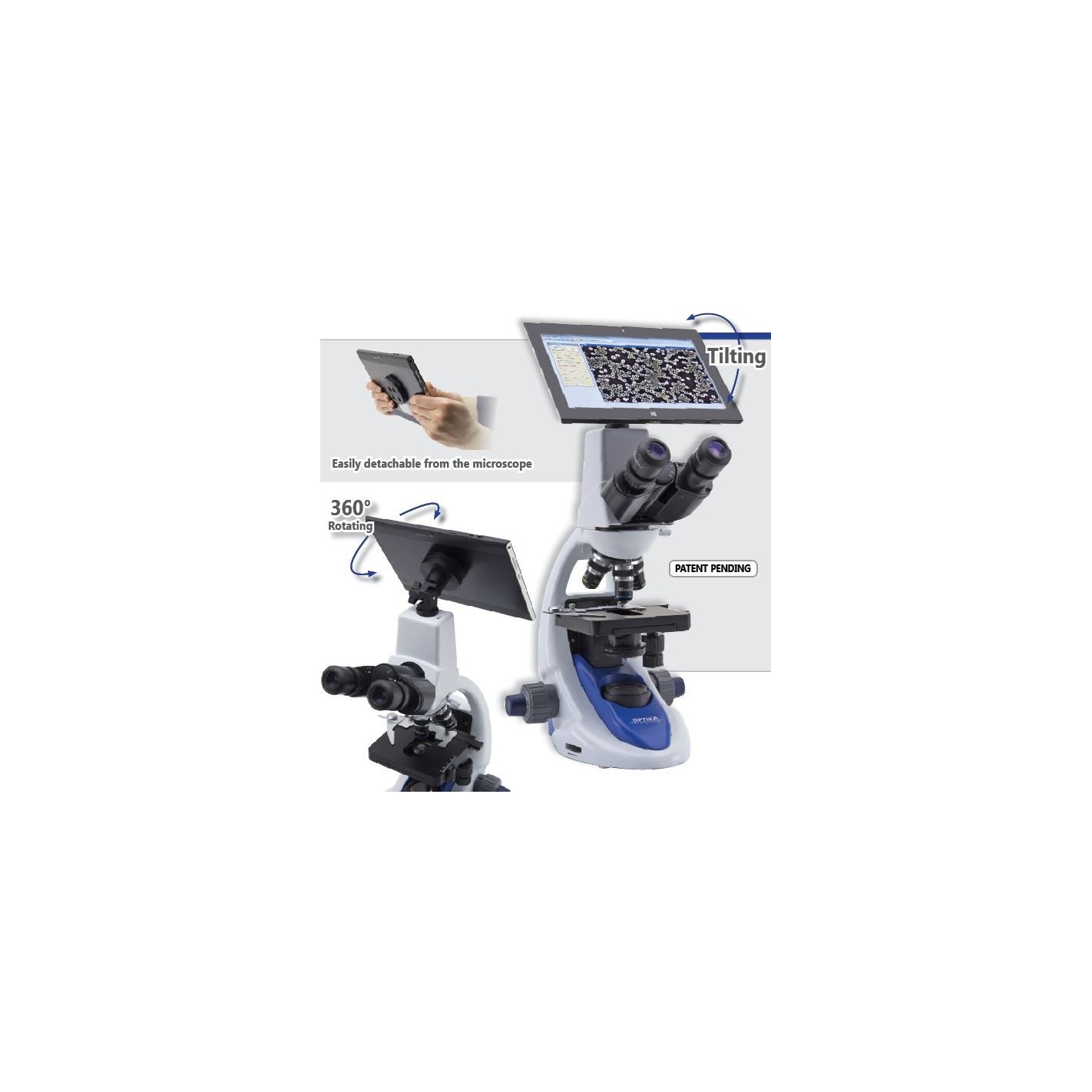

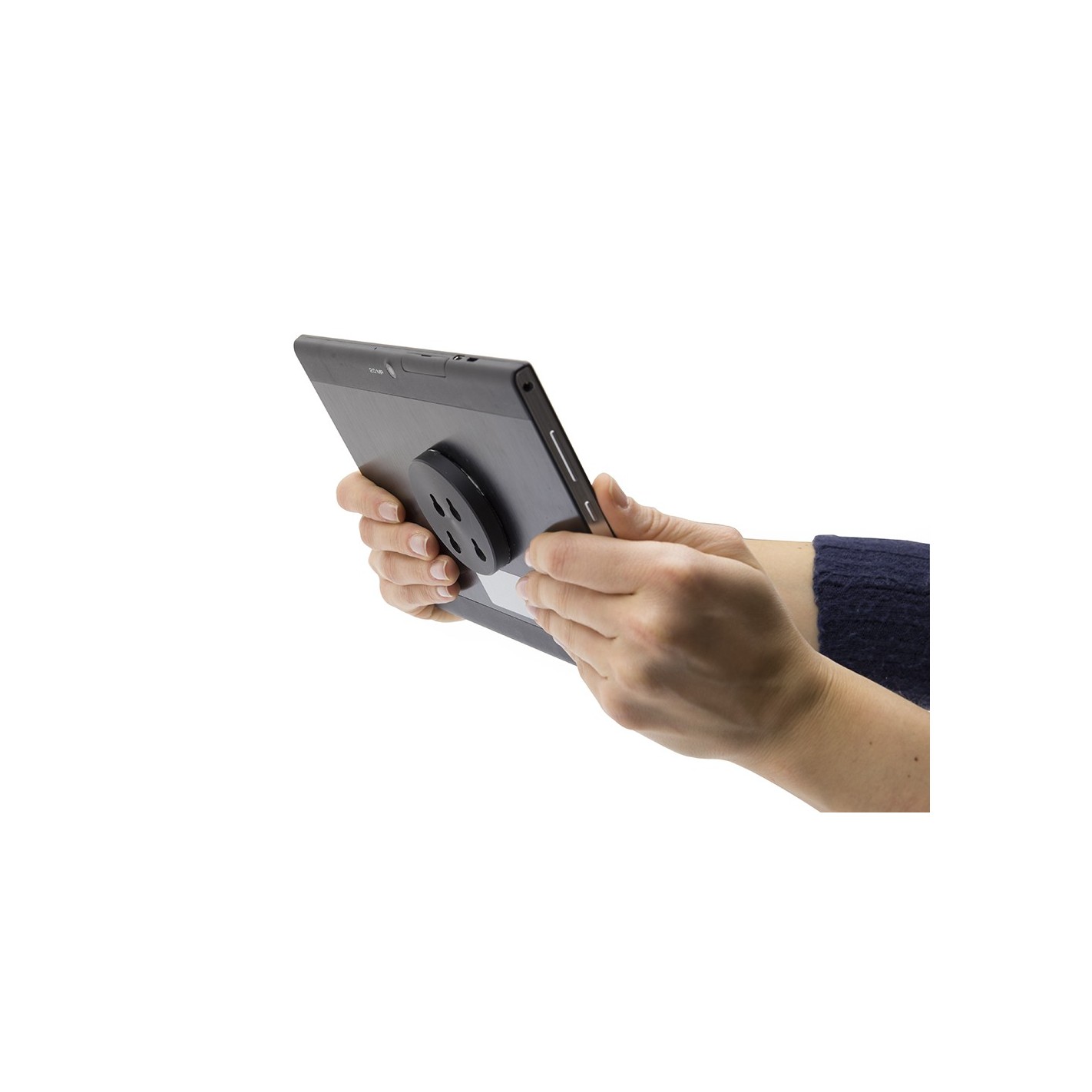

The rotating binocular head (inclined 30°) is equipped with an integrated 5 MP camera. Images can be instantly viewed, saved and shared via the removable Windows tablet. PLAN objectives provide brilliant image quality with up to 1000x magnification.

Practical for everyday use: the automatic table retraction function makes it easy to apply immersion oil and change slides. The B-190TBPL+ stands for digital convenience and reliable precision.

SPECIFICATIONS

Optical system

• Scale of representation: 1000
• Number of objectives: 4
• Illumination: Transmitted light
• Field curvature correction: plan
• Color correction: achromatic
• Lamp type: LED
• Objective 1: N-PLAN 4x/0.10
• Objective 2: N-PLAN 10x/0.25
• Objective 3: N-PLAN 40x/0.65
• Objective 4: N-PLAN 100x/1.25 (Oil/Water)
• Optical system: DIN (160mm)
• Infinity correction: no
• Magnification: 40-1000

Capability

• Photo resolution: 2592x1944
• Frame rate per second (fps): 30 fps
• Transmitted light: yes
• Bright field: yes
• Lamp type: LED
• Megapixel: 5
• Field of view value: 18
• Magnification: 40-1000

Mechanics

• Construction type: Digital
• Viewing posture (°): 30
• Object table: Cross table
• Revolver: 4

Camera

• Frame rate per second (fps): 30 fps
• Chip size (″)1/2.5
• Pixel size: 2.2

Contrast

• Brightfield: yes
• Polarization: optional

Field of application

• Teaching: yes
• Hobby: yes

Applications

• Parasite analysis: yes
• Naturalist: yes
• University: yes

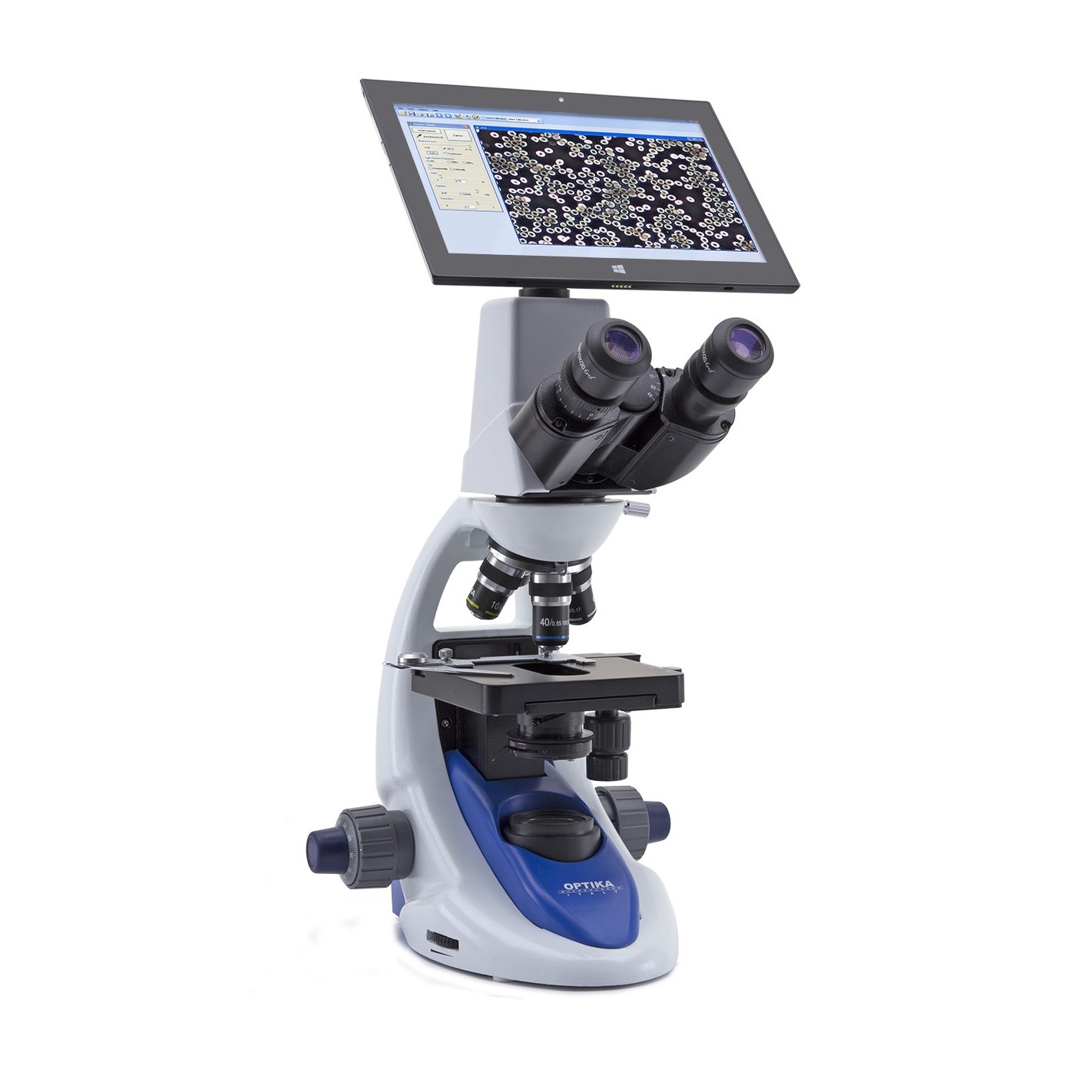

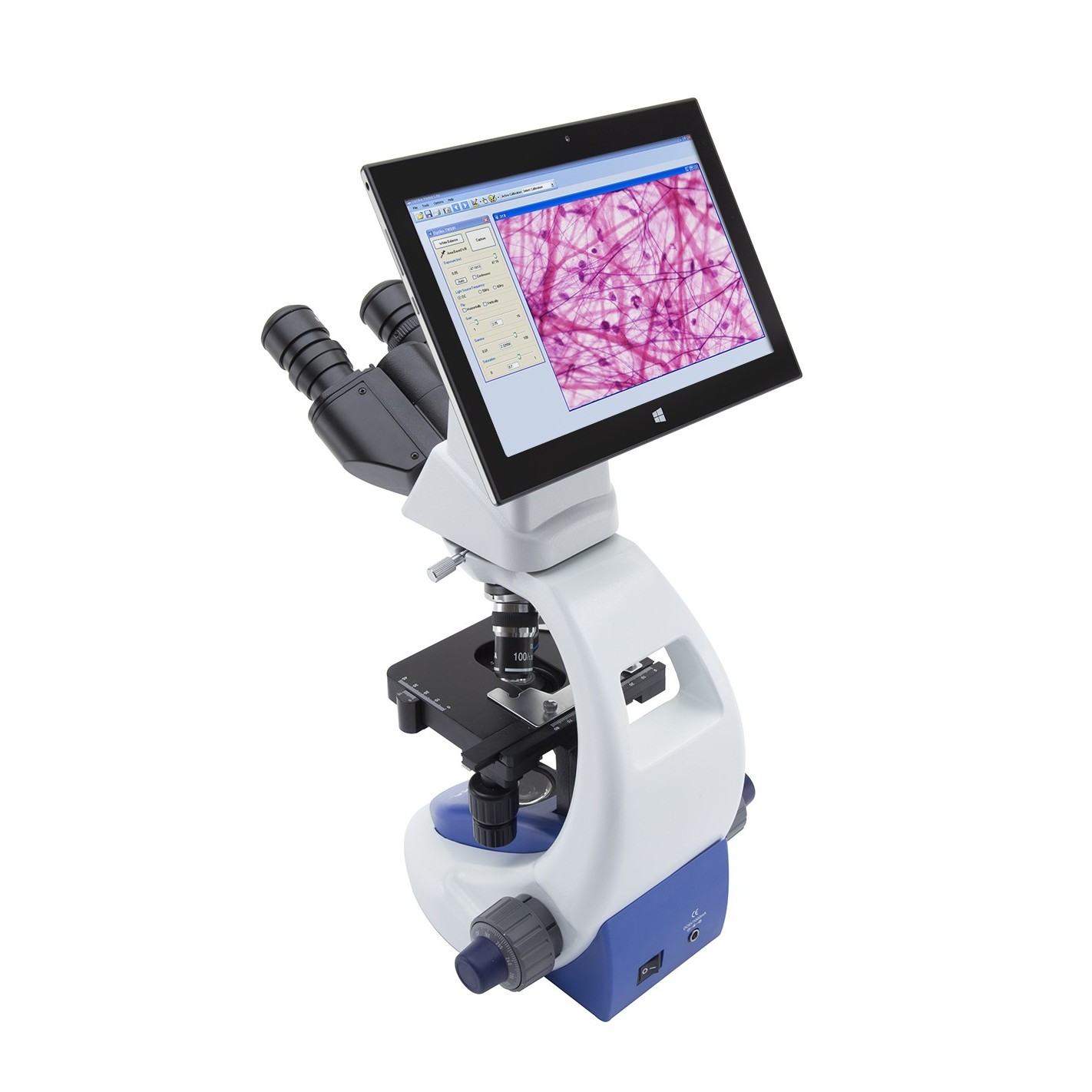

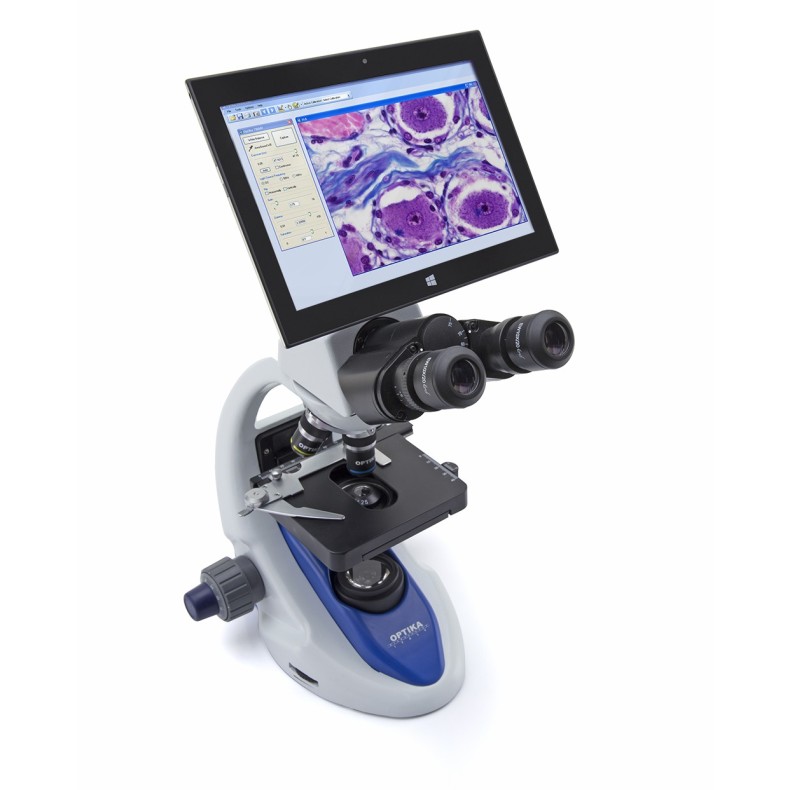

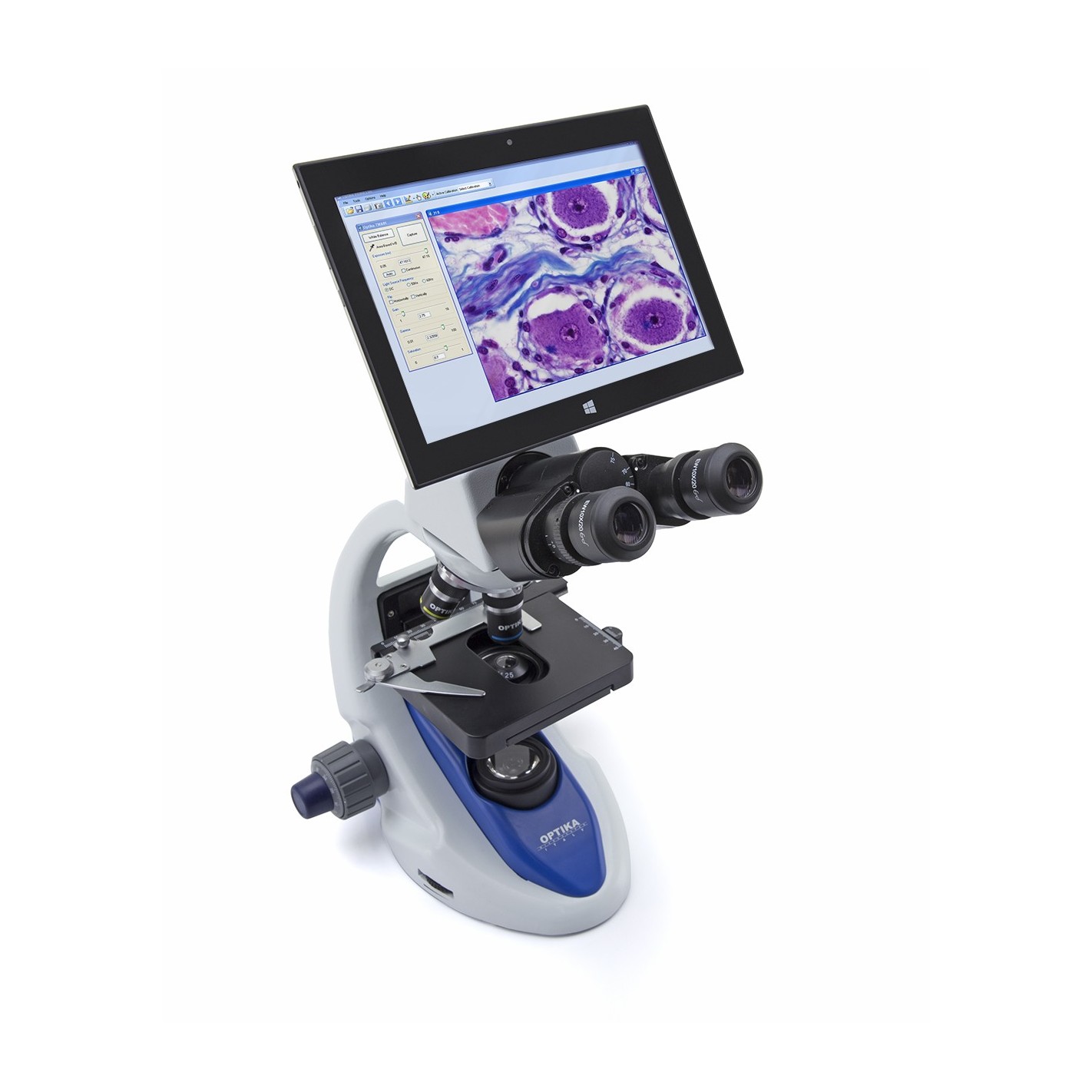

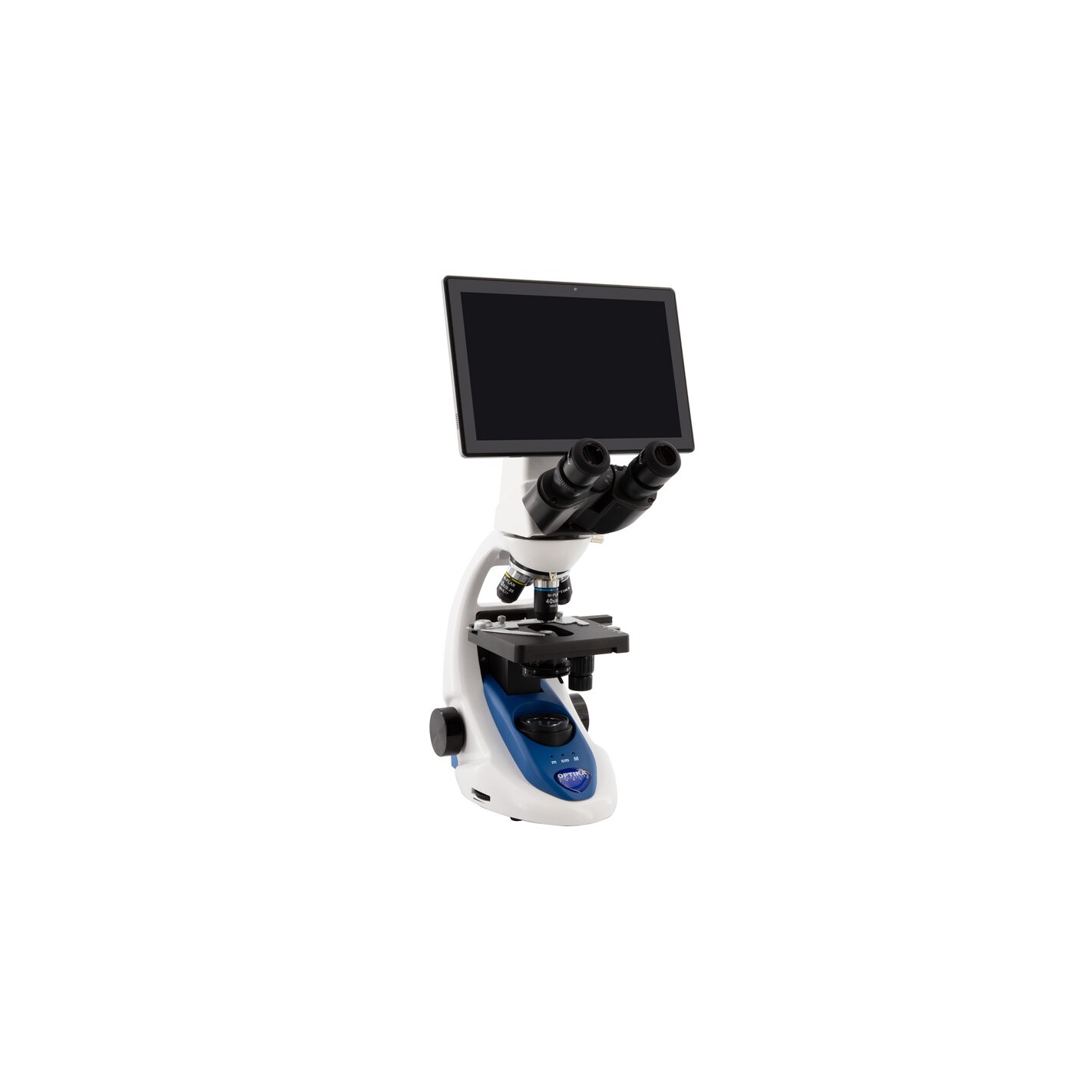

Biological Microscope OPTIKA B-190TBPL+ with built-in tablet
