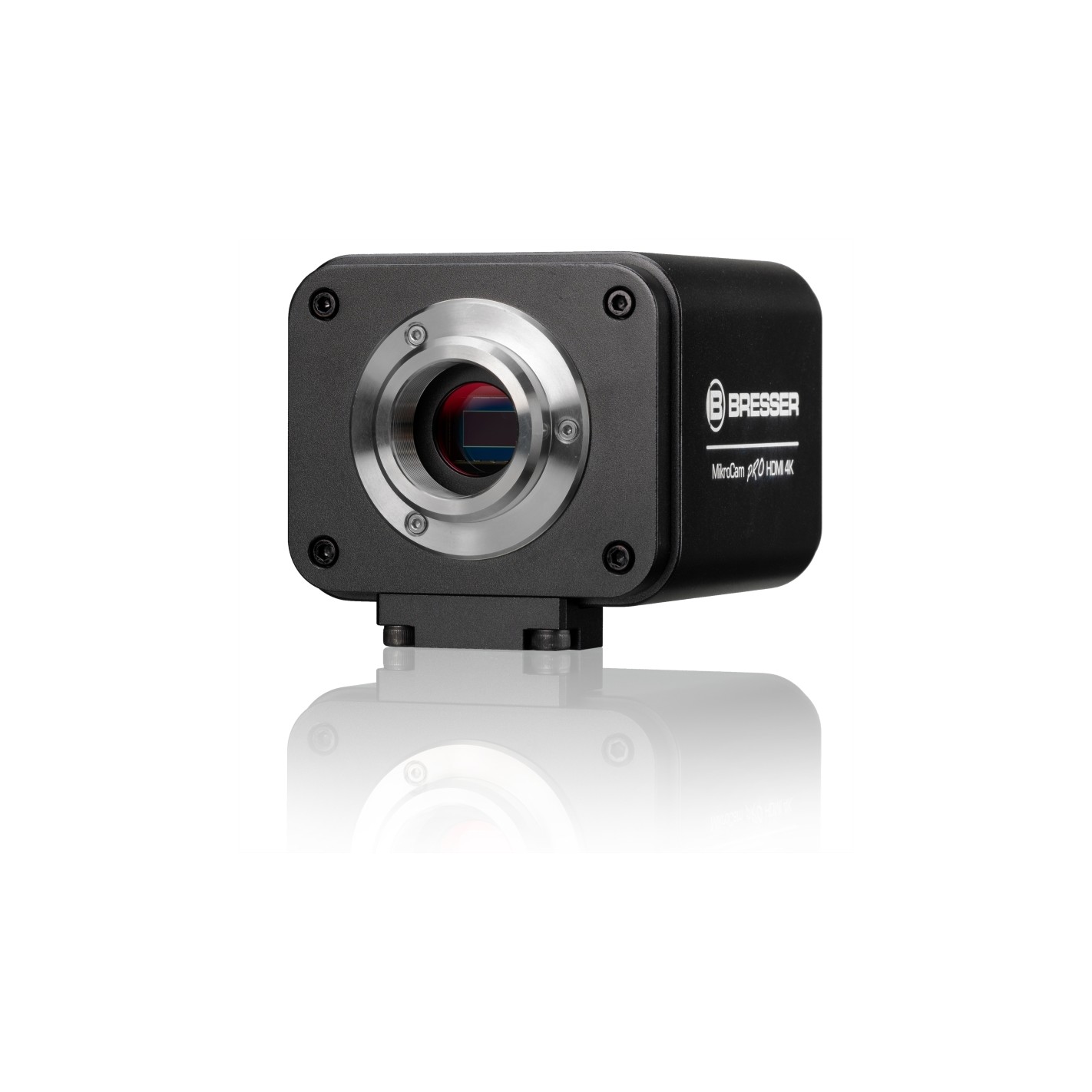

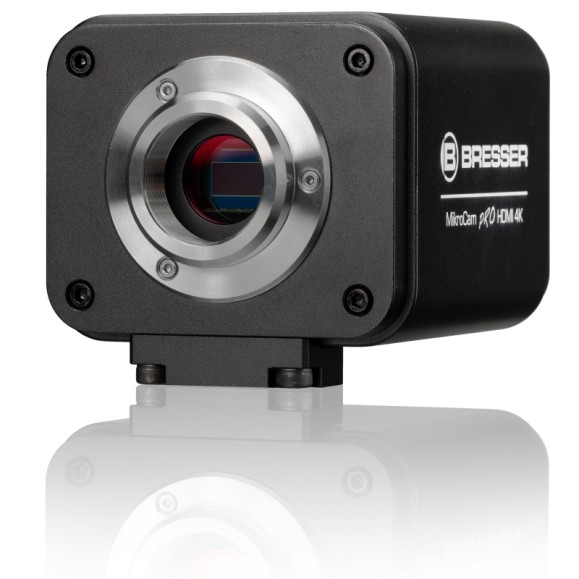

BRESSER MikroCam PRO HDMI 4K microscope camera
BRE5914195
Stock at Supplier
740.41
VAT excluded
Shipping 5/7d
HDMI microscope camera with 4K resolution
- 4K resolution (3840 x 2160) with Sony IMX678 sensor
- Delay-free 4K HDMI transmission with fast 60 fps
- Real-time focus stacking directly on the monitor
- Save images and videos directly to SD card and compare them
- LAN, Wifi and USB 3.0 connectivity for maximum flexibility
- 1/1.8" (7.68 x 4.32 mm) sensor, pixel size: 2.0 x 2.0 µm
- C-Mount thread for adaptation to microscopes from any manufacturer
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
UPS - Resto del mundo | UPS - Rest of the World |
Friday, 6 February - Friday, 13 February |
|
UPS - Resto del mundo
UPS - Rest of the World
Estimated delivery:
Friday, 6 February - Friday, 13 February
✖
BRESSER MikroCam PRO HDMI 4K microscope camera
TheBRESSER MikroCam PRO HDMIThe microscope is distinguished by its excellent image quality and intuitive operation. Delay-free live display of the microscope image by means of a signalHDMIWith resolution4KOn a monitor, TV, projector or digital whiteboard.
Thanks to itsvery high sensitivity to light, guarantees avery good image quality even in low light conditions. Therefore, this model isespecially recommended for darkfield, phase contrast, DIC, DICYfluorescence.
The state-of-the-art 7.68 x 4.32 mm Sony IMX678 sensor is particularly light-sensitive, true to color and offers a frame rate of 60 fps (HDMI 4K) or 30 fps (USB 4K or network).
The camera functions are operated with a mouse directly in the on-screen menu. Through this menu, measurements can be performed, turning the microscope with the MikroCam PRO HDMI into a full-fledged digital measuring microscope.
The MikroCam PRO HDMI offers multiple possibilities of use, such as:
If the camera is connected via HDMI, images and videos can be saved directly to an SD card (not included). The on-screen menu allows, in addition to image and video recording and playback, measurements, picture-in-picture function, crosshair, image comparison, white balance and focus, all without the need for a PC.
All in all, the BRESSER MikroCam PRO 4K is an excellent all-round HDMI microscope camera with an excellent price-performance ratio.
CHARACTERISTICS
SYSTEM REQUIREMENTS
INCLUDES
Thanks to itsvery high sensitivity to light, guarantees avery good image quality even in low light conditions. Therefore, this model isespecially recommended for darkfield, phase contrast, DIC, DICYfluorescence.
The state-of-the-art 7.68 x 4.32 mm Sony IMX678 sensor is particularly light-sensitive, true to color and offers a frame rate of 60 fps (HDMI 4K) or 30 fps (USB 4K or network).
The camera functions are operated with a mouse directly in the on-screen menu. Through this menu, measurements can be performed, turning the microscope with the MikroCam PRO HDMI into a full-fledged digital measuring microscope.
The MikroCam PRO HDMI offers multiple possibilities of use, such as:
- Documentation
- Evaluation
- Analysis
- Presentations, teaching
- Quality control
If the camera is connected via HDMI, images and videos can be saved directly to an SD card (not included). The on-screen menu allows, in addition to image and video recording and playback, measurements, picture-in-picture function, crosshair, image comparison, white balance and focus, all without the need for a PC.
All in all, the BRESSER MikroCam PRO 4K is an excellent all-round HDMI microscope camera with an excellent price-performance ratio.
CHARACTERISTICS
- HDMI connection for monitor or TV
- Brilliant images in 4K resolution
- Very high sensitivity to light
- No PC required
- Real-time focus stacking directly on the monitor
- C-Mount connection for easy adaptation to any manufacturer's microscopes
- Save images and videos to SD card (not included), max. 32 GB
- Additional connection to PC via USB 3.0, Wifi or network (LAN)
SYSTEM REQUIREMENTS
- Windows 11
- Intel i3, i5, i7 or i9 processor of 6th generation or above
- AMD Ryzen Processor
- Internet connection for software download
- USB 3.0, 3.1

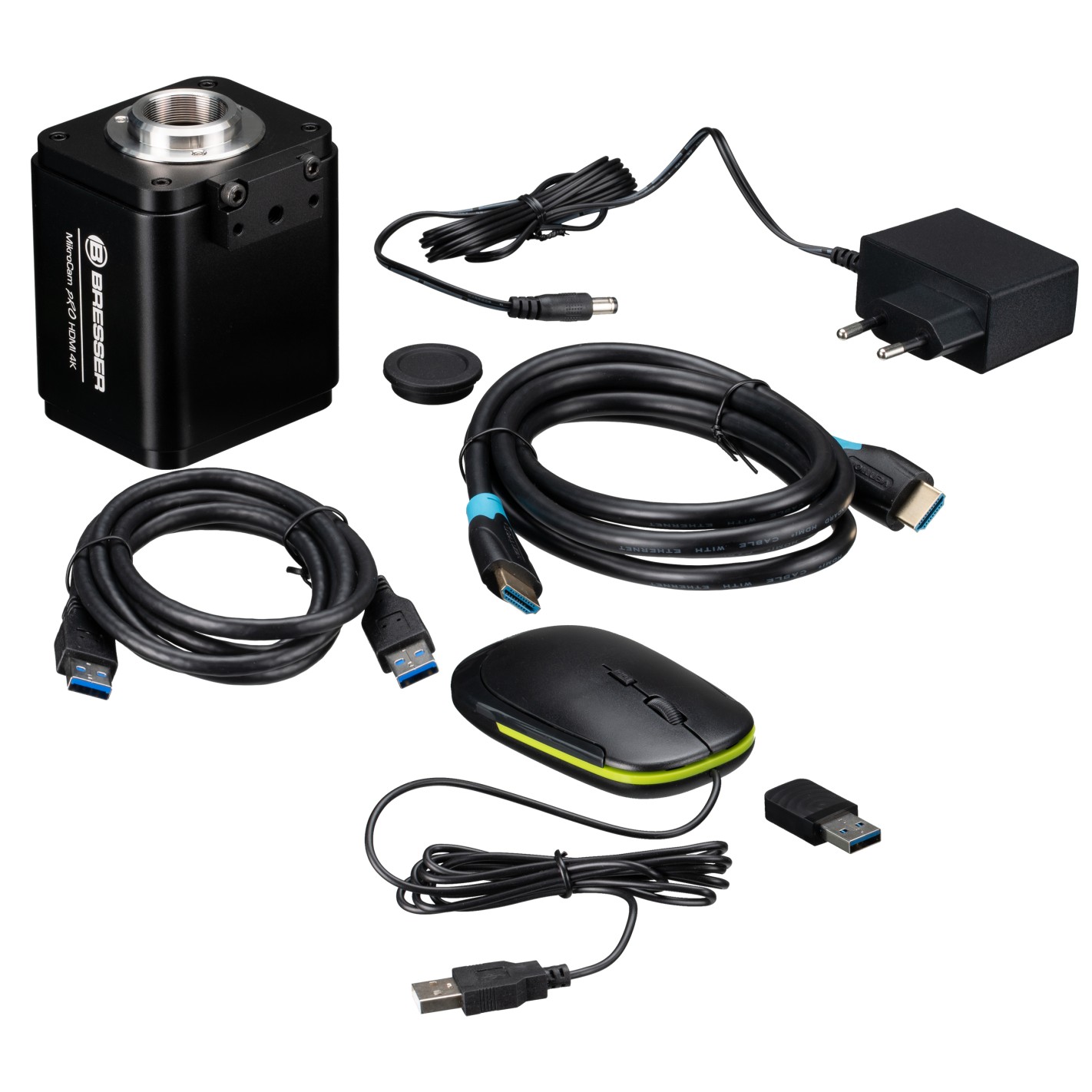

INCLUDES
- MikroCam PRO HDMI 4K with C-Mount Thread
- Power supply
- Mouse
- Wifi Adapter
- HDMI cable
- MikroCamLabII software (download)
| Total height (mm): | 95 |
|---|---|
| Total width (mm): | 72 |
| Field of application: | Education, non-destructive testing, Non-destructive testing, Research, Laboratory |
| Color: | black |
| Graphic file format: | jpg |
| Video formats: | MP4 (Codec: H.264) |
| Frequency of image repetition: | 60fps (3840 x 2160 Pixel) |
| Power supply 1): | Direct current 12V 2A |
| Power supply included: | Yes |
| Extended warranty (years): | 2 |
| Waterproof 8): | No |
| Interfaces: | HDMI, LAN, USB, WIFI |
| Total length (mm): | 70 |
| Material: | Aluminum |
| Housing material: | Aluminum |
| Removable storage medium 2): | SD (≤ 32 GB) |
| Net weight (g): | 572 |
| Batteries included: | No |
| Batteries required: | No |
| Target audience: | Advanced, Science and research, Experts, Professional users |
| Resolution: | 3840 x 2160 (UHD) |
| Operating system: | Windows 11 |
| Data transmission: | HDMI, LAN, uSB 3.0, WiFi |
