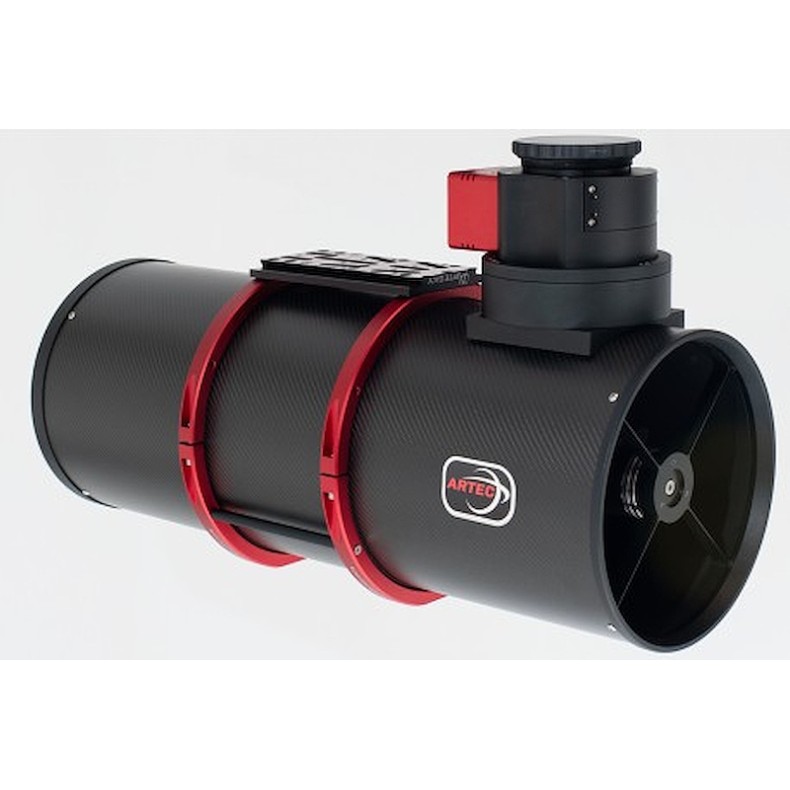

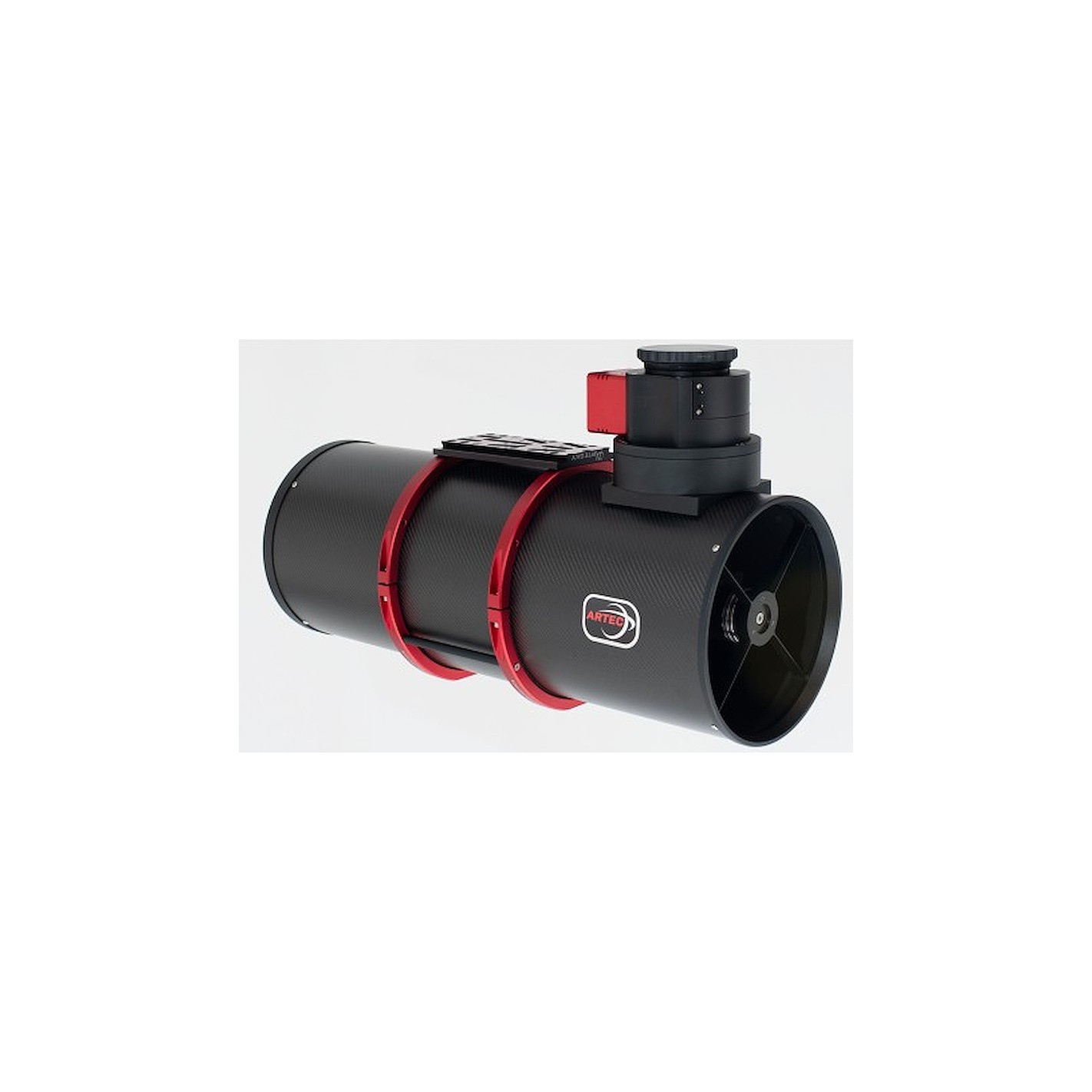

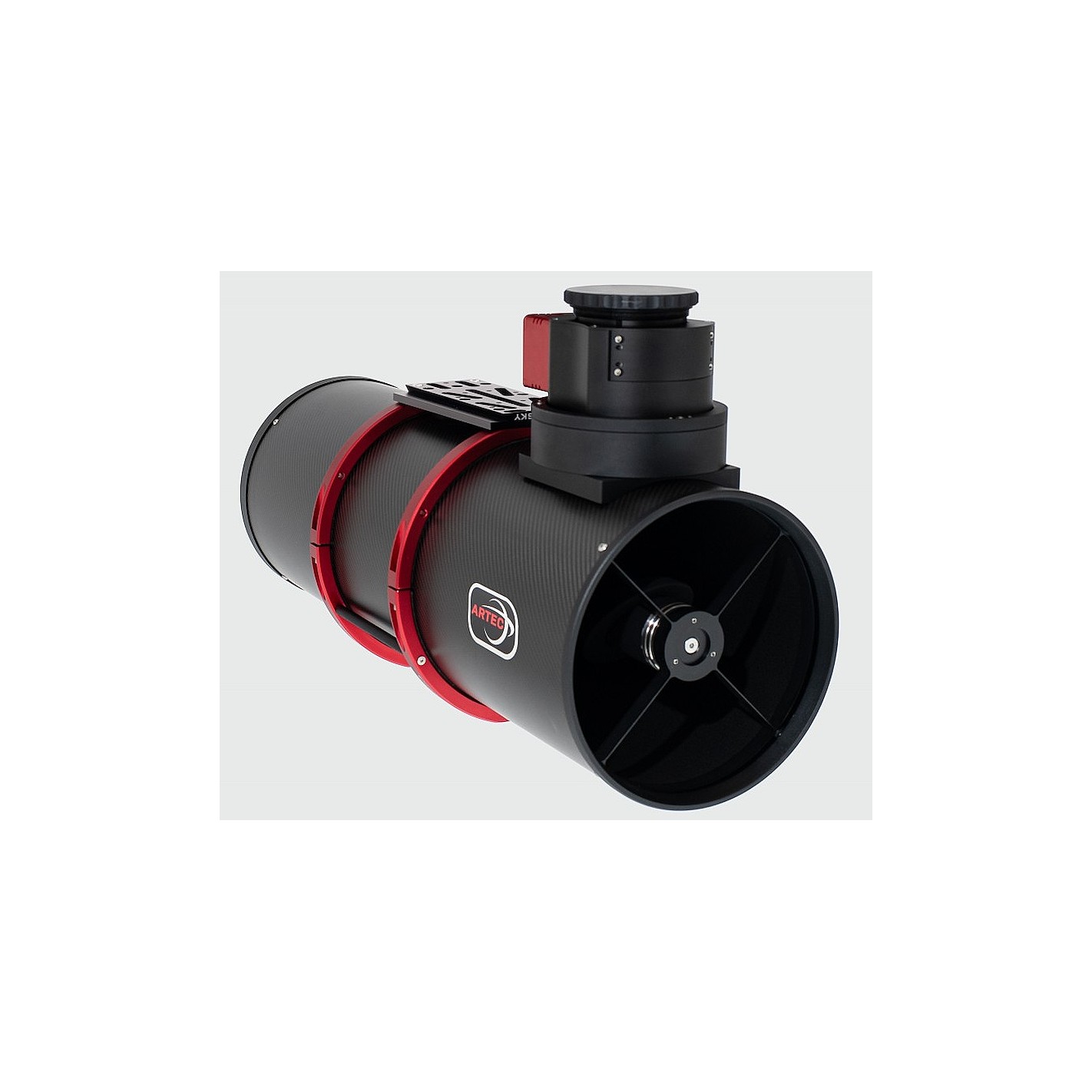

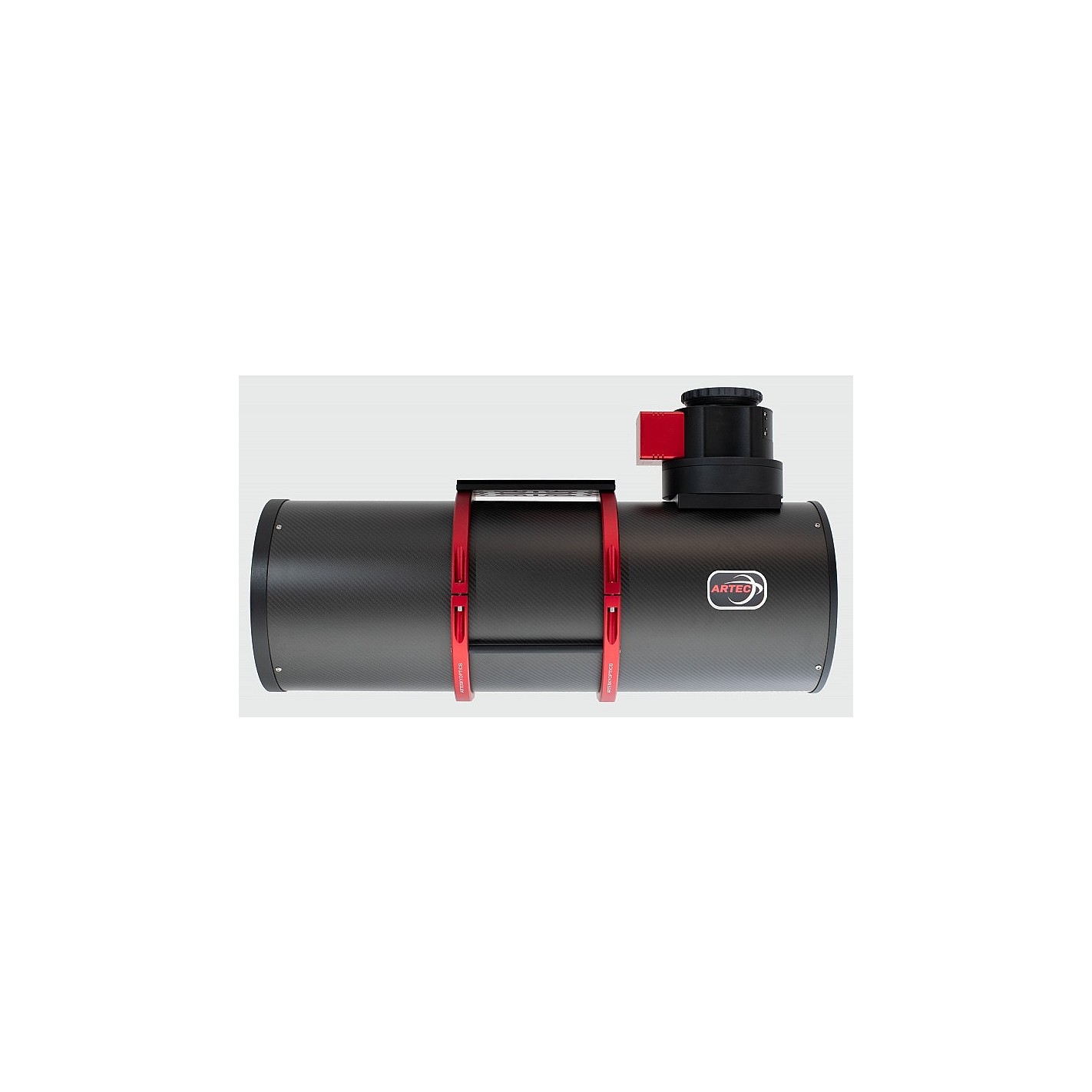

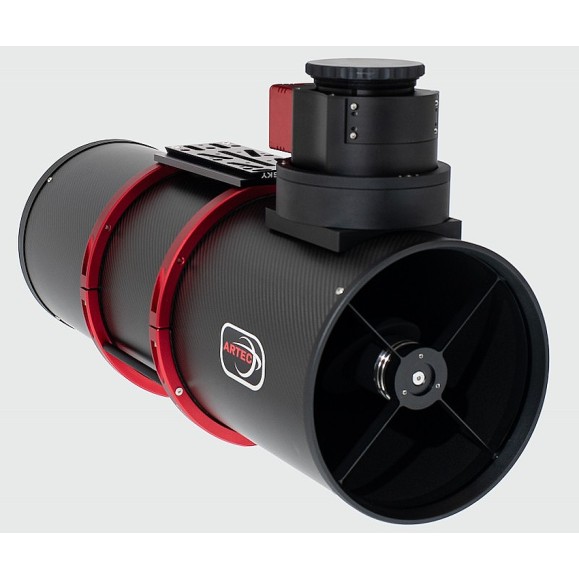

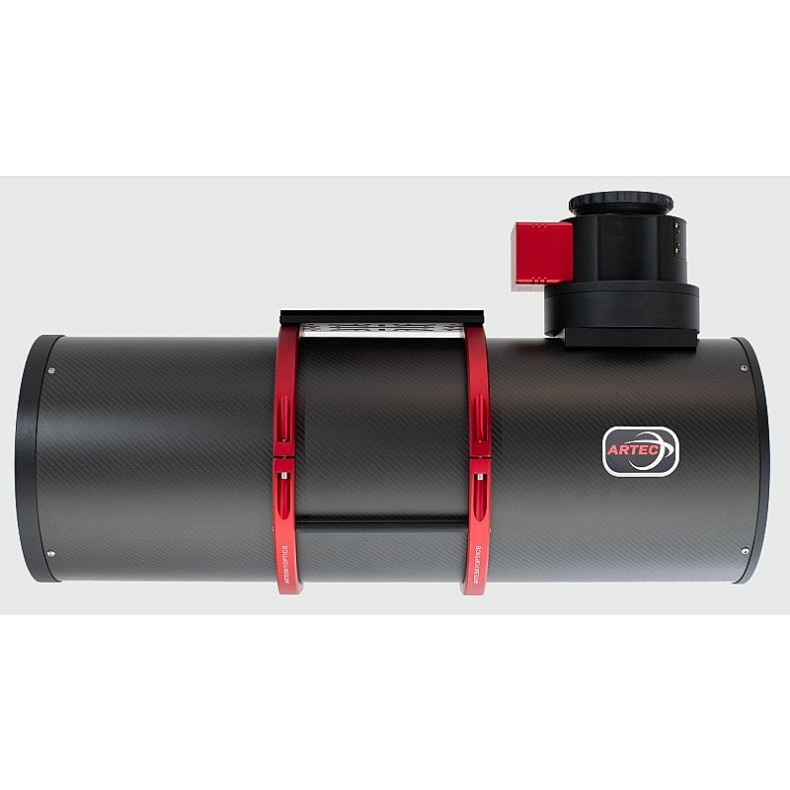

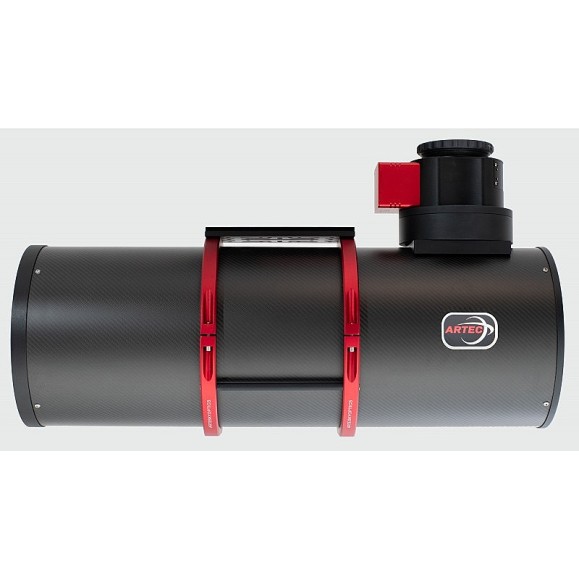

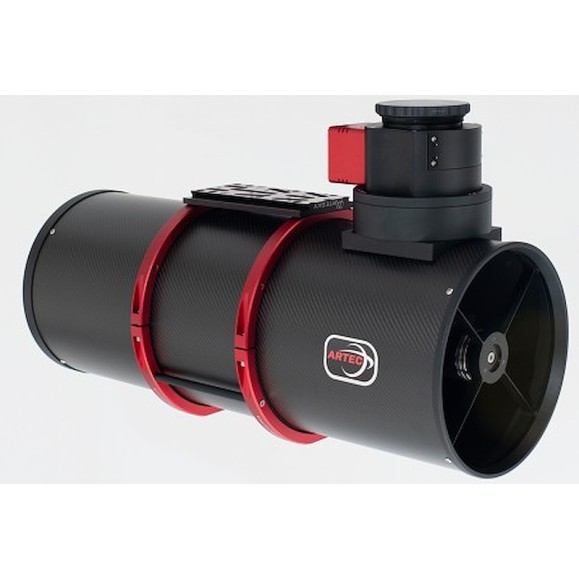

Optical tube Newton Astrograph ARTESKY ARTEC 200 EZ F/4.5
The ARTEC series introduces a modern and innovative approach to telescope manufacturing, considering the astrograph not as an isolated component, but as an integral part of a complex astrophotographic acquisition system.
The project, conceived by Stefano Seveso, founder of Artesky, and developed together with engineer Flavio Simeone, was launched in 2011. It was designed specifically for demanding astrophotographers looking for stable collimation, exceptional optical quality and consistent image performance.
Over the years, the ARTEC series has undergone continuous development and refinement, both in design and production, with a clear focus on adopting state-of-the-art engineering techniques.
ARTEC 200EZ: High-end design for harmonic frames
Weighing just 10.8 kg, the ARTEC 200EZ is fully optimized for use with harmonic mounts, such as the ZWO AM5, even without counterweights.
High-performance optics: quartz mirrors with superior coatings
- Optical design: Classic Newtonian
- Primary mirror diameter: 206 mm (conical quartz)
- Secondary mirror diameter: 88 mm
- Native Focal Ratio: f/4.0
- Focal length: 800 mm (912 mm with coma corrector)
- Coma corrector included: 1.14x, resulting in f/4.5
- Mirror material: High-quality quartz with >95% reflectivity
- Optical correction: λ/8 or better
- Strehl ratio: ≥ 0.95
- Linear obscuration: 44%
- Fully illuminated field: 39 mm
- Corrected field: 55 mm: ideal for full-frame sensors
The conical primary mirror ensures excellent thermal stability and eliminates lateral shifts. This design reduces thermal mass while maintaining mechanical rigidity, crucial for long exposure imaging.
Advanced Mechanics - Precision Engineering from Italy
- Optical tube: Solid carbon fiber (non-sandwich), autoclave-treated
- Mechanical materials: CNC-machined 6061 aluminum, 316 stainless steel, bronze
- OTA length: 732 mm
- OTA diameter: 244 mm
- Total weight: 10.8 kg
All mechanical components are manufactured in Italy using CNC and laser cutting technologies. The result is high structural rigidity, excellent thermal behavior and exceptional collimation stability.
The inside of the carbon tube is:
- Treated with an anti-dust coating
- Finished with a matte black textured surface to eliminate reflections
- Roughened to mitigate moisture-related problems
The outer surface features a durable matte finish for professional aesthetics and durability.
Professional Focusing System - High Load Capacity, No Flexing
- Focusing: 3" Prodigy Micro Focuser (ASIAIR compatible)
- Load Capacity: 9.5 kg without bending or twisting
- Telescope side: Mounted on a base with adjustable tilt for precise focusing plane alignment
- Camera side: Equipped with R.O.A.S. (On-Axis Rotation System)
- Ensures perfect flatness and manual rotation of the imaging train
- M54x0.75 male thread included (other adapters available on request)
- 4" tilter included for precise optical alignment
The R.O.A.S. system is modular and customizable, allowing interchangeable adapters to fit any astrophotography setup.
Lightweight yet rugged: travel-ready and remote-controlled
To reduce overall weight and maintain structural strength:
- Aluminum struts are used between the tube rings.
- A 200 mm dovetail rod Losmandy is included.
This makes the ARTEC 200EZ the perfect choice for mobile astrophotography setups, dark sky expeditions and remote observatory installations.
Scope of delivery
- ARTEC 200EZ carbon astrograph, optimized for harmonic mounts
- Precision machined tubular rings and aluminum struts
- 200 mm dovetail rod Losmandy
- 3" Prodigy electronic microfocuser (compatible with ASIAIR)
- M54x0.75 thread R.O.A.S. system
- 4" optical train tilter
- 1.14x coma corrector
- Reinforced cardboard packaging
why choose the ARTEC 200EZ?
- Designed and manufactured entirely in Italy
- Premium quartz optics with high reflectivity and λ/8 correction
- Mechanical design optimized for thermal stability and rigidity
- ASIAIR compatible focuser and full modularity
- Lightweight yet rugged: ideal for harmonic mounts and portable imaging
- Each unit is individually tested and collimated by Artesky technicians
Technical Specifications
- Optical assembly: Newtonian Astrograph
- Diameter: 200 mm
- Primary mirror diameter: 206 mm
- Secondary mirror diameter: 88 mm
- Focal length: 800 mm - 912 mm with coma corrector 1.14x
- Focal Ratio: F/4.0 - F/4.5 with 1.14x Coma Corrector
- Mirror material: Quartz
- Linear obstruction: 44
- Illuminated field: 100 % 39 mm
- Corrected field: 55 mm
- Rear focus (metallic): 63.3 mm
- Primary mirror diameter: 244 mm
- Secondary mirror length: 732 mm
- Weight: 10.8 kg
- Tube material: High-grade carbon fiber
- Mechanical material: 6061 aluminum
