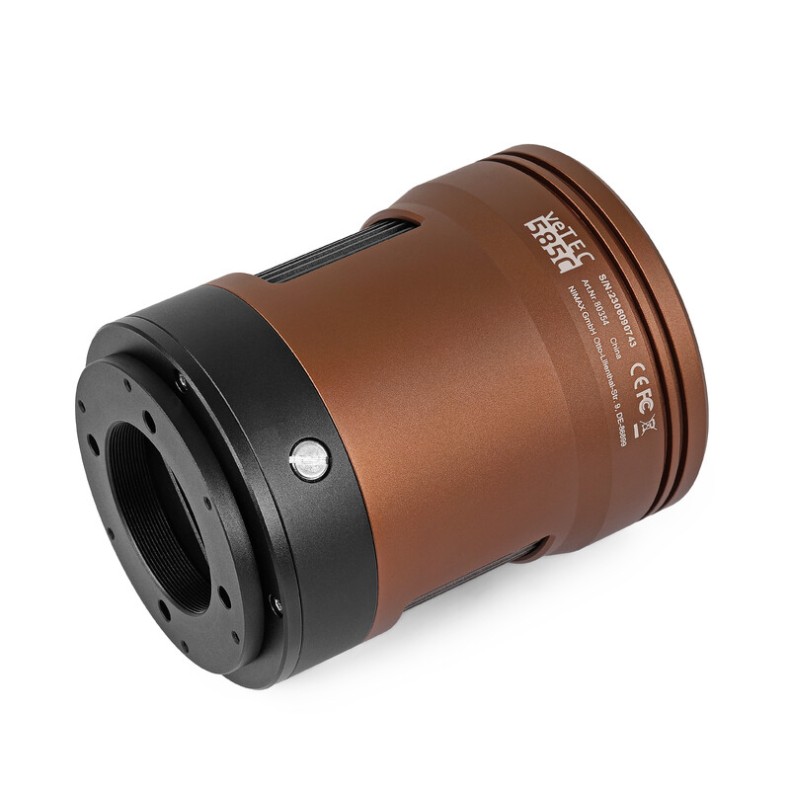

Astronomy Camera Omegon veTEC 585 C Color

Astronomy Camera Omegon veTEC 585 C Color

Professional deep sky astronomical photography: the huge sensor is perfect for extended nebulae, star fields or the lunar surface. Unlike most planetary cameras, this sensor is comparable to the larger sensors in DSLR cameras.

Thermoelectric cooling: the cooling system reduces image noise. Up to 40 °C below ambient temperature, noise caused by dark current has almost completely disappeared. In addition, the precise temperature control of the sensor is very useful for calibrating astronomical photographs with dark frames. They can all be taken at the correct temperature. The final images are very clean of noise.

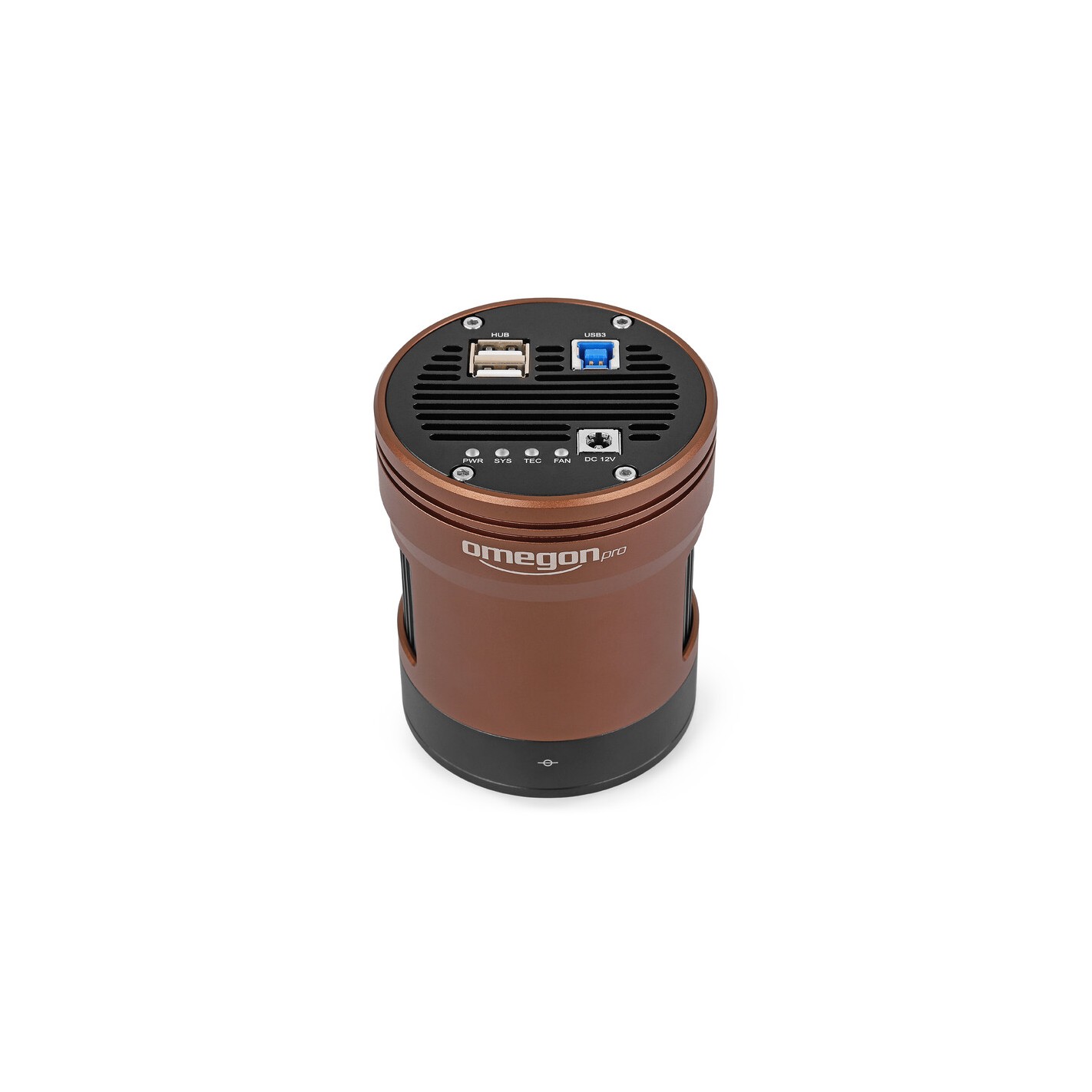

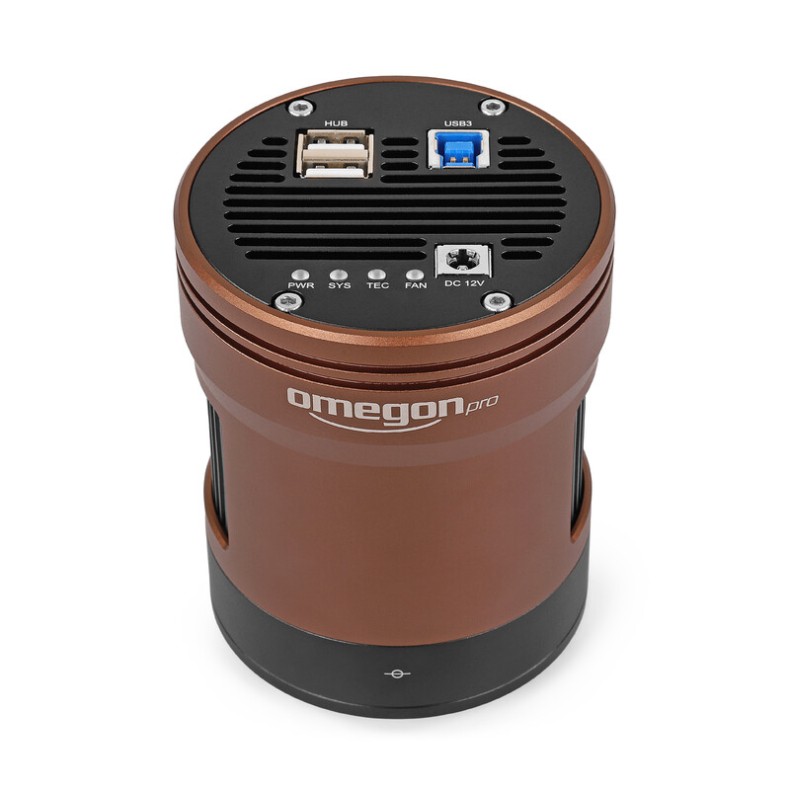

USB hub: two additional USB ports on the back of the camera reduce cable chaos. Additional devices (e.g. a camera guide) can be easily connected via this hub - having an additional cable connection to your PC from each individual device is a thing of the past!

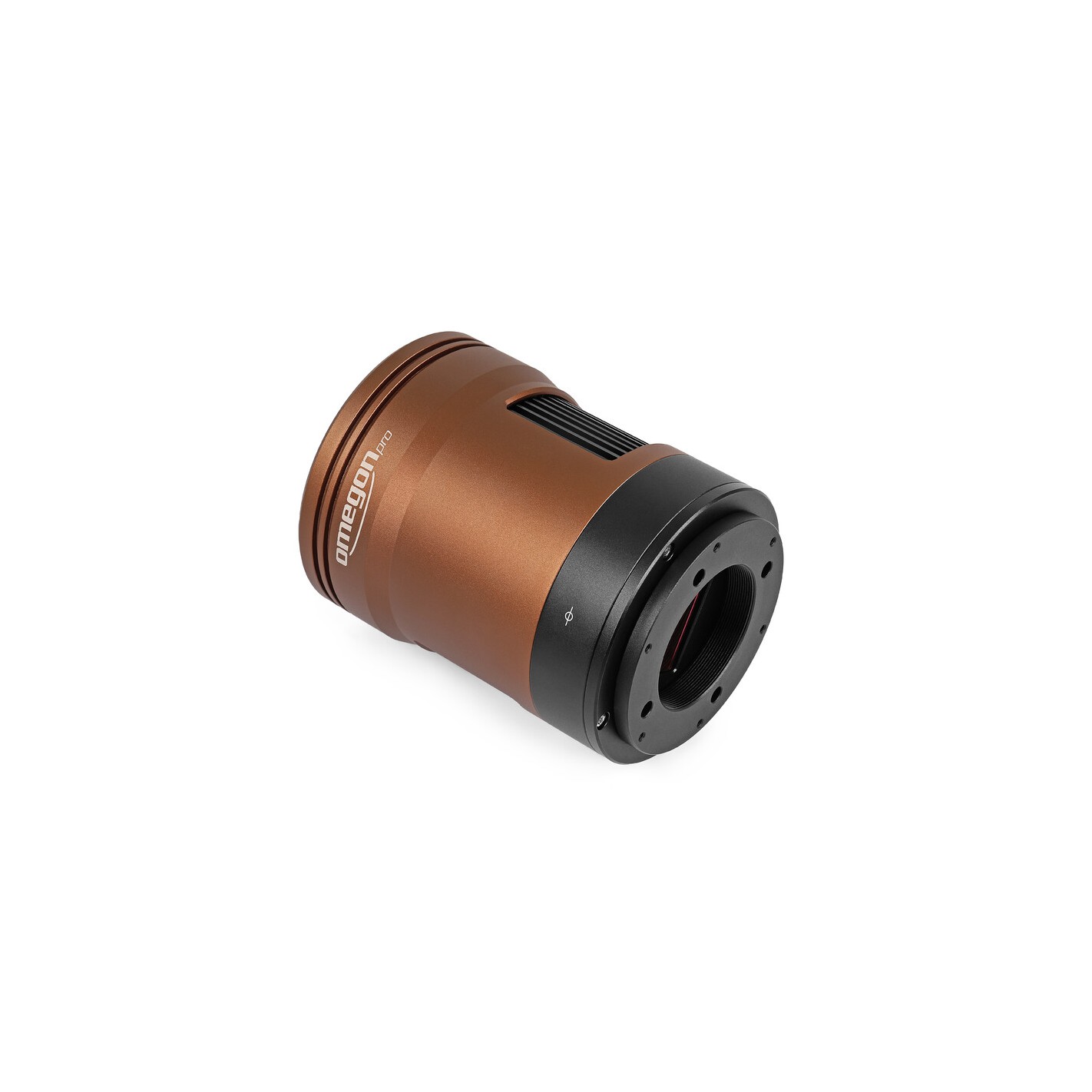

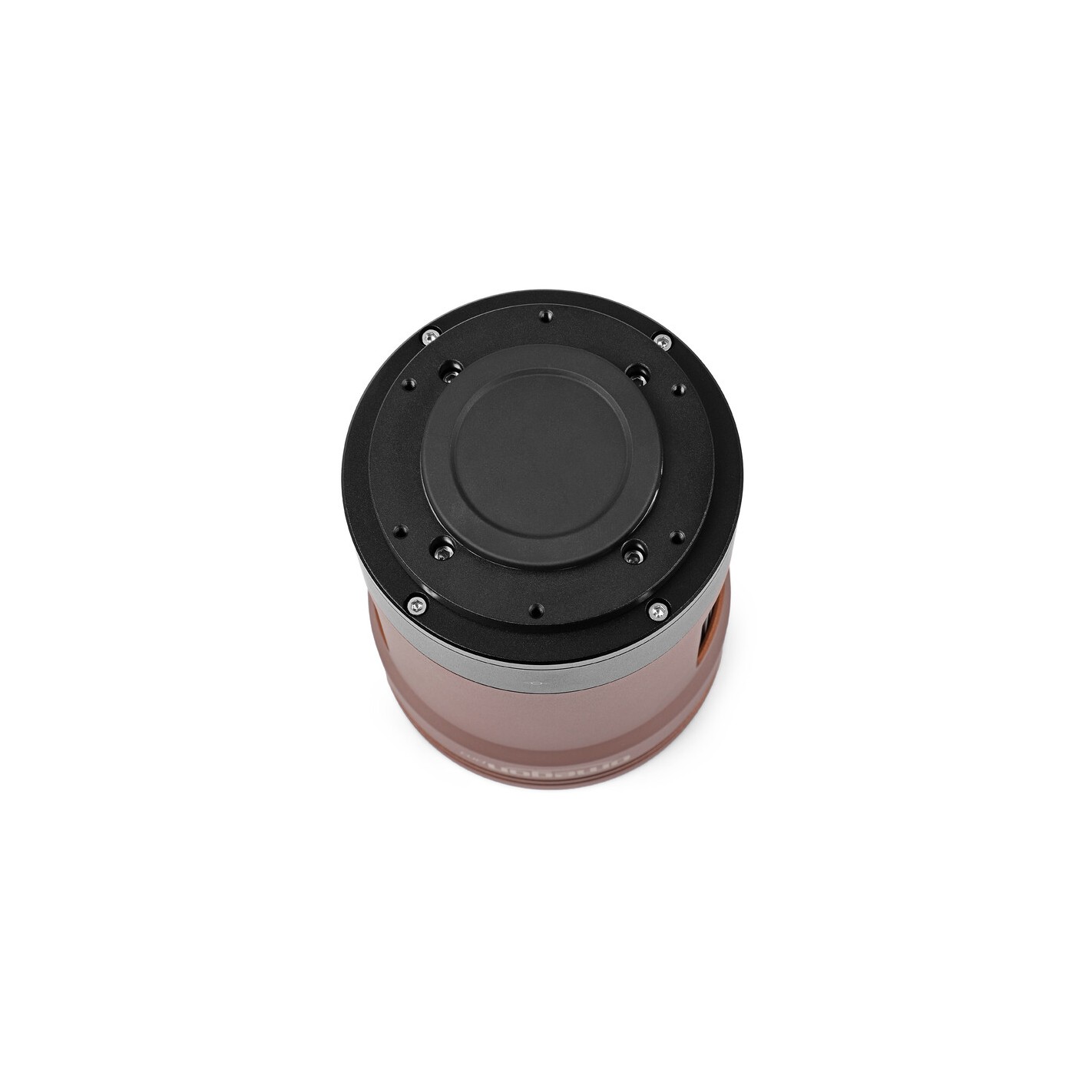

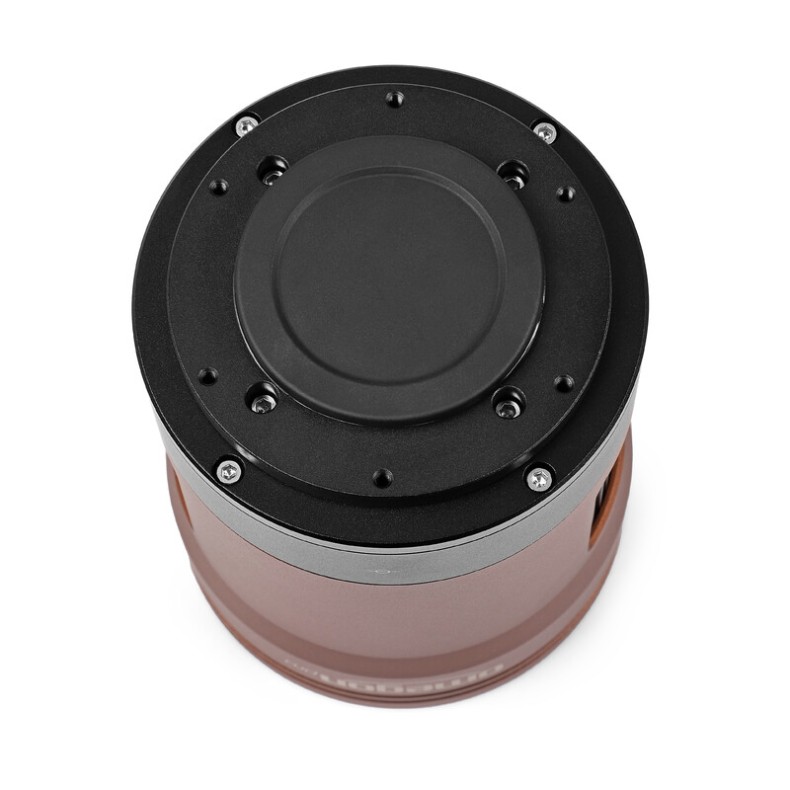

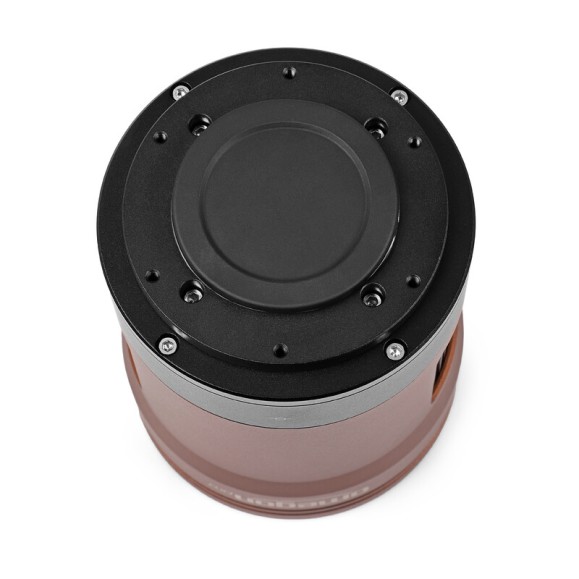

The camera can be adapted to almost any astrophotography setup, thanks to the T2 thread and sensor distance of only 17.5 mm. A 50.8 mm adapter allows any 50.8 mm eyepiece to be attached to the telescope as well.

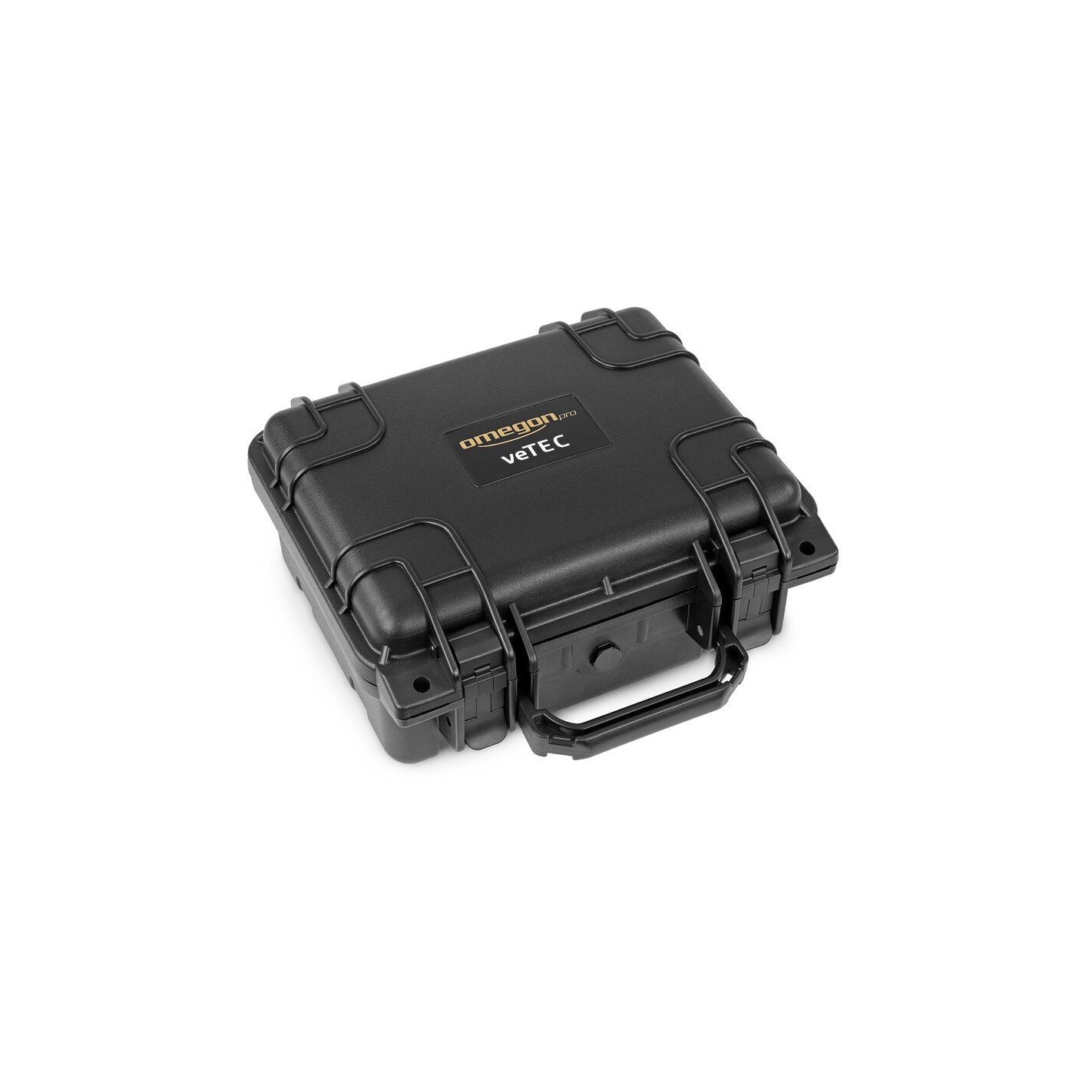

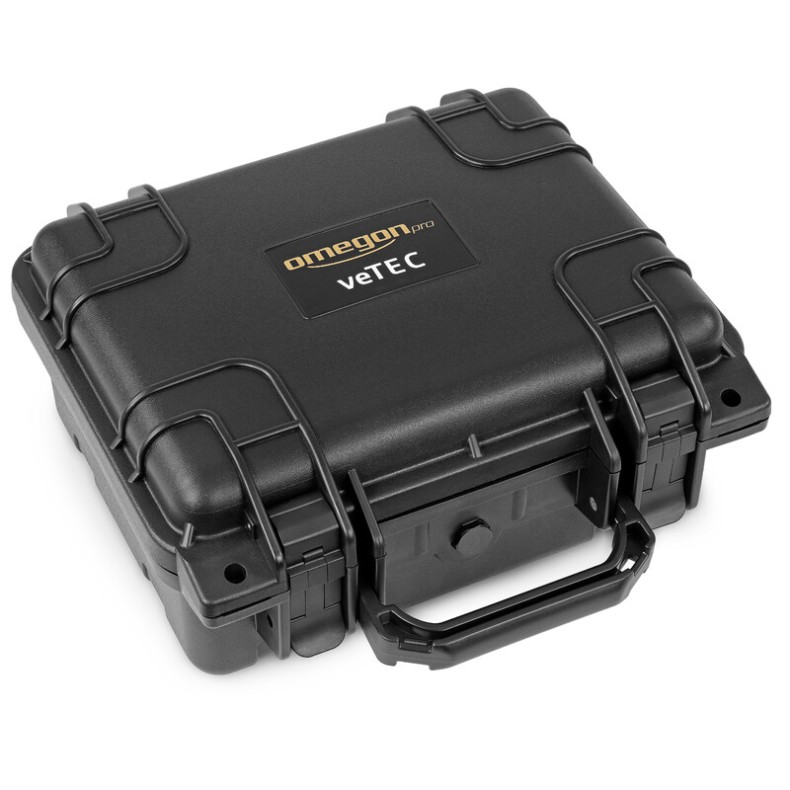

Supplied with a sturdy, foam-filled case so you can transport your valuable camera safely and securely with complete peace of mind.

Professional astronomical photography of the planets, the Moon and the Sun: the shadows of Jupiter's moons, the splits in Saturn's rings, details of the Moon's mountain ranges and the impressive prominences on the Sun's surface... these wonderful targets in our Solar System can only be photographed at a high frame rate. This freezes the turbulence in our atmosphere (so-called seeing), which hides small details. This lucky-imaging technique is now child's play, thanks to the sophisticated electronics and high data transfer rate of the cameras USB3.0.. We recommend the Region of Interest (ROI) function of the included Omegon AstroPhotoCapture software. With it you can optimize the frame rate, because only the part of the sensor relevant to your object of interest is read.

Transmission: A filter protects the sensor camera from dust and moisture. The color cameras Omegon Pro are equipped with a filter that blocks infrared. CMOS sensors also measure incident infrared light and make correct color reproduction in the final image impossible. In contrast, the Omegon Pro mono cameras have an anti-reflective window, which lets in ultraviolet and infrared light in addition to visible light. The additional filters give you full control over the transmission curve, a fundamental requirement for advanced photographic or photometric applications.

Convenient capture software: with the included Omegon AstroPhotoCapture software you can learn how to control the camera quickly and easily. Correct camera settings are crucial in astrophotography. AstroPhotoCapture gives you full control over all essential parameters without having to navigate an overloaded interface. Simple tutorials explain the capture process step-by-step to successfully crown your first night of astrophotography. The software is compatible with Windows 8 and 10.

Compatibility: Omegon Pro cameras are compatible with a wide range of capture programs through the common ASCOM and INDI interfaces. It also has native compatibility with a growing number of PHD2 and PHD2 programs N.I.N.A.

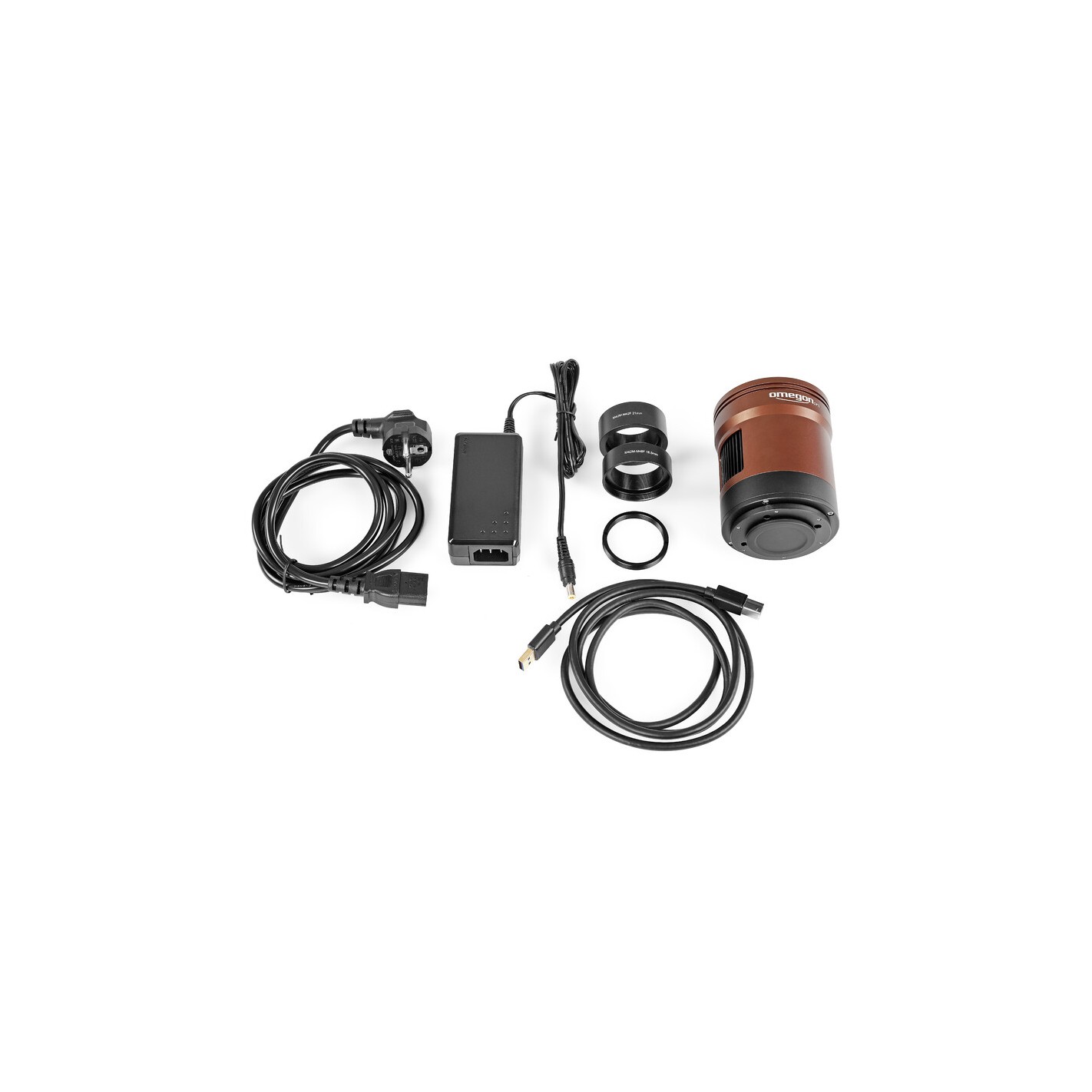

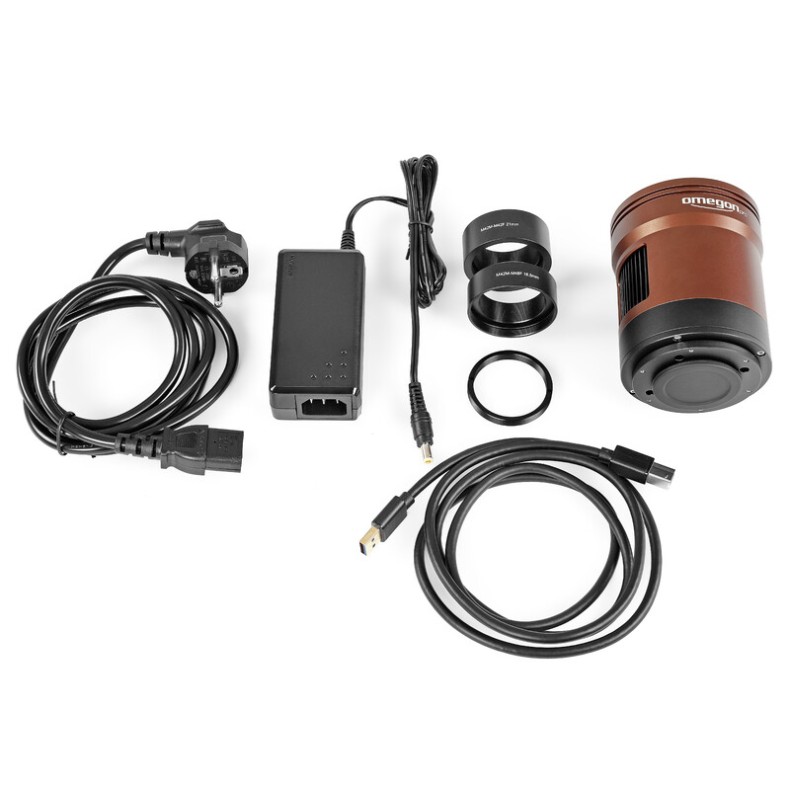

Scope of supply:

• Camera
• T2 to 2" adapter
• USB 3.0 cable
• 12 V 3A charger
• Robust transport case
• Desiccant

SPECIFICATIONS

Capacity

• Sensor type: CMOS sensor (Sony IMX585)
• Chip size (mm): 11.1 x 6.3
• Diagonal of chip (mm): 12.84
• Pixel size: 2.9
• Photo resolution: 3840 x 2160
• Megapixel: 8.3
• Digital sampling (Bit): 12
• Frames per second: 47
• Color camera: yes
• Cooling: yes
• Delta of temperature of the cooling system with respect to the environment: -40°C
• Power supply: 12V (3A)
• Interfaces: USB 3.0 (2x USB2.0 Hub)
• Autoguide: no
• Supported operating system: Windows 7/8/10 (Linux (INDI))
• Connection (telescope side): 2"
• Filter thread: yes (2")
• Focal length of flange (mm): 17.5
• Operating temperature: -10°C - +50°C
• Binning: 2x2, 3x3, 4x4 (Digital)
• memory buffer: 512
• Internal memory: DDR3 RAM
• Shutter: Rolling Shutter

Equipment

• Filter wheel: no
• Carrying case: yes
• Additional contents: USB cable
• Connection (telescope side): T2 (M42 x 0.75)
• Power supplyÇ: yes

General

• Series: veTEC
• Length (mm): 104
• Diameter (mm): 84
• Weight (g): 540
• Outer material: Aluminum
• Color: Bronze
• Type: Camera
• Construction type: Astronomy cameras

Applications

• Autoguide: no
• Moon and planets: yes
• Nebulae and galaxies: yes
• AllSky, Meteors: no
