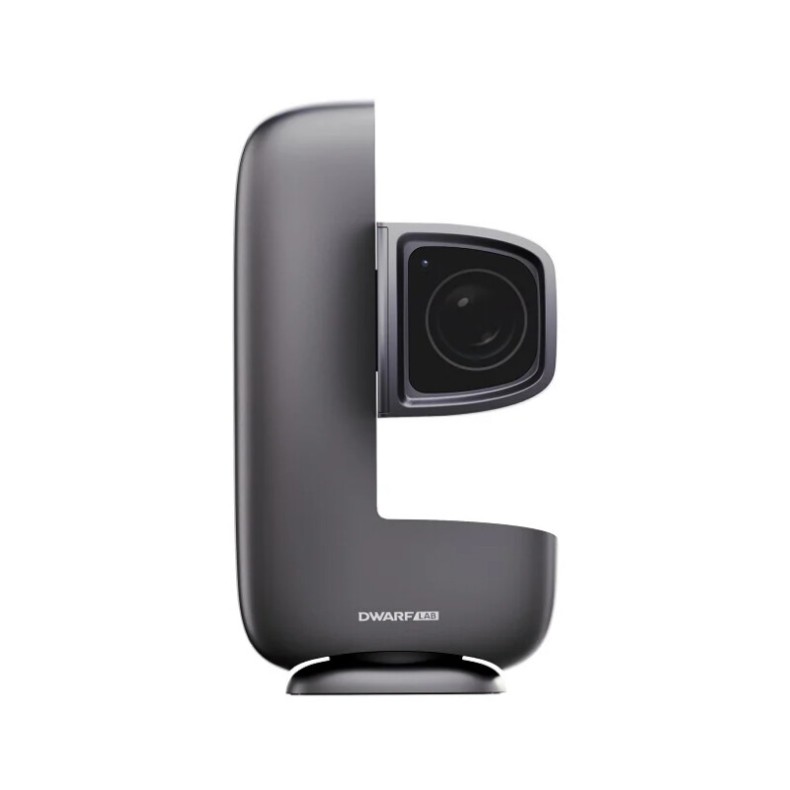

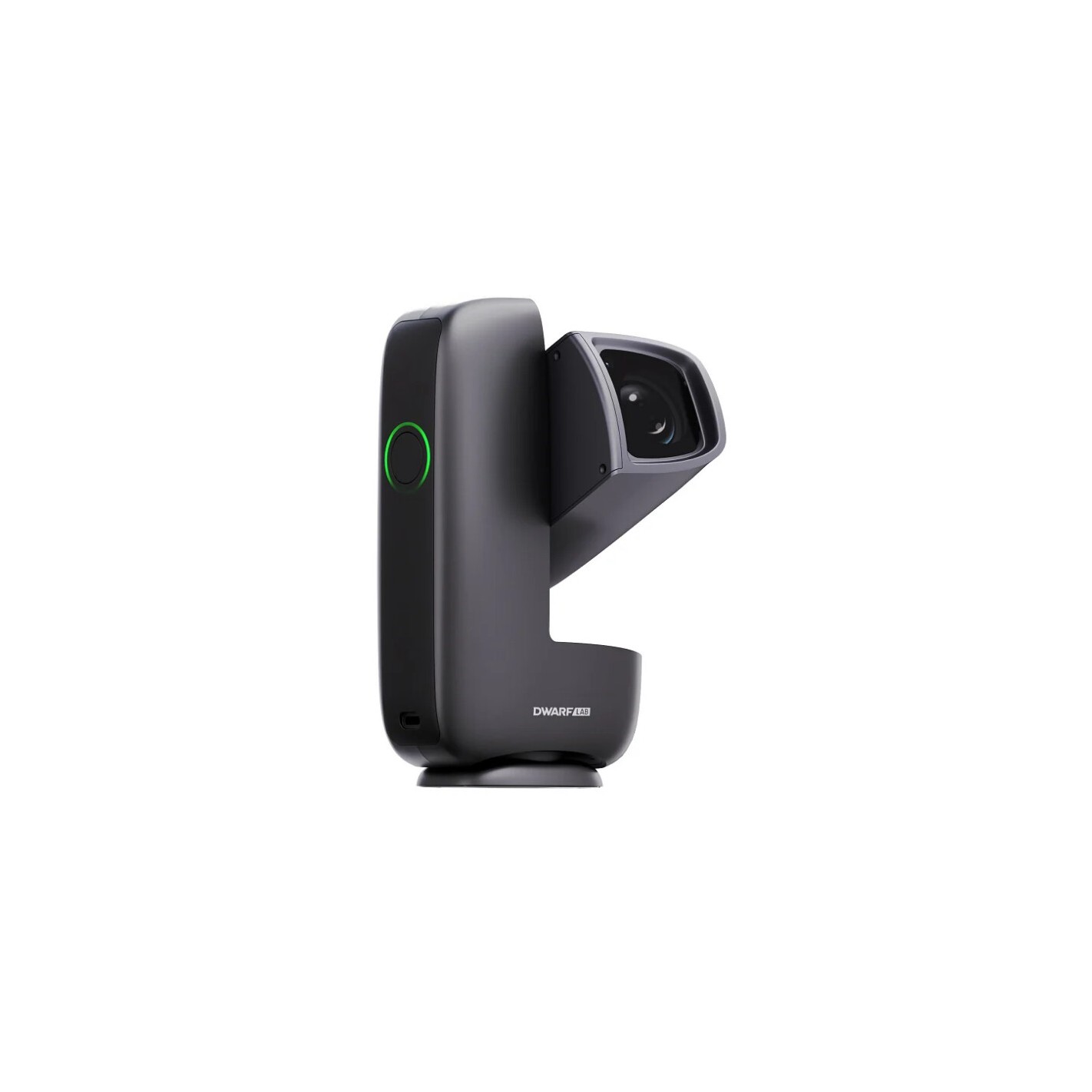

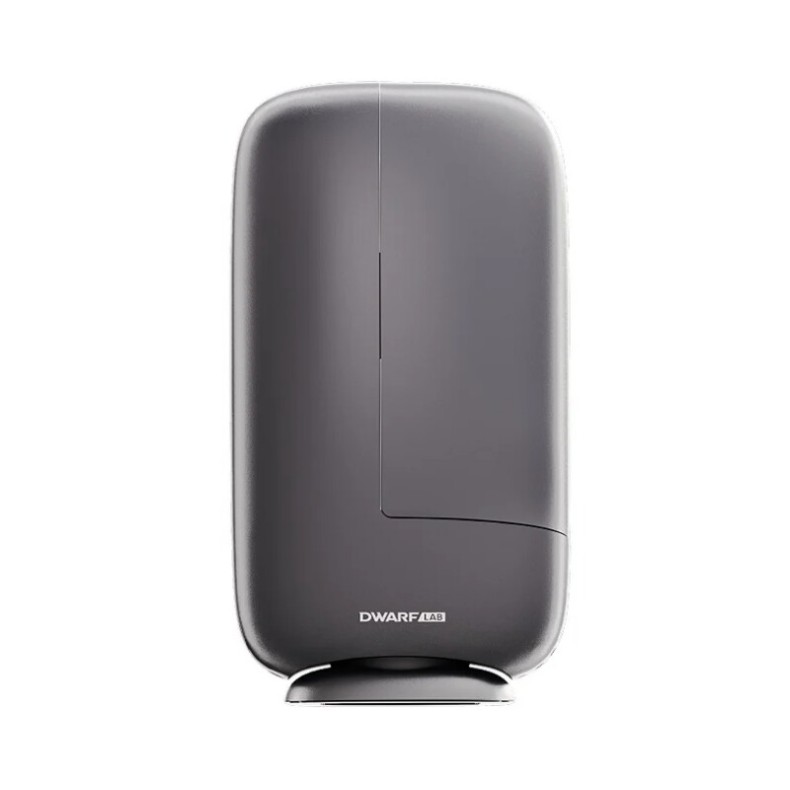

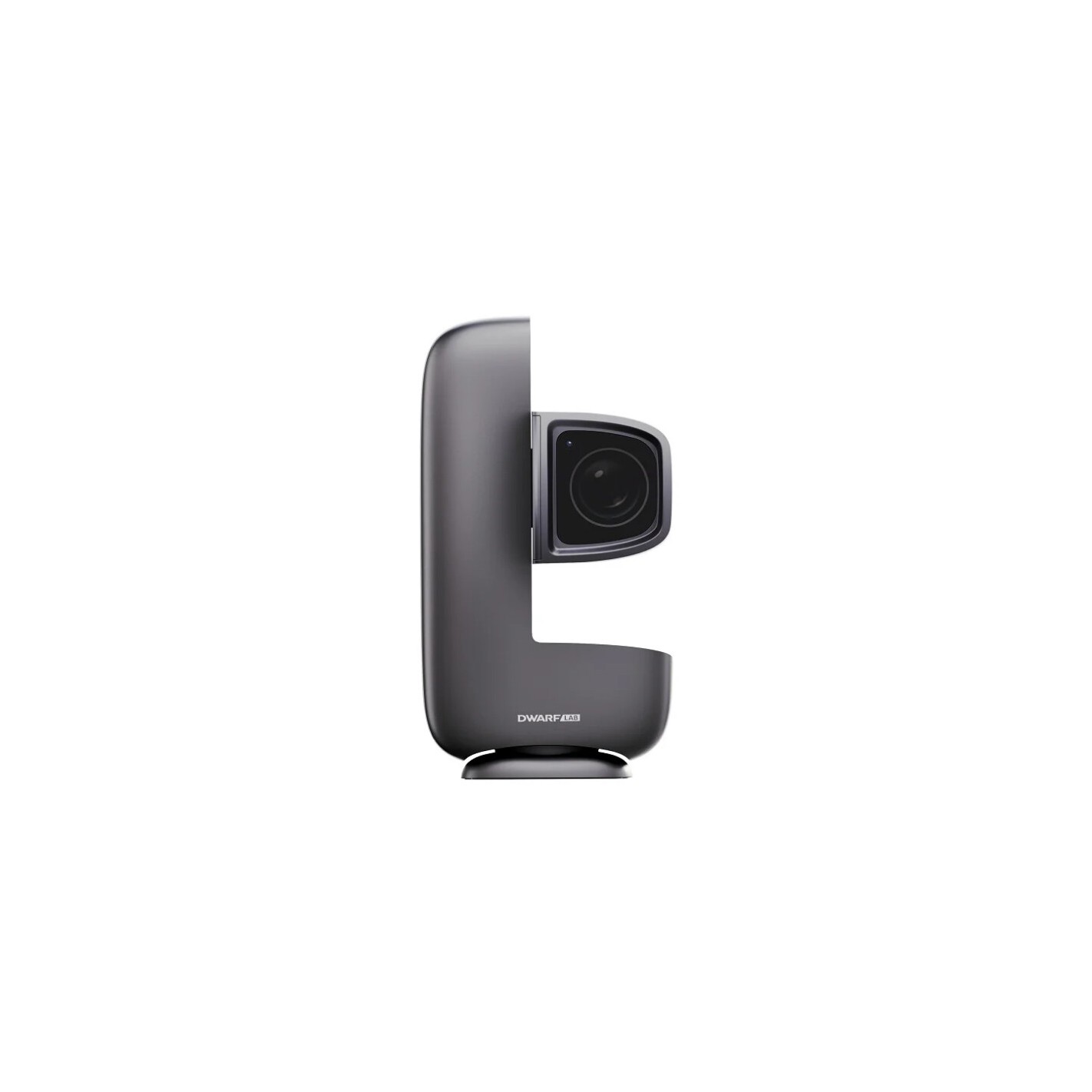

DwarfLab AP 30/150 mini Intelligent Telescope

DwarfLab AP 30/150 mini Smart Telescope

Extreme mobility without sacrificing real performance

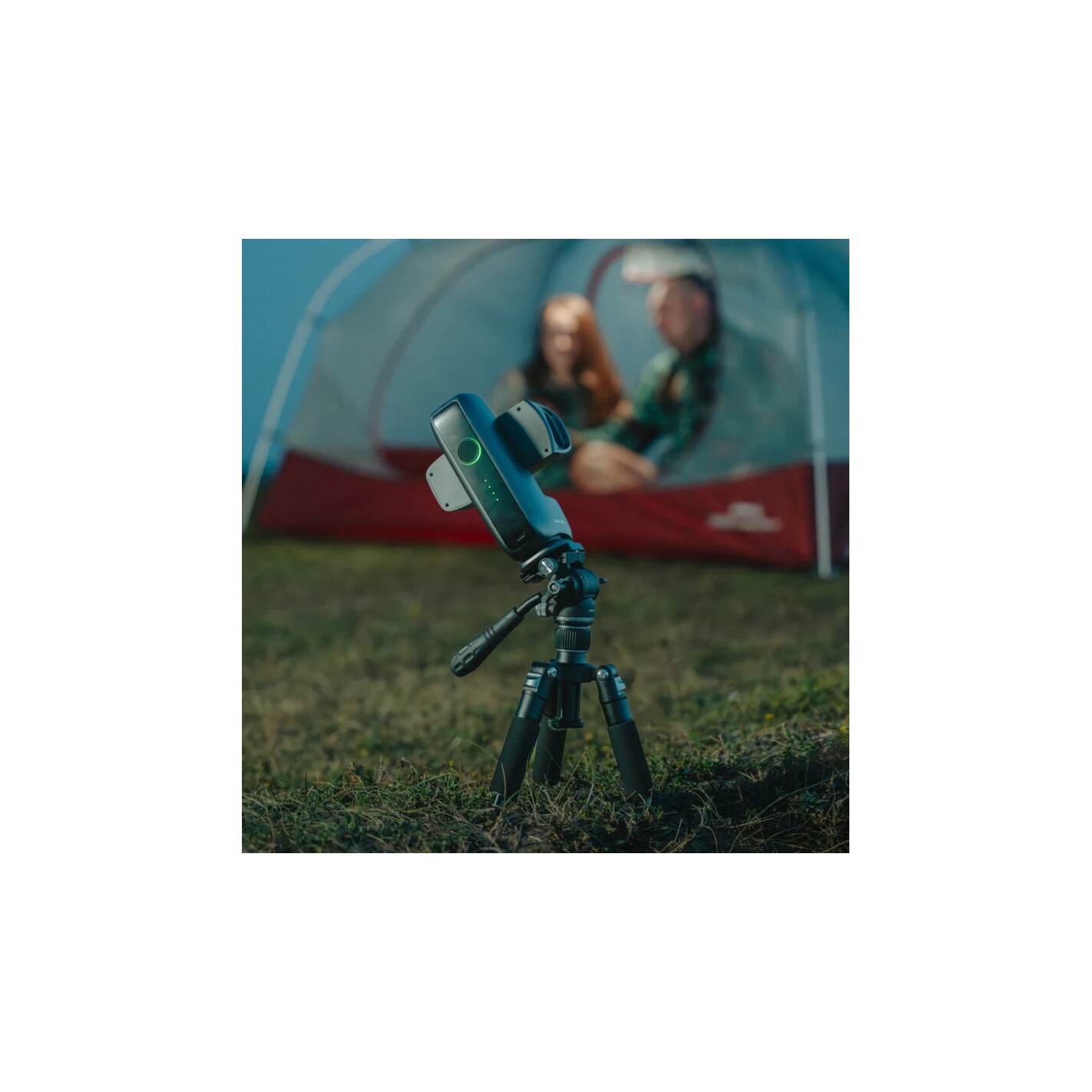

The DWARF Mini redefines the concept of a portable intelligent telescope. Weighing only 840 grams, it is one of the lightest smart telescopes on the market, without sacrificing automation, accuracy or capture capability. It is designed for users looking for real, fast and uncomplicated astronomy, both on occasional outings and on trips.

Observation and astrophotography in minutes

In a matter of minutes, the DWARF Mini automatically calibrates itself, locates selected objects and keeps them perfectly centered and in focus. It easily captures lunar craters, galaxies, nebulae and star clusters, as well as wide-field images of the Milky Way thanks to its integrated dual-camera system.

Telephoto lens with Sony IMX662 deep-sky sensor

The main system incorporates a Sony IMX662 sensor, optimized for astronomy and low light, offering an excellent balance between sensitivity, resolution and noise control.

Telephoto specifications:

• Sensor: Sony IMX662

• Format: 1/2.8"

• Pixel size: 2.9 µm

• Resolution: 1920 × 1080 (Full HD, 2 MP)

• Exposure time: up to 90 seconds

• Files generated:

  • Photo: JPG

  • Video: MP4

  • Astronomy mode: FITS / TIFF

Equatorial mode (EQ) allows long exposures without field rotation, which is unusual for intelligent telescopes of this size.

Integrated filter system for real astrophotography

The DWARF Mini includes a set of internal motorized filters designed to cover the most common astrophotography scenarios:

• Automatic Dark Frame Filter
  Automatically captures dark images to remove thermal noise, hot pixels and sensor artifacts, reducing the need for manual post-processing.

• Broadband Astro Filter (430-690 nm)
  Blocks UV and infrared radiation, enhances contrast and is ideal for galaxies, clusters and deep sky objects.

• Dual narrow-band filter (Hα 656.3 nm and O III 500.7 nm)
  Designed for emission nebulae, allows more efficient work under light pollution or in the presence of the Moon.

Integrated wide-angle camera for large fields

In addition to the telephoto lens, the DWARF Mini incorporates a separate wide-angle camera, ideal for astronomical landscape and wide-field photography.

Wide-angle camera specifications:

• Sensor: OmniVision OS02K10

• Lens: 3.4 mm (6.7 mm equivalent)

• Format: 1/2.8

• Pixel Size: 2.9 µm

• Resolution: 1920 × 1080 (Full HD, 2 MP)

• Exposure time: up to 30 seconds

Intelligent processing with Stellar Studio and MegaStack

Through the official application, the Stellar Studio system automatically performs image stacking, significantly improving the signal-to-noise ratio even with relatively short exposures. The software applies star correction, noise reduction and detail enhancement without user intervention.

The MegaStack function also allows images captured on different nights to be combined into a single final image, an advanced feature uncommon in compact smart telescopes.

Full motion and wireless control

The mount system allows movement of:

• 360° in azimuth

• 225° in height

This ensures access to any area of the sky once installed.
64 GB internal memory allows for extended sessions without relying on external devices. Data is transferred via Wi-Fi (range approx. 15 m outdoors) or via USB-C.

Autonomy and power supply

The DWARF Mini integrates a 7000 mAh battery, with an approximate autonomy of up to 4 hours of continuous use. Recharging is done via the included USB-C cable, with a charging time of about 100 minutes.

TECHNICAL SPECIFICATIONS

Optical system

• Optical type: Refractor

• Aperture: 30 mm

• Focal length: 150 mm

• Focal ratio: f/5

• Resolving power: 4.6″

• Light collecting capacity: 30×

Design and construction

• Telescope type: Smart Telescope

• Focusing system: No manual focuser

Mount and control

• Mount Type: Motorized Altazimuthal

• GoTo system: Yes

• Alignment process: Automatic

• Range of motion:

  • Azimuth: 360° Azimuth: 360

  • Height: 225° Height: 225° Height: 225° Height: 225° Height: 225° Height: 225° Height: 225

Electronics and connectivity

• Wireless connectivity: Wi-Fi

• Internal memory: 64 GB

Power supply

• Battery life: up to 4 hours

Tripod and mounting

• Tripod included: No

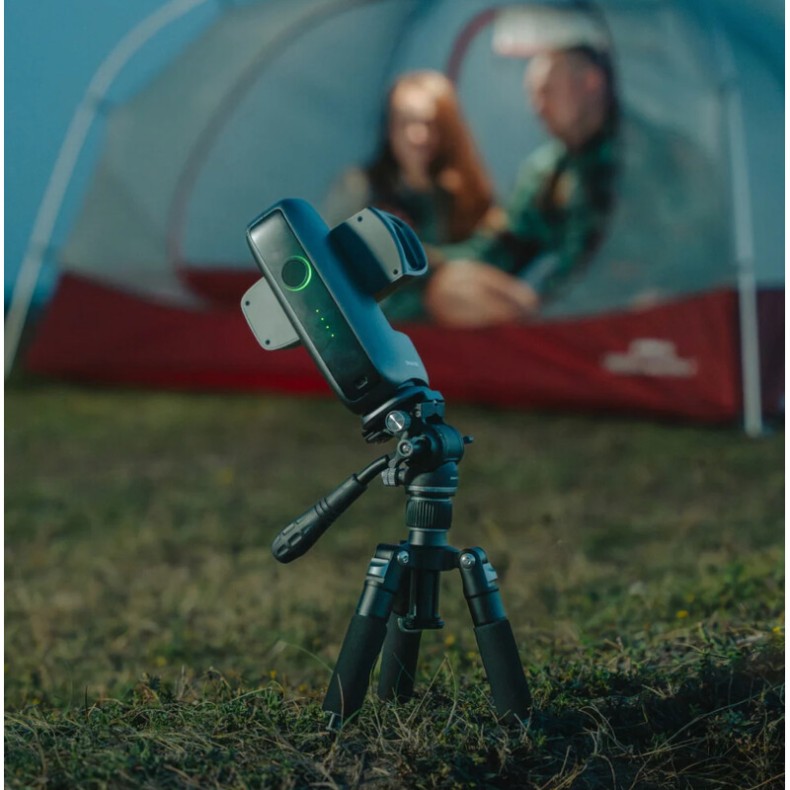

• Photo tripod thread: Yes

Included accessories

• Solar filters: Yes

• Carrying bag: No

• Power cords: Yes

Dimensions and weight

• Total weight: 0.84 kg

• Length: 101 mm

• Width: 61 mm

• Height: 184 mm

Recommended applications

• Automatic astrophotography: Yes

• Nebulae and galaxies: Yes

• Moon and planets: Not recommended

• Earth observation: No

• Solar observation (with filter): Yes

Recommended user profile

• Beginners: Yes

• Advanced users: No

• Observatories: No
