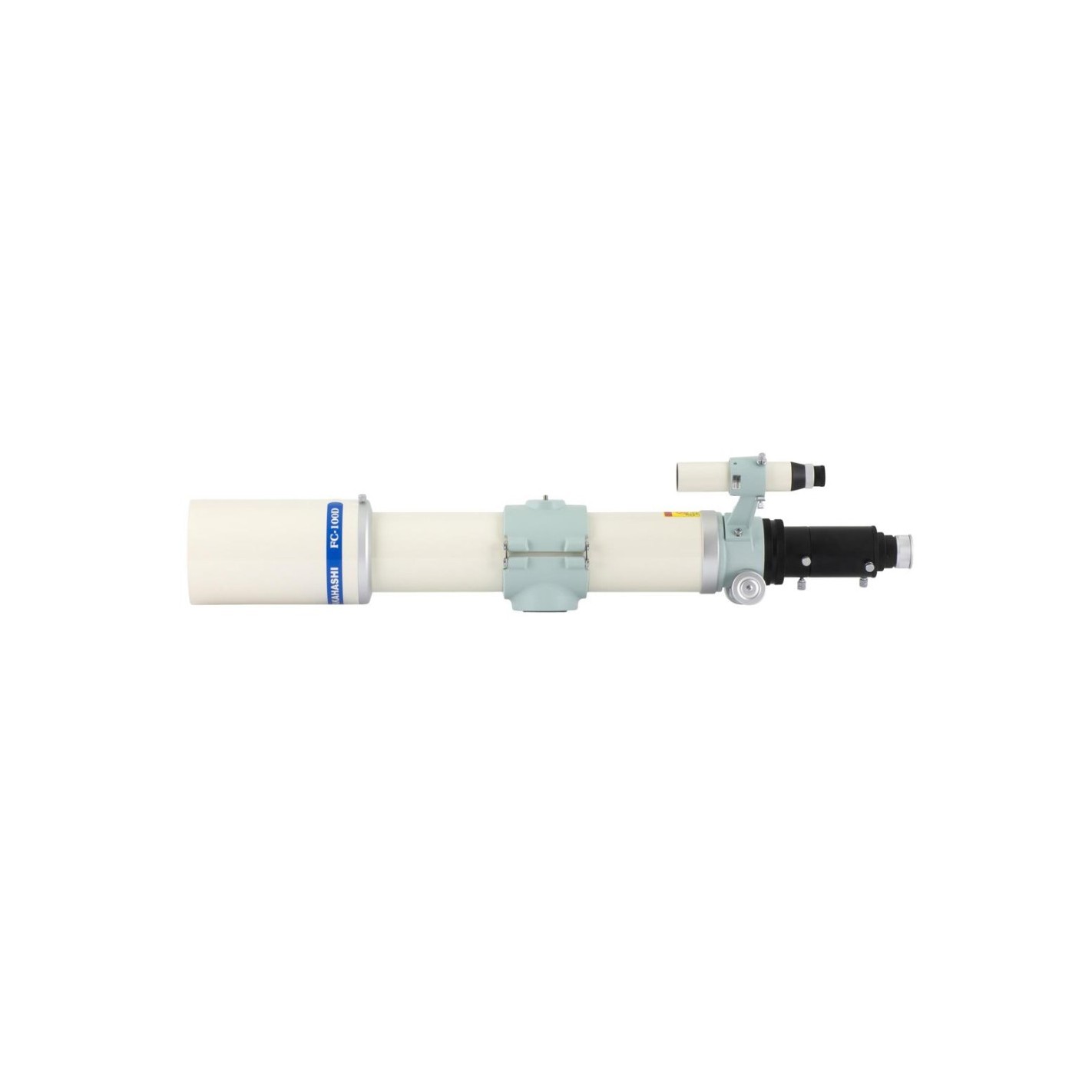

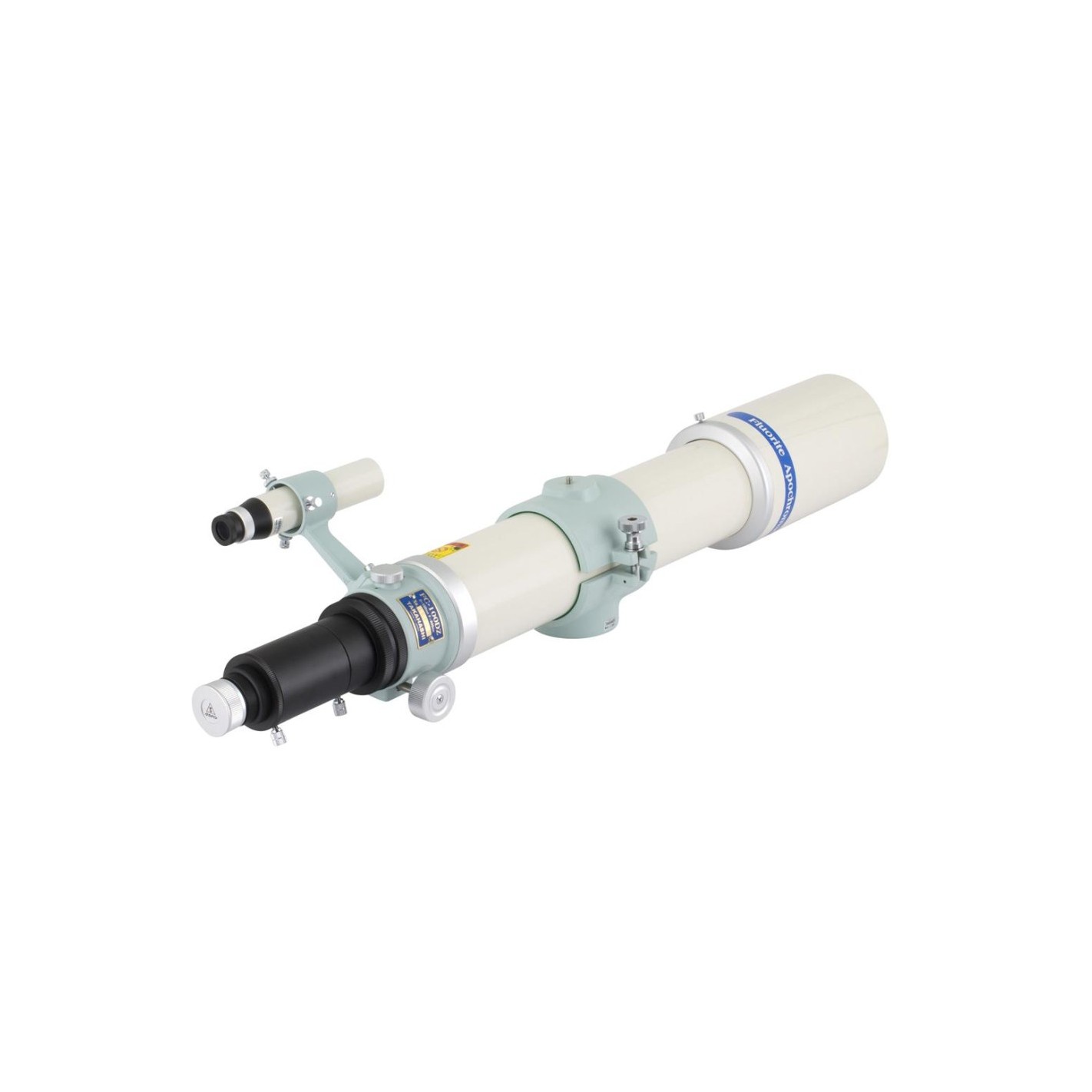

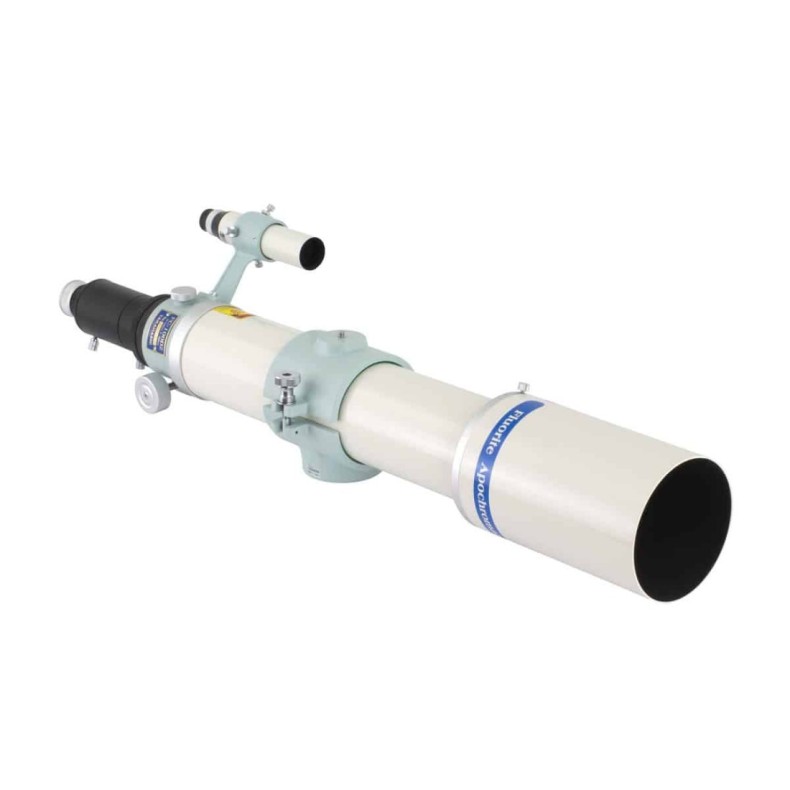

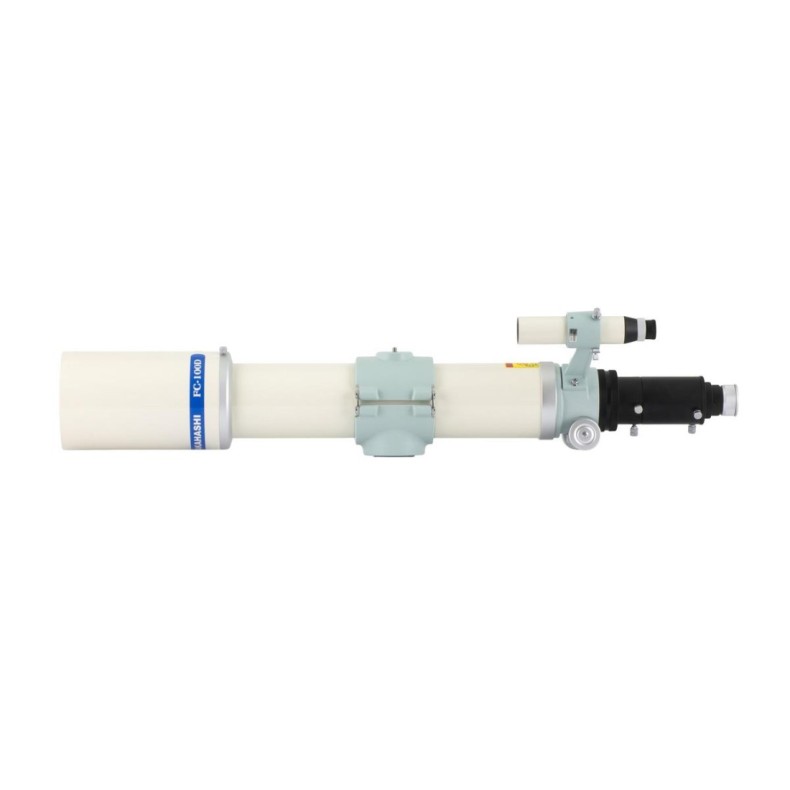

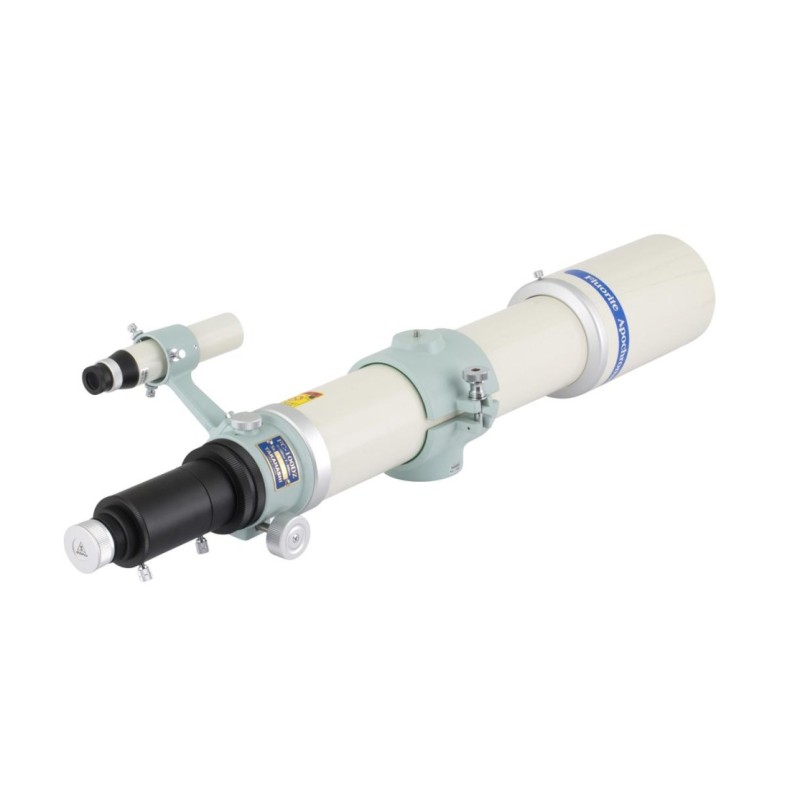

Optical tube Takahashi FC-100DZ complete with accessories

The apochromatic telescope Takahashi FC-100DZ has a different design from the FC-100DC / DF models. It has a fluorite doublet whose focal length is slightly extended, to 800 mm instead of 740 mm of the other models.

Color correction is further improved and the results obtained are close to the best instruments of the brand. This lens modification makes the FC-100DZ one of the most efficient and versatile 100 mm refractor tubes on the market.

It is equipped with a 50.8 mm eyepiece holder, identical to that of the FC-100DF, which allows the heaviest cameras to be mounted. Its use remains very general and even a small mount will exploit its full potential.

If you wish to shoot at the telescope's native focal length, a field corrector is available (the FC/FS 1.04x multiple flattener). It can also be equipped with a focal reducer: either the model 76D-RD normally intended for small focusers, or the model FC-35RD, specific for the FC-100DF and its Ø 50.8 mm focuser.

Treatments with hard multi-coating Useful diameter 100 mm Focal length 800 mm Relative aperture F/ 8

With FC/FS Multi-flattener MFL1.04X corrector Focal length 820 mm Relative aperture F/ 8.2

Image circle diameter 44 mm

With focal reducer FC-35RD focal length 530 mm Relative aperture F/ 5.3

Image circle diameter 44 mm Backfocus of 72.1 mm

With Q1.6X extender focal length 1280 mm Relative aperture F/ 12.8

Mechanical properties Takahashi FC-100DZ Tube length 840 mm (770 mm with retracted dew shield)

Tube diameter 95 mm Weight 3.9 kg without accessories Rack and pinion focuser Clamp and finder 6x30 with 8° field of view

.

TAKAHASHI FC-100DZ TELESCOPE FOCAL POINT DIAGRAM

.

TAKAHASHI FC-100DZ TELESCOPE FOCAL POINT DIAGRAM WITH FC/FS MFL1.04X FIELD CORRECTOR

.

TAKAHASHI FC-100DZ TELESCOPE FOCUS POINT DIAGRAM WITH THE FC-35RD FOCAL LENGTH REDUCER
