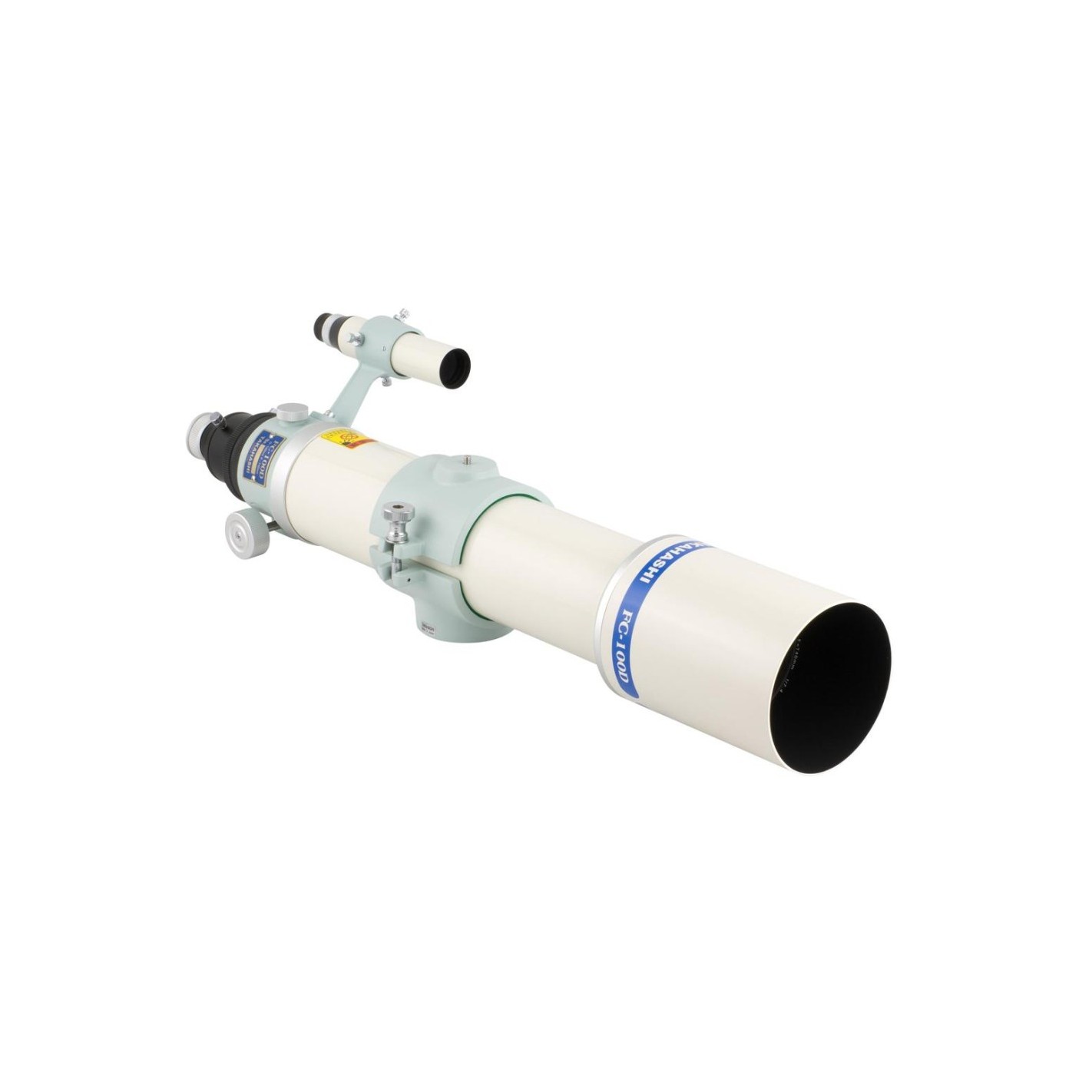

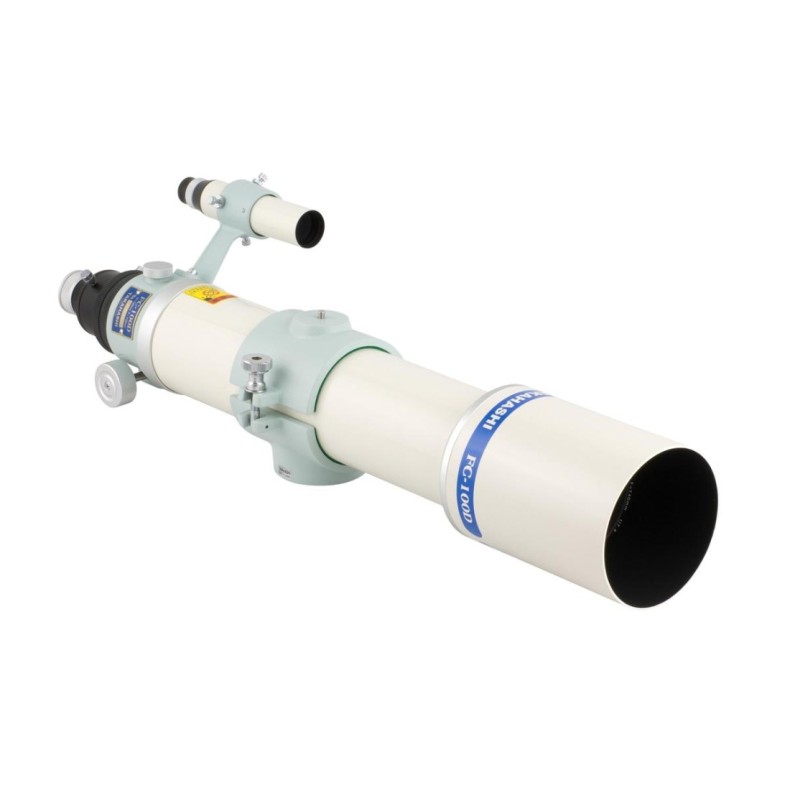

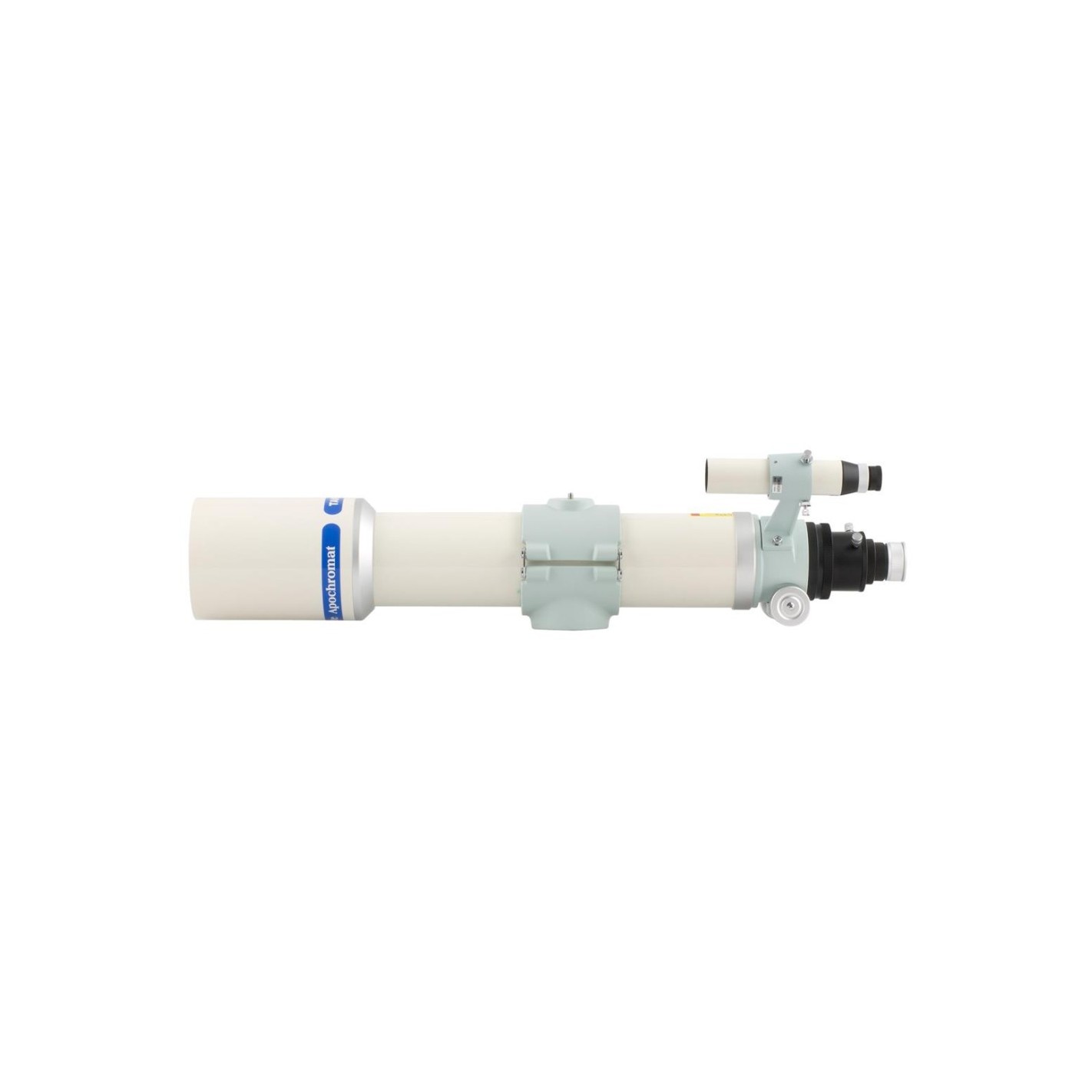

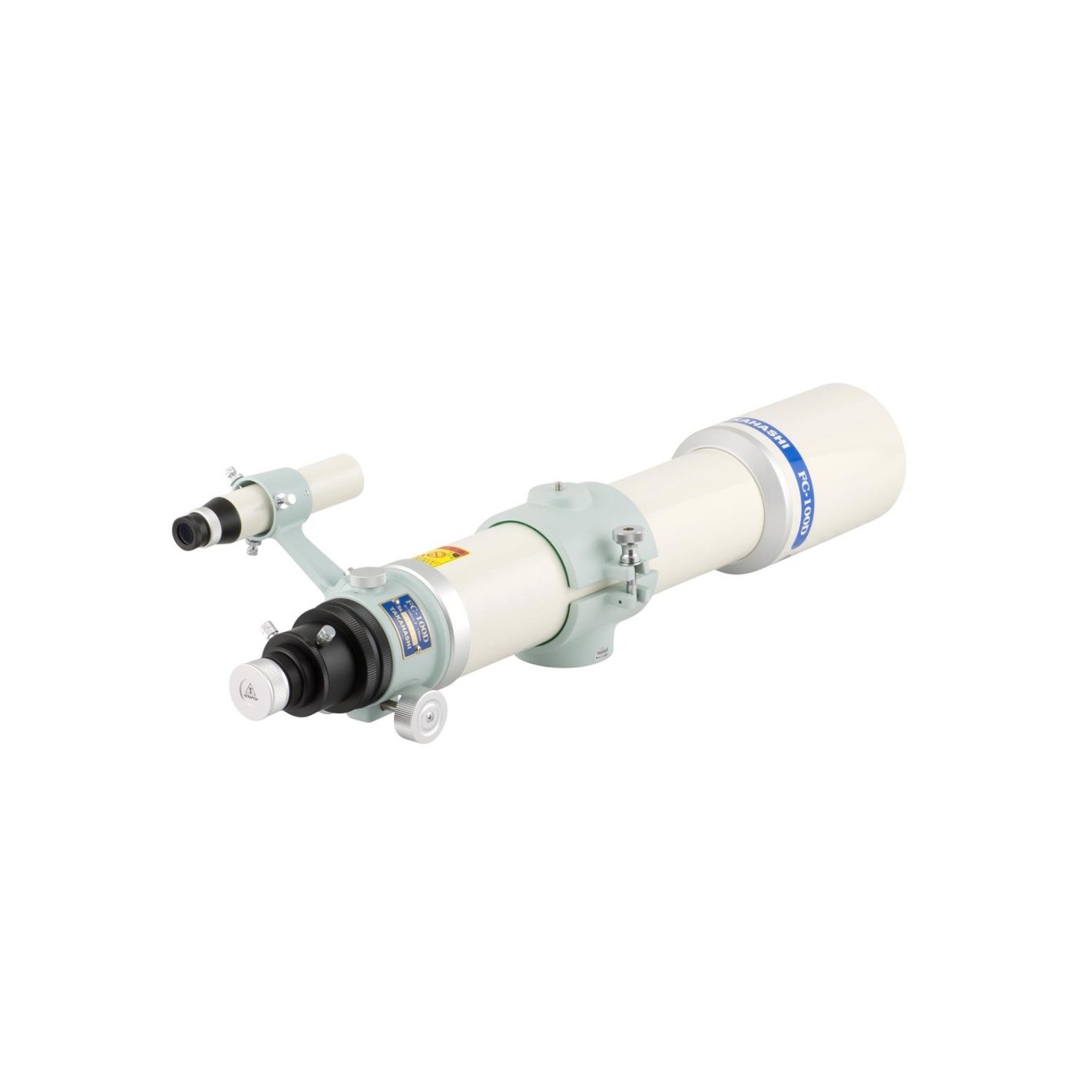

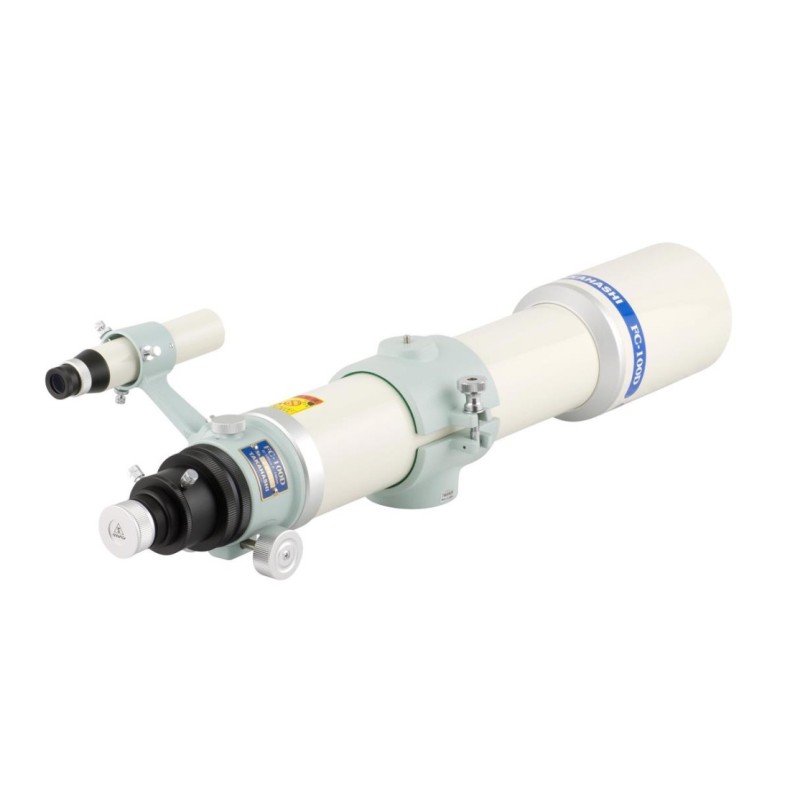

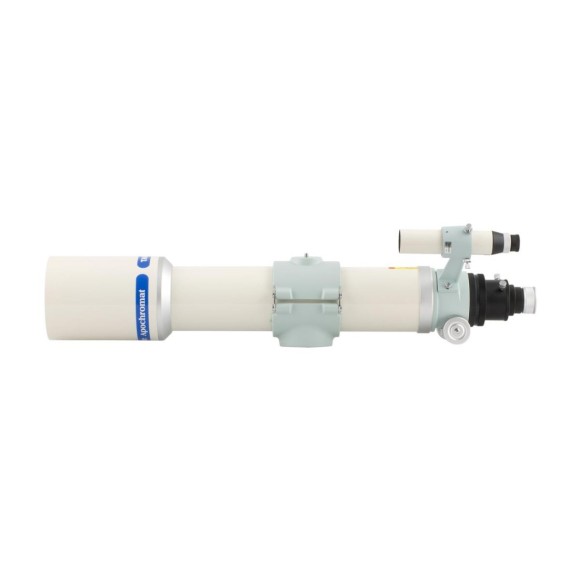

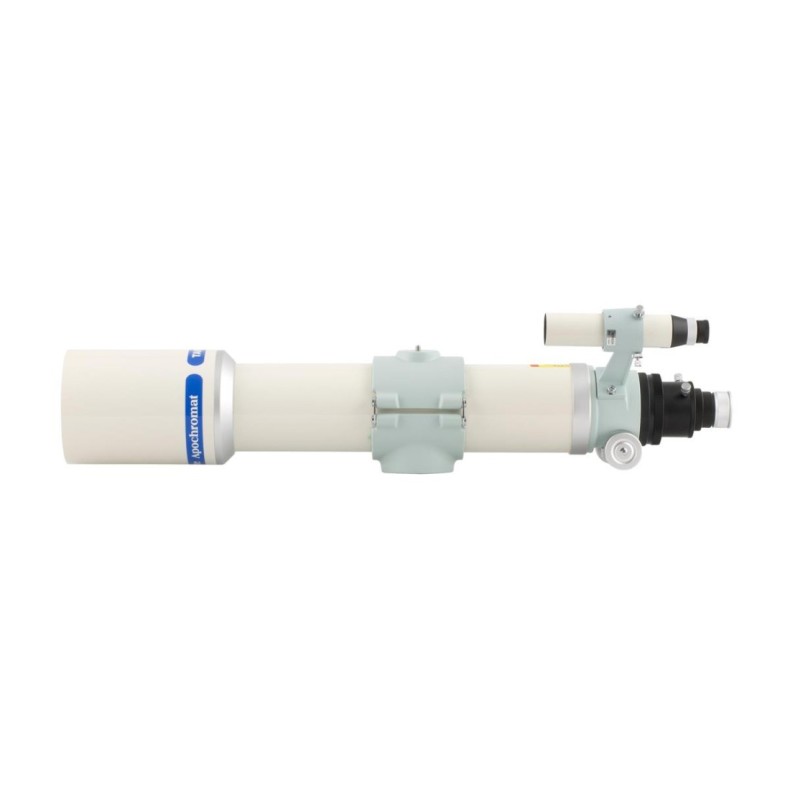

Optical tube Takahashi FC-100DF full optical tube D-100mm F-740mm F/7.4

The apochromatic telescope Takahashi FC-100DF is designed around a fluorite doublet with F/D 7.4. It is equipped with a 50.8 mm rack, larger than that of the FC-100DC, allowing heavier cameras to be mounted. Its use is still very versatile and even a small mount will allow you to take advantage of its full potential.

If you wish to shoot with the telescope's native focal length, a field corrector is available. It can also be equipped with a focal length reducer: the model 76D-RD, normally intended for the small focuser, or the model FC-35RD, specific for the FC-100DF and its 50.8 mm focuser. The use of the latter is recommended for cameras or digital cameras equipped with an APS-C sensor or higher.

.

Features Telescope Takahashi FC-100DF

Apochromatic objective with double fluorite lens

Air-gap objective mount. Internal fluorite.

Multicoated hard coatings.

Useful diameter 100 mm.

At native focus.

Focal length 740 mm.

Relative aperture F/D 7.4

Backfocus 223 mm

With 76D-FL field corrector

Focal length 770 mm

Relative aperture F/D 7.7

Diameter of corrected image circle 35 mm

Backfocus 56.2 mm

With Multi-flattener FC/FS corrector MFL1.04X

Focal length 757 mm

Relative aperture F/D 7.6

Diameter of corrected image circle 44 mm

Backfocus 81.4 mm

With focal length reducer 76D RD

Focal length 540 mm

Relative aperture F/D 5.4

Diameter of corrected image circle 30 mm

Backfocus 56.2 mm

With focal length reducer FC-35RD

Focal length 480 mm

Relative aperture F/D 4.8

Diameter of the corrected image circle 44 mm

Backfocus 74.1 mm

With EX-Q1.6X extender

Focal length 1185 mm

Relative aperture F/D 11.9

Backfocus 157 mm

With C2X extender

Focal length 1480 mm

Relative aperture F/D 14.8

Backfocus 73 mm

Mechanical characteristics

Feature Telescope Takahashi FC-100DF

Tube length 785 mm (fixed mist shield)

Tube diameter 95 mm

Diameter of mist shield 124 mm

Weight 3.6 kg

Focusing Rack and pinion

.

Supplied together with the tube:

TAKTKA00551 Seeker 6x30

TAKTKA00562 Finder holder

TAKTKA21420 Tube holder

.

Focal point diagram of the telescope Takahashi FC-100D at the focus

Focus point diagram of Takahashi FC-100D telescope with 76D FL field corrector.

Focal point diagram of Takahashi FC-100D telescope with FC/FS MFL1.04X field corrector
