ASKAR 60F Flat-Field Refractor Telescope

口径60mm

60mm Aperture

焦距408mm

408mm Focal Length

4片式APO设计

Quadruplet Air-Spaced APO

全画幅对应 全画幅对应

Supporting Full Frame

ED玻璃

ED Glass

无需平场镜

No Need for Flattener

无需计算后截距 无需计算后截距

拍摄即接即用

No Need to Calculate the Backfocus

可伸缩遮光罩 可伸缩遮光罩

Retractable Lens Hood

230mm窄版鸠尾板

230mm Dovetail Plate

2个寻星镜基座

2 Finder Bases

2.4英寸有齿

（R&P）调焦器

2.4" Large Rack- Pinion Focuser

1:10微调精密

1:10 Fine Adjustment

360度旋转器

Rotator

1.25英寸/2英寸目镜接口

1.25"/2" Visual Adapter

摄影延长管

4-piece Photographic Adapters

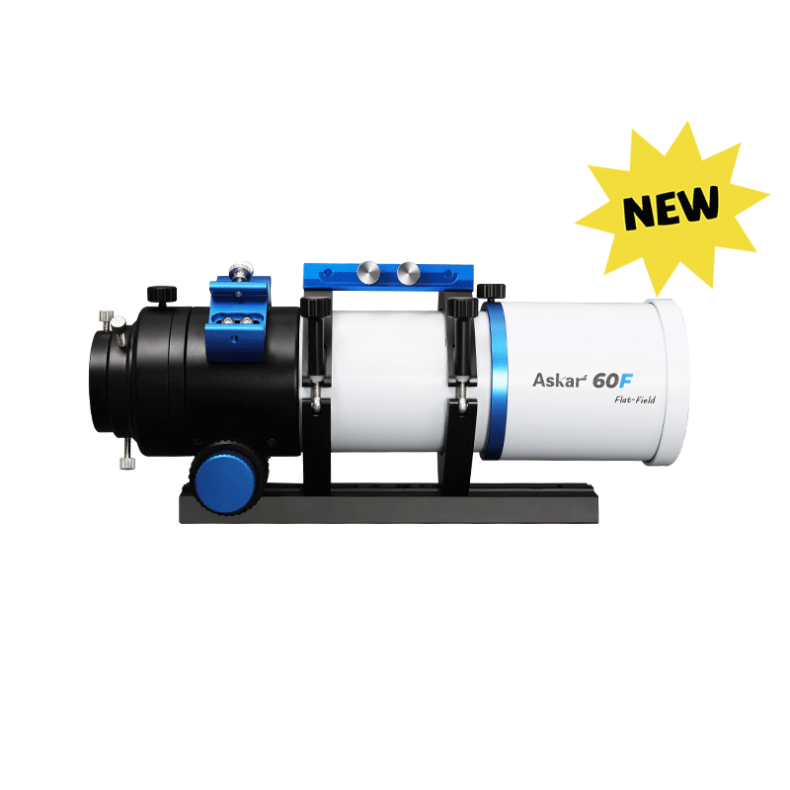

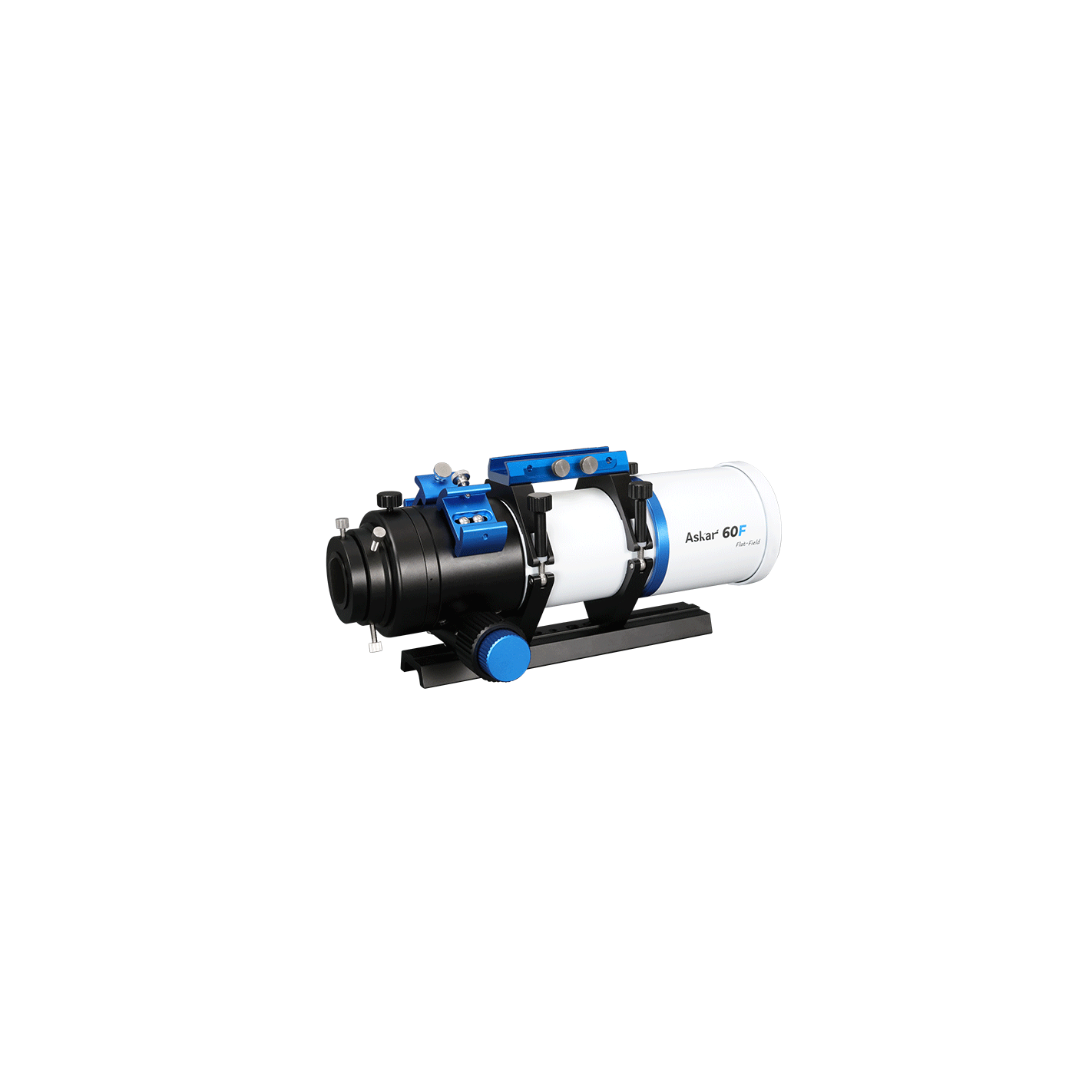

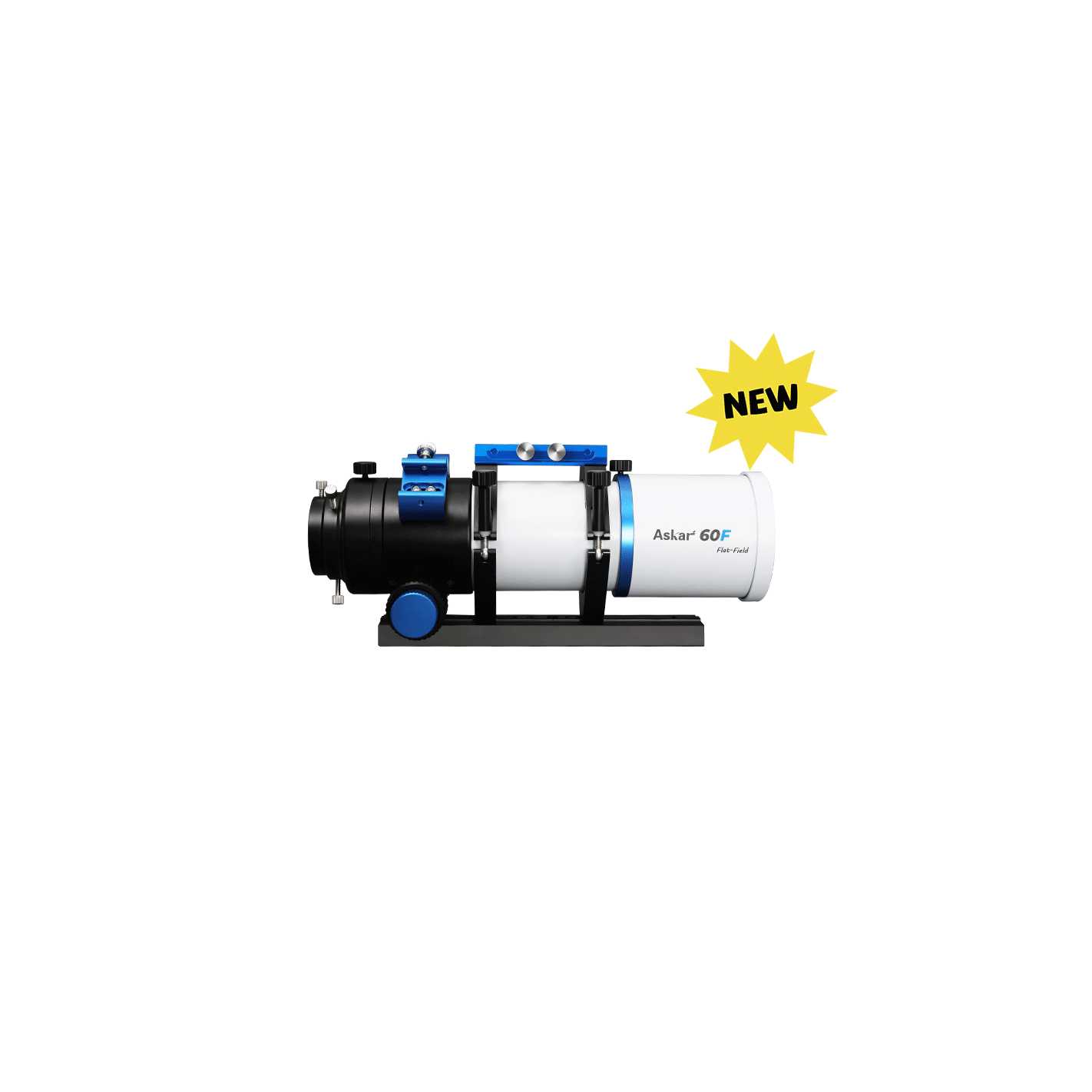

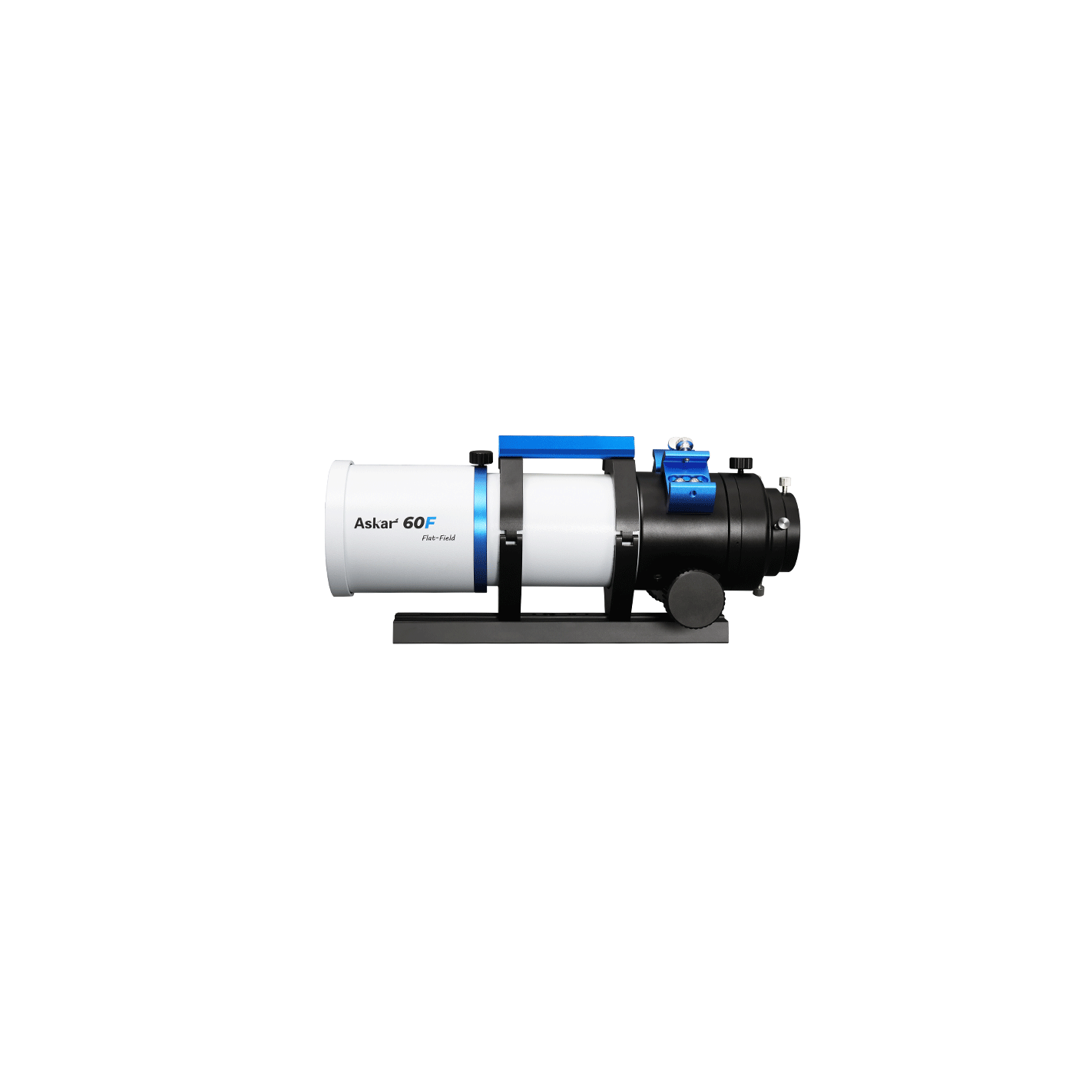

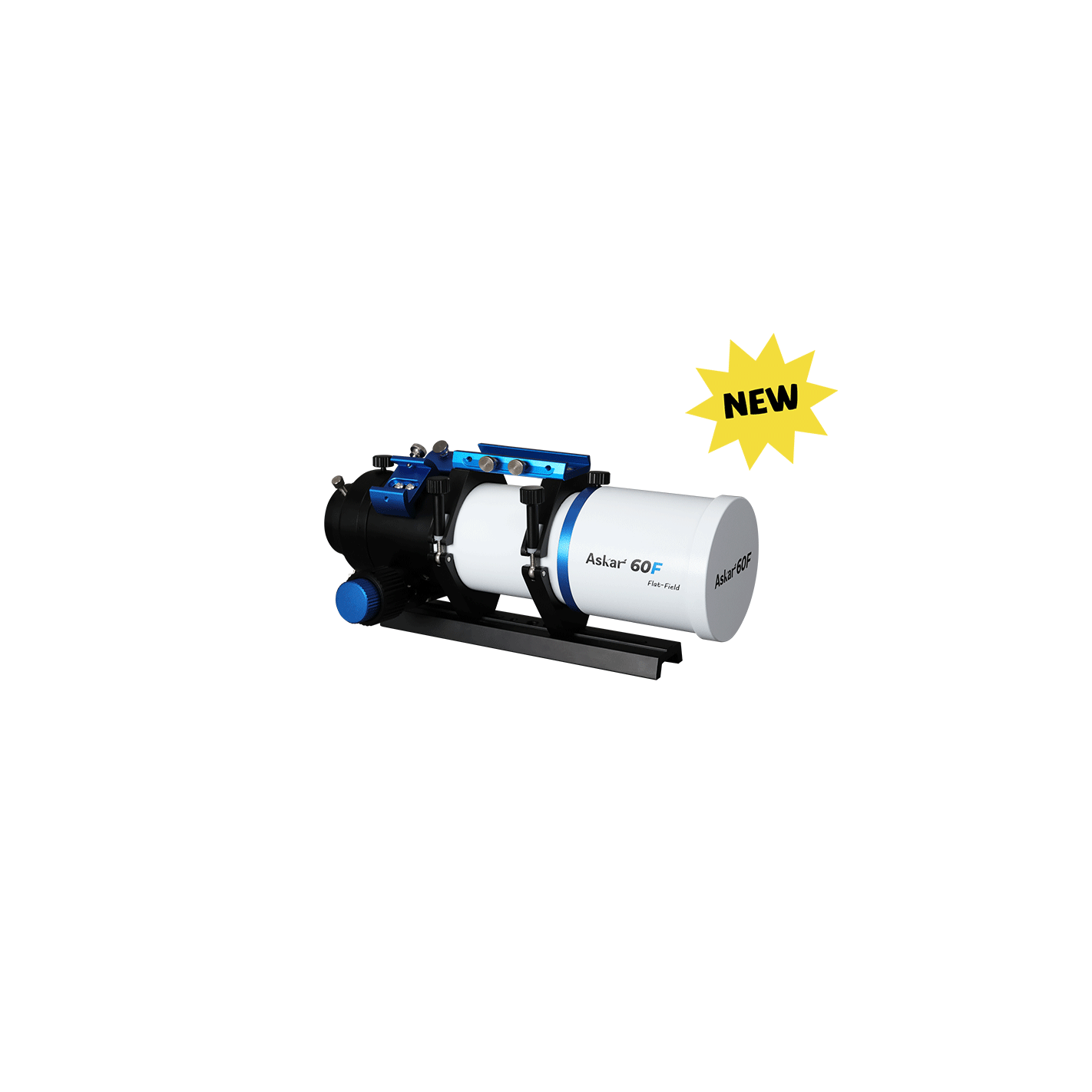

The Askar 60F is an OTA with a 60 mm aperture, a focal length of 408 mm and a native focal ratio of F6.8, designed for astronomy enthusiasts who prioritize portability and high image quality.

The tube features a quadruple lens optical design (three front elements and one rear element), which includes a piece of ED glass, which can effectively reduce chromatic aberration.

The Askar 60F supports 44 mm full-frame images with great performance of the surrounding star points.

With its built-in field flattener, the Askar 60F eliminates the need for an additional flattener and complex back focus calculations. Simply attach your camera, focus and you are ready to capture images, making astrophotography simpler and more enjoyable.

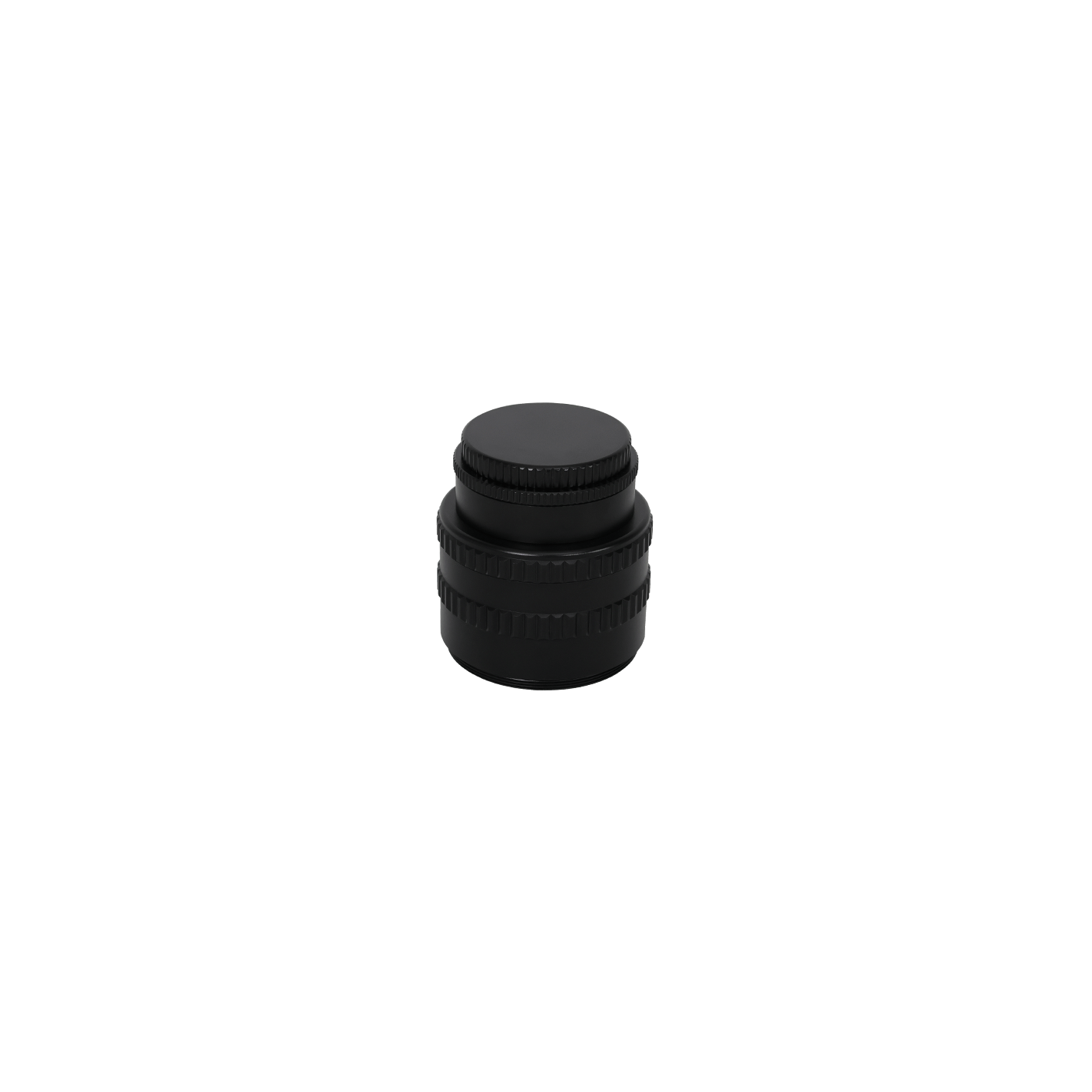

The OTA Askar 60F weighs only 2.5 kg, and the gross weight is 3 kg (including the tube rings and dovetail).It is compact and lightweight, making it easy to transport for observation or astrophotography, wherever your exploration takes you.The Askar 60F is designed for both visual observation and photography. It comes with a photographic extension tube that features a built-in 2" filter thread and has M48×0.75 and M54×0.75 adapters, making it compatible with digital SLR and astronomical cameras for quick connection and instant shooting.

The mechanical design of the Askar 60F minimizes the hidden costs of use and ensures a smooth experience Askar 60F features a retractable sunshield, which further reduces overall length and improves portability.The inside of the tube is lined with matte felt to better eliminate stray light, while the exterior sports a stylish blue and white color scheme with high-quality CNC machining and paint finish.On the handlebar of the Askar 60F, there is a slot for a base of buscador.AdemIn addition, there are two finder bases on both sides of the focuser, which not only eliminates the need for disassembly when changing the position of the finder, but also provides additional mounting positions for other astronomical accessories.As for the focuser, the Askar 60F is equipped with a 2.4-inch dual-speed R&P rigid focuser, which offers 1:10 fine adjustment.The fine adjustment knob has an anti-slip cover, and the rear features a 360° scale rotator for precise angle adjustment.The dovetail plate is a standard dovetail style plate Vixen 230 mm, with 1/4" and 3/8" screw holes, which allows direct connection to a tripode.Ofreciendo professional-grade performance at an entry-level price, the Askar 60F is your ideal companion for exploring the cosmos and capturing the beauty of nature.
