Combined with a 1000m laser rangefinder and two interchangeable IR emitters, this all-in-one binocular can be used for hunting, bird watching, animal search, rescue and marine scenarios.
Main characteristics
- 640 × 512 pixel thermal detector with 12 μm pitch
- High-sensitivity thermal module with NETD
- 35 mm thermal lens, F1.0, with a detection range of up to 1800 m (6,000 ft)
- Ultra-high resolution 4K CMOS sensor: 3840 × 2160
- 0.49-inch OLED display with 1920 × 1080 resolution
- Two interchangeable 850 nm and 940 nm IR illuminators, and laser rangefinder with 1000 m range
- More than 8 hours continuous operation with replaceable battery
- Lightweight at 798 g, with a compact and ergonomic design

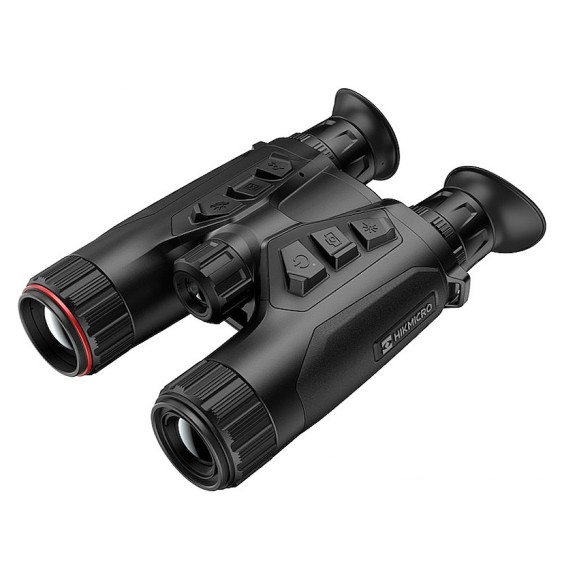

The world's leading dual-spectrum binoculars change the way you hunt day and night, especially at dusk. The HIKMICRO HABROCK 4K-60 binocular is an improved upgrade of the celebrated HABROCK 640 aimed at experienced hunters in both daytime and dusk hunting.
Technical specifications
Móduthermal
Image sensor: uncooled VOx focal flat arrays
Maximum resolution: 640 × 512
Image frequency: 50 Hz
Pixel pitch: 12 μm
Spectral response band: From 8 μm to 14 μm
NETD: Less than 20 mK (@25°C), F#=1.0
Lens (focal length): 35 mm, F1.0
Focusing mode: Focusing ring
Detection range: 1800 m
Minimum focusing distance: 3.5 m
Magnification: 3.0 × to 22.0 × (7.3 ×)
Field of view (H × V), degrees / m at 100 m: 12.5° × 10.1° / 22.0 m × 17.6 m
Optical module
Image sensor: 1/1.8'' progressive scan CMOS
Maximum resolution: 3840 × 2160
Focal length 60: mm, F2.2
Minimum operating distance: 3 m
Focusing mode: Focusing ring
Magnification: 5.5 × to 22.0 × (4 ×)
Field of view (H × V), degrees/ m at 100 m: 7.3° × 4.1° / 12.6 m × 7.2 m
Intelligent IR: Yes
Illuminator wavelength: IR 940 nm (default) and 850 nm (interchangeable)
Night vision range: 400 m
Interchangeable IR illuminator: Yes
Image display
Display: 0.49 inches, OLED, 1920 × 1080
Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Automatic
FFC (Flat Field Correction) Mode: Automatic, Manual, External Correction
Exit pupil: 8 mm
Interpupillary distance:r 15 mm
Diopters (Range): -5 D to +3 D
Brightness adjustment: Yes
Tone adjustment: Cool, warm
Contrast adjustment: Yes
Zoom Pro: Yes
System
Record video: Yes
Snapshot capture: Yes
Audio recording: Yes
Standby mode: Yes
Storage: Embedded EMMC (64 GB)
PIP (Picture in Picture): Yes
Access point: Yes
Hot Track Yes
Digital magnetic compass: Yes
GPS: Yes
Local album: Yes
Power supply
Battery type: Rechargeable and replaceable Li-ion 18650 battery
Battery operating time: ≥8 h (25°C, hot spot off)
Power supply type C: 5 V DC, 2 A
Supports external power supply, supports direct charging
General
Protection level: IP67
Dimensions: 138.1 mm × 68.5 mm × 222.4 mm (5.44" × 2.7" × 8.75")
Operating temperature: -30°C ~ +55°C
Weight: 798 g without battery
Interpupillary adjustment range: 60 mm to 74 mm
Mounting adapter :1/4"-20-UNC
Laser rangefinder
Laser safety class Class 1:
Wavelength: 905 nm
Maximum measuring range: 1000 m
Measuring accuracy: ±1 m
Minimum measuring range: 10 m
Dimensions

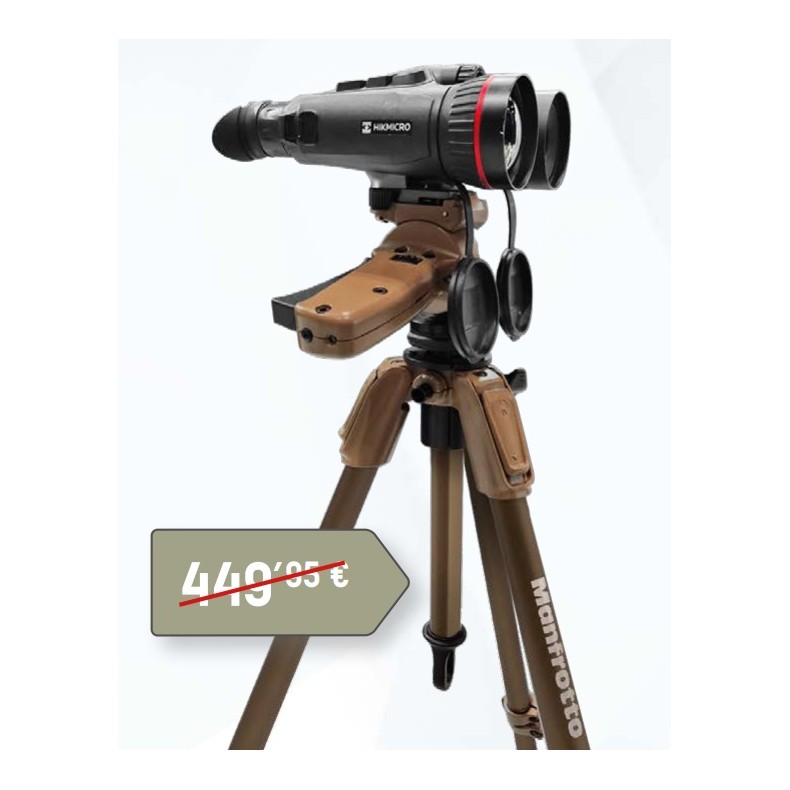

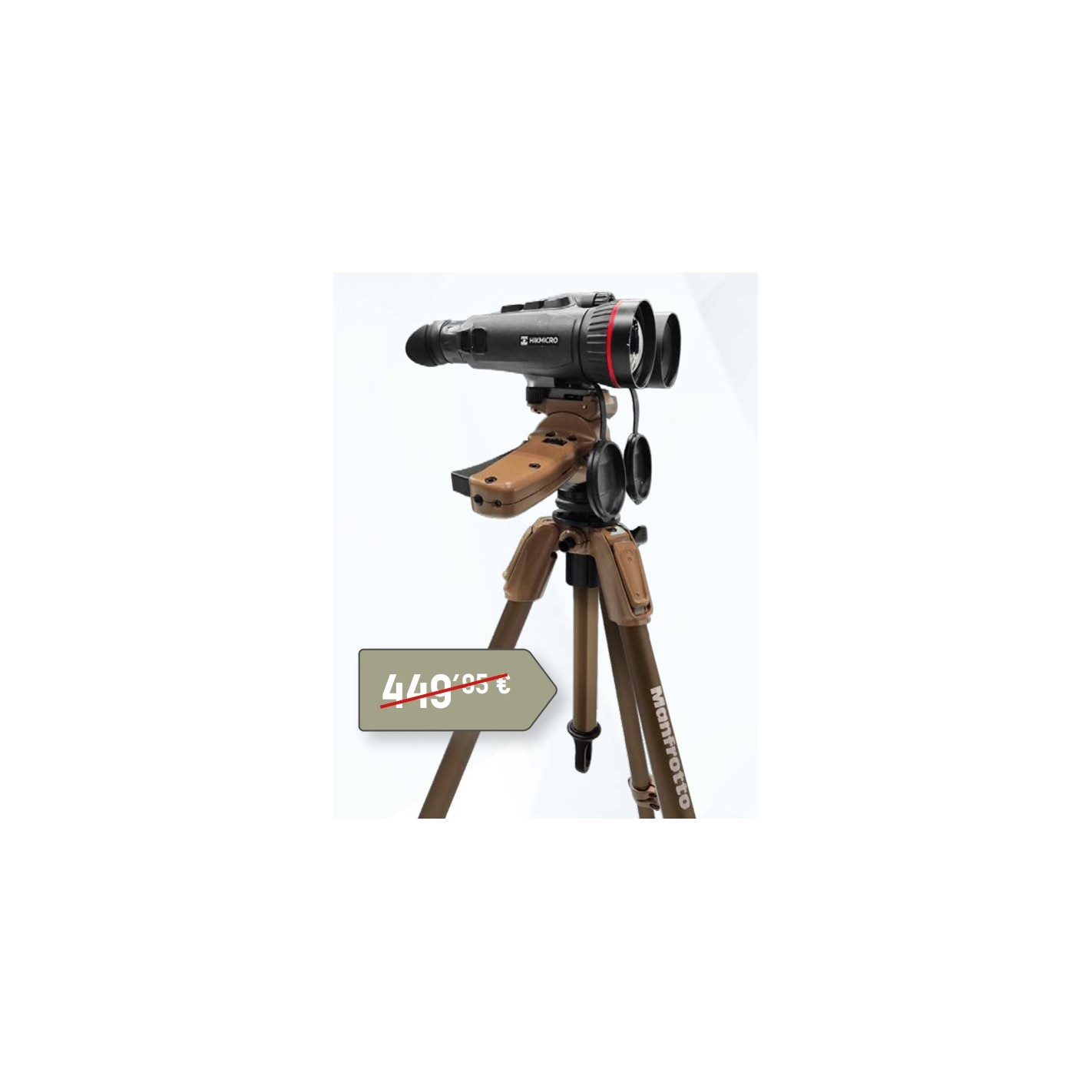

Designed for those who demand accuracy and reliability in every situation, the ALPHA SHOT grip kit is the best choice for hunters who need a seamless transition between using binoculars and a rifle. Whether you're on the move or patiently waiting for the perfect shot, count on our kit to provide unwavering support.
With a payload capacity of 8 kg (17.63 lb) with the grip head and 15 kg (33 lb) with the tripod alone, our tripod is designed for those who enjoy outdoor adventures, including close encounters with wild animals. Made of durable aluminum, it strikes the perfect balance between strength and weight, ensuring years of reliable performance in the field.
It comes in combination with the innovative grip, which features one-handed control for quick adjustments, and enjoys effortless connection and disconnection to both the rifle and optics with included plates and universal saddle, for perfect versatility.
What really sets this kit apart is its versatility. It serves as the ultimate 2-in-1 solution and seamlessly transitions between shooting and observing, making it the perfect companion for hunters who demand the best of both worlds.
Technical specifications
Weight: 3.3 kg
Height: 177 cm
Construction: aluminum
Closed length: 76 cm
Safety Payload Weight: 8kg
Minimum height: 26 cm
