Adjustable diagonal mirror Baader 2" BBHS® BBHS® 2" diagonal mirror

Adjustable diagonal mirror Baader 2" BBHS® BBHS® 2" diagonal mirror

Name: Adjustable diagonal mirror Baader 2" BBHS® BBHS® 2" diagonal mirror
Brand: Baader Planetarium
SKU: BAD2456105
Price: 409.09 EUR
Availability: PreOrder

Reference BAD2456105

Stock at Supplier

409.09

VAT excluded Shipping 5/7d

Ideal for visual observation and astrophotography with maximum brightness, even in the infrared spectrum.

Order it before 12 hours and 41 minutes and receive it between on Thursday, 5 February and Thursday, 12 February with UPS - Resto del mundo

Delivery Options

Carrier		Description	Estimated Delivery
	UPS - Resto del mundo	UPS - Rest of the World	Thursday, 5 February - Thursday, 12 February

UPS - Resto del mundo

UPS - Rest of the World

Estimated delivery:
Thursday, 5 February - Thursday, 12 February

✖

Description
Product Details

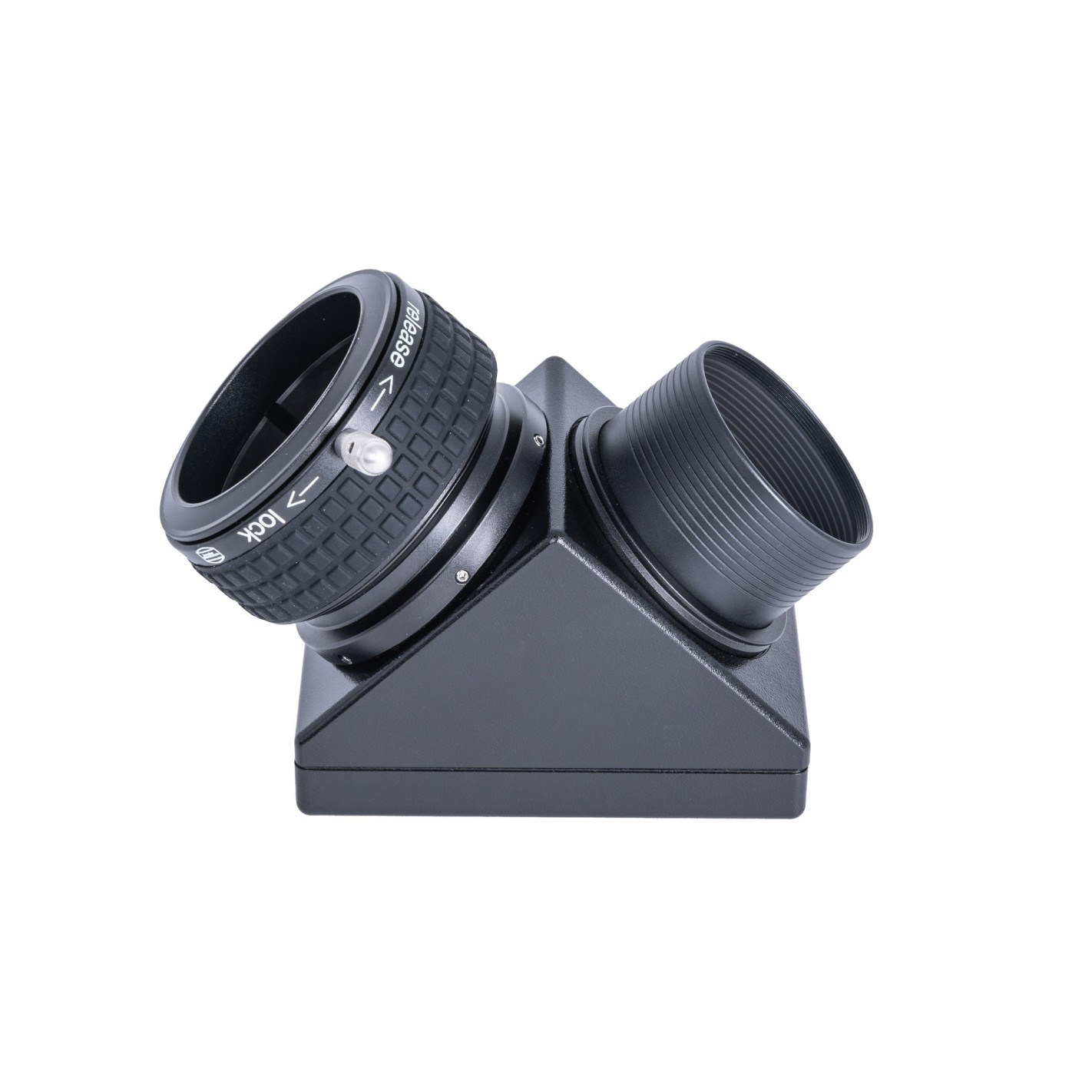

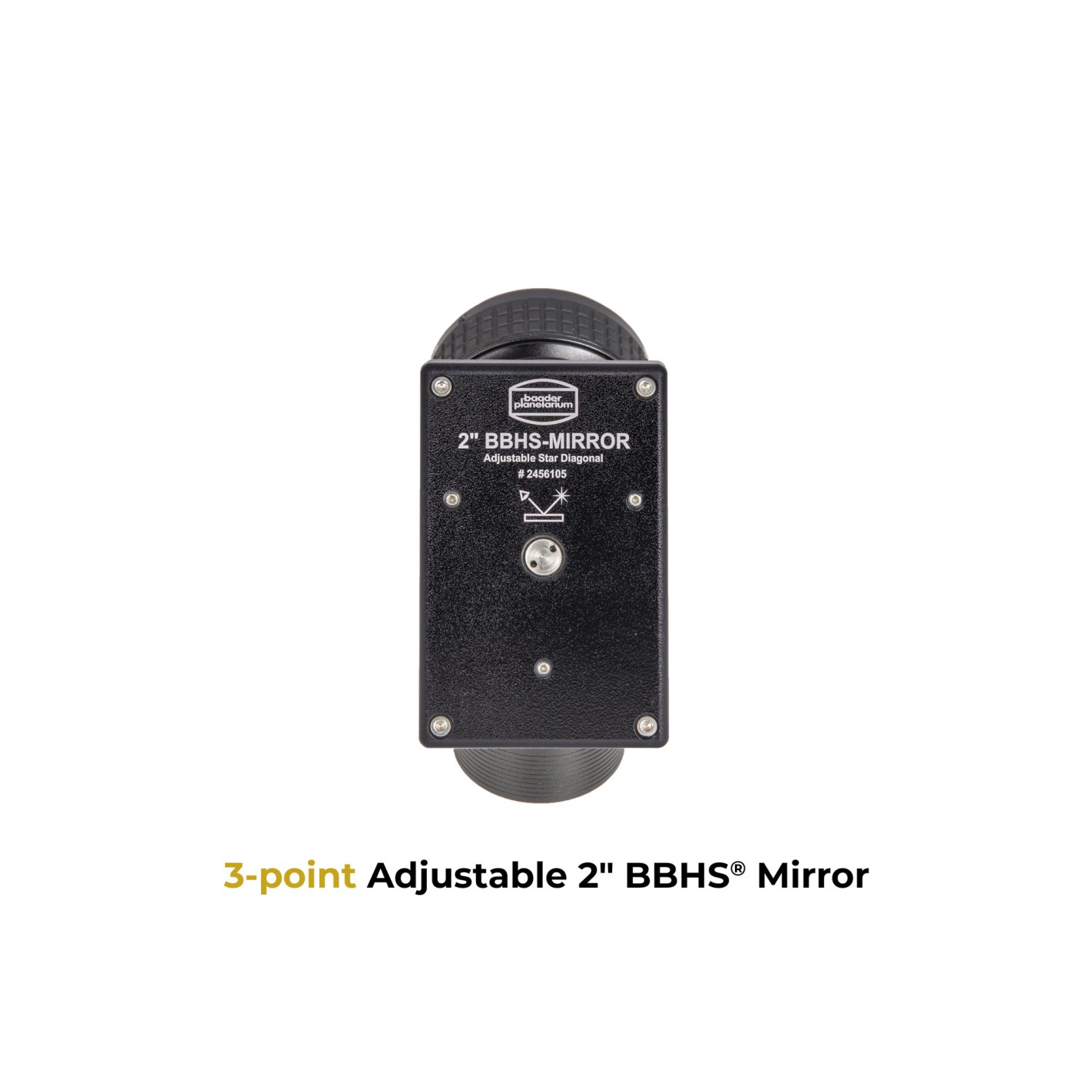

Baader 2" BBHS Adjustable Diagonal Adjustable Mirror

2" BBHS 2" zenith diagonal with 2" ClickLock clamp

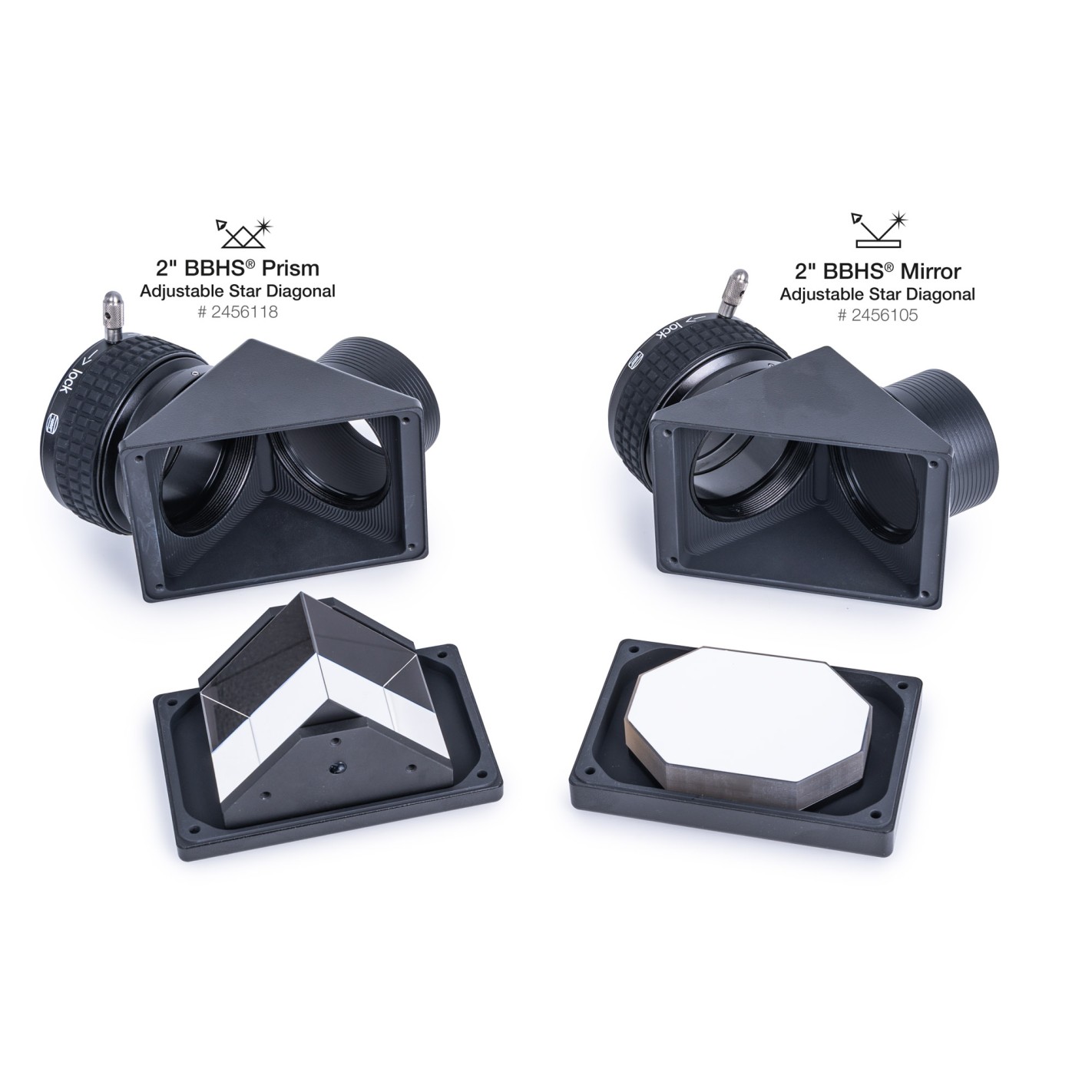

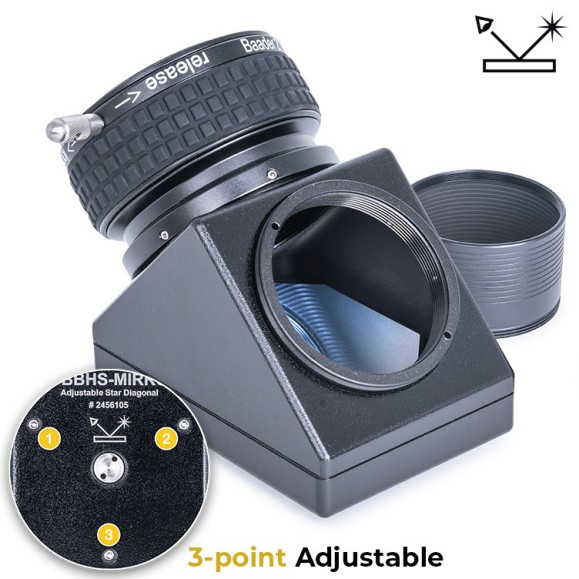

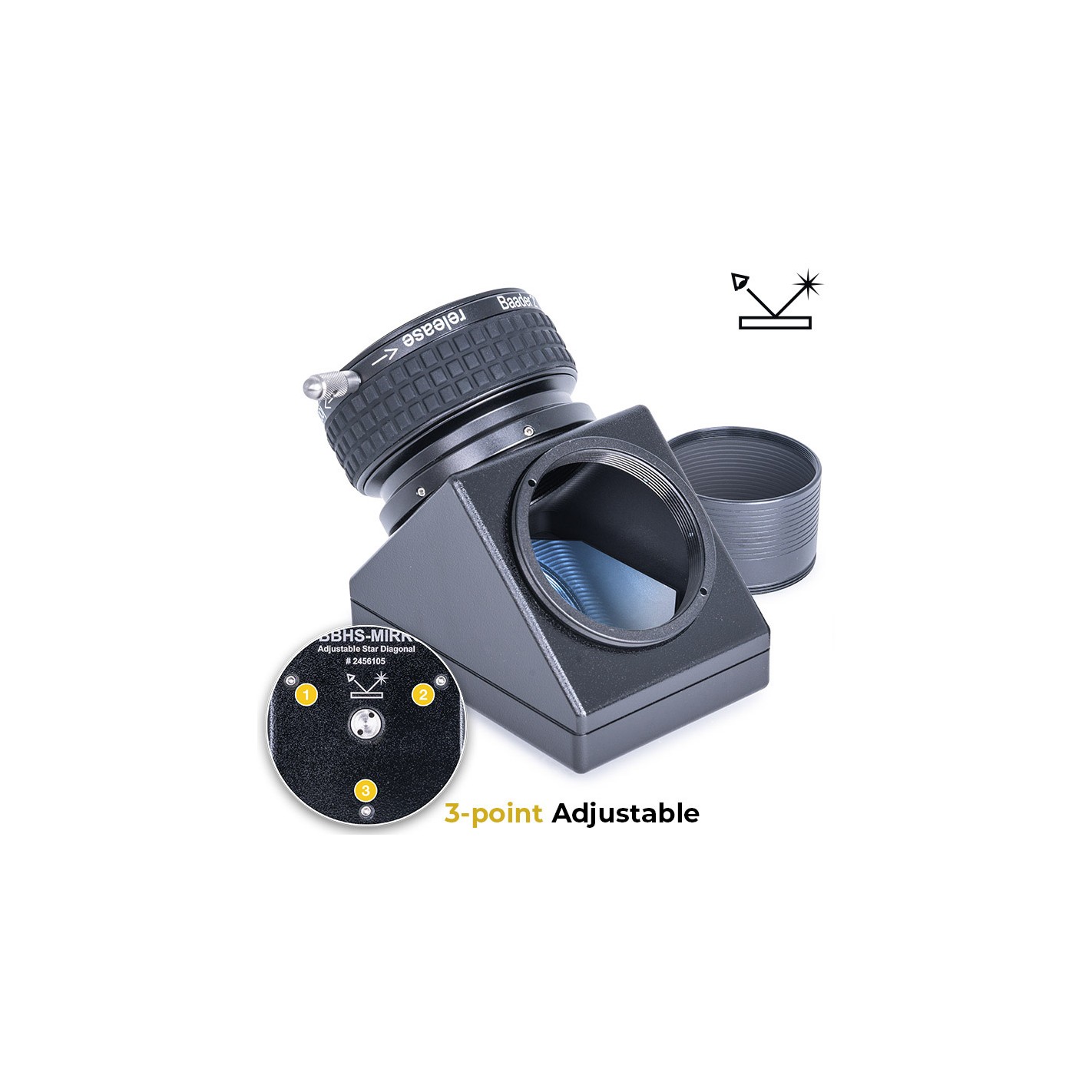

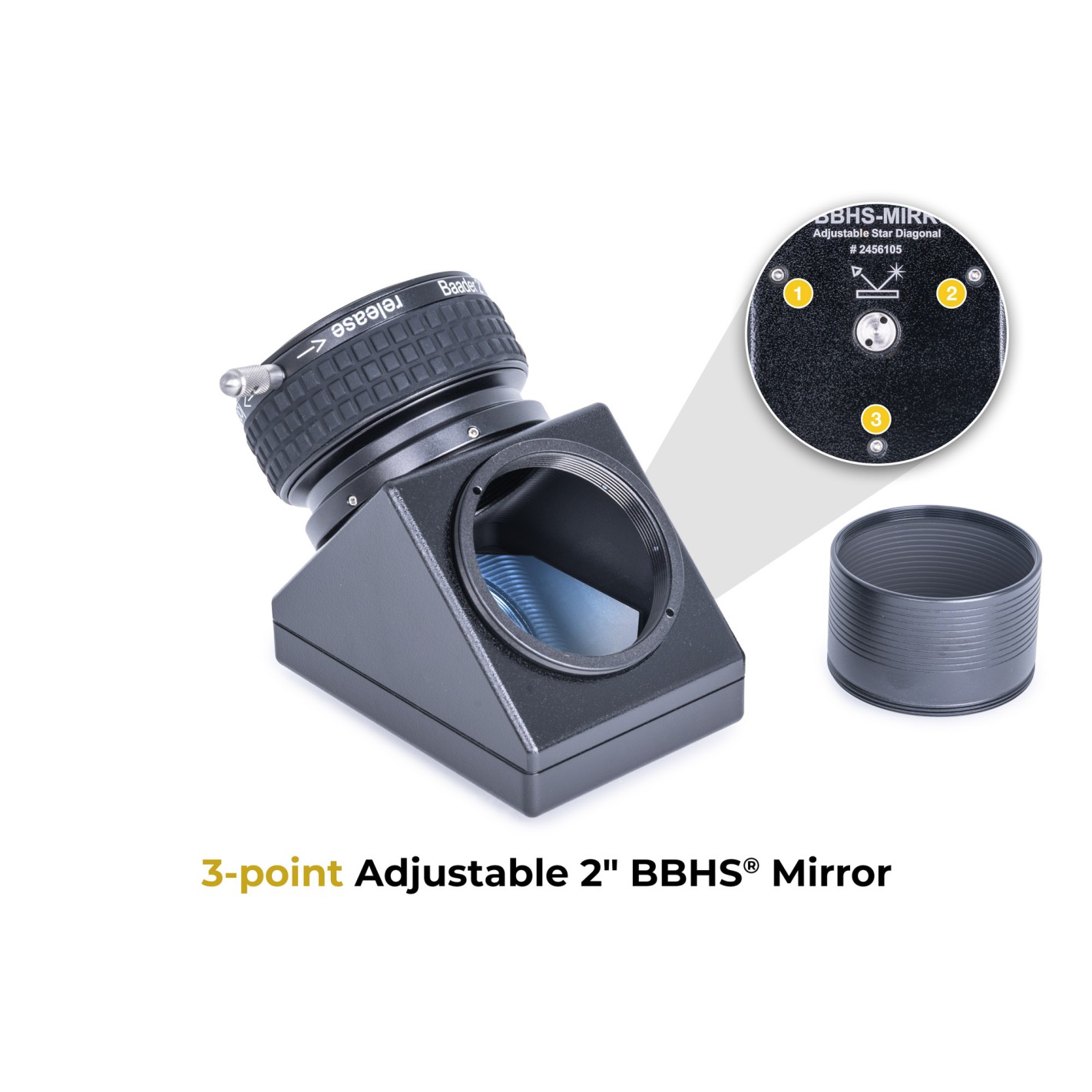

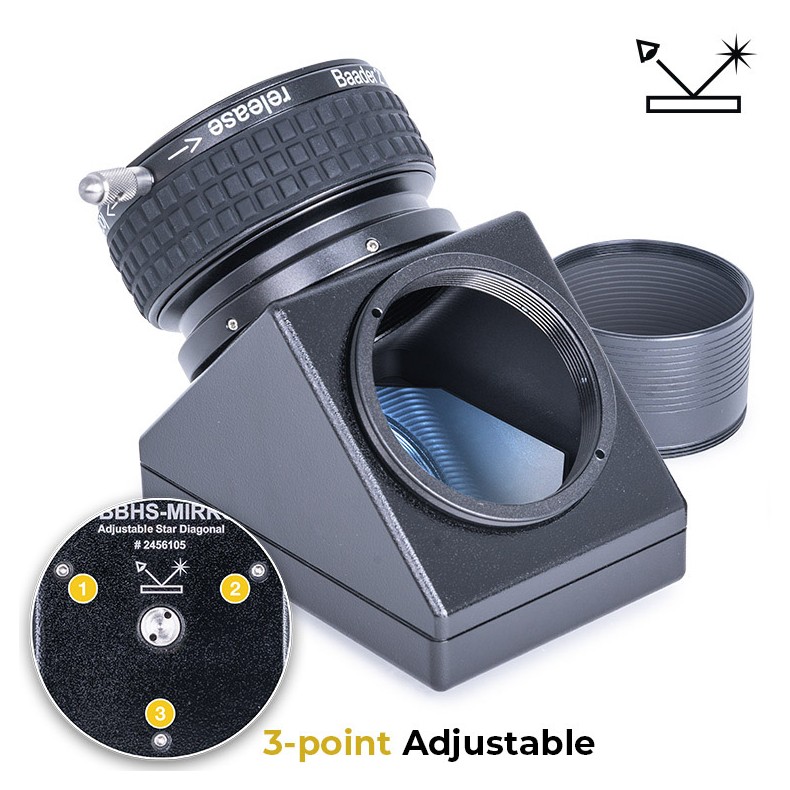

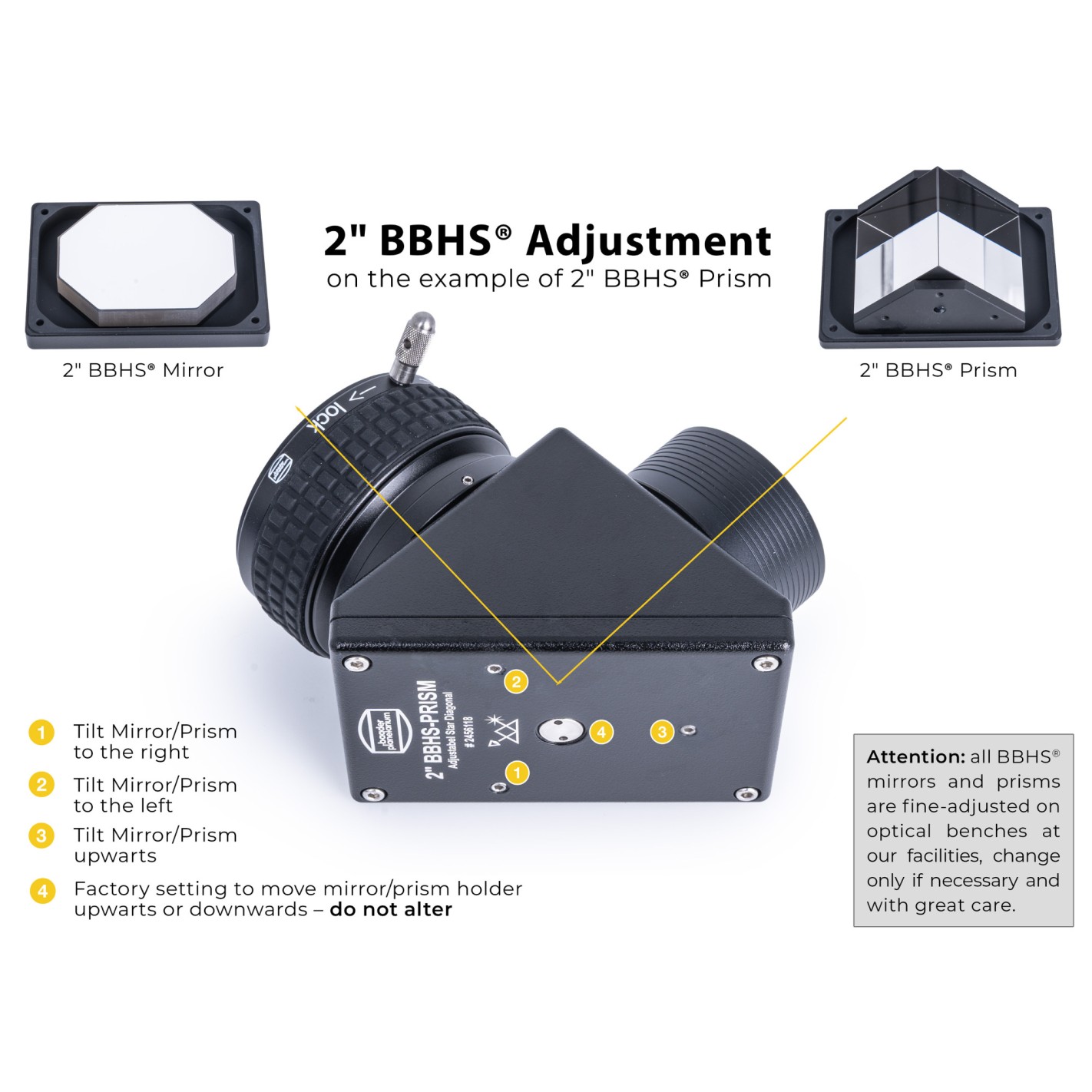

CNC milled black aluminum housing with adjustable wedge

Includes 2" to 2"/SCTa insert - with Safety-Kerf (#2408156 , € 43,- ) with additional grip and safety against accidental slippage.Mirror material made of glass-ceramic with a surface accuracy of 1/10 lambda.

Provides the highest reflectance over a wide spectral range from 390 to 2000 nm.

Much brighter than standard dielectric coatings.

BBHS = Broadband hard silver coating with dielectric protective overcoating.

Ideal for visual observation and astrophotography with maximum brightness, even in the infrared spectrum.

Successor to the Baader 2" BBHS ® diagonal mirror with 2" ClickLock clamp (#2456115).

SPECIFICATIONS

Baader 2" BBHS® 2" BBHS® Mirror - Adjustable Star Diagonal

Product Details:

SKU 2456105

EAN Code 4047825059024

Manufacturer Baader Planetarium

Mechanical Specifications

ClickLock® Clamping System

90° Deflection Angle

Internal Connection (eyepiece/camera side) ø 2" (50.8mm)M55

Internal Connection (lens side) M482"/SCT Thread (50.8 mm)

Internal Diameter / Diaphanous Aperture (mm) 47

External Connection (lens side) ø 2" (50.8mm)M55

Optical Specifications

Image Orientation Erect Image, Inverted Image Mirrored Image

Optical Design Diagonal Mirrored

Optical Length (mm) 112

Reflective Surface BBHS Coating
