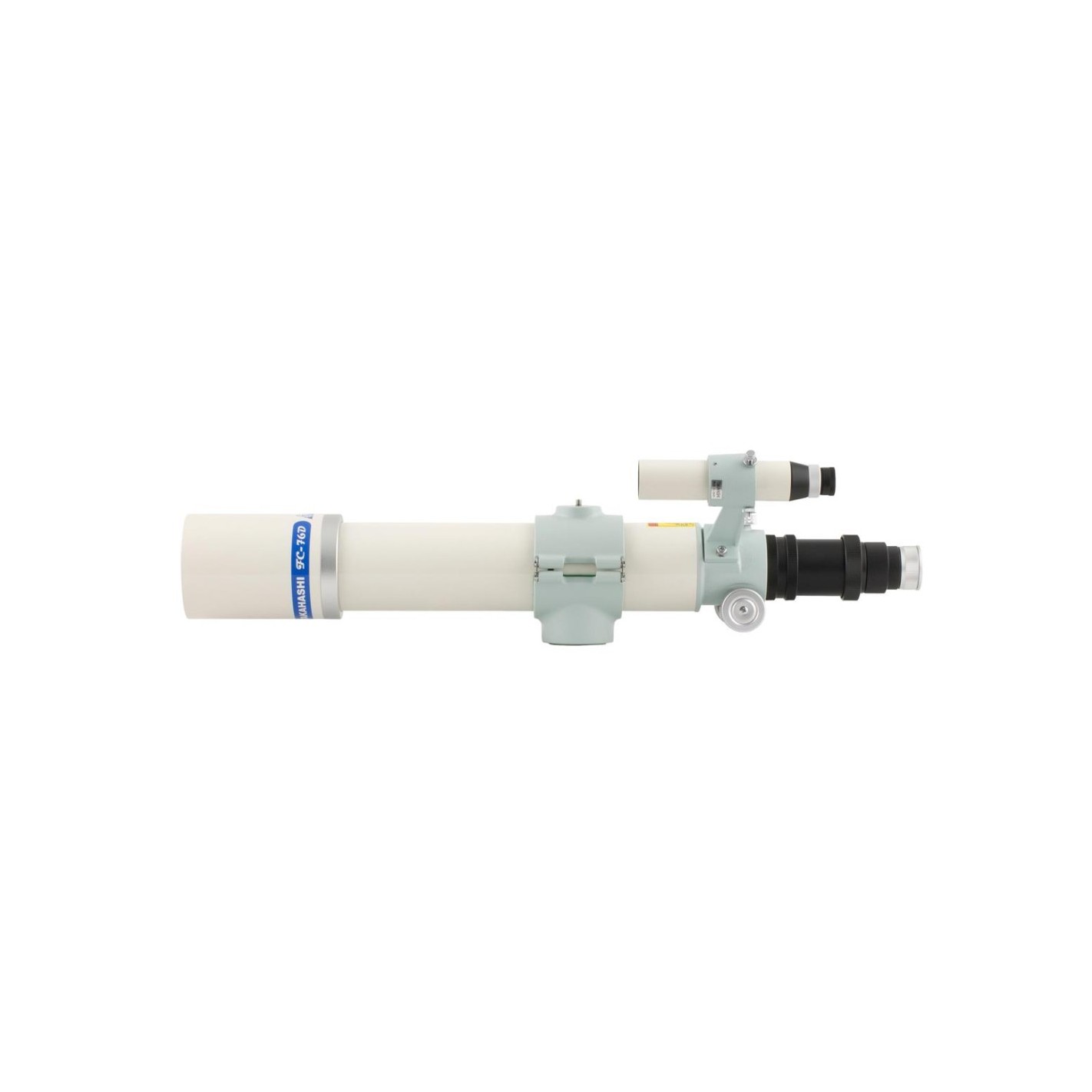

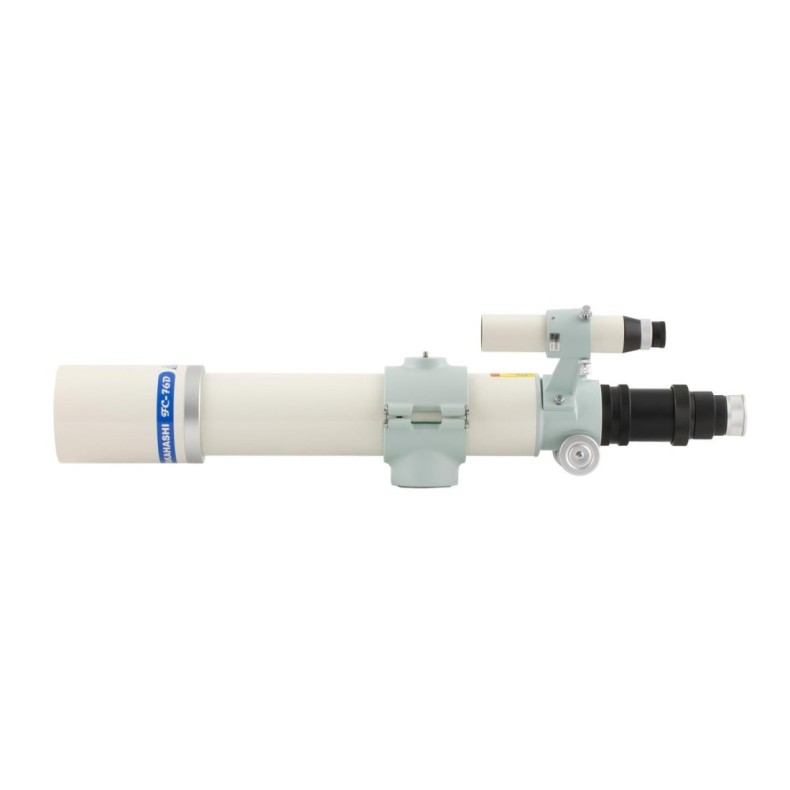

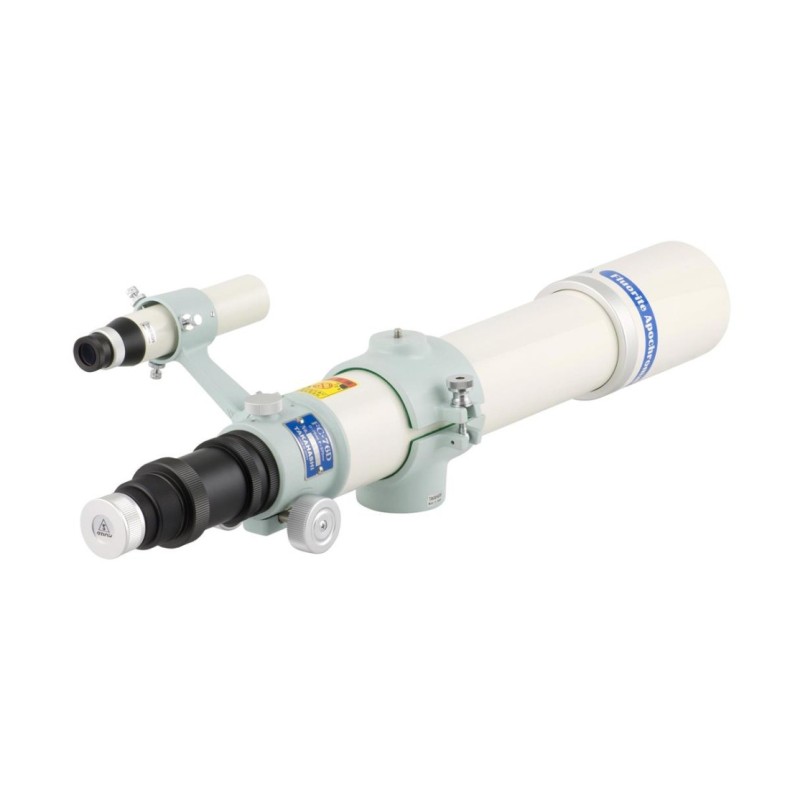

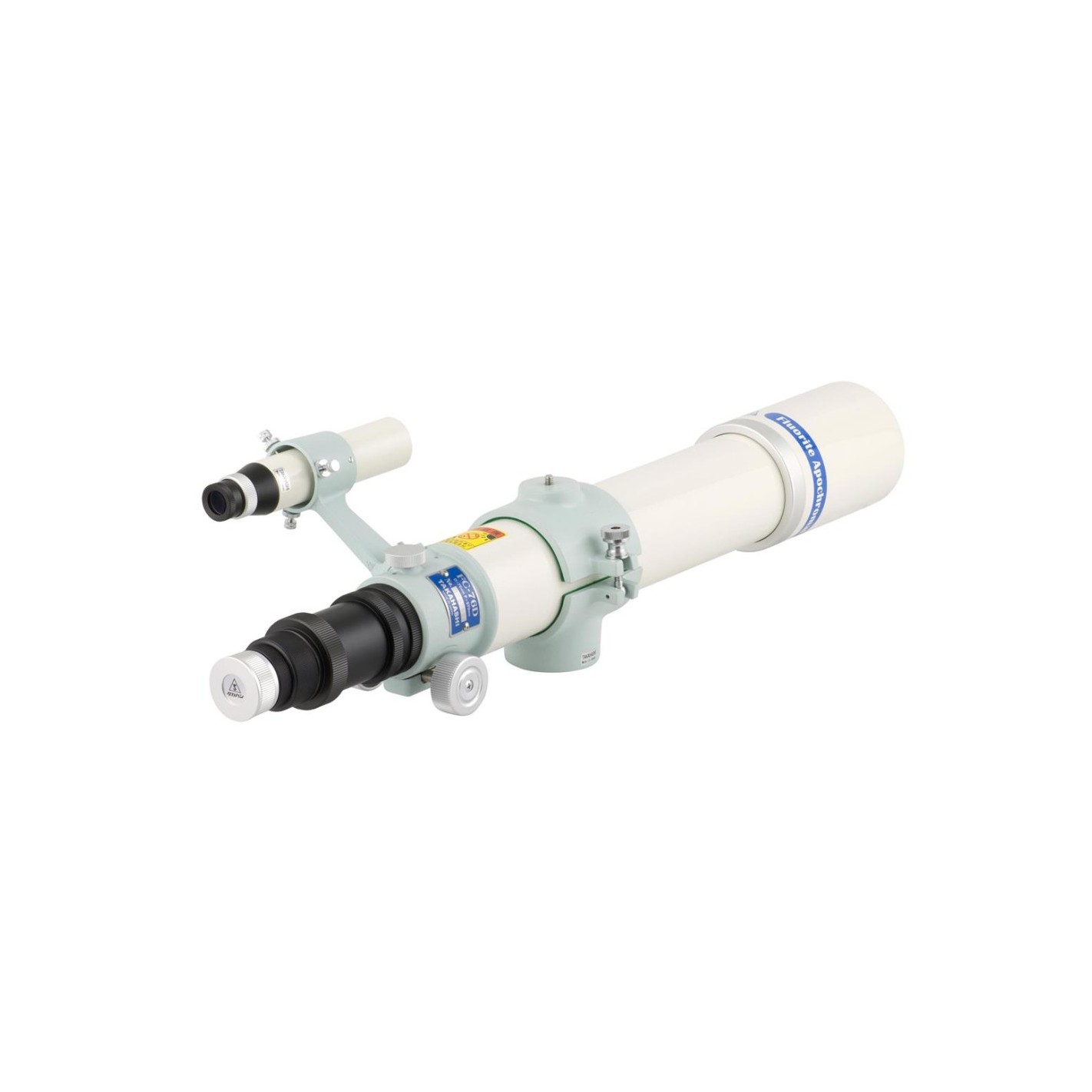

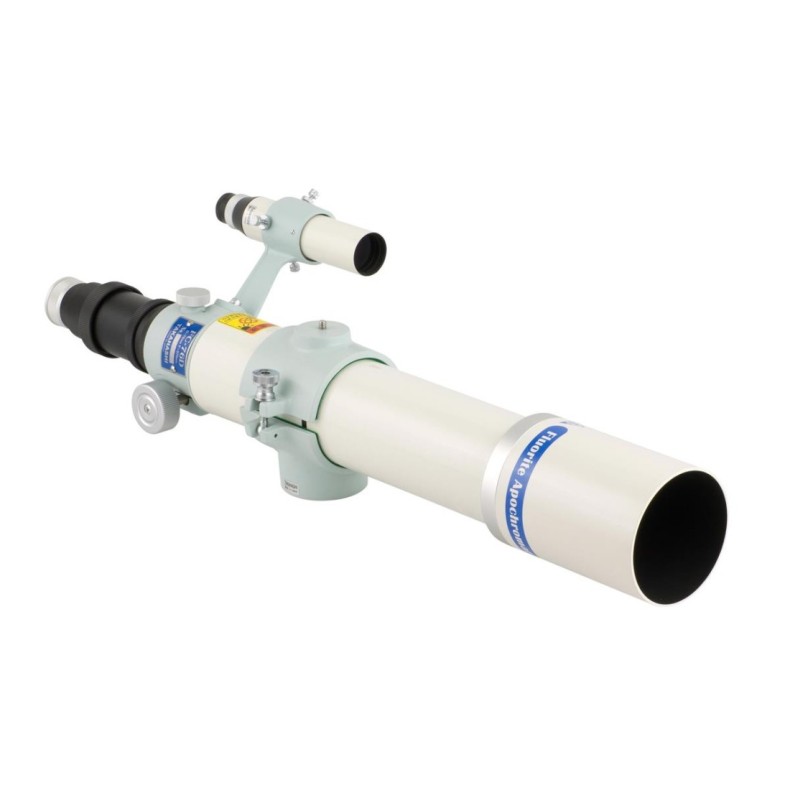

Optical tube Takahashi FC-76DCU complete D-76mm F570mm F/7.5 (Fluorite Doublet)

The FC-76DCU apochromatic telescope is equipped with a fluorite doublet with F/D 7.5. Its very low weight, only 1.9 kg for the tube alone, makes it a very easy to carry instrument, which can be used with a simple photographic tripod. It comes with a fixed demister and a compact 31.75 mm rack inherited from the FS-60CB. A brake locks the focus and an optional rotating collar can be added to facilitate photographic framing.

The FC-76DCU can be equipped with a focal length reducer (76D-RD) or a field corrector (either the 76D-FL or the multi-flattener FC/FS MF1.04X) for deep sky imaging.

The 80 mm diameter tube consists of 2 parts. It can be attached to the CQ 1.7X extender of the FS-60Q, which increases the F/D ratio from 7.5 to 12.75. The increased focal length then allows optimal chromatic correction for unforgettable planetary observations.

For owners of the FS-60CB, a conversion kit is available to transform this telescope into an FC-76DCU.

Telescope Features Takahashi FC-76DCU Telescope Features

Apochromatic lens with double fluorite lens

Air-gap lens mount. Internal fluorite.

Treatments Hard multi-coating.

Useful diameter 76 mm.

At native focus.

Focal length 570 mm.

Relative aperture F/D 7.5.

Backfocus 159 mm.

With FC/FS Multi-flattener MFL1.04X corrector

Focal length 589 mm

Relative aperture F/D 7.8

Diameter of the corrected image circle 44 mm

Backfocus 85.2 mm

With focal length reducer 76D-RD

Focal length 417 mm

Relative aperture F/D 5.5

Diameter of the corrected image circle 36 mm

Backfocus 56.2 mm

With EX-Q1.6X extender

Focal length 916 mm

Relative aperture F/D 12

Backfocus 157 mm

With 1.7XR extender

Focal length 969 mm

Relative aperture F/D 12.8

Mechanical characteristics

Telescope Feature Telescope Takahashi FC-76DCU

Tube length 656 mm (with fog shield)

Tube diameter 80 mm

Fog shield diameter 95 mm

Weight 1.9 kg

Focusing Rack and pinion

Supplied together with the tube:

TAKTKA00551 Seeker 6x30

TAKTKA00562 Finder stand

TAKTKA20420Q tube holder

Diagram of telescope focal point Takahashi FC-76DS at prime focus

Diagram of telescope focus point Takahashi FC-76DS with field corrector FC/FS MFL1.04X

Focal point diagram of Takahashi FC-76DS telescope with 76D-RD focal length reducer
