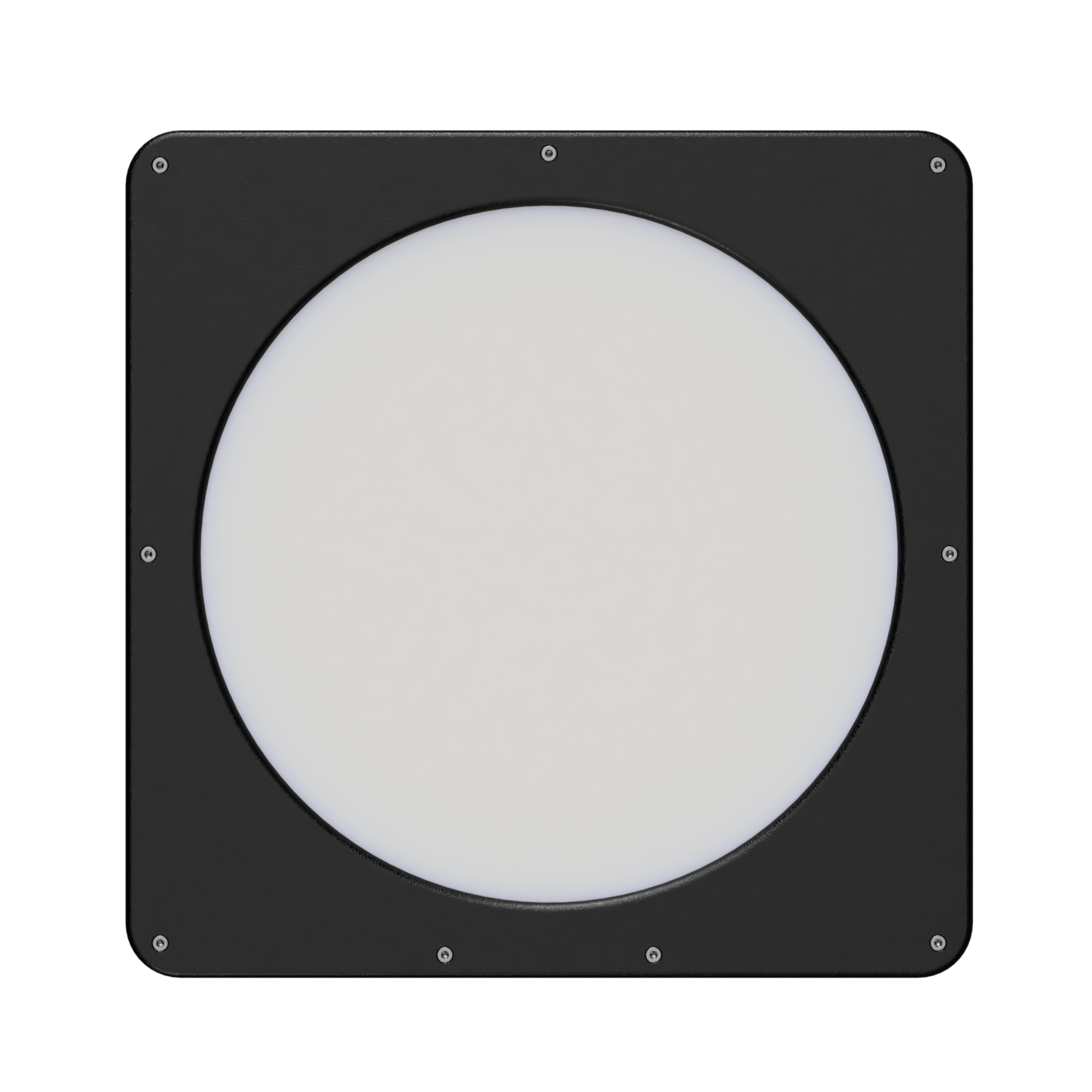

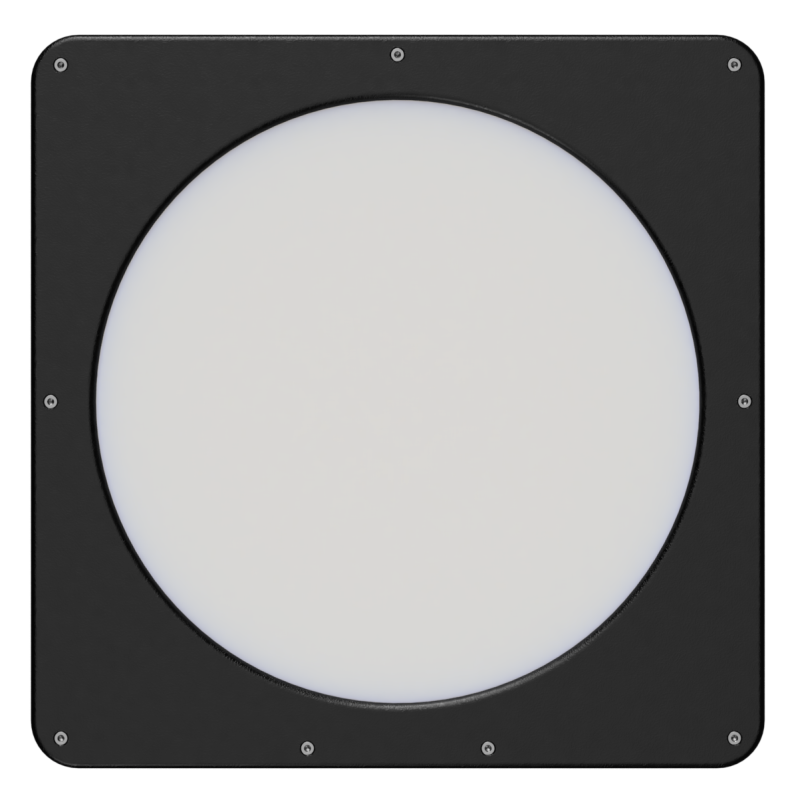

PEGASUS Flatmaster 250L Wifi LED dimmable Flats Panel (up to 10"') with WiFi function

Adjustable panel

Unlike other panels on the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget about sheets of paper between your telescope and the panel. Control the brightness of your panel remotely. Store the brightness per filter and immediately recall the value you need.

The Flatmaster 250L can reach very high brightness levels, so it can easily support short exposures (2-3 seconds at f/7) with 3 nm narrow band image filters.

Manual button

FlatMaster has a small push button that adjusts different gradual brightness levels. In case you want to manually operate the FlatMaster, no problem, just press the push button to control the brightness.

One-cable operation

Only one cable (USB) is needed to power and control your flat display.

Wi-Fi support

The new Flatmaster is Wi-Fi enabled, allowing you to control and monitor the focus remotely from your cell phone.

In addition, it can operate simultaneously with USB or Wi-Fi, providing flexibility and ease of use for astronomers, all from the convenience of your smartphone.

FlatMaster Wi-Fi control panel

When you connect to the FlatMaster Wi-Fi access point, the panel's control interface is automatically activated and ready for immediate use. In addition, you can conveniently access it from any web browser by simply entering "flatmaster.local" in the address bar.

This function is independent of the operating system and works perfectly together with the USB control, offering flexibility and convenience in a wide range of configurations.

FlatMaster is compatible with the most popular image processing programs, such as SGPro, APT Voyager and N.I.N.A.

Sequence Generator Pro (SGPro)

Voyager Astrophotography Automation

Astrophotography Tool (APT)

Nighttime Imaging 'N' Astronomy (N.I.N.A)

Product Contents

1 x FlatMaster 250L (suitable for any telescope with an aperture up to 250mm or 10 inches)

1 x USB2 Type B 1.8m cable

Compatibility with ASCOM and INDI

FlatMaster 250 is compatible with the latest version of ASCOM 7 and INDI.

Technical Specifications

Type: Led Panel Light (White)

Dimmable: Yes - (0-100%)

Material: Resistant black ABS plastic

Manual push button: Each click applies a different brightness level

Usable circle diameter: 250mm / 10 inches

Power requirements: 5V DC supplied by mini USB cable (500mA max)

Size: Diameter 250mm x 8mm thickness

Weight: 840g

Capabilities: Wi-Fi Access Point or client (at 2.4GHz)
