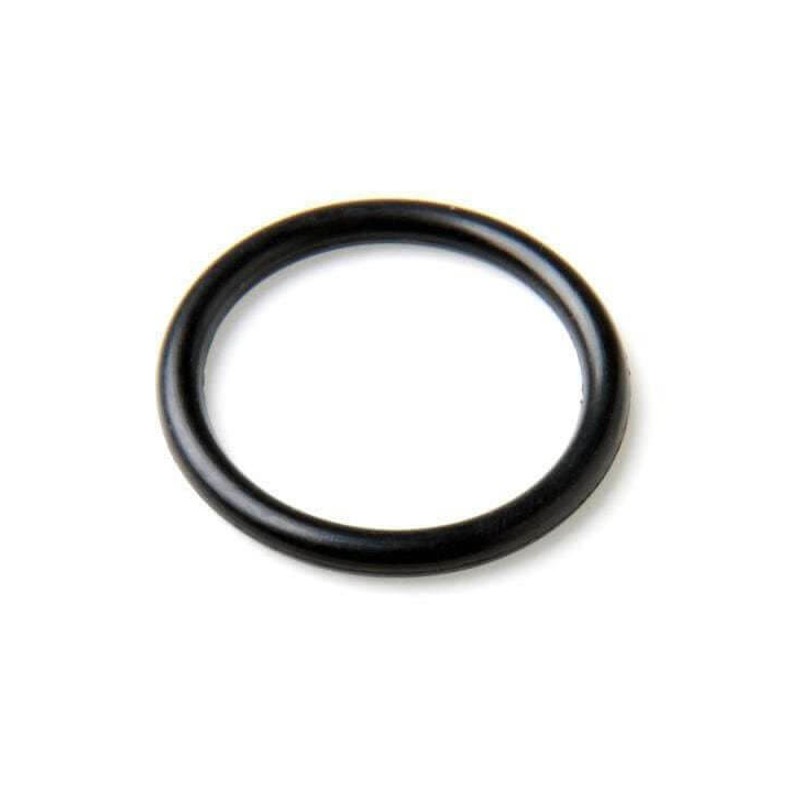

LUNT 34mm O-Ring for Pressure-Tuner of MT & THa Solar Telescopes
LUNT0558340
Stock at Supplier
4.13
VAT excluded
Shipping 5/7d
- Spare part, cannot be used individually
- Only for Lunt Solar Systems MT and THa telescopes
- Different sizes of O-rings are available
- Please note the description of this spare part
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
UPS - Resto del mundo | UPS - Rest of the World |
Tuesday, 3 March - Tuesday, 10 March |
|
UPS - Resto del mundo
UPS - Rest of the World
Estimated delivery:
Tuesday, 3 March - Tuesday, 10 March
✖
Replacement part for Pressure-Tuner of LUNT SOLAR SYSTEMS MT and THa series H-Alpha solar telescopes
Two rubber O-rings are installed in the Pressure-Tuner of Lunt Solar Systems solar telescopes to seal the air pressure adjustment system. Over time, the rubber in these O-rings can age and become porous, making it impossible to maintain air pressure. An old O-ring can then be replaced with this spare part. Replacement is simple and can be done by the user. The installation instructions can be found here under the "Instructions" tab as a downloadable PDF.
Please note:
Depending on the production series, the piston diameters of the Pressure-Tuner pistons may vary. There are O-ring pistons with an inner diameter of 32mm and an outer diameter of 40mm, and O-ring pistons with an inner diameter of 34mm and an outer diameter of 42mm. Please check the diameter of your old O-rings, this replacement part is an O-ring with an inner diameter of 34mm and an outer diameter of 42mm.
If you need the smaller O-ring with an inner diameter of 32mm and an outer diameter of 40mm, this is the replacement part with item number 0558330.
LS50THa scopes have Pressure-Tuners with smaller diameters, for these you need replacement O-rings with item number 0558320.
After replacing an O-ring, the piston and cylinder of the Pressure-Tuner can be re-greased with the grease available under item number 0558350.
FEATURES
INCLUDES
Two rubber O-rings are installed in the Pressure-Tuner of Lunt Solar Systems solar telescopes to seal the air pressure adjustment system. Over time, the rubber in these O-rings can age and become porous, making it impossible to maintain air pressure. An old O-ring can then be replaced with this spare part. Replacement is simple and can be done by the user. The installation instructions can be found here under the "Instructions" tab as a downloadable PDF.
Please note:
Depending on the production series, the piston diameters of the Pressure-Tuner pistons may vary. There are O-ring pistons with an inner diameter of 32mm and an outer diameter of 40mm, and O-ring pistons with an inner diameter of 34mm and an outer diameter of 42mm. Please check the diameter of your old O-rings, this replacement part is an O-ring with an inner diameter of 34mm and an outer diameter of 42mm.
If you need the smaller O-ring with an inner diameter of 32mm and an outer diameter of 40mm, this is the replacement part with item number 0558330.
LS50THa scopes have Pressure-Tuners with smaller diameters, for these you need replacement O-rings with item number 0558320.
After replacing an O-ring, the piston and cylinder of the Pressure-Tuner can be re-greased with the grease available under item number 0558350.
FEATURES
- Inner diameter: 34mm
- Outside diameter: 42mm
- Cannot be used individually, only as a spare part in the Pressure-Tuner of the Lunt Solar Systems MT and THa telescopes
- It does not matter which locking filter the MT or THa telescope has
INCLUDES
- Spare O-ring with 34mm inner diameter and 42mm outer diameter for the Pressure-Tuner of the Lunt Solar Systems H-Alpha MT and THa solar telescopes
| Color: | black |
|---|---|
| Extended warranty (years): | 2 |
| Material: | Rubber |
| Batteries required: | No |
